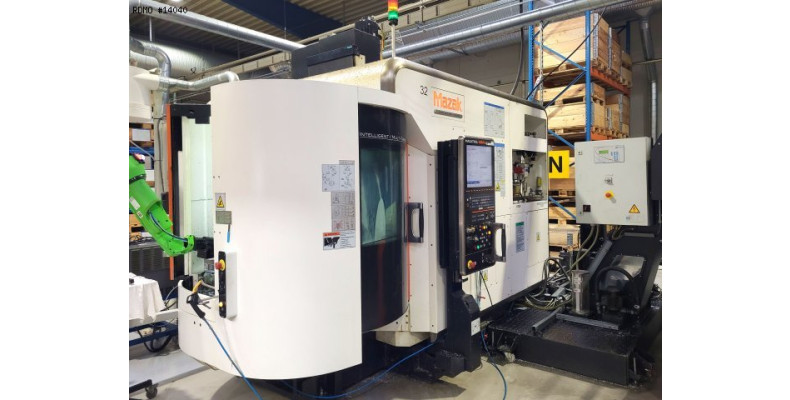

Marca: Mazak
Modello: VARIAXIS i-500
Anno: 2014
Nr Serie: 257301
Marca: Mazak
Modello: VARIAXIS i-500
Anno: 2014
Nr Serie: 257301

Caratteristiche & Attrezzatura

Caratteristiche

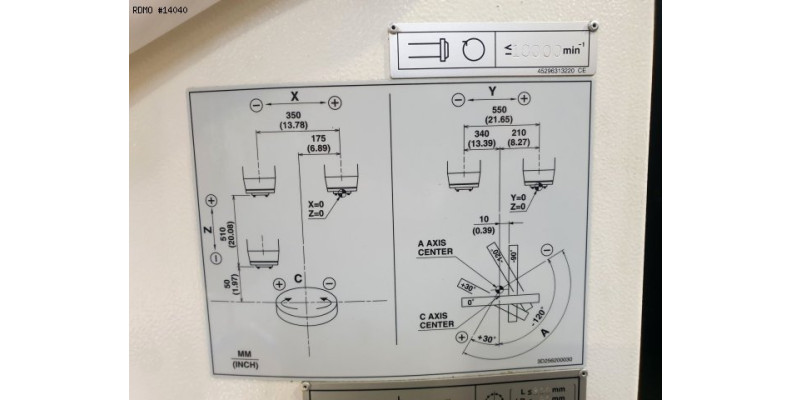

- Number of axes : 5 MILLING SPINDLE - Tool holder type : BT40 - Spindle speed : 18.000 [rpm] - Spindle power : 35 [kW] LINEAR AXES - Travels on X/Y/Z axes : 350 x 550 x 510 [mm] - Rapid traverses rates (X/Y/Z) : 60 / 60 / 56 [m/min] - Cutting feed rate : 56.000 [mm/min] A ROTARY AXIS - Travel : -120 / +30 [°] - Indexing precision : 0,001 [°] - Cutting feed rate : 50 [rpm] C ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] - Cutting feed rate : 50 [rpm] TOOL CHANGER - Auto. Tool Changer type : Loading arm - Tool magazine capacity : 80 PALLET CHANGER - Pallet size : 400 x 400 [mm] - Pallets number : 2 - Maximum weight upon table : 300 [kg] - Max. turning diameter : 500 [mm] - Max. worpiece height : 350 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 56,5 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.600 X 2.400 [mm] - Machine height : 2.975 [mm] - Machine weight : 11.300 [kg] MACHINE HOURS - Number of hours under power : 44.637 [h] - Number of working hours : 31.872 [h]
Attrezzatura

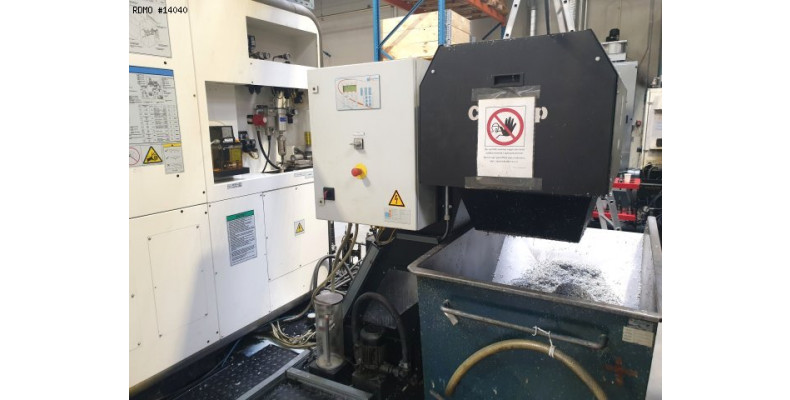

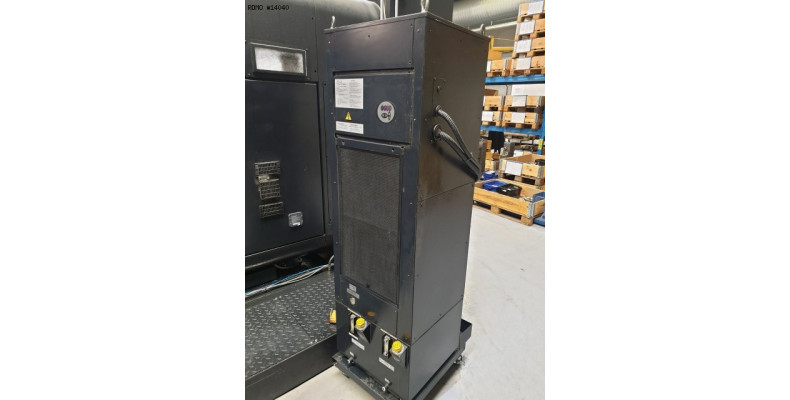

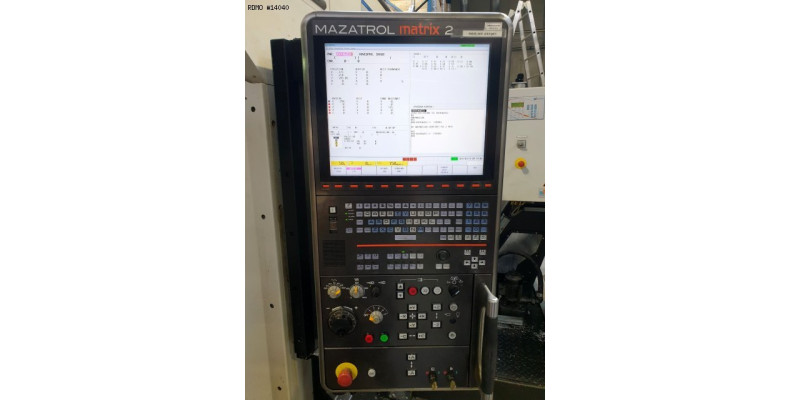

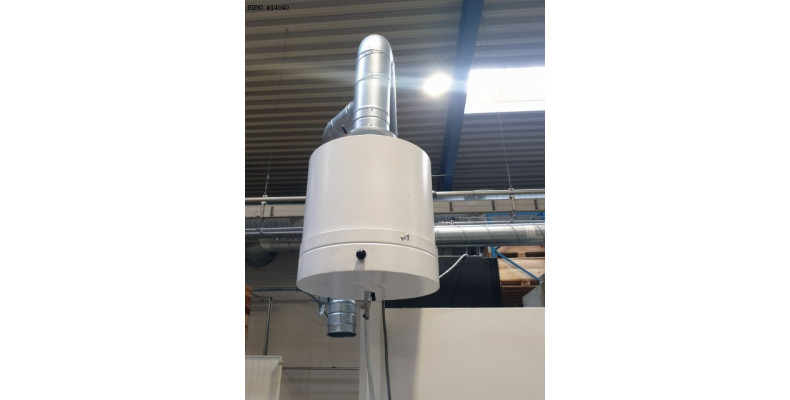

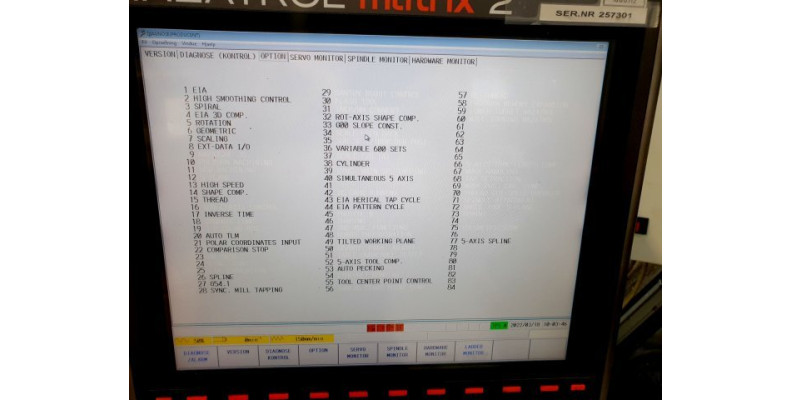

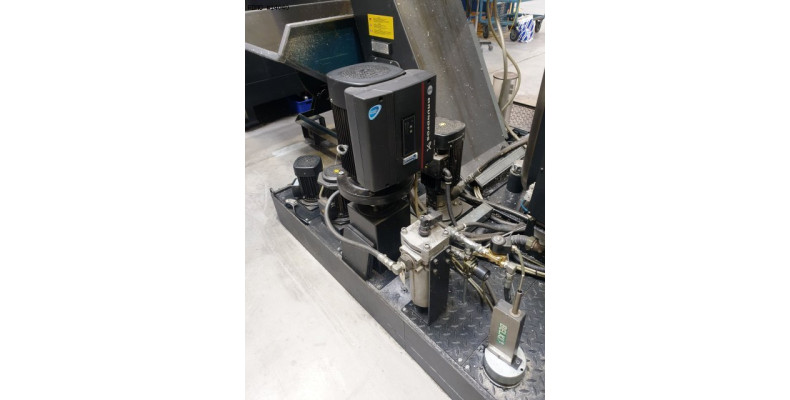

- CNC : Mazatrol Matrix 2 - Option : 5 axis machining package - Interface : PCMCIA / RJ45 / USB - Rigid tapping - 3 colors status lamp - COOLANT TANK * with high-pressure pump : 30 [bars] - Coolant through spindle - Oil mist extractor - Spindle cooling unit - Chips conveyor : MAYFRAN Consep 2000 - Workpiece probe : Renishaw (preparation only)
