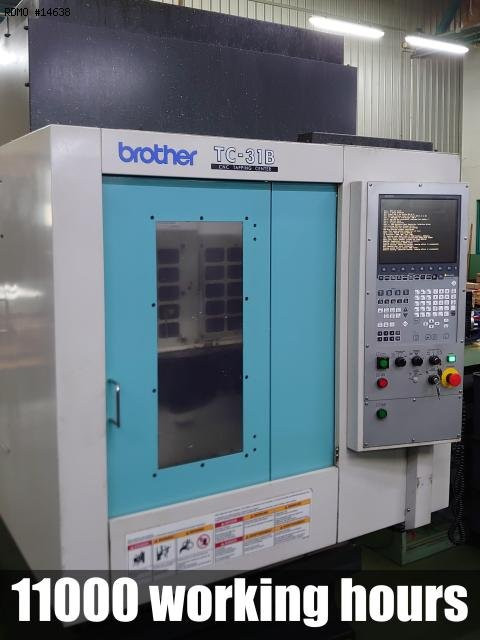

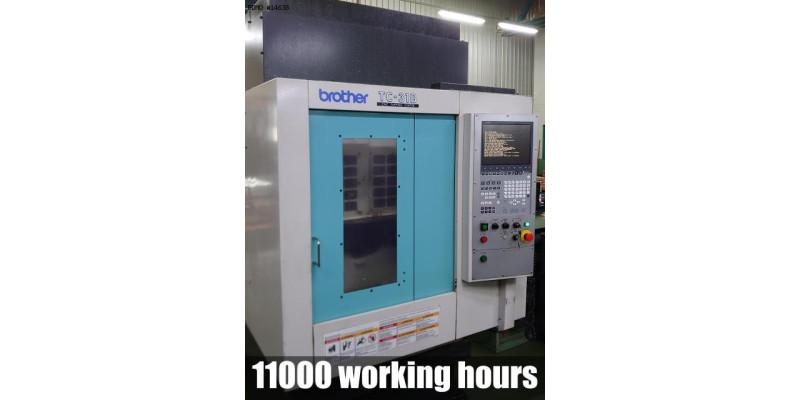

Marca: BROTHER
Modello: TC-31B
Anno: 2010
Nr Serie: 114174
Marca: BROTHER
Modello: TC-31B
Anno: 2010
Nr Serie: 114174

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 3
MILLING SPINDLE
- Tool holder type : BT30
- Spindle power : 7,4 [kW]
- Spindle speeds : 16.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 350 x 250 x 350 [mm]
- Rapid traverses rates (X/Y/Z) : 50 [m/min]
- Cutting feed rates (X/Y/Z) : 1 - 20.000 [mm/min]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 26
- Tool exchange time : 1,7 [sec]
PALLET CHANGER
- Pallet size : 500 x 260 [mm]
- Pallets number : 2
- Maximum weight : 80 [kg]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 25.9 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1.404 x 3.204 [mm]
- Machine height : 2.283 [mm]
- Machine weight : 2.470 [kg]
MACHINE HOURS
- Number of working hours : 10.886 [h]
Attrezzatura

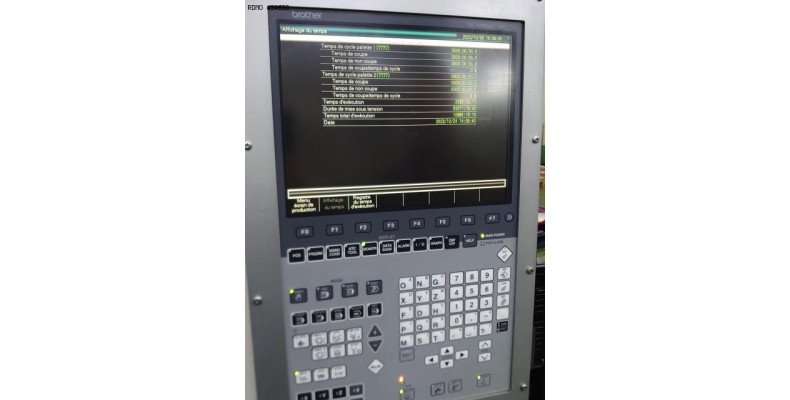

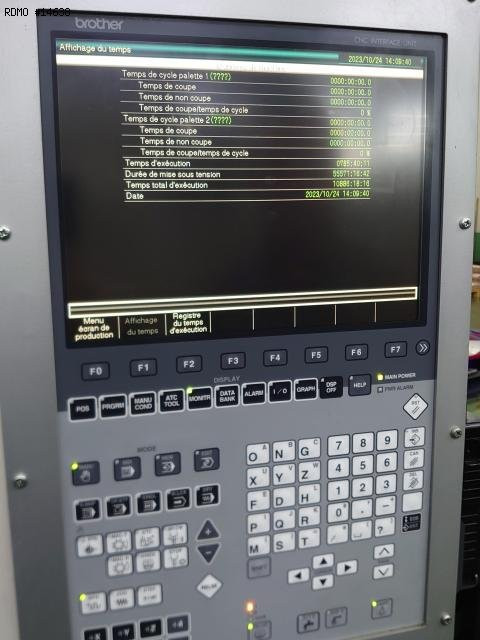

- CNC : BROTHER CNC-B00
- Electronic handwheel
- Coolant tank
- Coolant through spindle
- Electric transformer
Specifiche tecniche per il download
