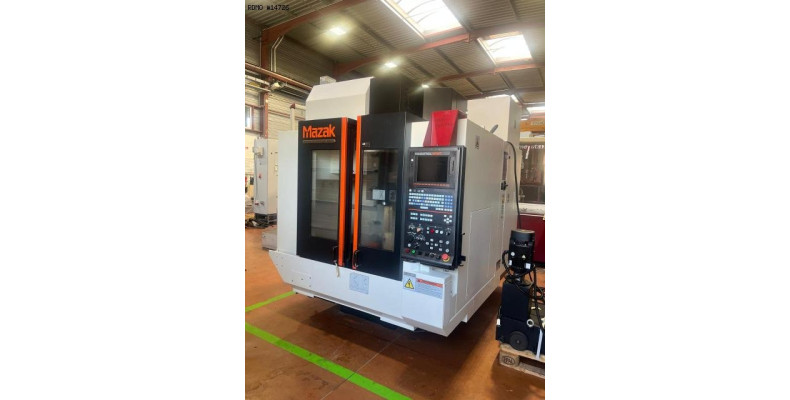

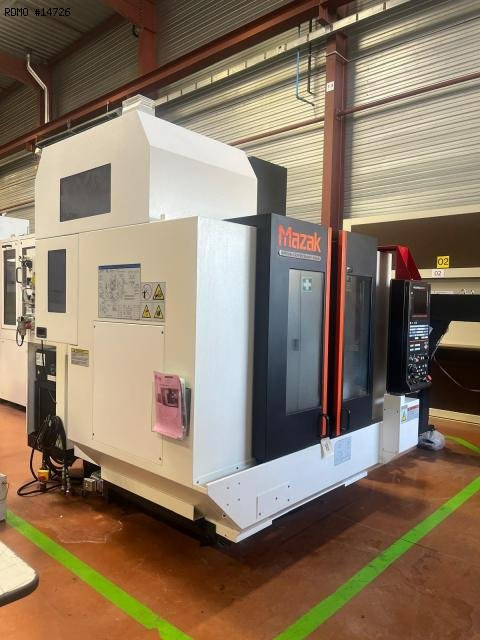

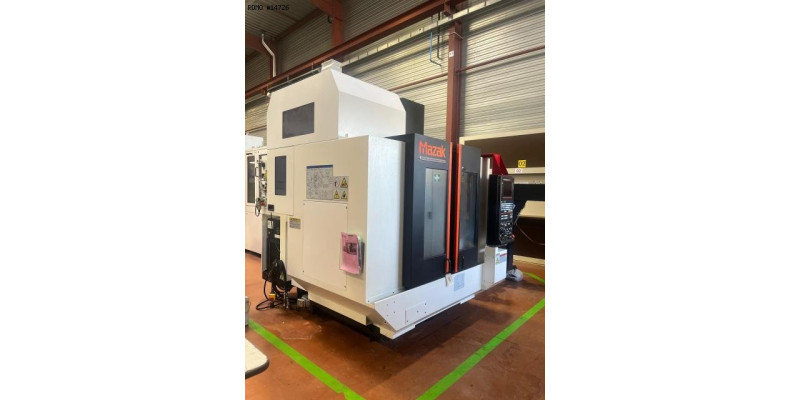

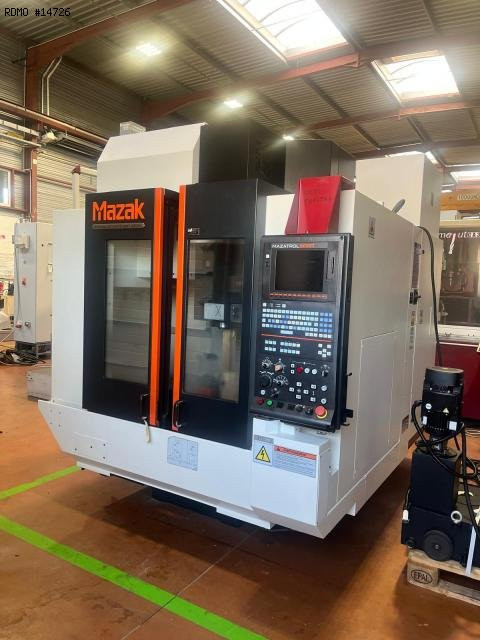

Mazak SMART 430A L 3 assi

Fresatura Centro di lavoro verticale

14726

Specifiche tecniche per il download

Marca: Mazak

Modello: SMART 430A L

Anno: 2017

Nr Serie: 281413

14726

Mazak SMART 430A L 3 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: Mazak

Modello: SMART 430A L

Anno: 2017

Nr Serie: 281413

Richieda un prezzo

Caratteristiche

- Number of axes : 3

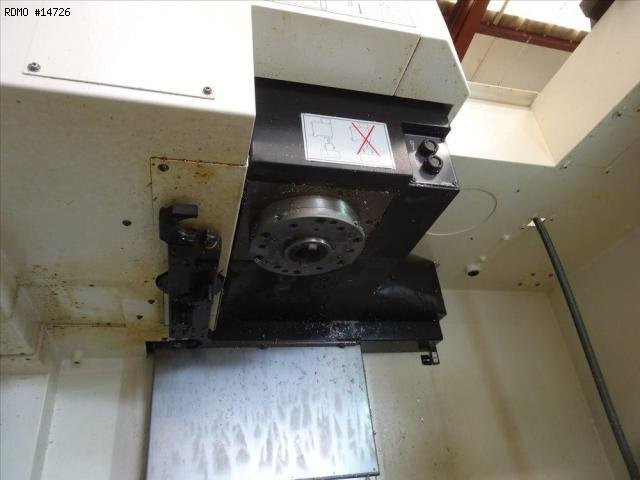

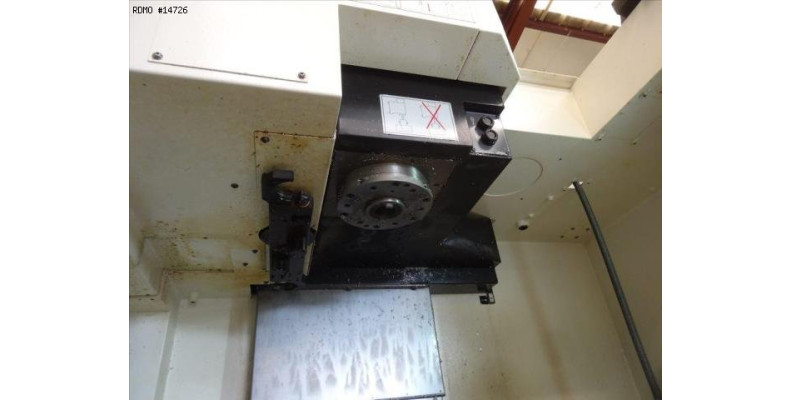

MILLING SPINDLE
- Tool holder type : ISO40
- Spindle power : 18,5 [kW]
- Spindle speeds : 12.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 560 x 430 x 510 [mm]
- Rapid traverses rates (X/Y/Z) : 42 sur le X et 36 en Y/Z [m/min]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 30

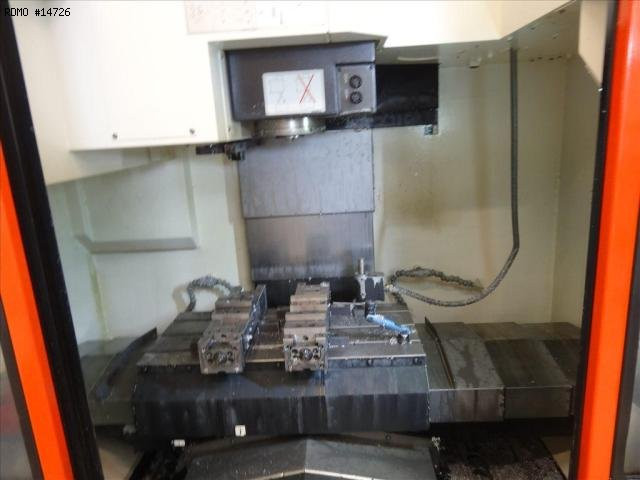

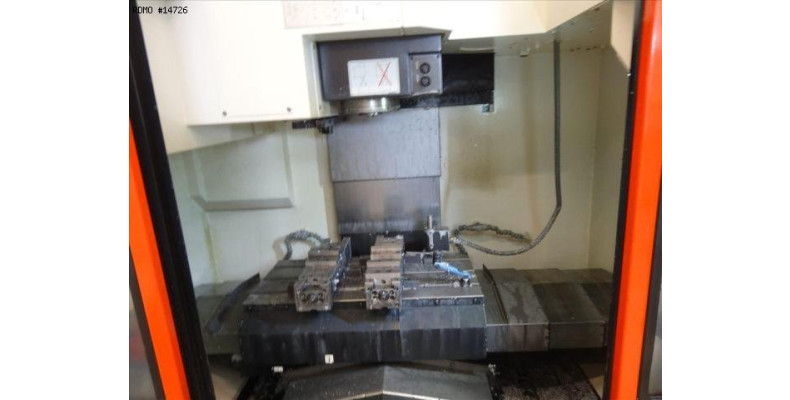

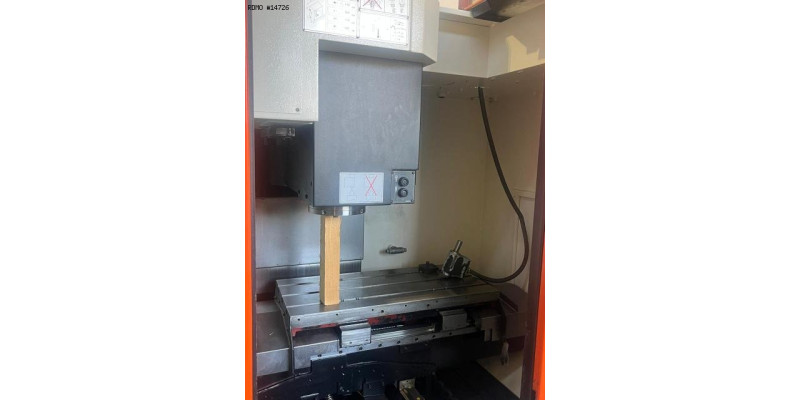

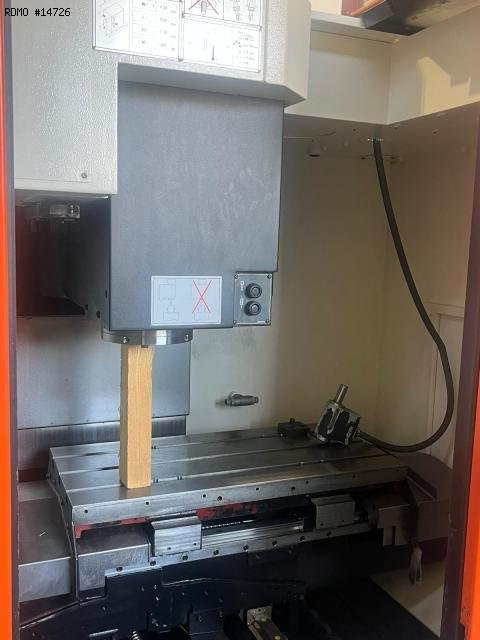

TABLE
- Table dimensions : 900 x 430 [mm]
- Maximum weight upon table : 500 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2062 x 2080 [mm]
- Machine height : 2780 [mm]
- Machine weight : 4800 [kg]

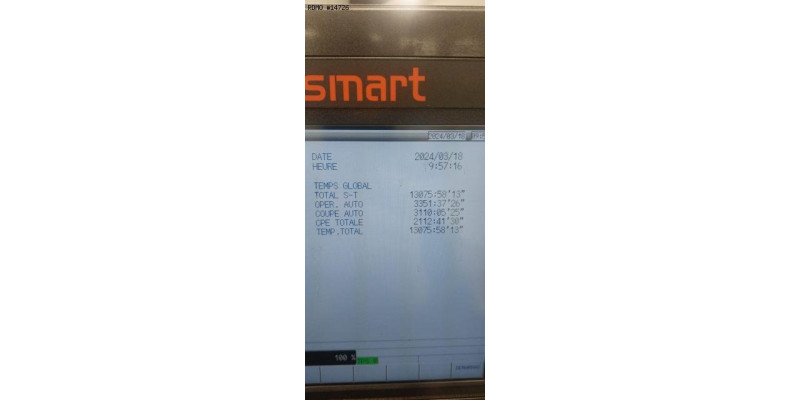

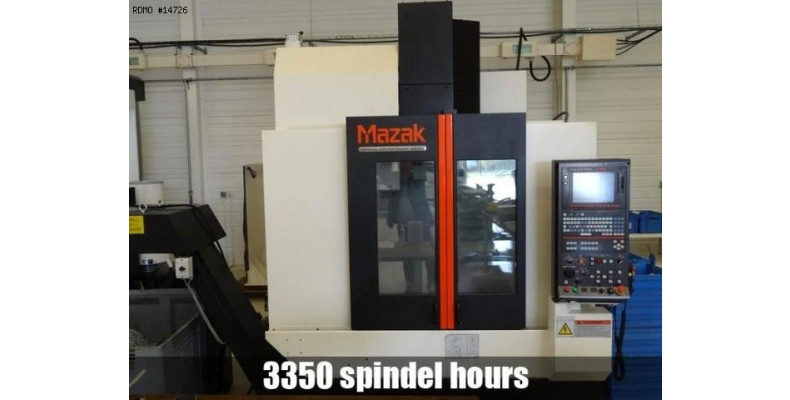

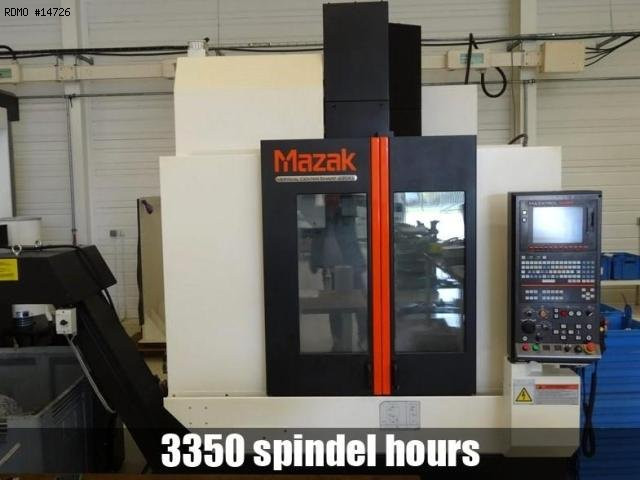

MACHINE HOURS

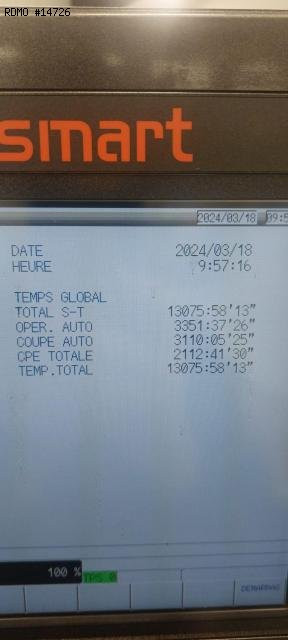

- Number of spindle hours : 3351 [h]

Attrezzatura

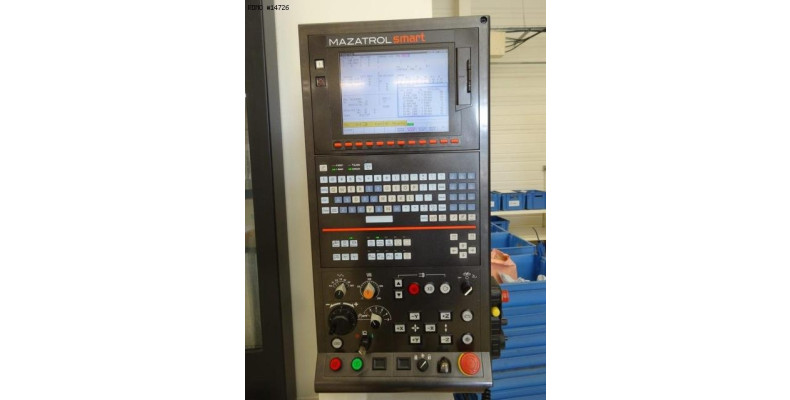

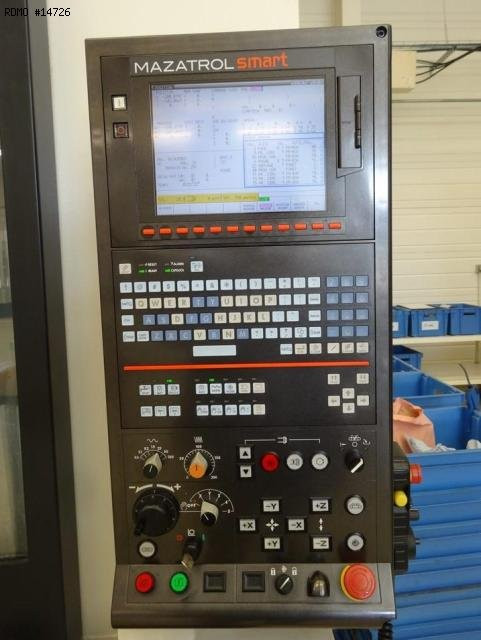

- CNC : SMART
- Interface : PCMCIA / RS232
- Interactive programming : Mazatrol
- Electronic handwheel
- 3 colors status lamp
- COOLANT TANK
* with high-pressure pump : 15 [bars]
- Coolant through spindle

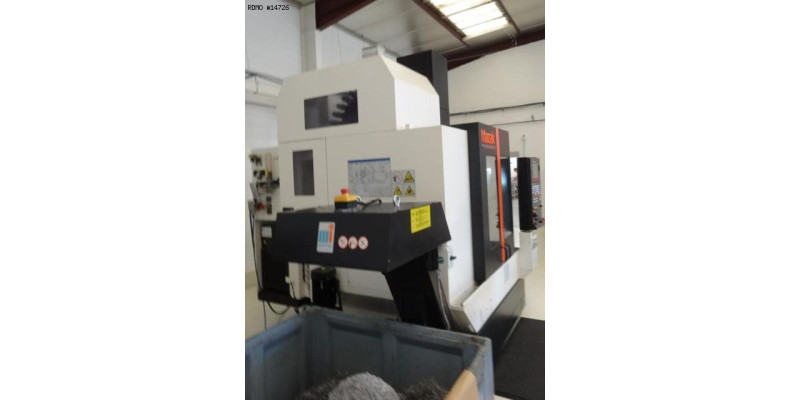

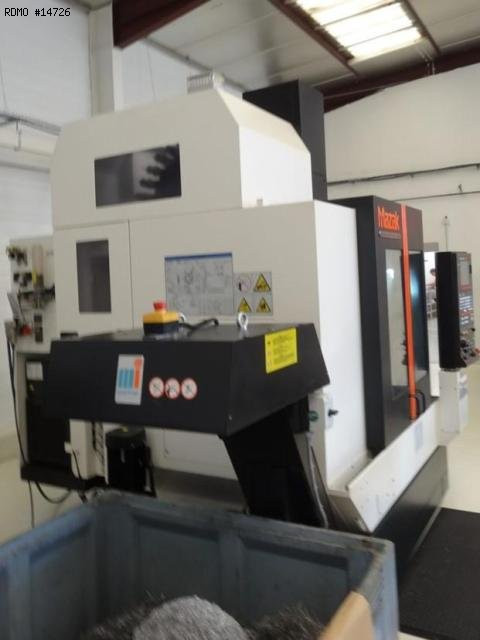

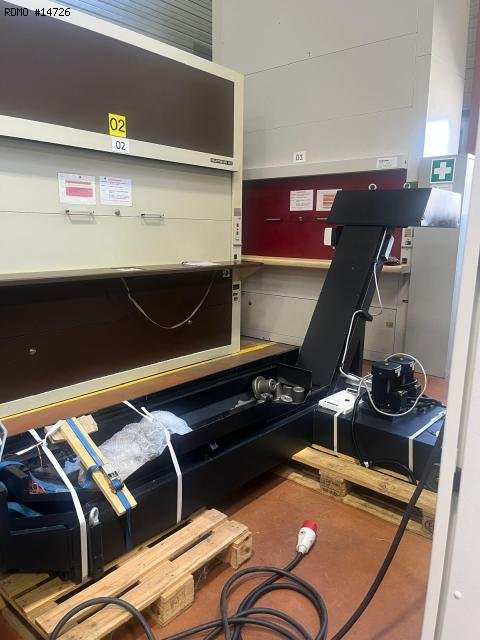

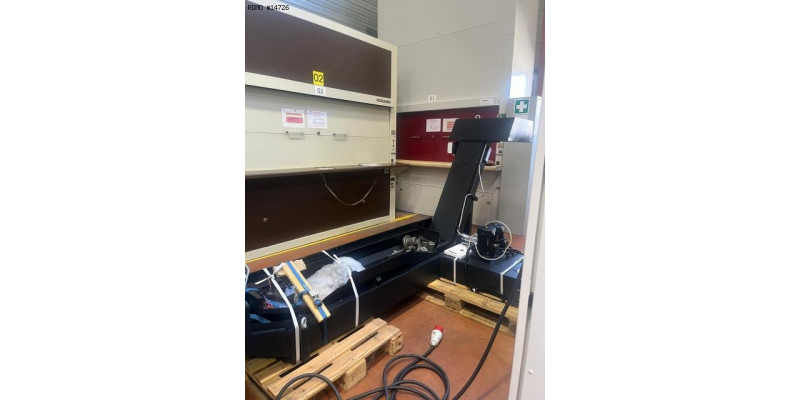

- Chips conveyor
- Tool probe : Longueur uniquement
