Marca: Startech
Modello:
Anno: 2013
Nr Serie: 8973
Marca: Startech
Modello:
Anno: 2013
Nr Serie: 8973

Caratteristiche & Attrezzatura

Caratteristiche

- Number of axes : 4
- Max. band widht : 30 [mm]
- Max. band thickness : 5 [mm]

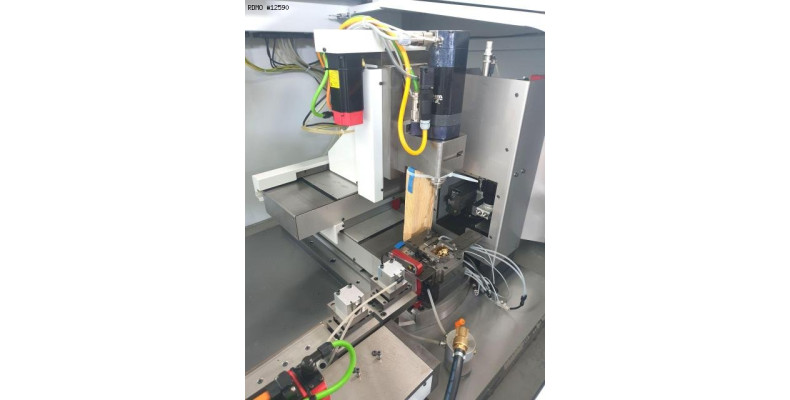

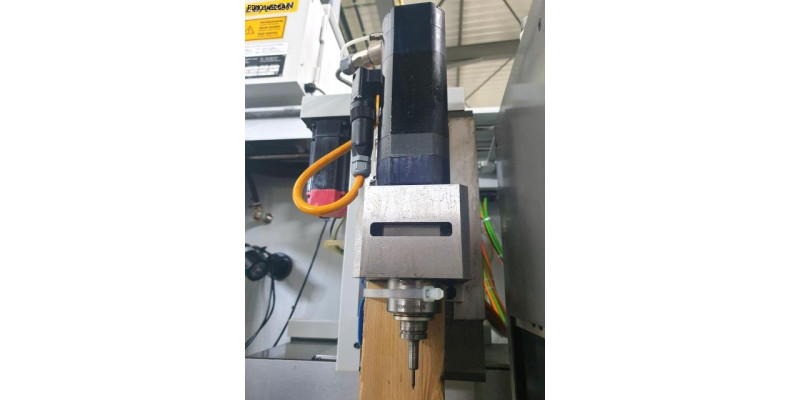

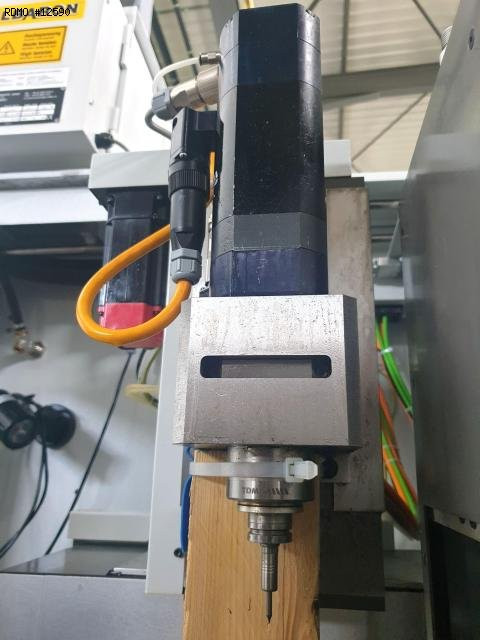

MILLING SPINDLE
- Tool holder type : HSK-E25
- Spindle power : 1,8 [kW]
- Spindle speeds : 20.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 100 x 100 x 100 [mm]

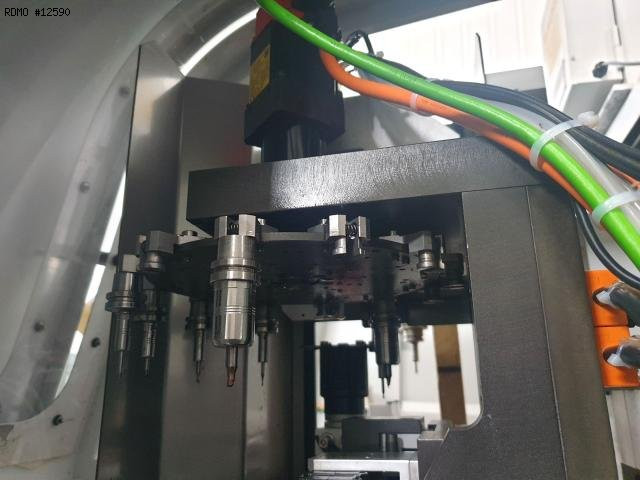

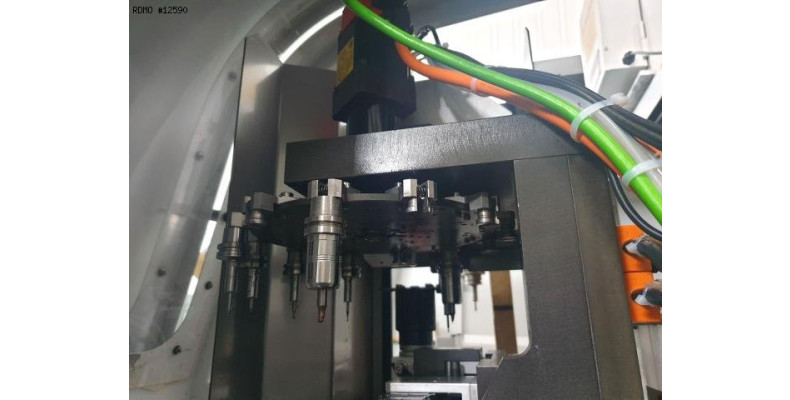

TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 12
TABLE : BAND FEED
- travel 4th axis : 80 [mm]
WEIGHT & DIMENSIONS
- Machine floor space : 2.000 x 1.500 [mm]
- Machine height : 2.100 [mm]
- Machine weight : 1.500 [kg]
Attrezzatura

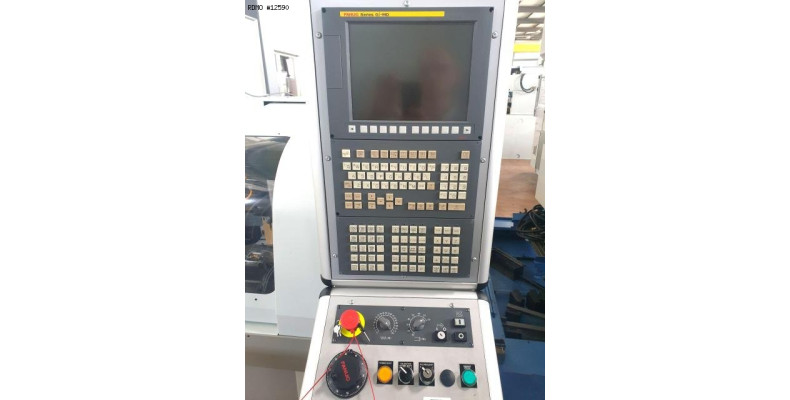

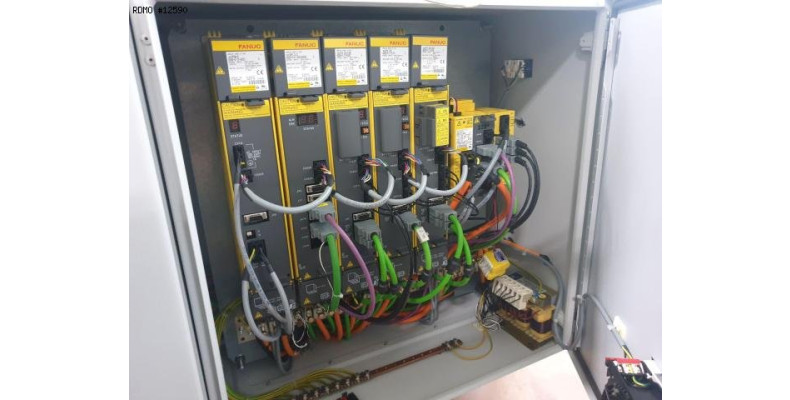

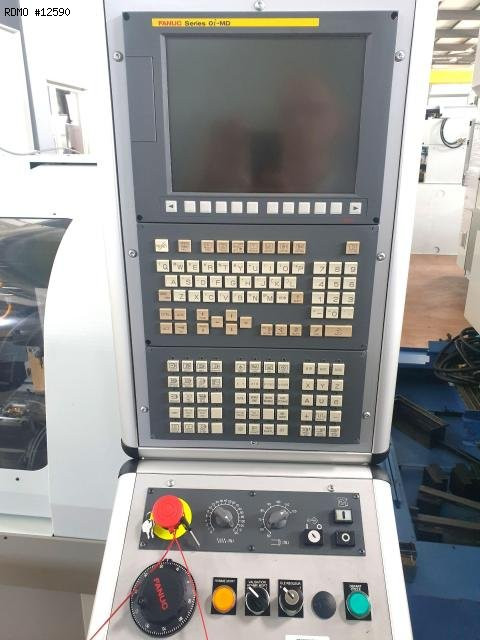

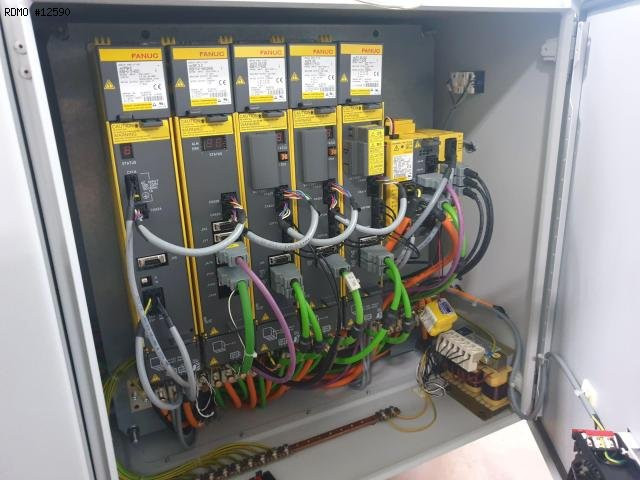

- CNC : Fanuc 0i-MD
- Interface : PCMCIA
- CNC driven band feed : axis A
- Linear scales
- Rigid tapping
- 3 colors status lamp
- Coolant tank
* With washing gun

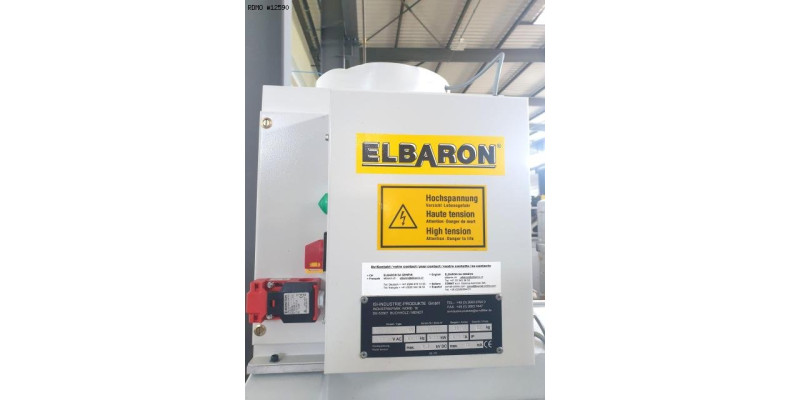

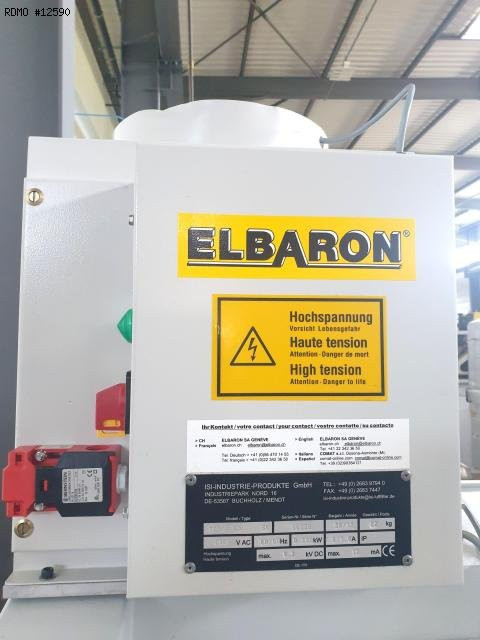

- Oil mist extractor : ELBARON RON/A 60 SV

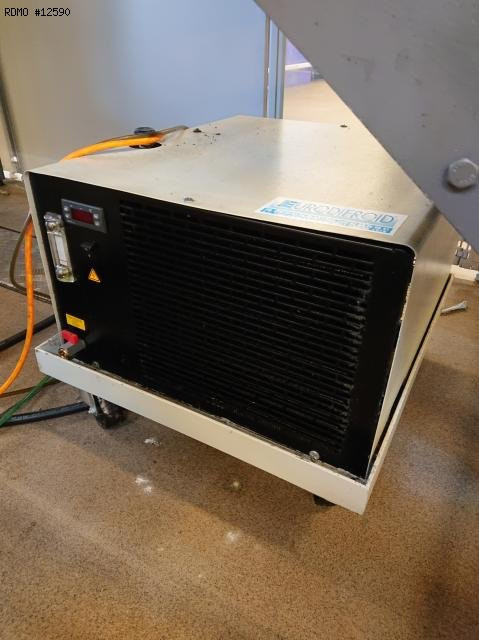

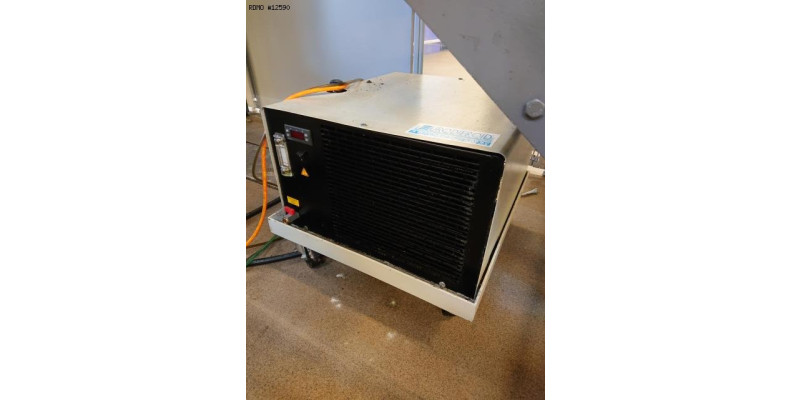

- Spindle cooling unit : EURODIFROID RFC 12 AHB CD HT

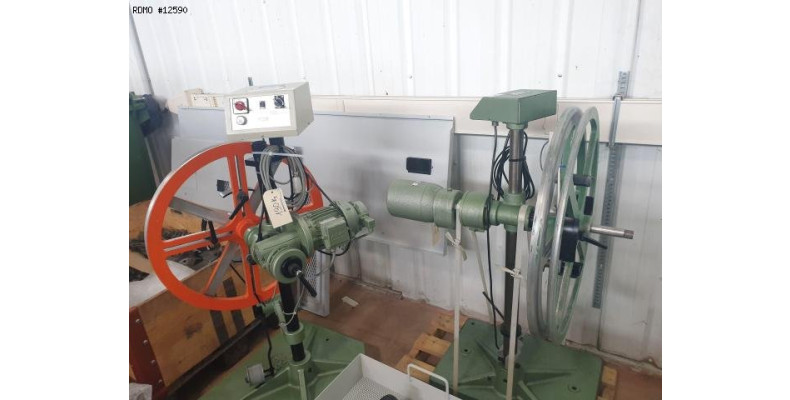

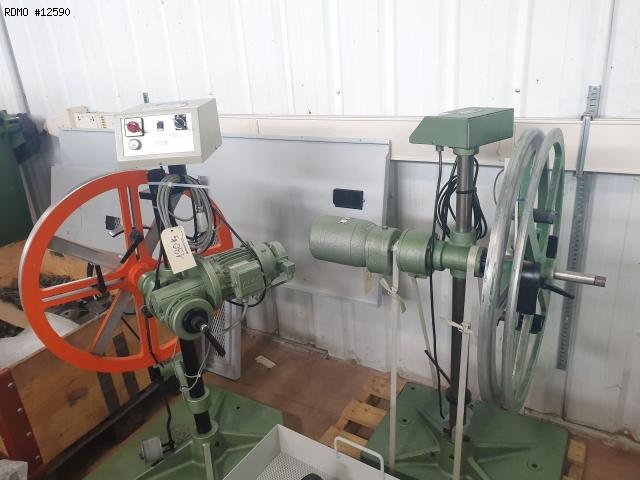

- SOPREM reels : 2

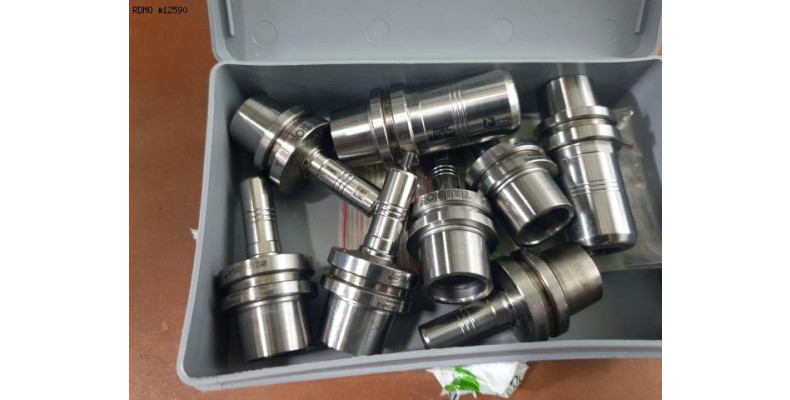

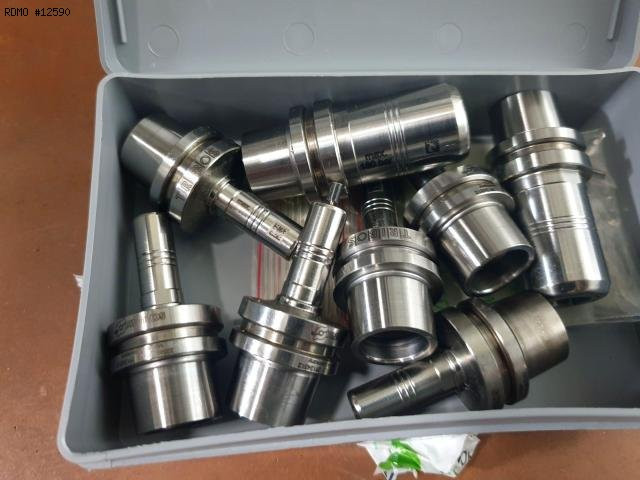

- Tool-holders : 16

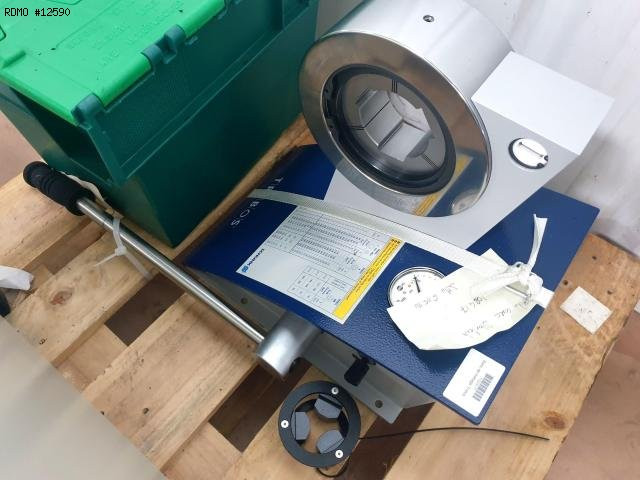

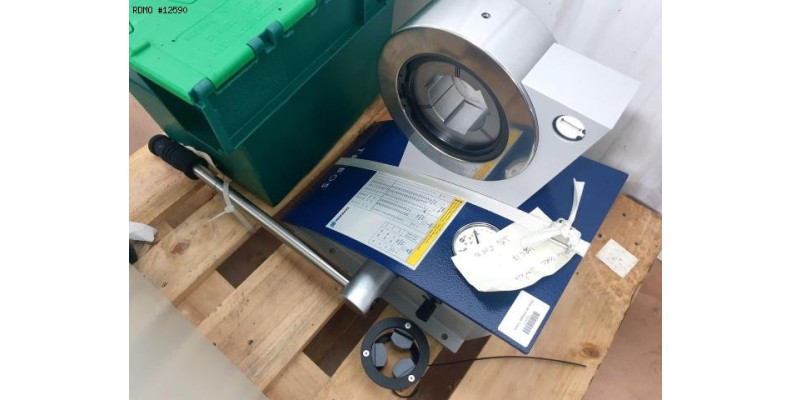

- Tool shrinking unit : SCHUNK Tribos
Specifiche tecniche per il download

Descrizione

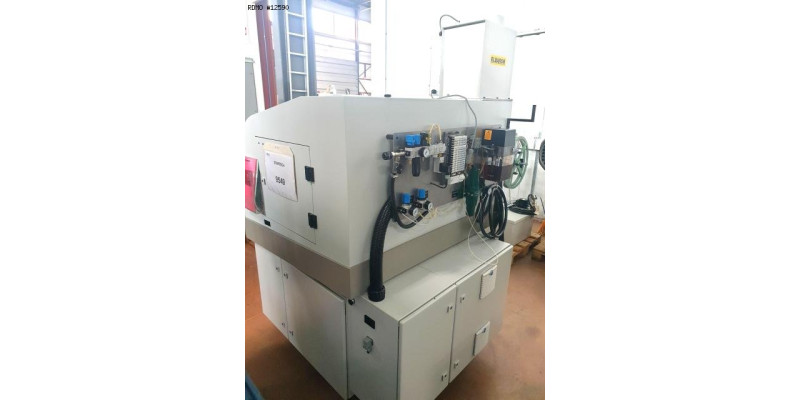

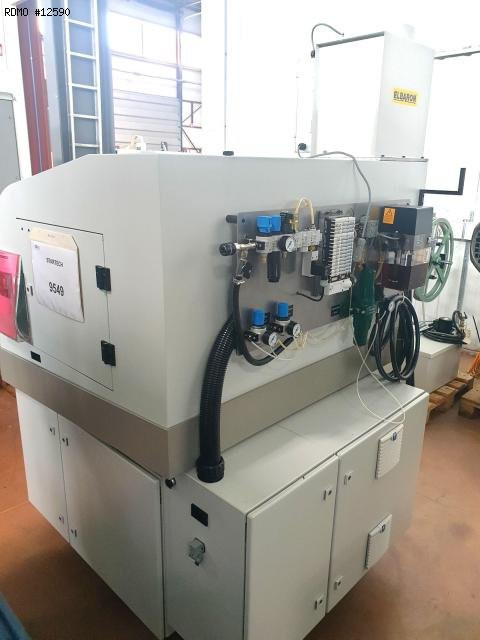

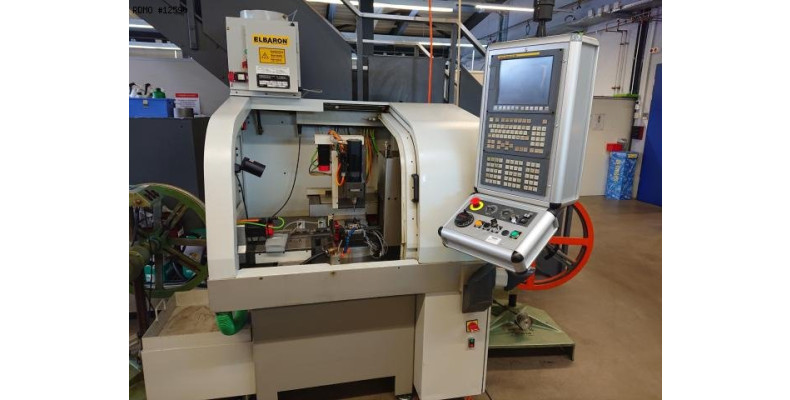

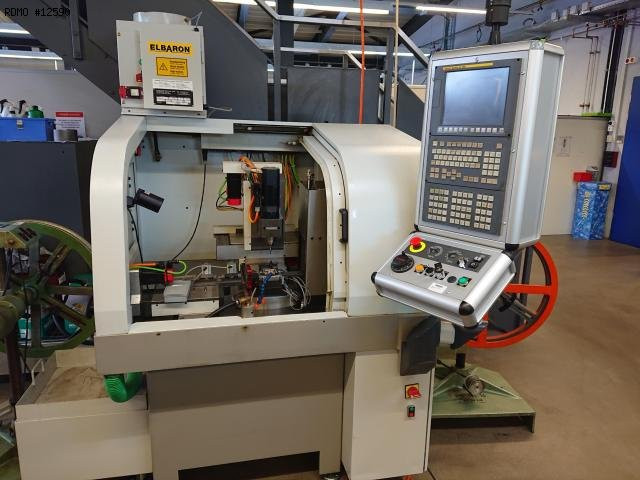

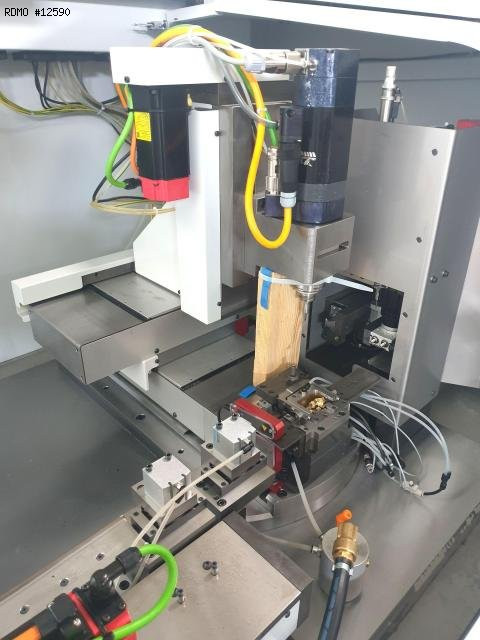

Band milling with motorized reels for in- and out-feed Macchine utensili per la vendita
