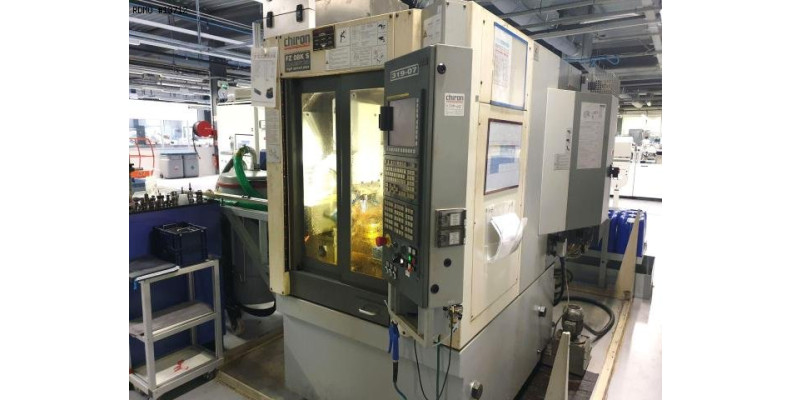

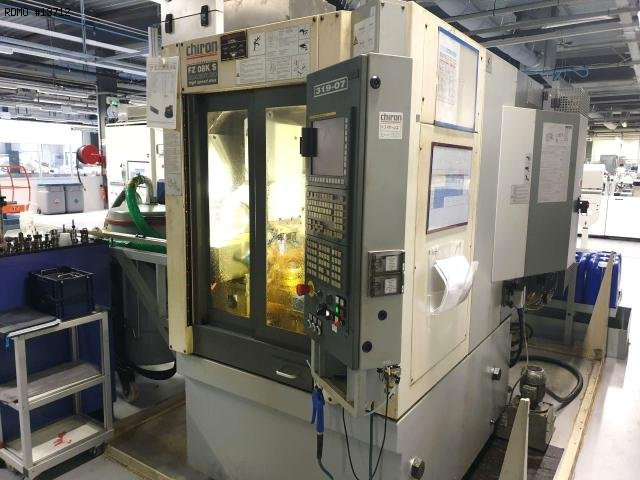

Chiron FZ 08KS HSP 7 assi

Fresatura Centro di lavoro verticale

13712

Specifiche tecniche per il download

Marca: Chiron

Modello: FZ 08KS HSP

Anno: 2011

Nr Serie: 319-07

13712

Chiron FZ 08KS HSP 7 assi

Fresatura Centro di lavoro verticale

Specifiche tecniche per il download

Marca: Chiron

Modello: FZ 08KS HSP

Anno: 2011

Nr Serie: 319-07

Richieda un prezzo

Caratteristiche

- Number of axes : 7
MILLING SPINDLE
- Tool holder type : HSK40
- Spindle speeds : 30.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 450 x 270 x 310 [mm]
- Rapid traverses rates (X/Y/Z) : 75 [m/min]
B ROTARY AXIS
- Travel : -20/+115 [°]
- Indexing precision : 0,001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Umbrella
- Tool magazine capacity : 20

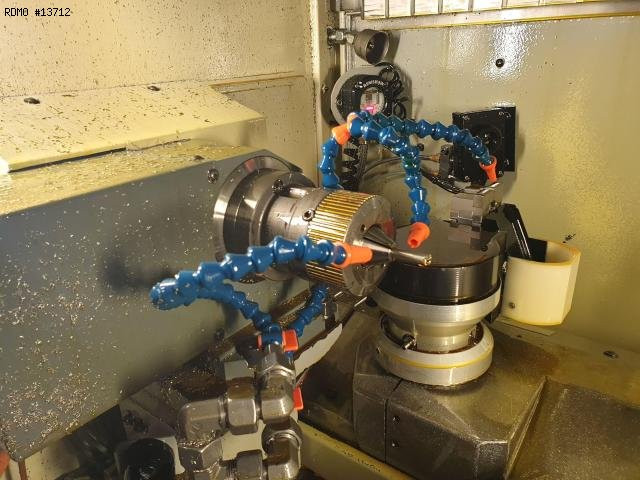

A ROTARY AXIS
- Max. bar diameter : 32 [mm]
- Indexing precision : 0,001 [°]
- Travel : 360 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 17 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1.500 x 2.600 [mm]
- Machine height : 2.300 [mm]
- Machine weight : 5.100 [kg]
MACHINE HOURS
- Number of working hours : 20.749 [h]

Attrezzatura

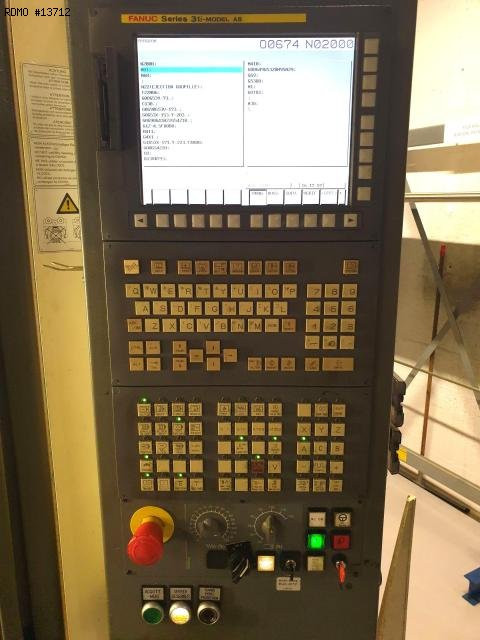

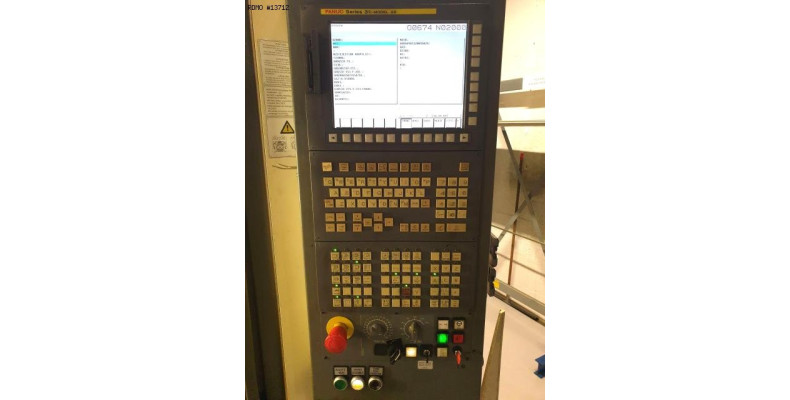

- CNC : Fanuc 31i-A5
- Interface : USB, PCMCIA, RJ45
- Fire extinguisher * : KRAFT&BAUER FB703
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- COOLANT TANK

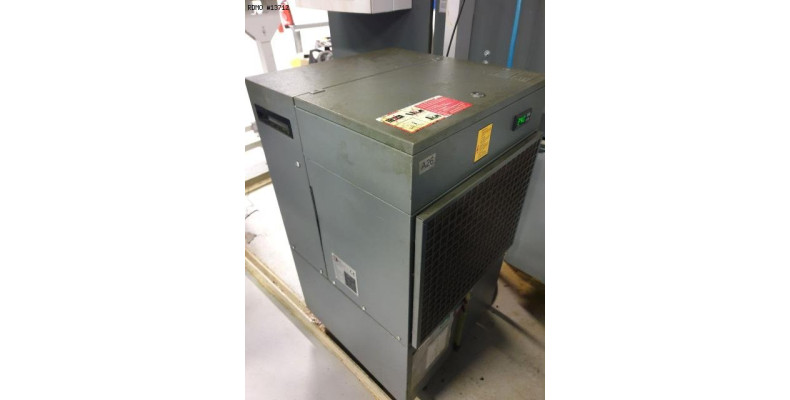

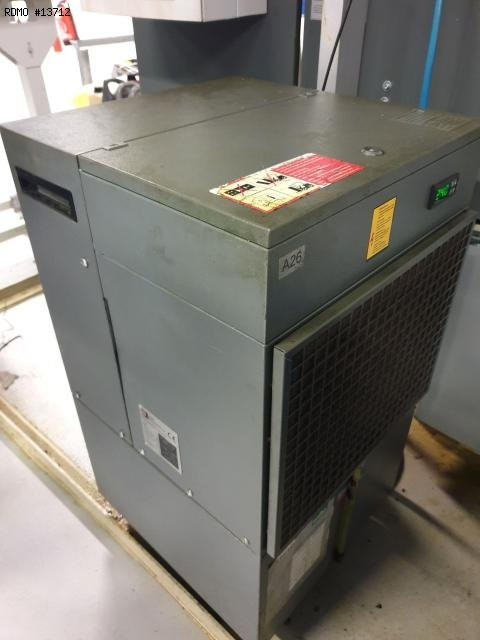

- Spindle cooling unit : Burn Engineering

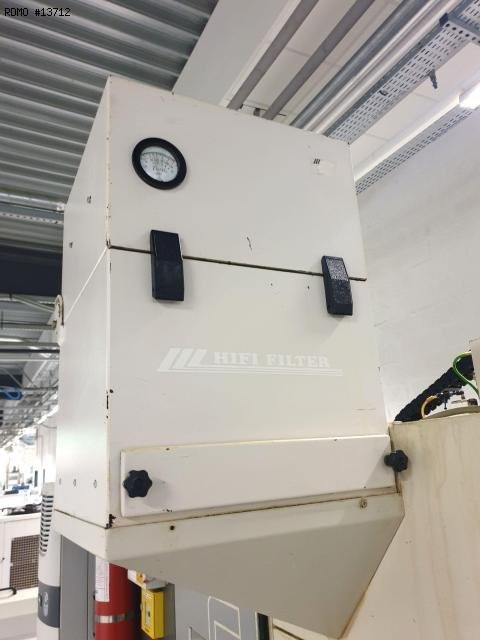

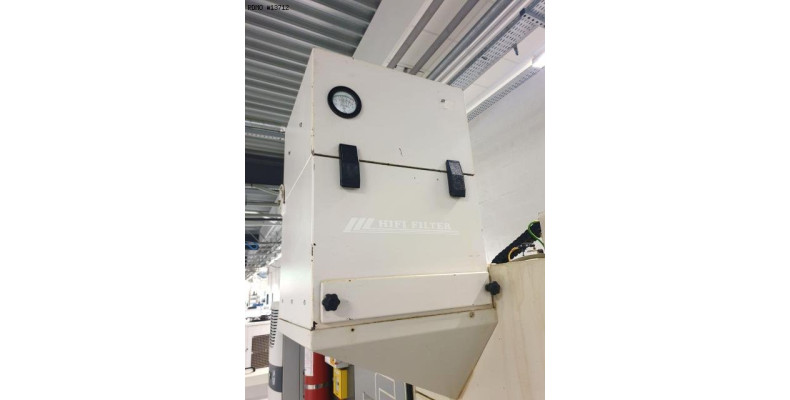

- Oil mist extractor : HIFI FILTER

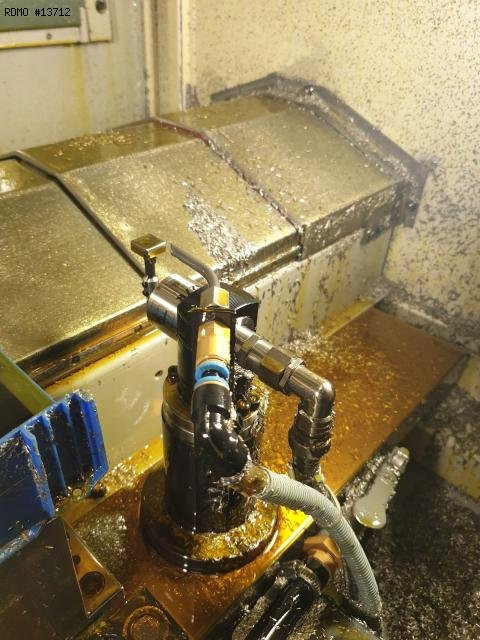

- Tool probe : Renishaw TS27R
- Workpiece probe : Renishaw OMP40
- Unit for 6th face machining

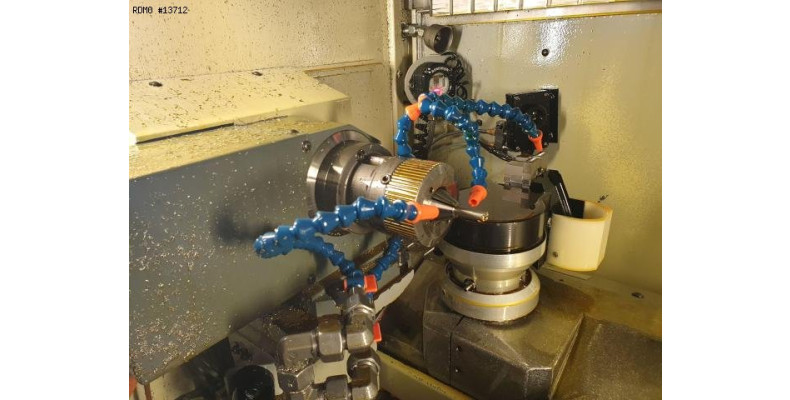

- Collet chuck : ORTLIEB KSF 30-50
- Tool recognition through RFID scanning : BALLUFF BIS C-650
- Tool-holders : 30
