Marca: Chiron
Modello: FZ 08K S Magnum
Anno: 2003
Nr Serie: 225-11
Marca: Chiron
Modello: FZ 08K S Magnum
Anno: 2003
Nr Serie: 225-11

Caratteristiche & Attrezzatura

Caratteristiche

- Number of axes : 7
MILLING SPINDLE
- Tool holder type : HSK40
- Spindle speeds : 30000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 450/270/310 [mm]
- Rapid traverses rates (X/Y/Z) : 75 [m/min]
B ROTARY AXIS
- Travel : -20/+90 [°]
- Indexing precision : 0.001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Umbrella
- Tool magazine capacity : 40
TURNING SPINDLE
- Spindle speeds : 8000 [rpm]
- Max. bar diameter : 32 [mm]
- C axis indexing precision : 0.001 [°]
- Travel : 360 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1500X2600 [mm]
- Machine height : 2300 [mm]
- Machine weight : 2850 [kg]
MACHINE HOURS
Attrezzatura

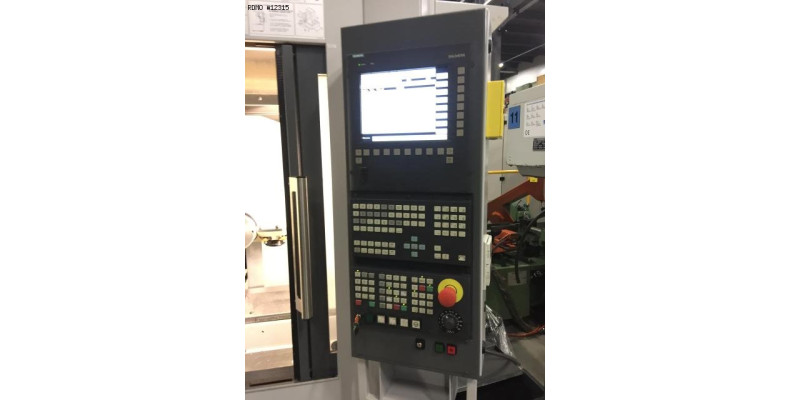

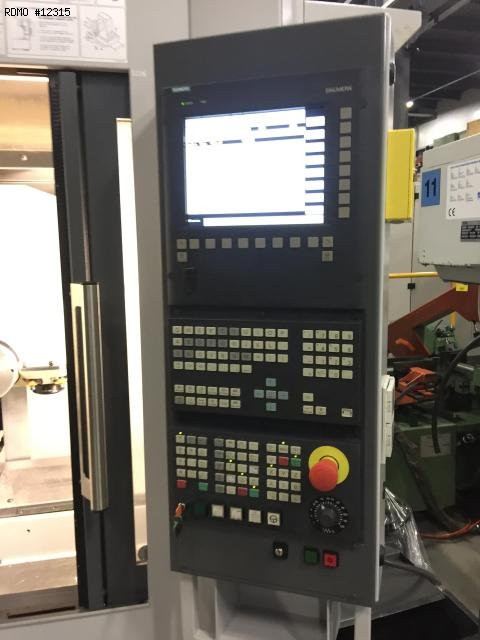

- CNC : Siemens 840 D
- 3 colors status lamp
- Bar loader
Specifiche tecniche per il download

Descrizione
