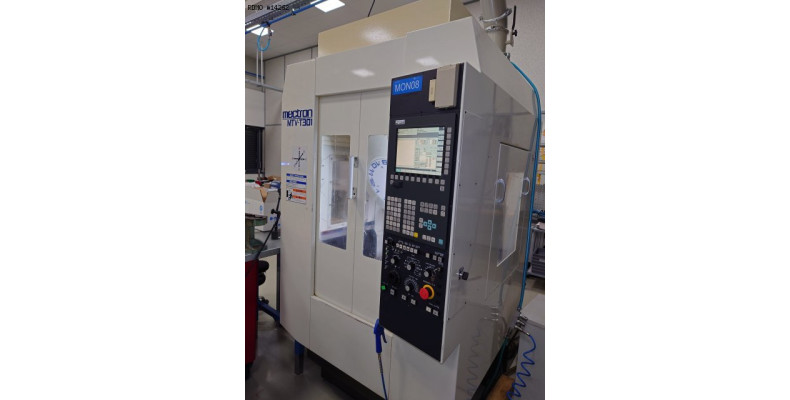

Mectron MTV-T301 4 assi

14262
Marca: Mectron
Modello: MTV-T301
Anno: 2008.06
Nr Serie: MTVT3010112
14262
Mectron MTV-T301 4 assi
Marca: Mectron
Modello: MTV-T301
Anno: 2008.06
Nr Serie: MTVT3010112

Caratteristiche & Attrezzatura

Caratteristiche

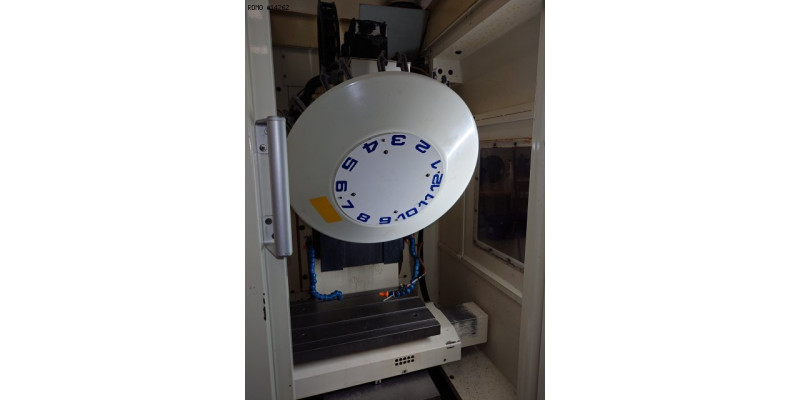

- Number of axes : 4 MILLING SPINDLE - Tool holder type : BT30 - Spindle power : 5.5 [kW] - Spindle speeds : 20000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 300/220/250 [mm] - Rapid traverses rates (X/Y/Z) : 48/48/36 [mm/min] - Distance table / spindle nose (min./max.) : 200-450 [mm] TOOL CHANGER - Auto. Tool Changer type : Umbrella - Tool magazine capacity : 12 - Tool exchange time : 0.9 [sec] TABLE - Table dimensions : 510 X 220 [mm] - Maximum weight upon table : 100 [kg] POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 8.3 [kW] WEIGHT & DIMENSIONS - Machine floor space : 1200 X 1835 [mm] - Machine height : 2050 [mm] - Machine weight : 1700 [kg]
Attrezzatura

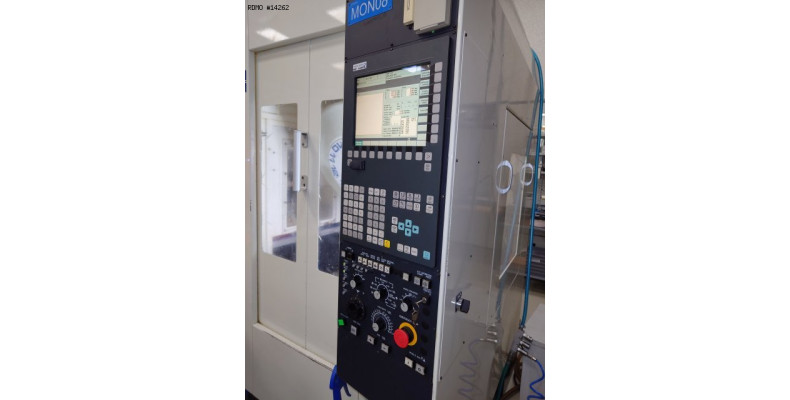

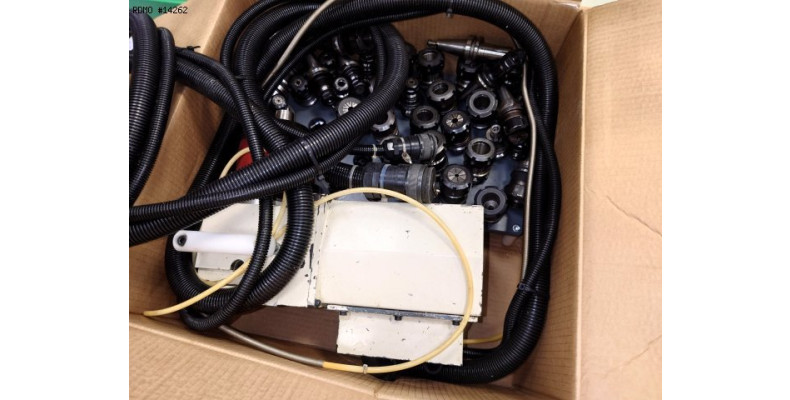

- CNC : Yaskawa Siemens 830 DI - Interface : USB - Rigid tapping - Type of divisor : full 4th axis * Travel 4th axis : 360 [°] * Indexing precision 4th axis : 0.001 [°] - COOLANT TANK - Electric transformer - Tool-holders
