Caratteristiche

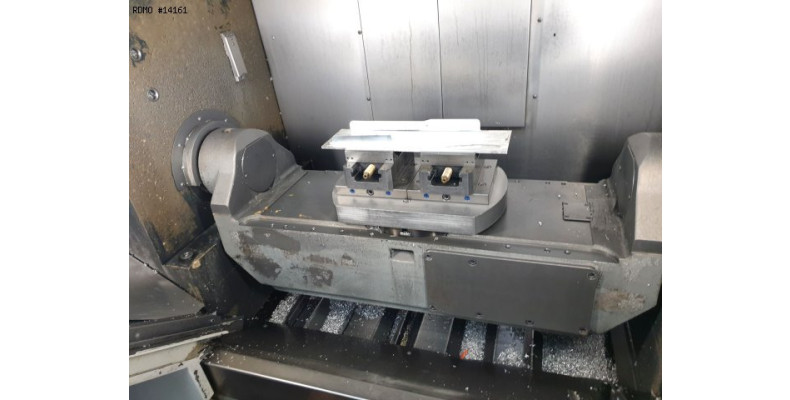

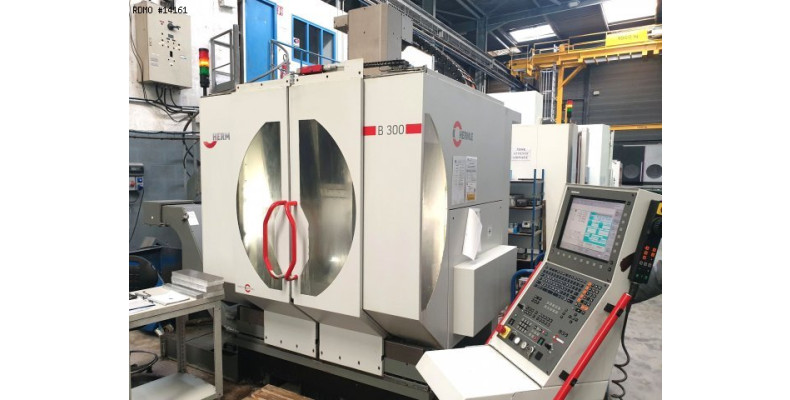

- Number of axes : 5 MILLING SPINDLE - Tool holder type : HSK63 - Spindle power : 20 [kW] - Spindle speeds : 18.000 [rpm] - Number of spindle hours : 17.967 [h] LINEAR AXES - Travels on X/Y/Z axes : 800 x 600 x 500 [mm] - Rapid traverses rates (X/Y/Z) : 30 [m/min] A ROTARY AXIS - Travel : 110 [°] (+/-) - Indexing precision : 0,001 [°] - Rapid traverse rate : 10 [rpm] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] - Rapid traverse rate : 15,5 [rpm] TOOL CHANGER - Auto. Tool Changer type : Umbrella - Tool magazine capacity : 30 TABLE - Table dimensions : Ø280 [mm] - Maximum weight upon table : 250 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 41 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.800 x 2.425 [mm] - Machine height : 2.900 [mm] - Machine weight : 8.500 [kg] MACHINE HOURS - Number of hours under power : 42.162 [h] - Number of working hours : 21.528 [h]
Attrezzatura

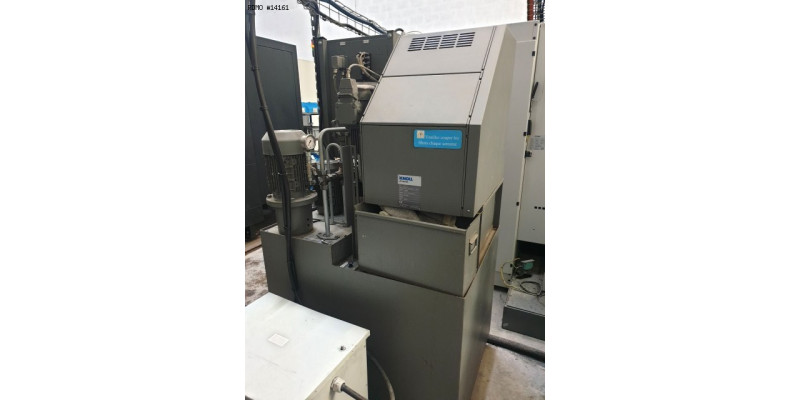

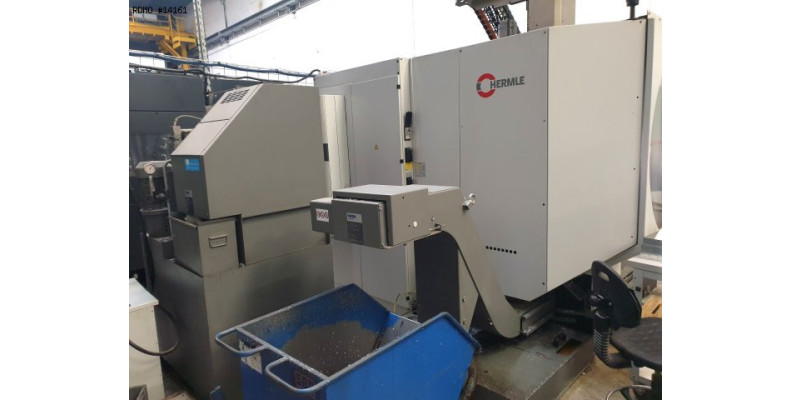

- CNC : Heidenhain iTNC530 - Interface : Ethernet / RS232 / USB - Electronic handwheel - Rigid tapping - 3 colors status lamp - Linear scales : X x Y x Z - COOLANT TANK : 650 [l] * with high-pressure pump : 40 [bars] * With paper filtering unit : KNOLL - Coolant through spindle - Chips conveyor : KNOLL - Spindle cooling unit - Tool probe : laser - Electric transformer
