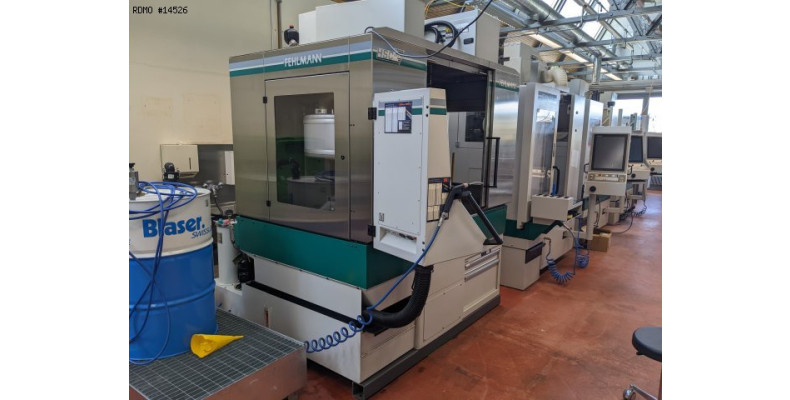

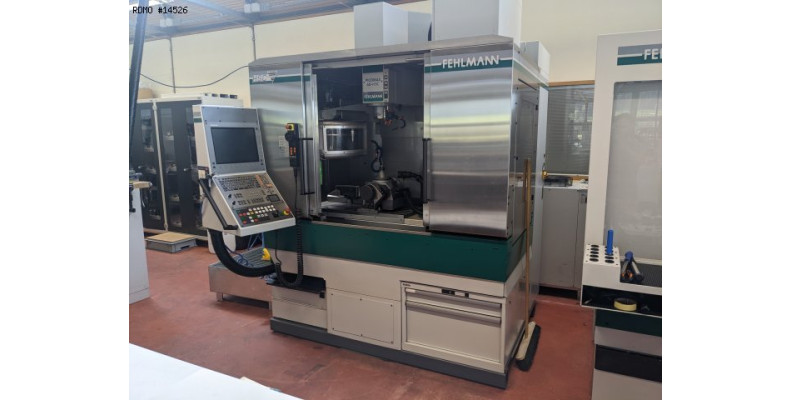

Fehlmann Picomax 60-HSC 5 assi

14526
Marca: Fehlmann
Modello: Picomax 60-HSC
Anno: 2014
Nr Serie: 14614504
14526
Fehlmann Picomax 60-HSC 5 assi
Marca: Fehlmann
Modello: Picomax 60-HSC
Anno: 2014
Nr Serie: 14614504

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 5
MILLING SPINDLE
- Tool holder type : HSK50
- Spindle power : 15 [kW]
- Spindle speeds : 30000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500/320/610 [mm]
A ROTARY AXIS
- Travel : 360 [°] (+/-)
- Indexing precision : 0.001 [°]
B ROTARY AXIS
- Travel : +180/-5 [°] (+/-)
- Indexing precision : 0.001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Umbrella
- Tool magazine capacity : 20
TABLE
- Table dimensions : 920X380 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2000X1700 [mm]
- Machine height : 2575 [mm]
- Machine weight : 3200 [kg]
Attrezzatura

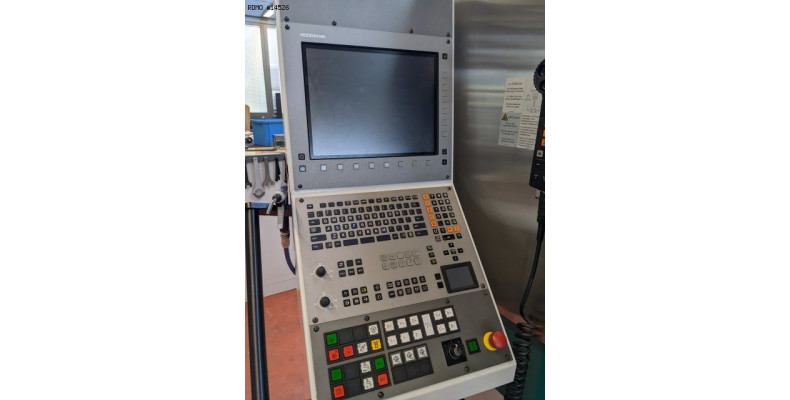

- CNC : iTNC530
- Interactive programming
- Electronic handwheel
- Linear scales
- Rigid tapping

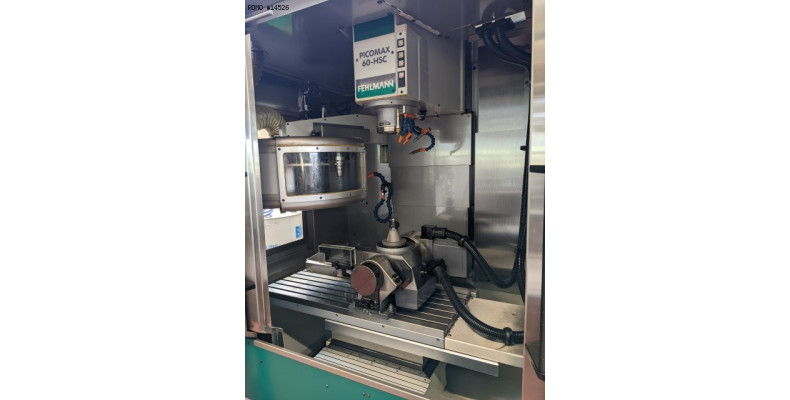

- Type of divisor : full 4th-5th axis
* Manufacturer : Fehlmann
* Model : ATS 160 CNC-SDK
* Clamping diameter : 300 [mm]
* Center height : 160 [mm]
* Tightening type : Pneumatic
- COOLANT TANK : 150 [l]
* With washing gun
- Oil mist extractor
- Spindle cooling unit
- Tool probe : BLUM
- Workpiece probe : OMP 40-2
