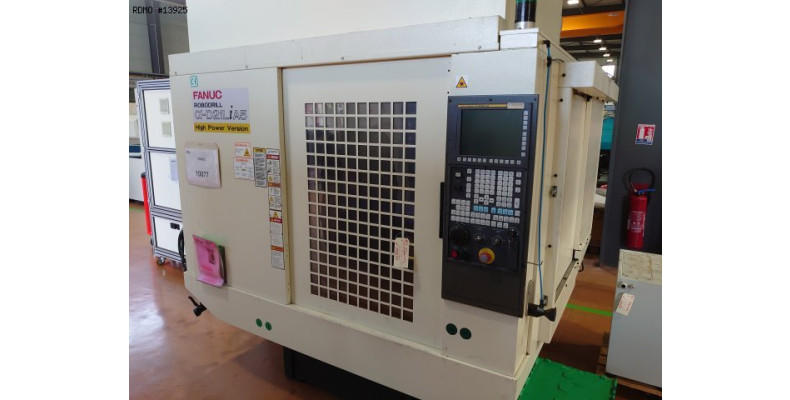

Fanuc ROBODRILL ALPHA D21 LiA5 (High power version) 5 assi

Marca: Fanuc
Modello: ROBODRILL ALPHA D21 LiA5 (High power version)
Anno: 2014
Nr Serie: P144YH081
13925
Fanuc ROBODRILL ALPHA D21 LiA5 (High power version) 5 assi
Marca: Fanuc
Modello: ROBODRILL ALPHA D21 LiA5 (High power version)
Anno: 2014
Nr Serie: P144YH081

Caratteristiche & Attrezzatura

Caratteristiche

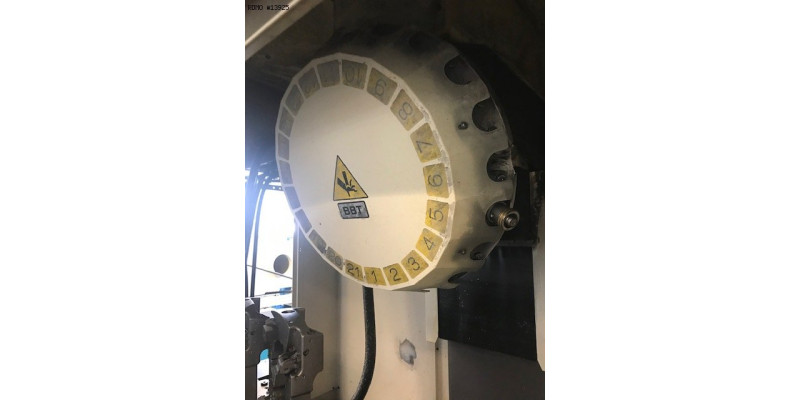

- Number of axes : 5 MILLING SPINDLE - Tool holder type : BBT 30 (Big-Plus) - Spindle power : 12 [kW] - Spindle speeds : 24000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 700/400/330 [mm] - Rapid traverses rates (X/Y/Z) : 54 [m/min] TOOL CHANGER - Auto. Tool Changer type : Umbrella - Tool magazine capacity : 21 TABLE - Table dimensions : 850 x 400 [mm] - Maximum weight upon table : 300 [kg] - Distance table / spindle nose (min./max.) : 250-580 [mm] POWER SUPPLY - Supply voltage : 380 [V] WEIGHT & DIMENSIONS - Machine floor space : 2115 X 2027 [mm] - Machine height : 2346 [mm] - Machine weight : 2000 [kg]
Attrezzatura

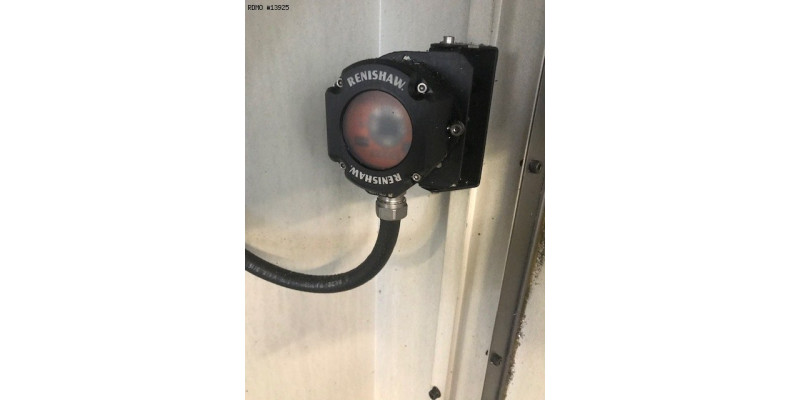

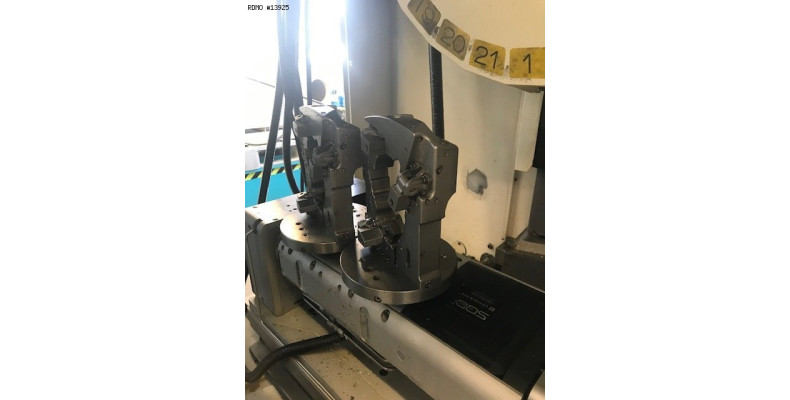

- CNC : Fanuc 31i model B5 - Rigid tapping - 3 colors status lamp - Type of divisor : full 4th-5th axis * Manufacturer : LEHMANN - Predisposition Coolant through spindle - Oil mist extractor - Workpiece sensor pre-disposition
