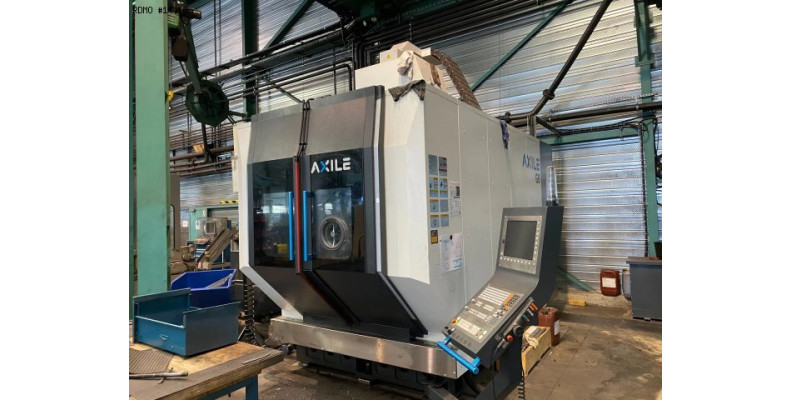

14416
Marca: AXILE
Modello: G8
Anno: 2021
Nr Serie: 212821804
14416
Marca: AXILE
Modello: G8
Anno: 2021
Nr Serie: 212821804

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 5
MILLING SPINDLE
- Tool holder type : HSK63
- Spindle power : 40 [kW]
- Spindle speeds : 20.000 [rpm]
- Number of spindle hours : 2.221 [h]
LINEAR AXES
- Travels on X/Y/Z axes : 670 x 820 x 600 [mm]
- Rapid traverses rates (X/Y/Z) : 60 [m/min]
A ROTARY AXIS
- Travel : +/- 120 [°]
- Indexing precision : 0,001 [°]
- Rapid traverse rate : 80 [rpm]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0,001 [°]
- Rapid traverse rate : 100 [rpm]

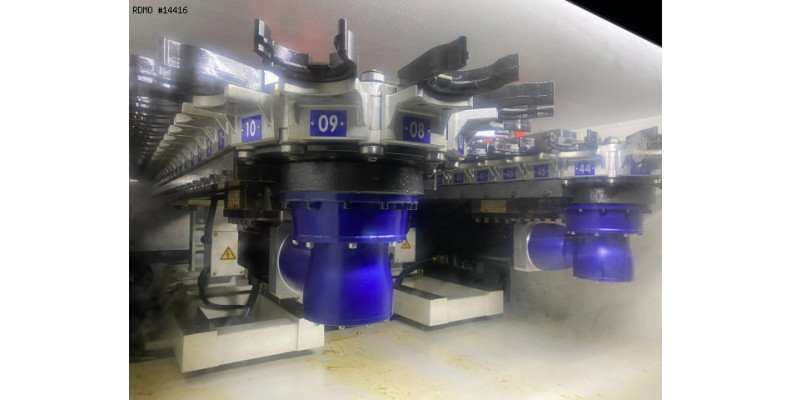

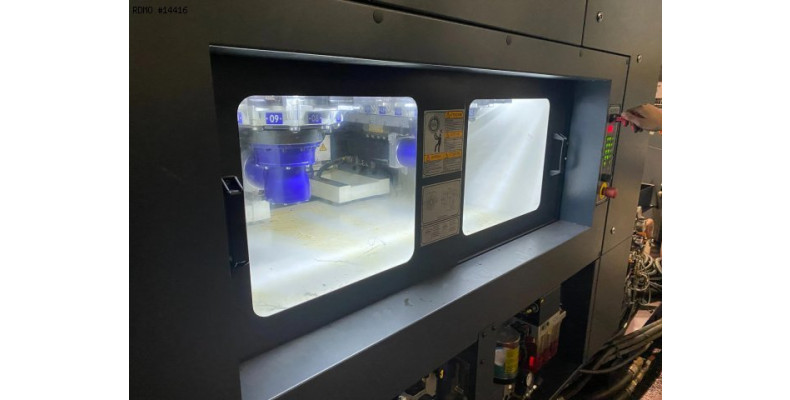

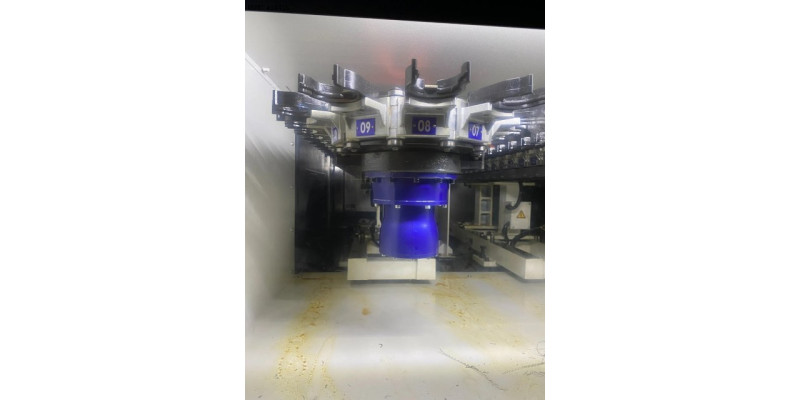

TOOL CHANGER
- Tool magazine capacity : 2 x 48

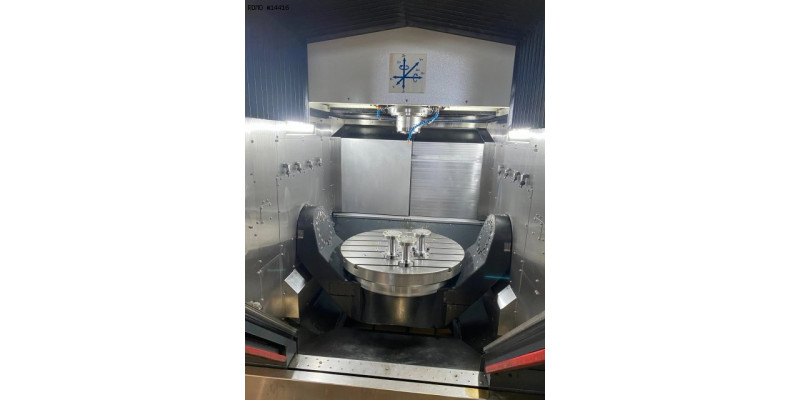

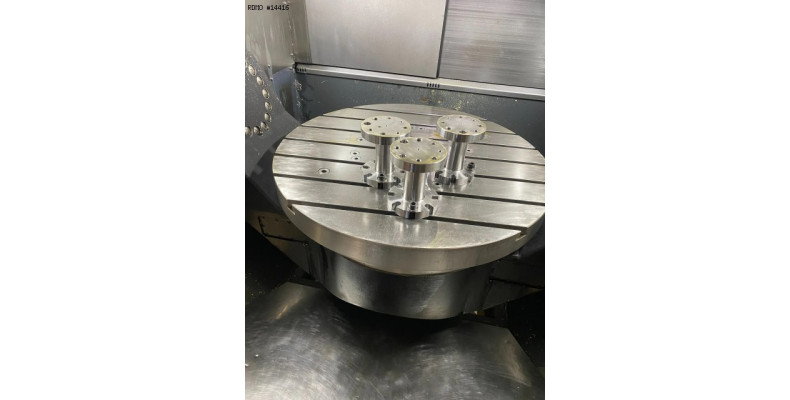

TABLE
- Table dimensions : Ø800 [mm]
- Maximum weight upon table : 1300 [kg]
- Max. turning diameter : 920 [mm]
- Max. worpiece height : 500 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 85 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 5.800 x 3.590 [mm]
- Machine height : 3.780 [mm]
- Machine weight : 18.000 [kg]

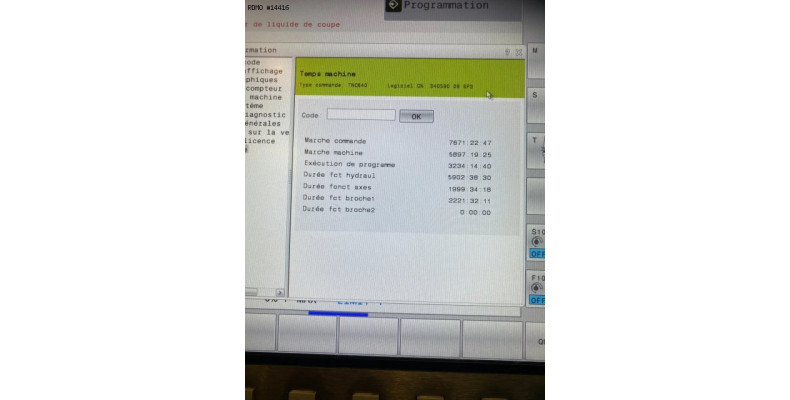

MACHINE HOURS
- Number of hours under power : 7.671 [h]
- Number of working hours : 3.234 [h]
Attrezzatura

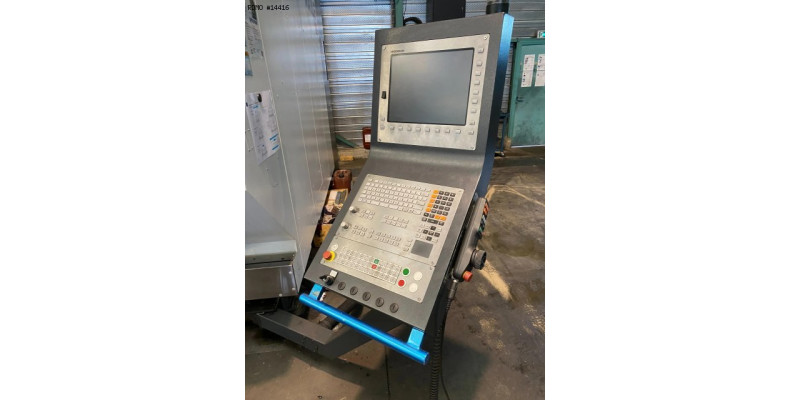

- CNC : Heidenhain TNC640
- Interface : Ethernet / RS232 / USB
- DCM (collision avoidance), TPC (Tool-tip Positioning Control), SVS (Spindle Vibration Supervision), AAC (axial accuracy control)
- Electronic handwheel
- 3 colors status lamp
- Automatic roof opening for part loading
- Power supply by table centre

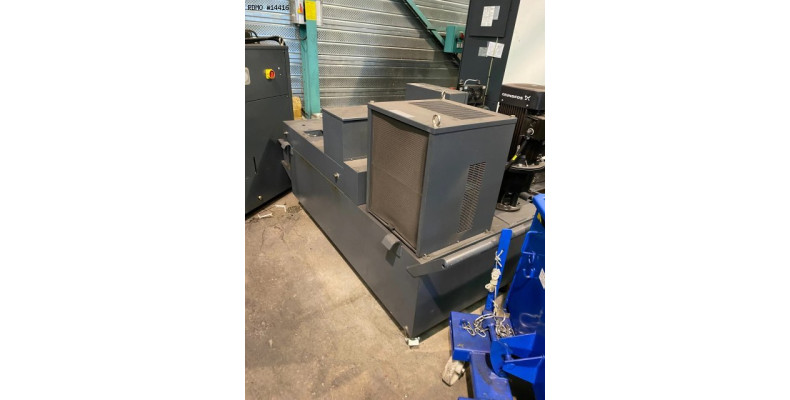

- COOLANT TANK
* with high-pressure pump : 70 [bars]
* With paper filtering unit : KNOLL
- Chips conveyor
- Oil mist extractor

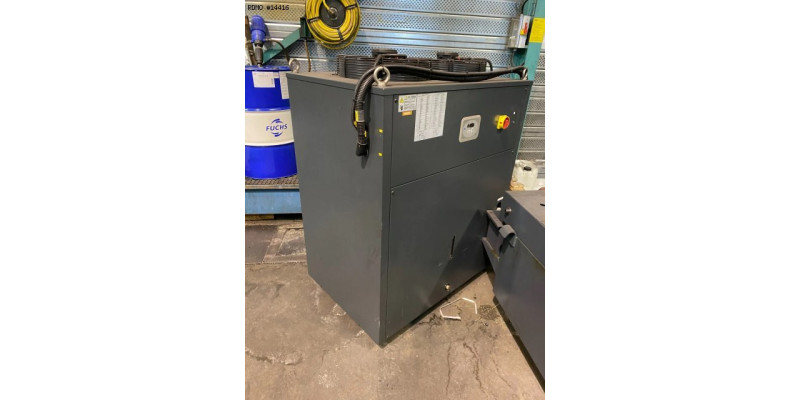

- Spindle cooling unit
- Tool probe : BLUM
- Workpiece probe : HEIDENHAIN TS-740
- Electric transformer
