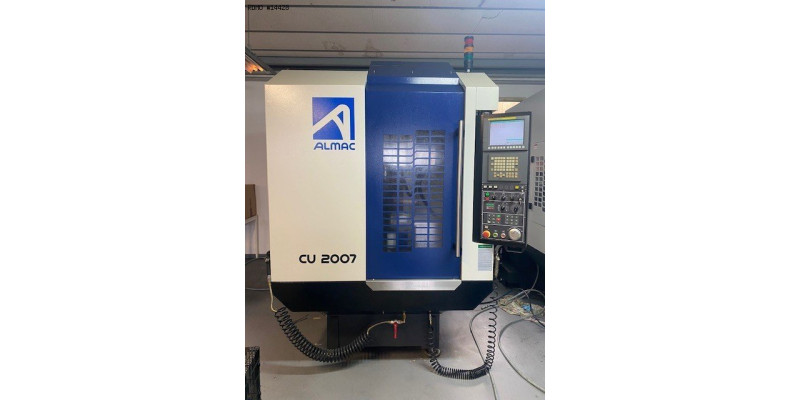

Marca: Almac
Modello: CU 2007
Anno: 2017
Nr Serie: 62 - 180509
Marca: Almac
Modello: CU 2007
Anno: 2017
Nr Serie: 62 - 180509

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 3 MILLING SPINDLE - Tool holder type : HSK40 - Spindle power : 3.7 [kW] - Spindle speeds : 20000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 500 / 400 / 470 [mm] - Rapid traverses rates (X/Y/Z) : 60 [m/min] TOOL CHANGER - Auto. Tool Changer type : Loading arm - Tool magazine capacity : 24 TABLE - Table dimensions : 650 x 400 [mm] - Maximum weight upon table : 250 [kg] - Distance table center / spindle axis (min./max.) : 150 - 620 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 10 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1600 x 2410 [mm] - Machine height : 2500 [mm] - Machine weight : 2500 [kg] MACHINE HOURS - Number of working hours : 2000 [h]
Attrezzatura

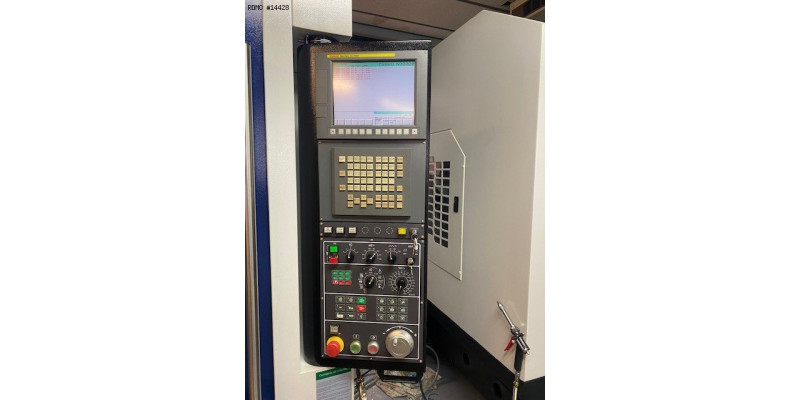

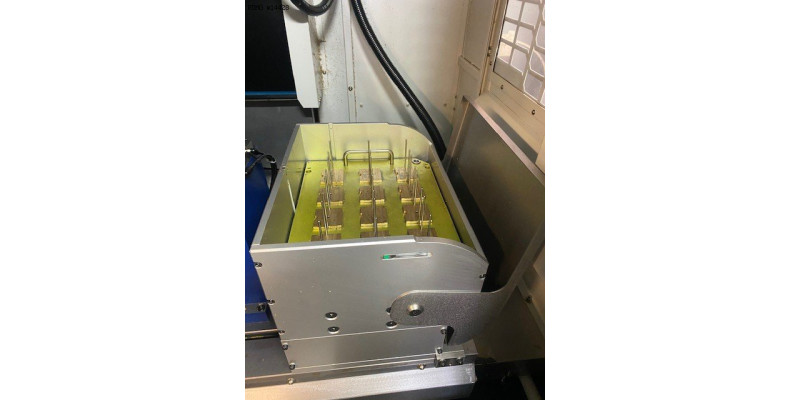

- CNC : Fanuc Oi-MD - 3 colors status lamp - COOLANT TANK : 200 [l] - Oil mist extractor : LNS FOX WS2-1000 - Spindle cooling unit : Type HBO-250PTSB4 - Pick & Place system
