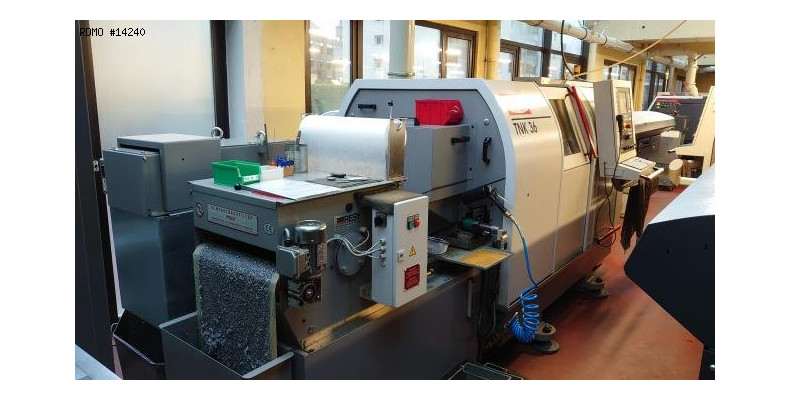

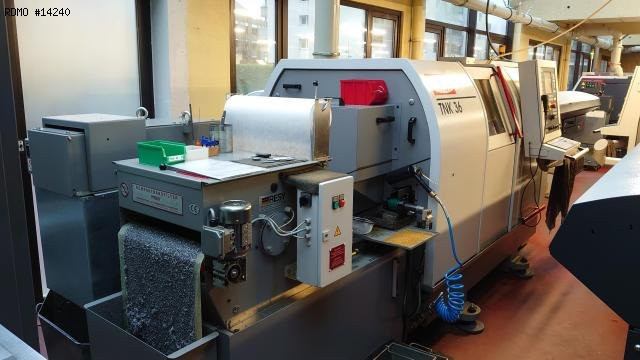

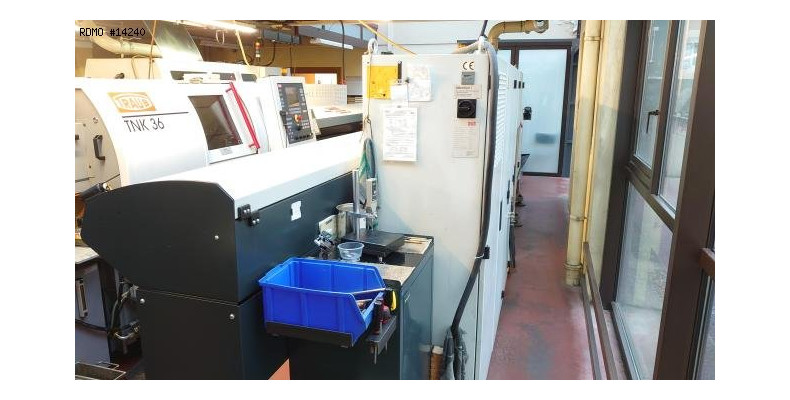

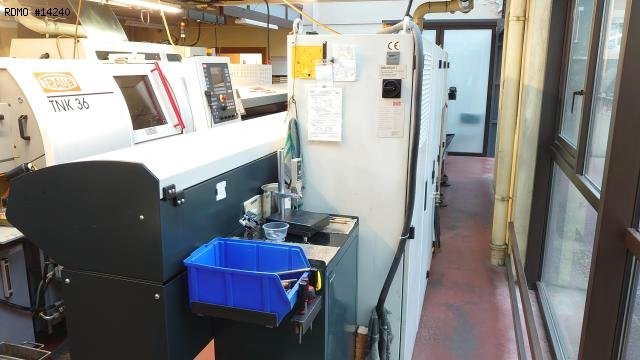

Traub TNK 36 9 assi

- Number of spindles : 2
- Number of axes : 9
- Number of turrets : 1
MAIN SPINDLE
- Spindle power : 10.7 [kW]
- Spindle speeds : 6300 [rpm]
- Max. bar diameter : 36 [mm]
- C axis indexing precision : 0.001 [°]

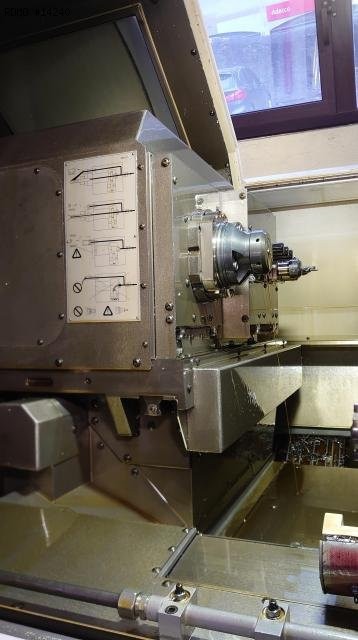

COUNTER-SPINDLE
- Spindle power : 10.7 [kW]
- Spindle speeds : 6300 [rpm]
- Max. bar diameter : 36 [mm]
- C axis indexing precision : 0.001 [°]
- X/Z stroke : 370 x 250 [mm]

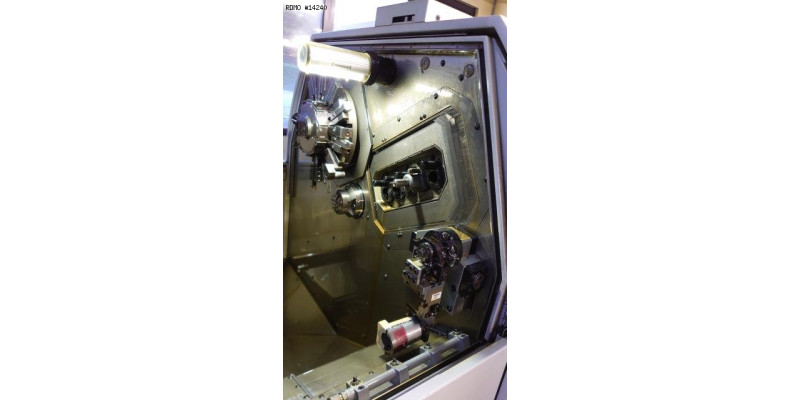

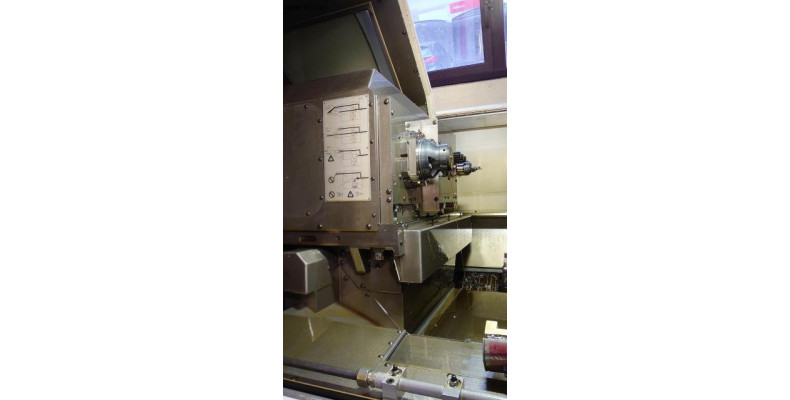

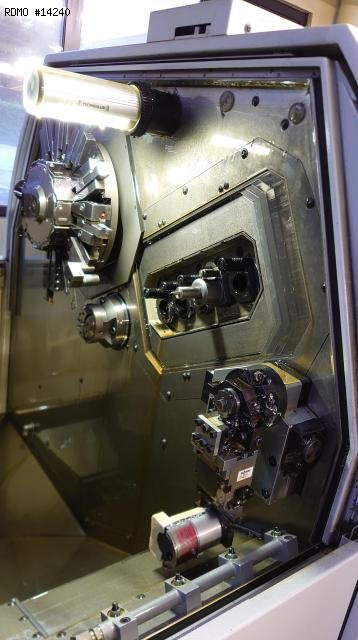

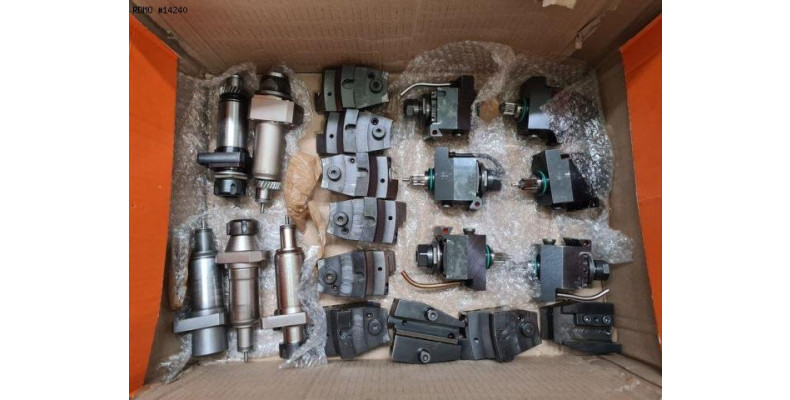

UPPER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 50/100 [mm]
- Y stroke : +/- 20 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 5.5 [kW]

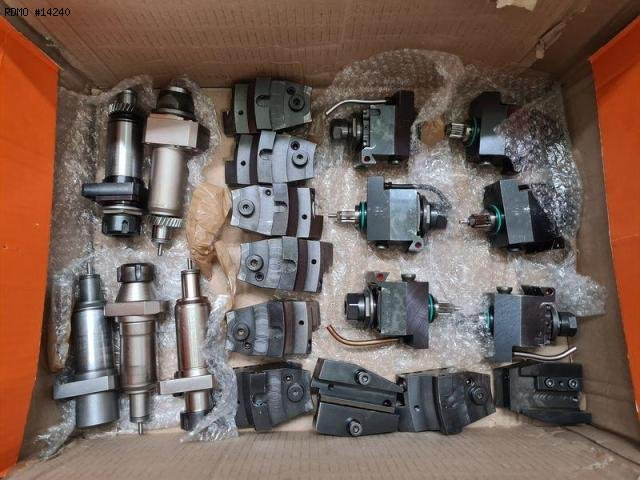

COMBINED ATTACHMENT
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
- Live tools power : 4.3 [kW]
- X/Z stroke : 370 x 270 [mm]
COUNTER COMBINED ATTACHMENT
- Number of tools : 5
- Number of motorized tools : 4
- Live tool speed : 6000 [rpm]
- Live tool power : 4.3 [kW]
- Stroke X/Y : 73 x +/-50 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 33 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3335 x 1222 [mm]
- Machine height : 1680 [mm]
- Machine weight : 4000 [kg]

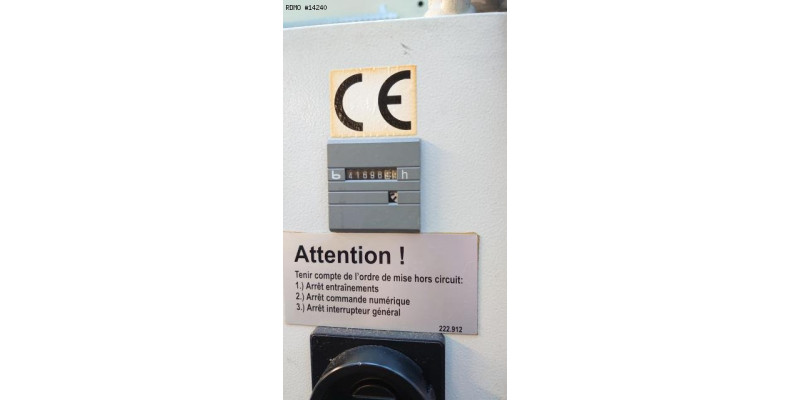

MACHINE HOURS

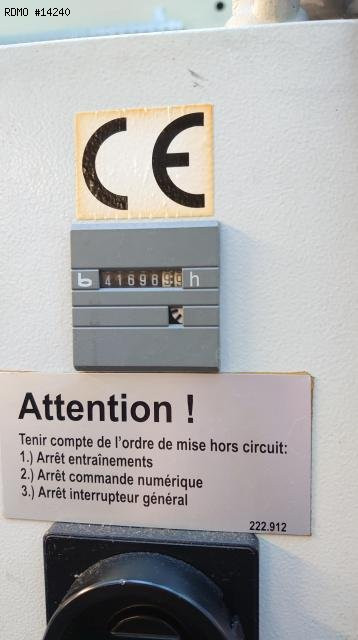

- Number of hours under power : 41.698 [h]

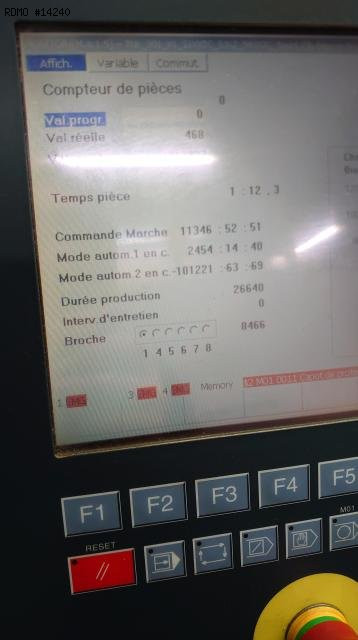

- Number of working hours : 11.346 [h]

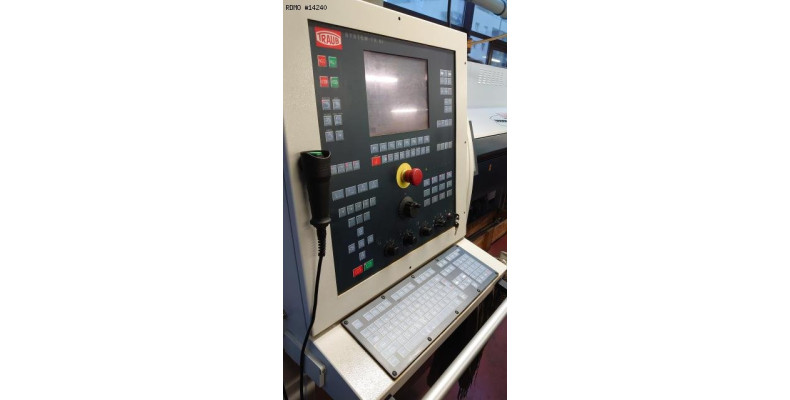

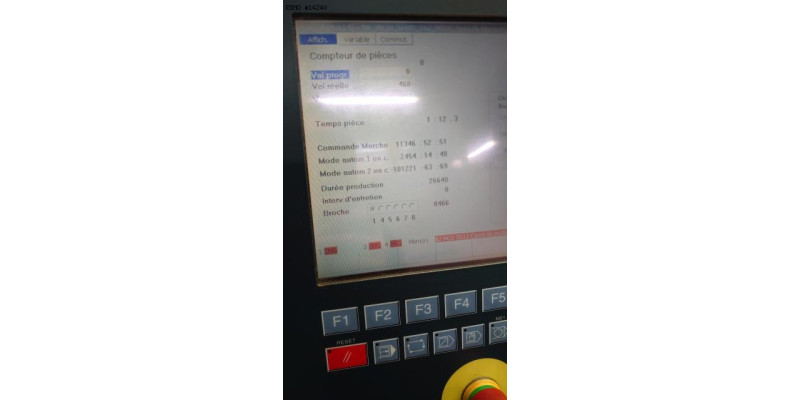

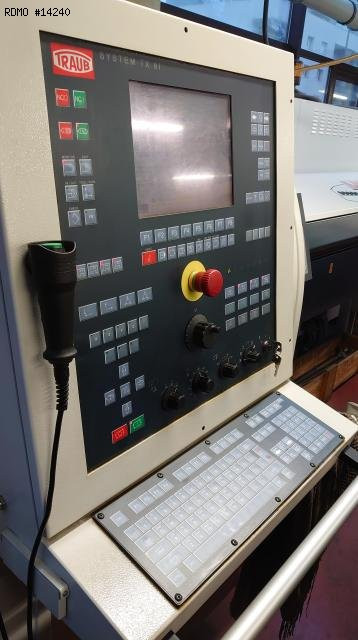

- CNC : TRAUB TX 8i
- Coolant tank : RESY
* with high-pressure pump
* with paper filtering unit

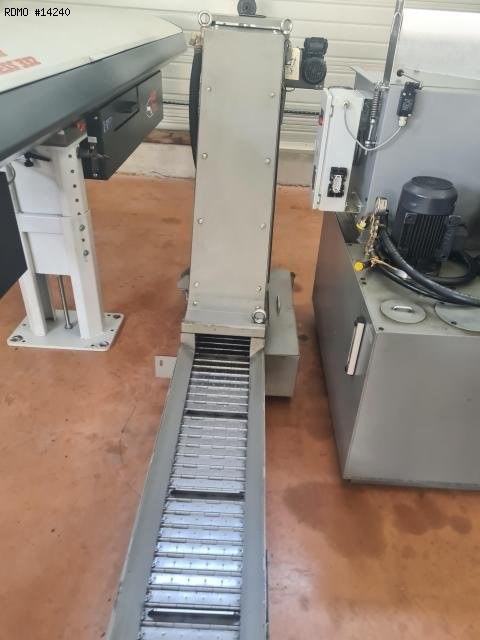

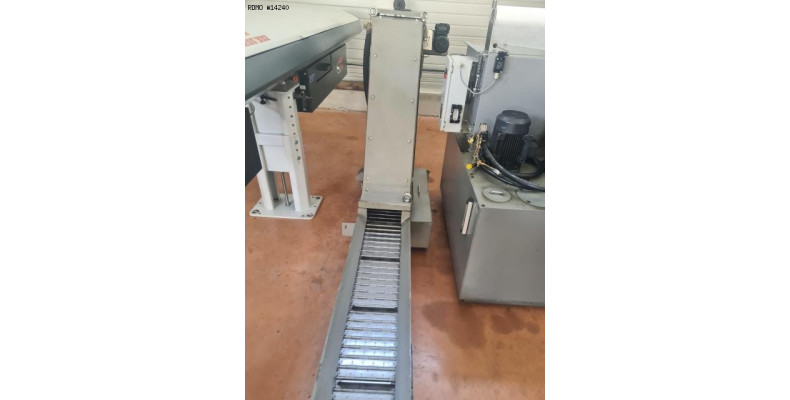

- Chips conveyor
- Parts catcher
- Parts conveying strip

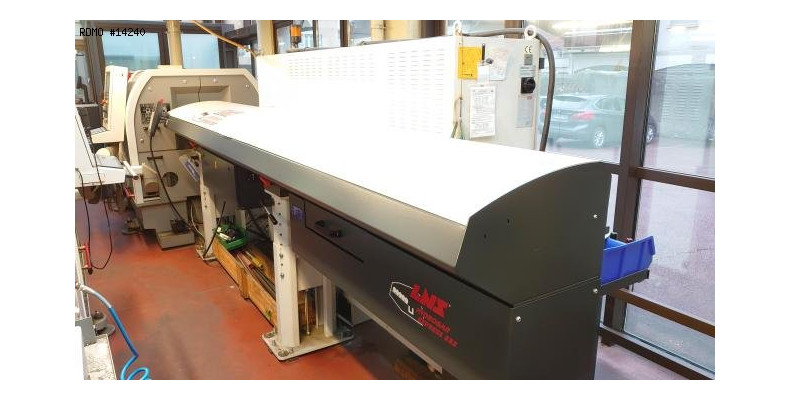

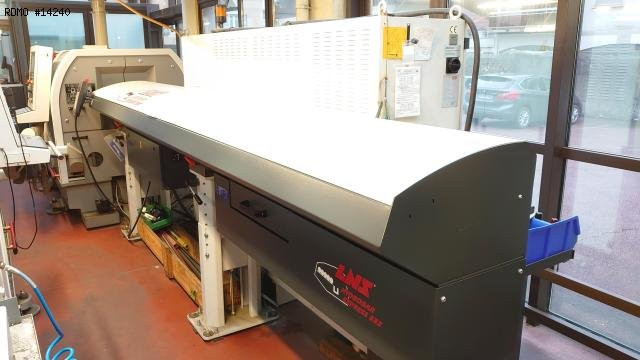

- Bar loader : LNS HYDROBAR EXPRESS 332 (2005)
