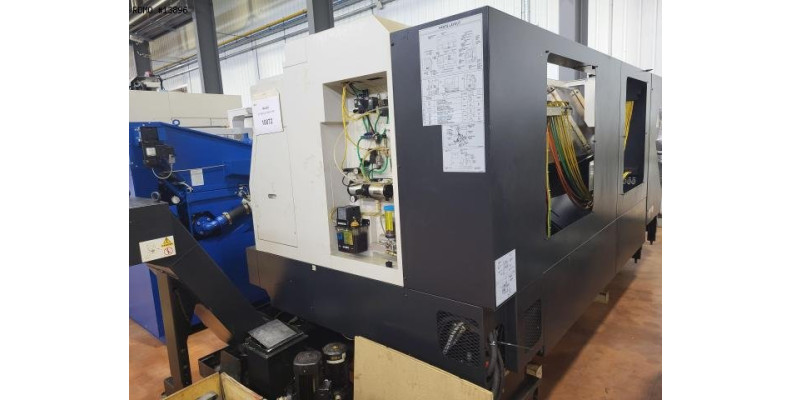

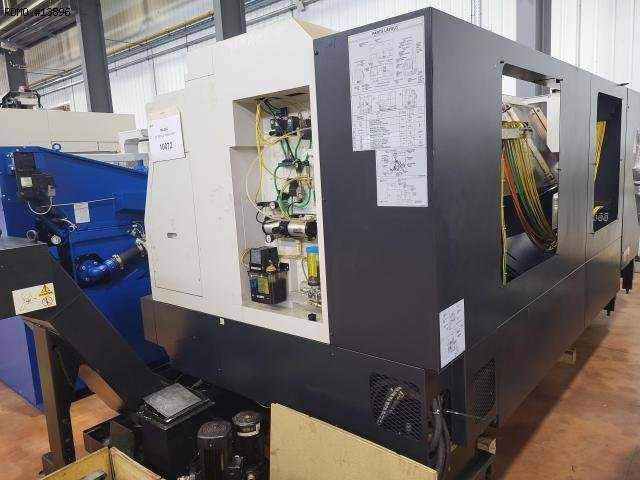

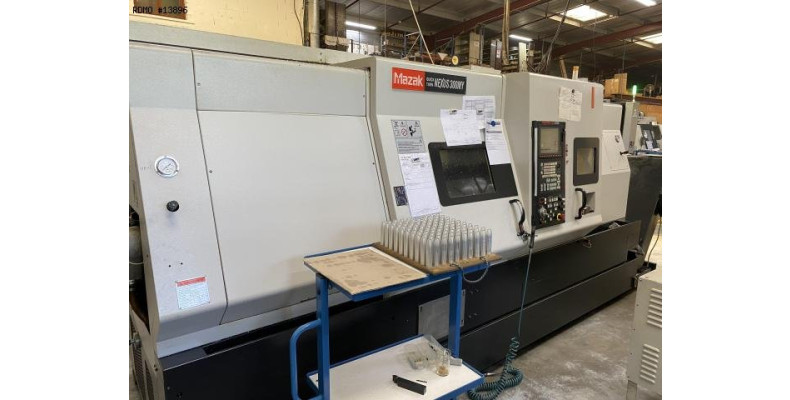

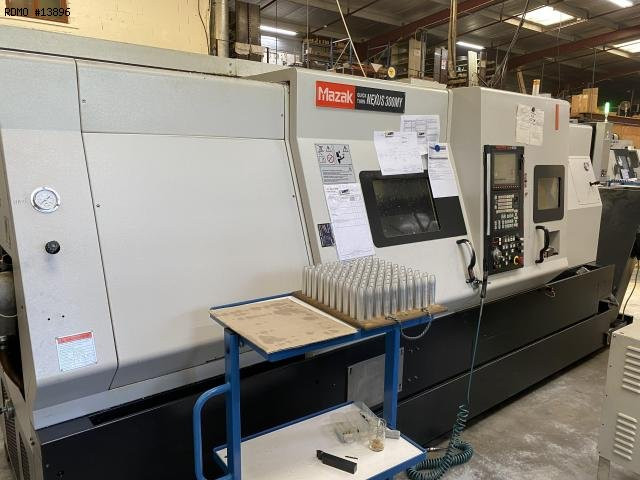

Marca: MAZAK
Modello: QT NEXUS 300MY/1500
Anno: 2006
Nr Serie: 182822
Marca: MAZAK
Modello: QT NEXUS 300MY/1500
Anno: 2006
Nr Serie: 182822

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 4
MAIN SPINDLE
- Spindle power : 26 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 77 [mm]
- Max. turning diameter : 420 [mm]
- Max. diameter on bench : 750 [mm]
- Spindle nose : A2-8
- C axis indexing precision : 0,001 [°]

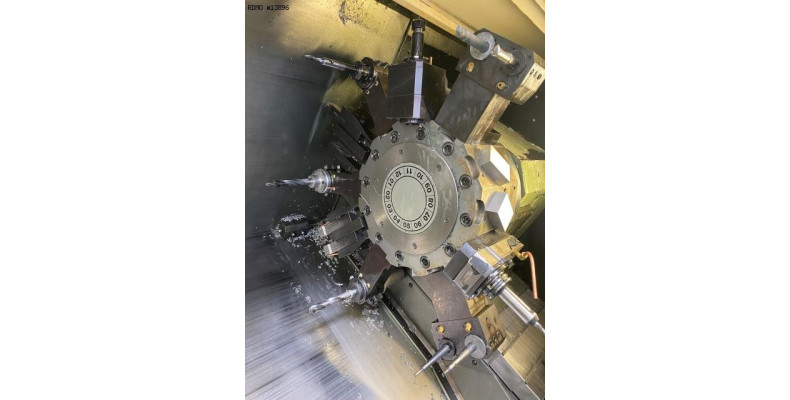

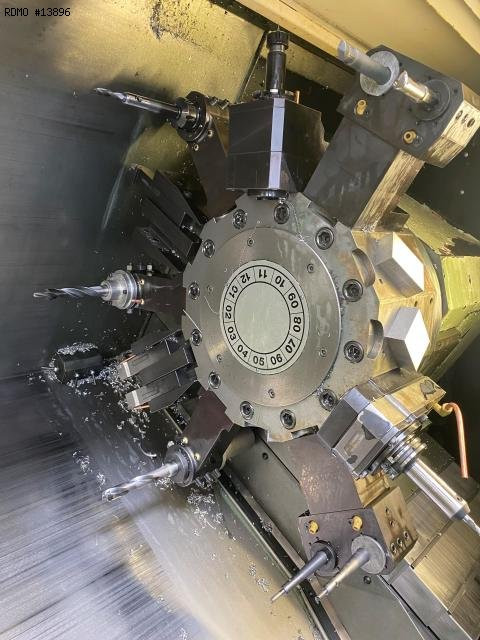

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 260 / 1605 [mm]
- Y stroke : +/- 75 [mm]
- Tool type : VDI 50
- Live tools speed : 25 - 4.000 [rpm]
- Live tools power : 7,5 [kW]
TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM4
- Distance between centers : 1.500 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 55,6 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 4.270 x 2.206 [mm]
- Machine height : 2.165 [mm]
- Machine weight : 7 800 [kg]
MACHINE HOURS
- Number of hours under power : 35.546 [h]
Attrezzatura

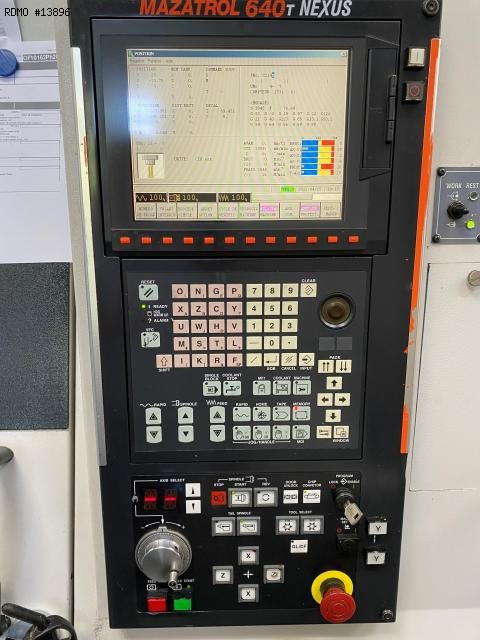

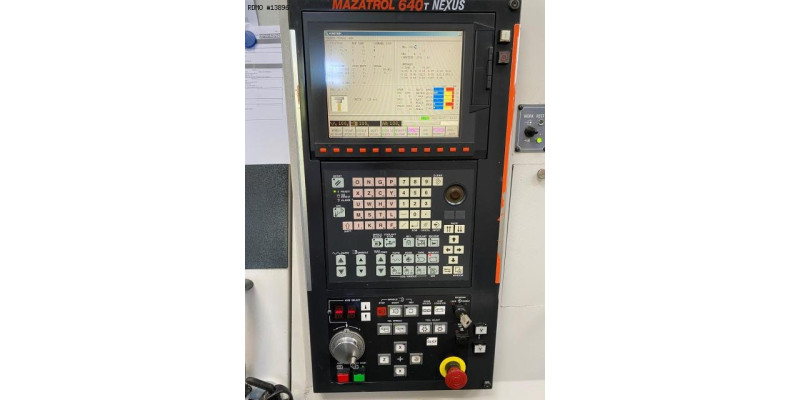

- CNC : Mazatrol 640T NEXUS
- Interface : USB / RJ45 / RS232
- Coolant tank : 350 [l]
- Chips conveyor
- Tool probe
- Parts catcher
- Predisposition for barfeeder

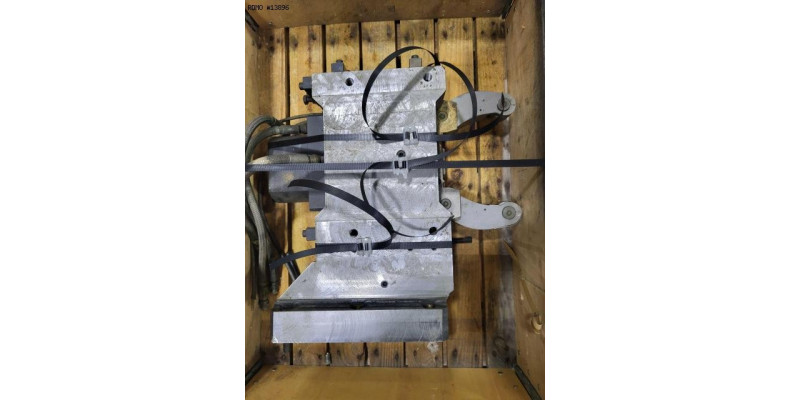

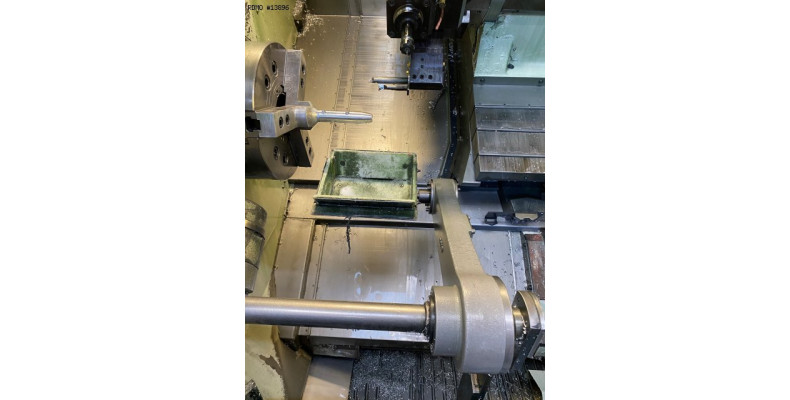

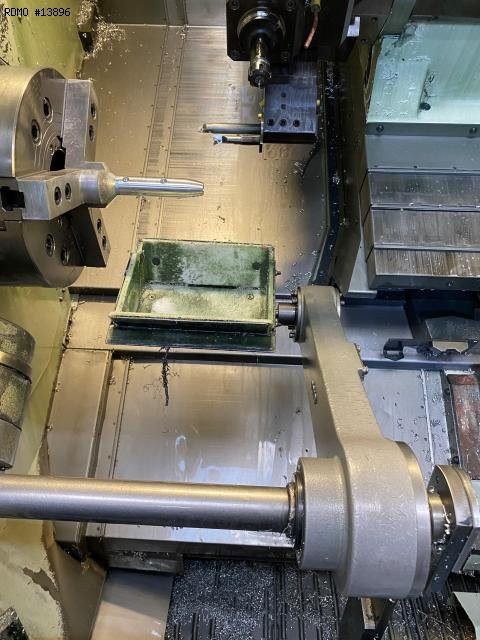

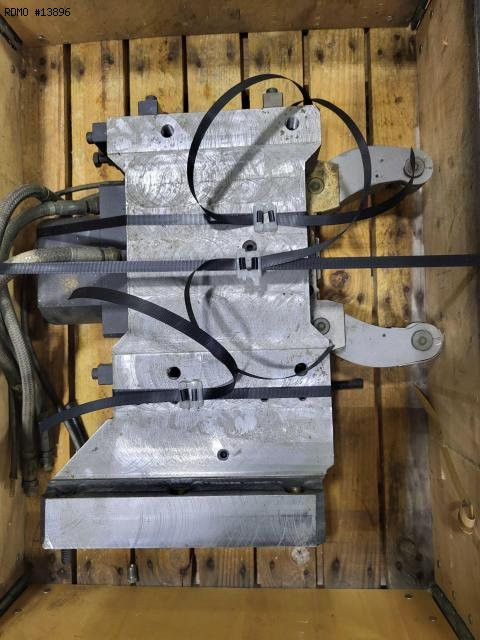

- Rest : SMW SLU-3.1-MS Ø20-165
- Number of turning tool holders : 2
- Number of fixed tool holders : 10
- Chuck 3 jaws : KITAGAWA B210
