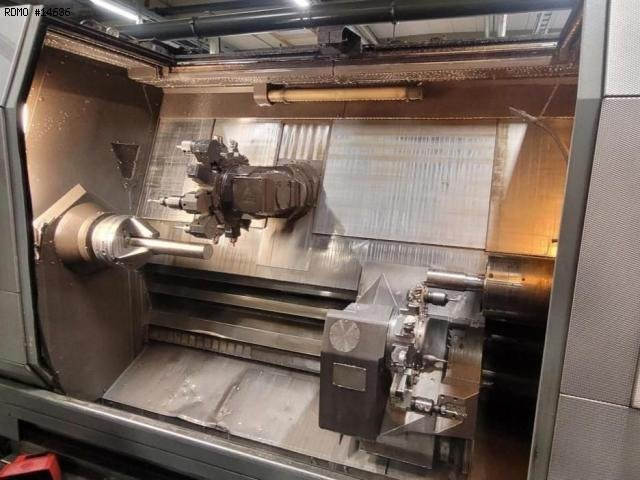

Marca: INDEX
Modello: G400
Anno: 2007
Nr Serie: 650086
Marca: INDEX
Modello: G400
Anno: 2007
Nr Serie: 650086

Caratteristiche & Attrezzatura

Caratteristiche
- Number of spindles : 2
- Number of axes : 8
- Number of turrets : 2
MAIN SPINDLE
- Spindle power : 53 / 68 [kW]
- Spindle speeds : 3000 [rpm]
- Max. bar diameter : 102 [mm]
- 1 - Saisie libre : 2000 [mm]
- Max. chuck diameter : 420 [mm]
- Rapid traverse rate : 30 [l]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle power : 50 / 70.5 [kW]
- Spindle speeds : 3000 [rpm]
- Max. bar diameter : 102 [mm]
- Rapid traverse rate : 30 [l]
- C axis indexing precision : 0,001 [°]
UPPER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- Tool holder type : VDI 40
- X/Z stroke : 320 x 2.000 [mm]
- Y stroke : 210 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 17 [kW]
LOWER RIGHT TURRET
- Number of positions : 10
- Number of motorized positions : 10
- Tool holder type : VDI 40
- X/Z stroke : 210 x 2.000 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 11.3 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 137 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 9.000 x 3.500 [mm]
- Machine height : 3.000 [mm]
- Machine weight : 21.000 [kg]
MACHINE HOURS

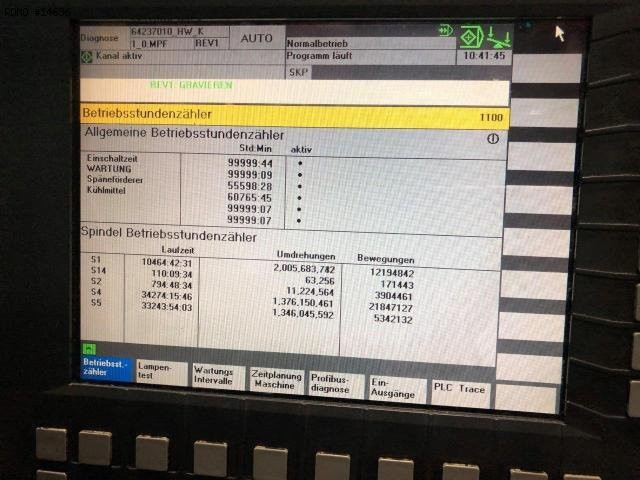

- Number of working hours : 34274 [h]
Attrezzatura

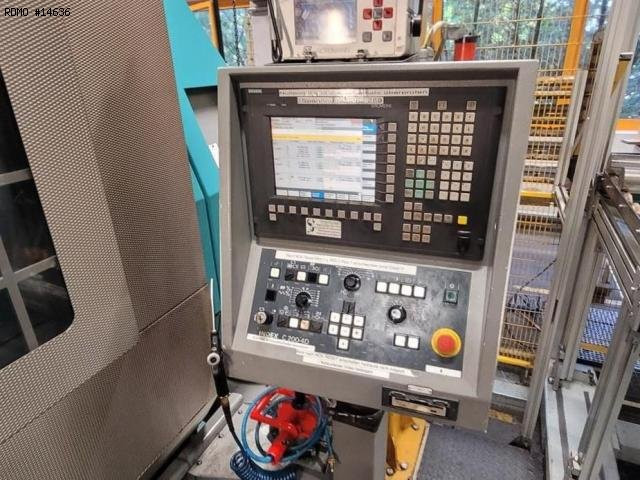

- CNC : INDEX C200-4D (Siemens 840D)

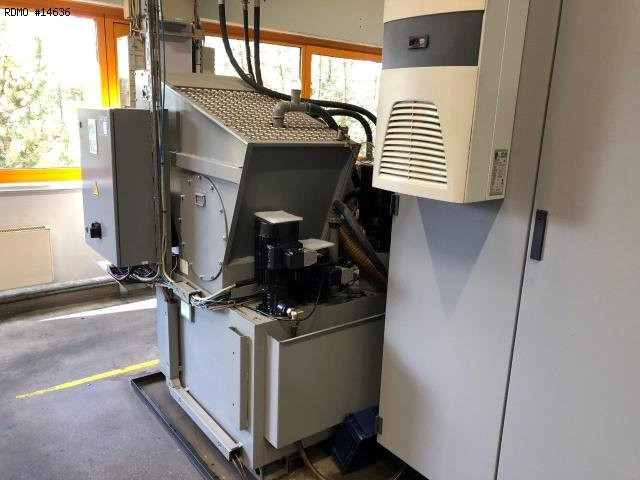

- Coolant tank : KNOLL
* with high-pressure pump : 80 [bars]
* with paper filtering unit
- Automatic doors
- Chips conveyor : Droite
