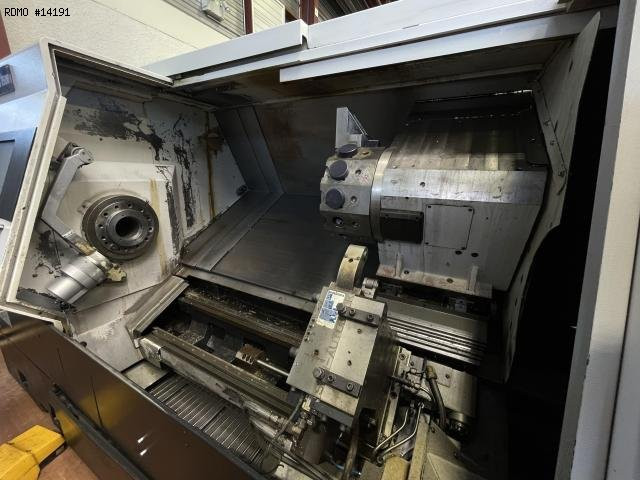

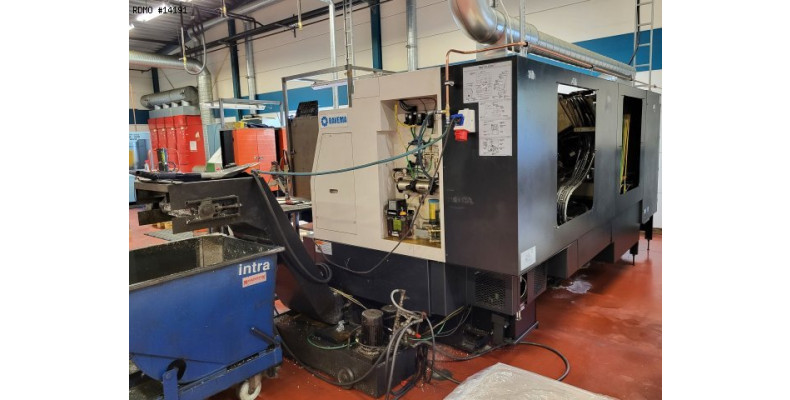

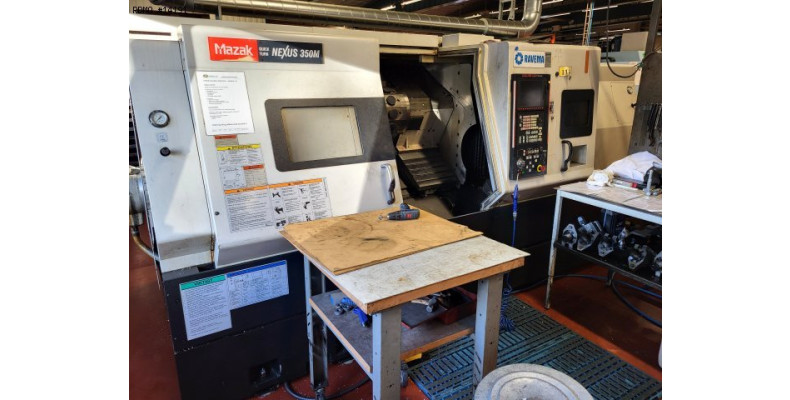

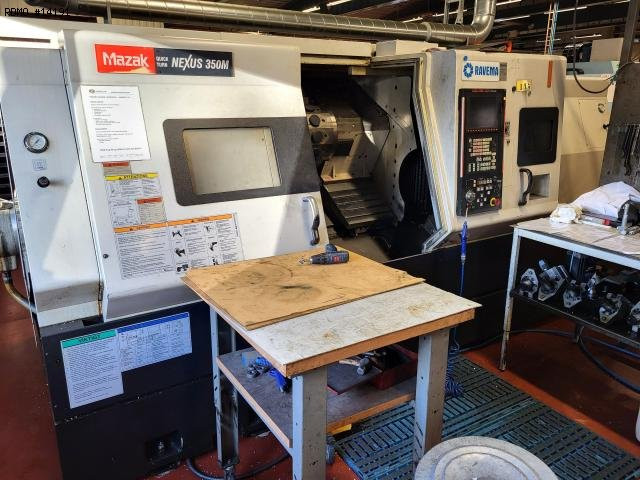

MAZAK QT NEXUS 350 M 3 assi

- Number of axes : 3

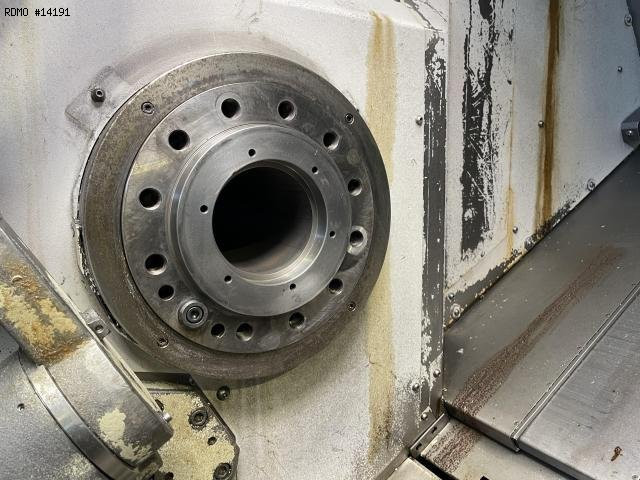

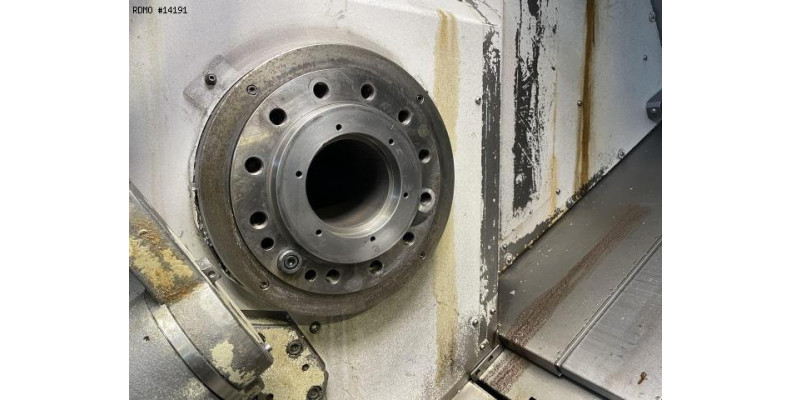

MAIN SPINDLE
- Spindle power : 30 [kW]
- Spindle speeds : 3.300 [rpm]
- Max. bar diameter : 102 [mm]
- Max. turning diameter : 420 [mm]
- Max. diameter on bench : 750 [mm]
- Spindle nose : A2-8
- C axis indexing precision : 0,001 [°]

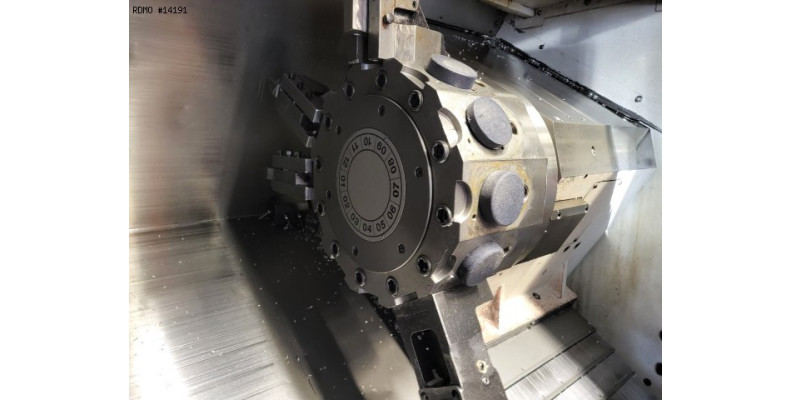

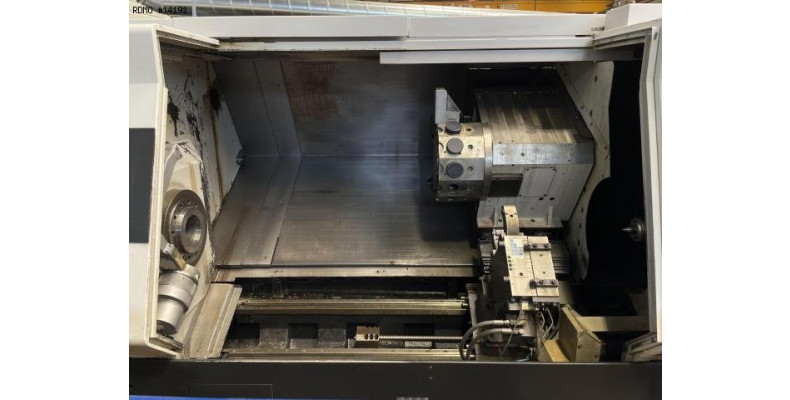

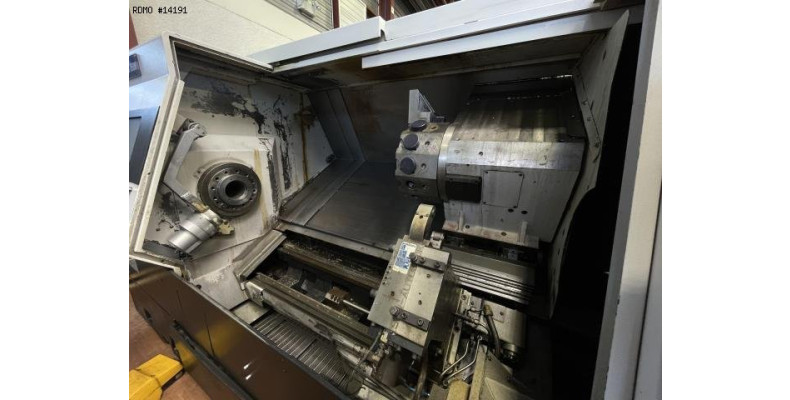

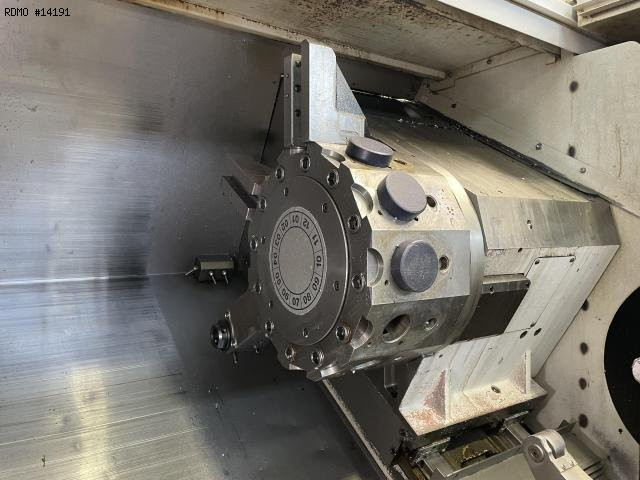

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 260 / 1605 [mm]
- Tool type : VDI 50
- Live tools speed : 25 - 4.000 [rpm]
- Live tools power : 7,5 [kW]

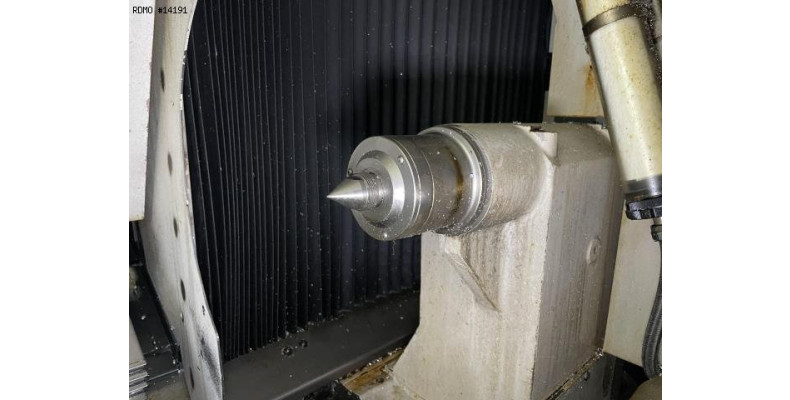

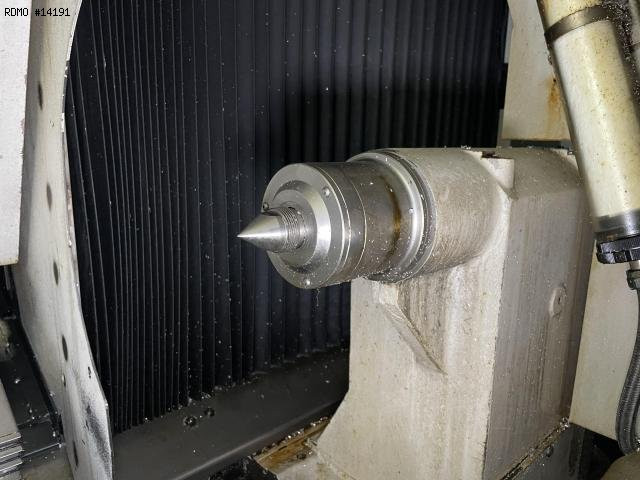

TAILSTOCK
- Tailstock type : Numérique
- Type of cone : CM4
- Distance between centers : 1.500 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 55 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 4.270 x 2.050 [mm]
- Machine height : 2.000 [mm]
- Machine weight : 7.500 [kg]
MACHINE HOURS
- Number of hours under power : 31.838 [h]

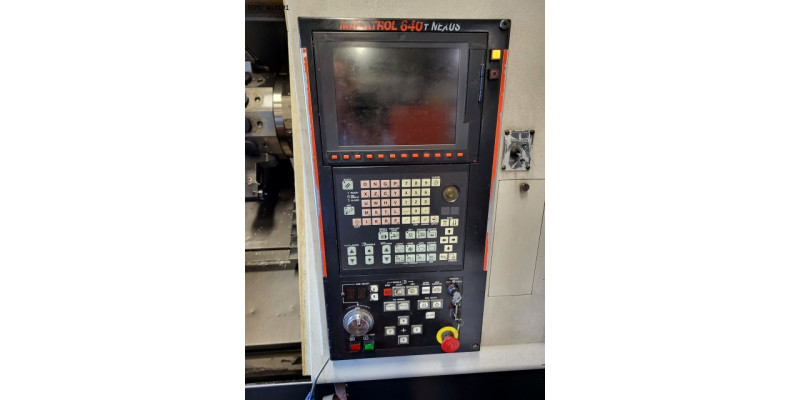

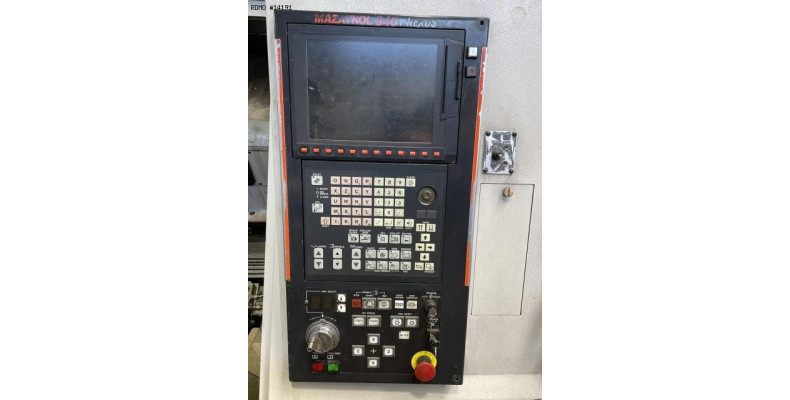

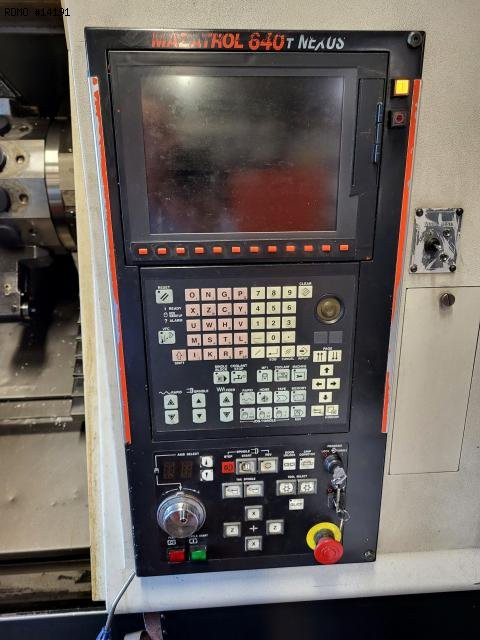

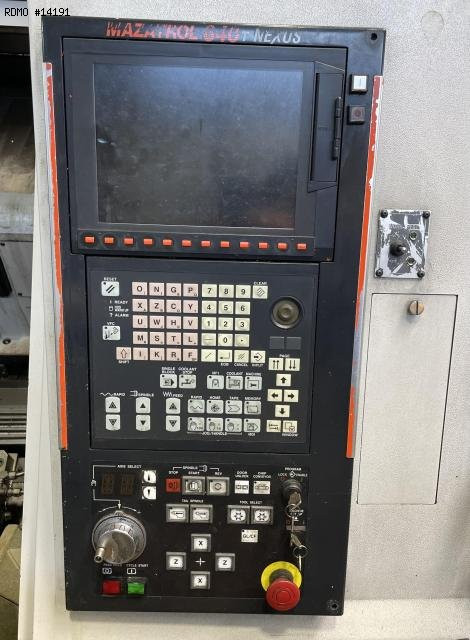

- CNC : Mazatrol 640T NEXUS
- Interface : PCMCIA / RS232
- Coolant tank : 350 [l]
- Chips conveyor
- Tool probe

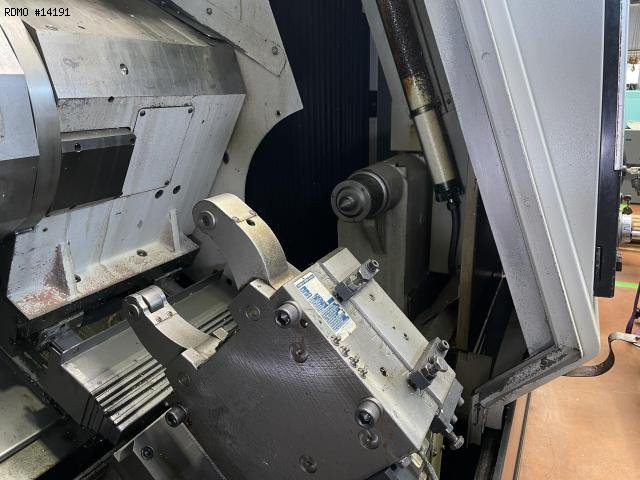

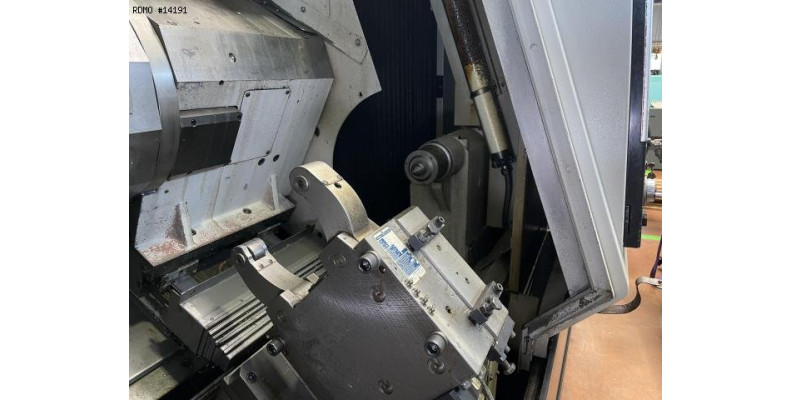

- Rest : SMW SLU-3.1-MS Ø20-165

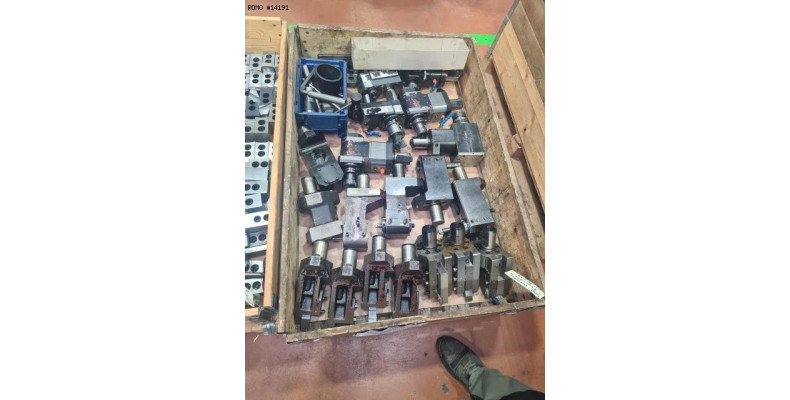

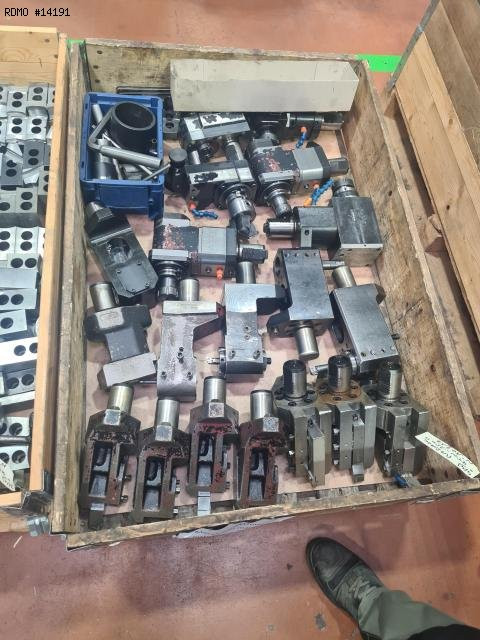

- Number of turning tool holders : 6
- Number of fixed tool holders : 16

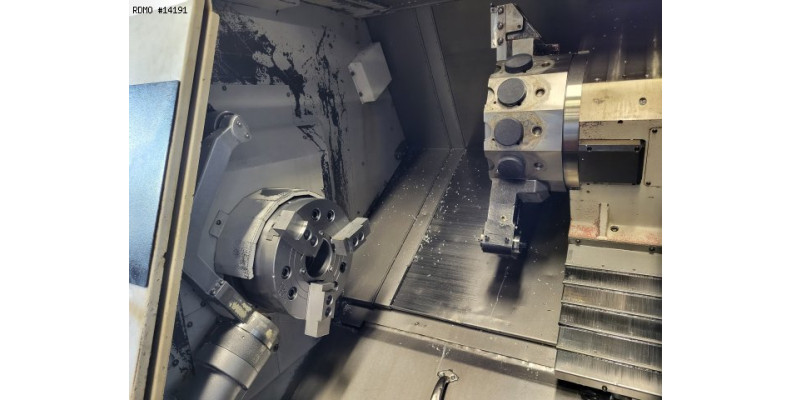

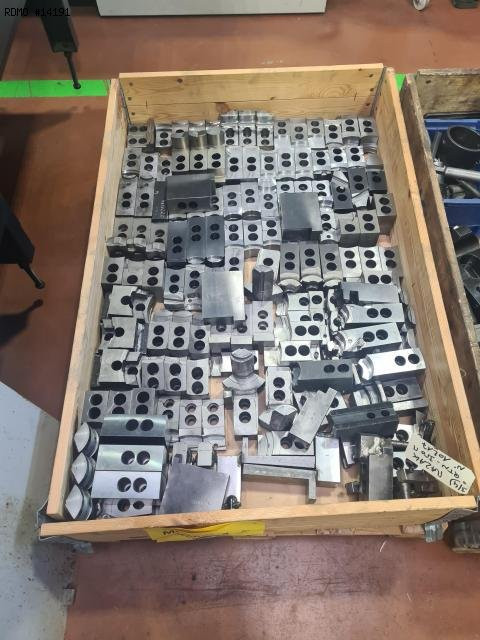

- Chuck 3 jaws : KITAGAWA B-212 15X
