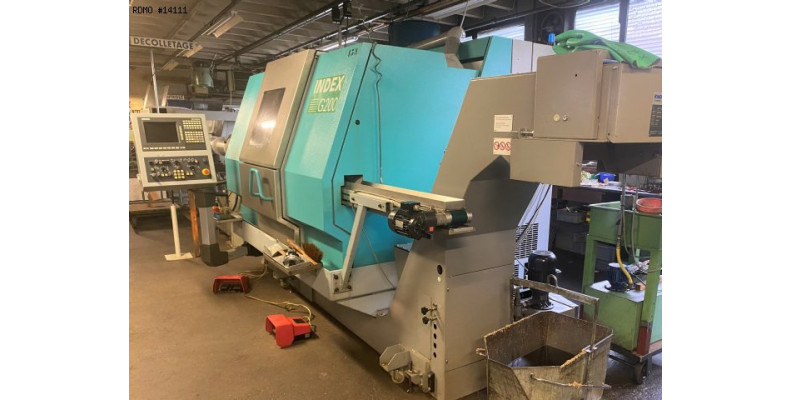

INDEX G200 7 assi

- Number of axes : 7
- Number of spindles : 2
- Number of turrets : 1
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 22 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 60 [mm]
- Max. turning diameter : 200 [mm]
- C axis indexing precision : 0.001 [°]

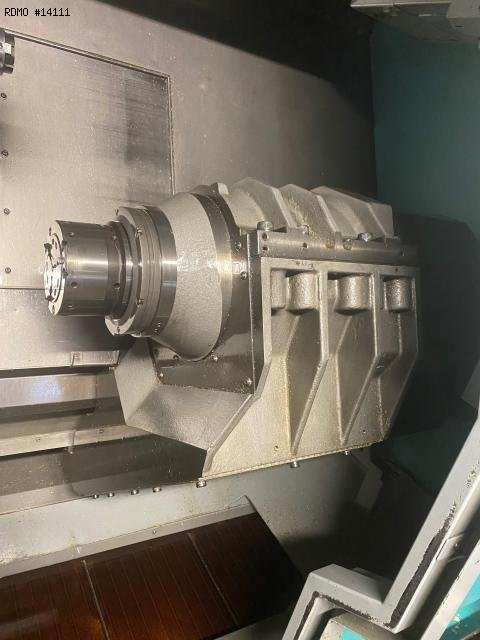

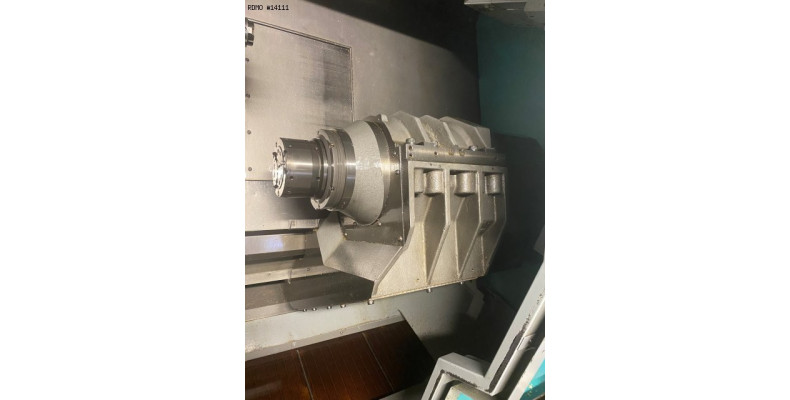

COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 22 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 60 [mm]
- C axis indexing precision : 0.001 [°]
- Z stroke : 445 [mm]

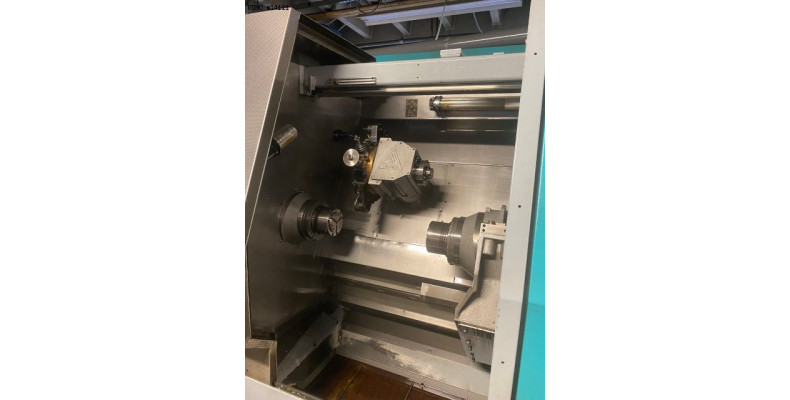

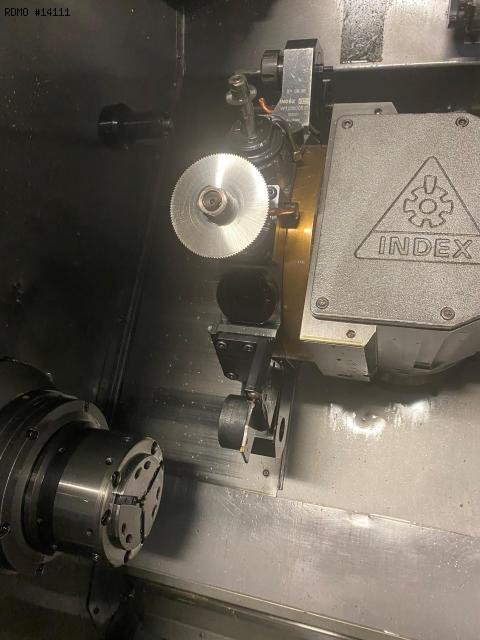

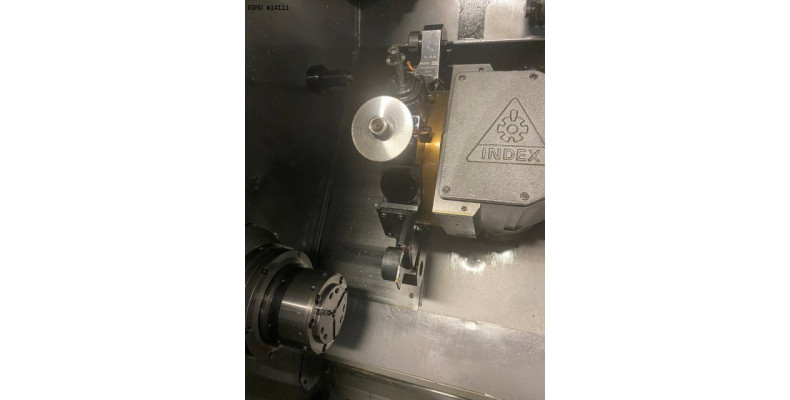

TURRET 1
- Number of positions : 14
- Number of motorized positions : 14
- X/Z stroke : 105/400 [mm]
- Y stroke : 120 [mm]
- B Axis stroke : +90/-270 [°]
- Tool type : VDI 25
- Live tools speed : 6000 [rpm]
- Live tools power : 5.5 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 4.975 X 2.890 [mm]
- Machine height : 2.050 [mm]
- Machine weight : 4800 [kg]

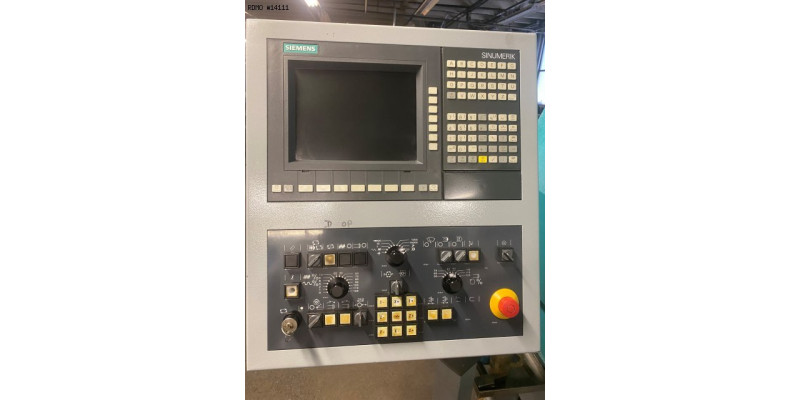

- CNC : Siemens 840C

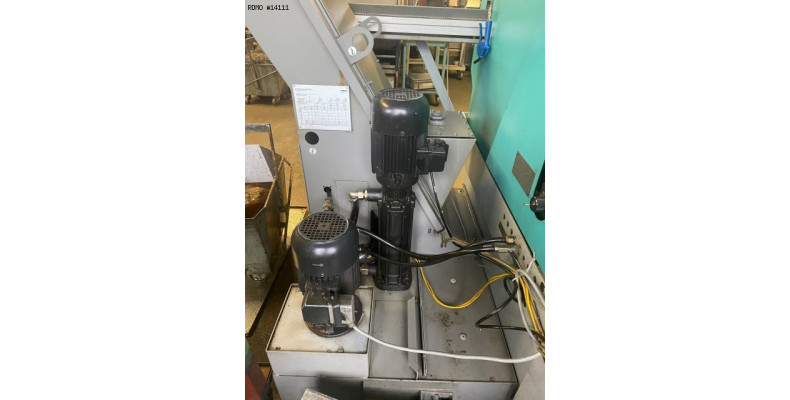

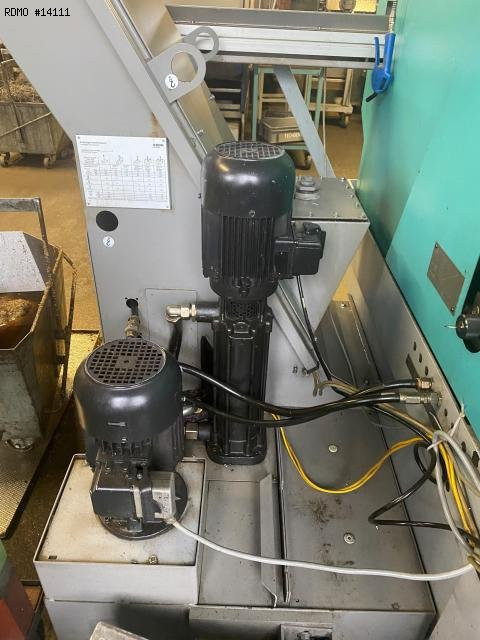

- Coolant tank
* with high-pressure pump
- Chips conveyor
- Parts catcher
- Parts conveying strip
- Bar loader : LNS
