Caratteristiche
- Number of axes : 8 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 42 [mm] - Max. turning diameter : 190 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0,001 [°] TRAVEL - Z stroke : 525 [mm] - Spindle / counter-spindle distance : 735 [mm] TURRET 1 - Number of positions : 24 - Number of motorized positions : 12 - X/Z stroke : 135/503 [mm] - Y stroke : +/- 31 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 7.1/2.2 [kW] TURRET 2 - Number of positions : 24 - Number of motorized positions : 12 - X/Z stroke : 135/503 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 7.1/2.2 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 61 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2630 X 1720 [mm] - Machine height : 1940 [mm] - Machine weight : 6000 [kg] MACHINE HOURS - Number of hours under power : 44554 [h]
Attrezzatura

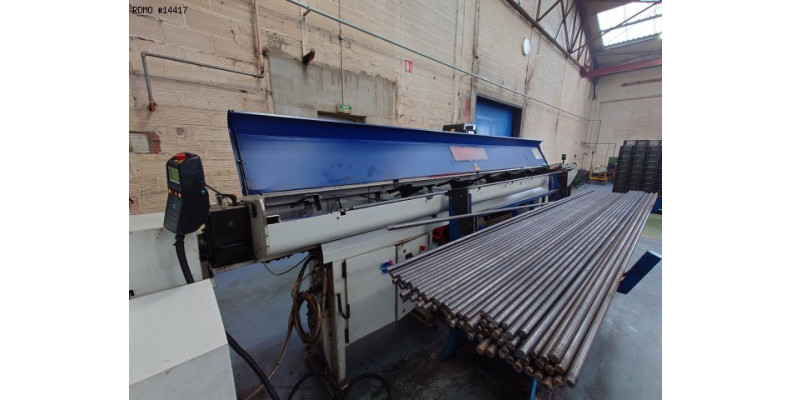

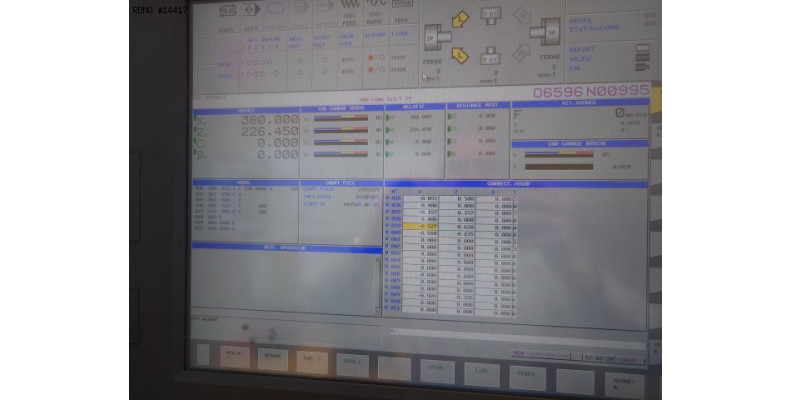

- CNC : Fanuc 31i model B - Interface : Ethernet / RS232 / PMCIA - 3 colors status lamp - Coolant tank * with high-pressure pump : 20 [bars] - Chips conveyor : SERMETO - Parts catcher : G-type - Parts conveying strip - Bar loader : IEMCA BOSS 552 HD/R - Electric transformer - Number of turning tool holders : 2 - Number of fixed tool holders : 10 - Collet chuck : HAINBUCH Spanntop
