Caratteristiche

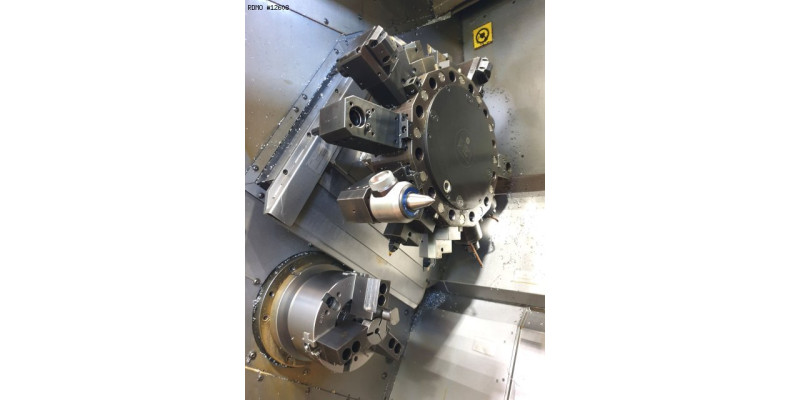

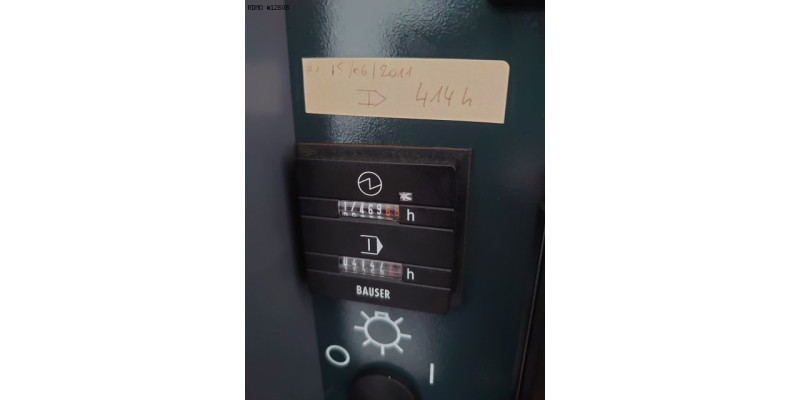

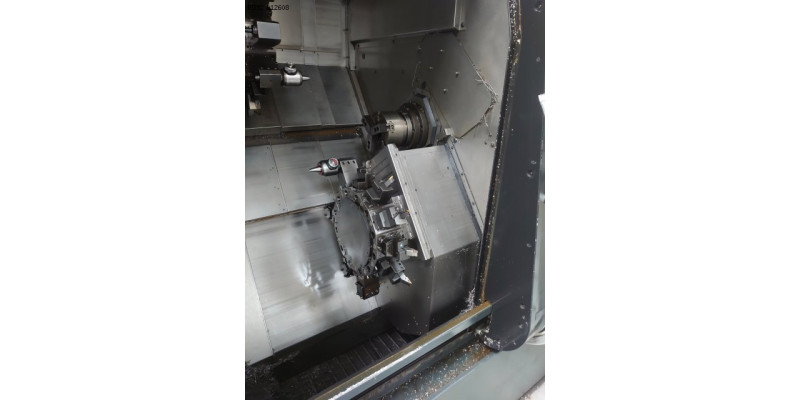

- Number of spindles : 2 - Number of axes : 10 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 22 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-6 - Spindle power : 17.5 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] - Travel : 690 [mm] - Spindle / counter-spindle distance : 950 [mm] UPPER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 165/650 [mm] - Y stroke : +50/-30 [mm] - Tool type : VDI 30 - Live tools speed : 4000 [rpm] - Live tools power : 2.5 [kW] LOWER RIGHT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 165/150 [mm] - Tool type : VDI 30 - Live tools speed : 4000 [rpm] - Live tools power : 2.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 4500X1990 [mm] - Machine height : 2300 [mm] - Machine weight : 10000 [kg] MACHINE HOURS - Number of hours under power : 17649 [h] - Number of working hours : 4147 [h]
Attrezzatura

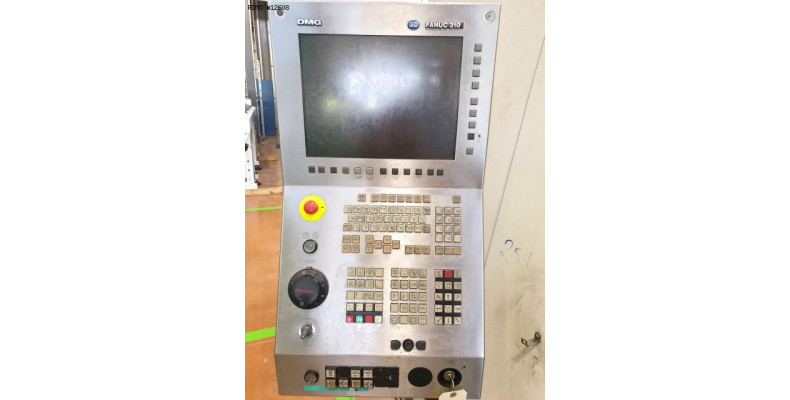

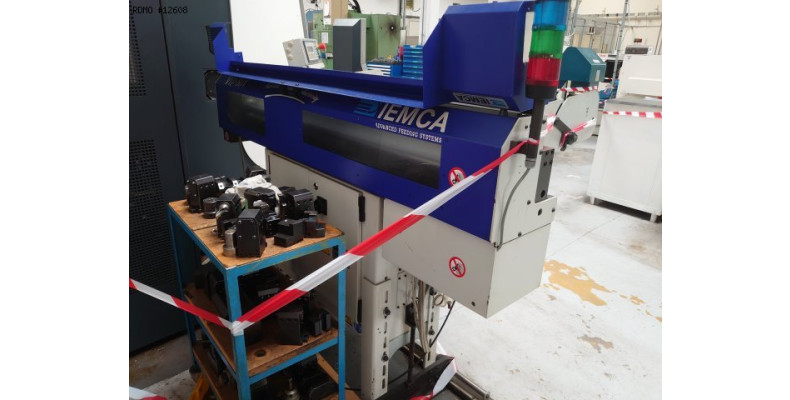

- CNC : Fanuc 310i - Interface : Ethernet / RS232 / USB / PCMCIA - Coolant tank * with high-pressure pump - Chips conveyor - Tool probe - Parts catcher - Parts conveying strip - Bar loader : IEMCA VIP 80 - Electric transformer - Number of turning tool holders : 6 - Number of fixed tool holders : 12 - Chuck 3 jaws : 2
