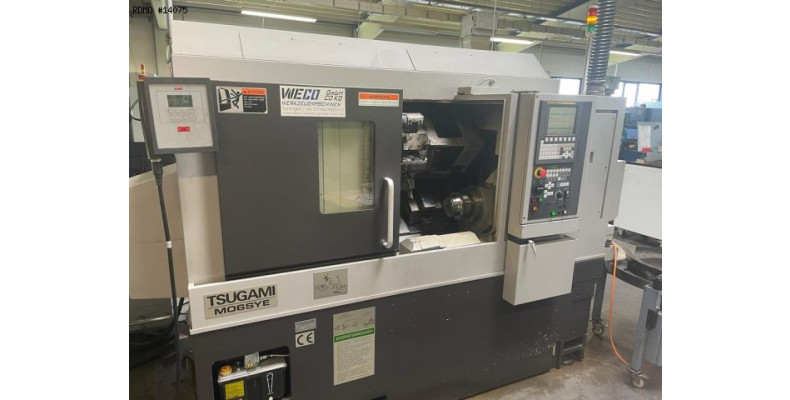

Marca: Tsugami
Modello: M06SYE
Anno: 2013
Nr Serie: 104
Marca: Tsugami
Modello: M06SYE
Anno: 2013
Nr Serie: 104

Caratteristiche & Attrezzatura

Caratteristiche

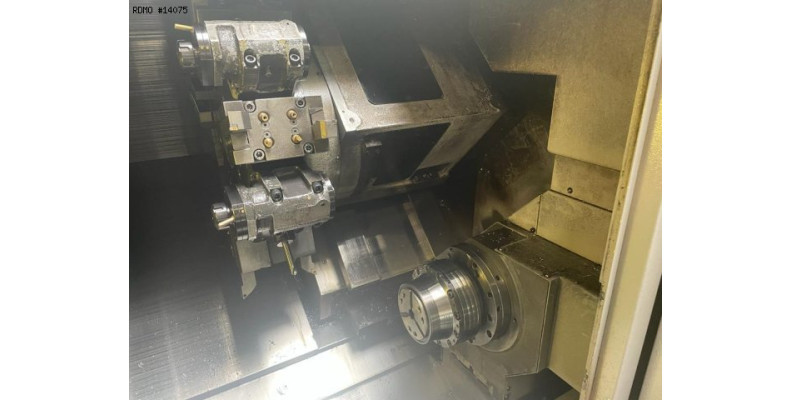

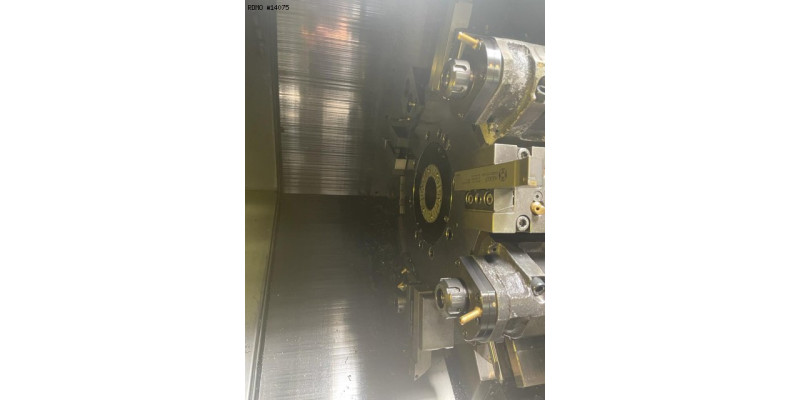

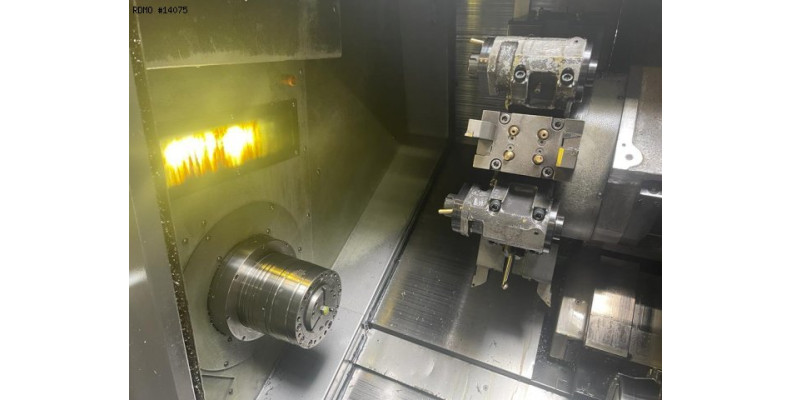

- Number of axes : 6 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 11 [kW] - Spindle speeds : 4.500 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 260 [mm] - Max. diameter on bench : 380 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle power : 7,5 [kW] - Spindle speeds : 4.500 [rpm] * Max. bar diameter : 51 [mm] - C axis indexing precision : 0,001 [°] - Travel : 506 [mm] UPPER RIGHT TURRET - Number of positions : 12 - X/Z stroke : 221 / 400 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 5.000 [rpm] - Live tools power : 3,7 [kW] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 30 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.470 x 1.850 [mm] - Machine height : 1.930 [mm] - Machine weight : 5.900 [kg] MACHINE HOURS - Number of hours under power : 27.543 [h] - Number of working hours : 10.356 [h]
Attrezzatura

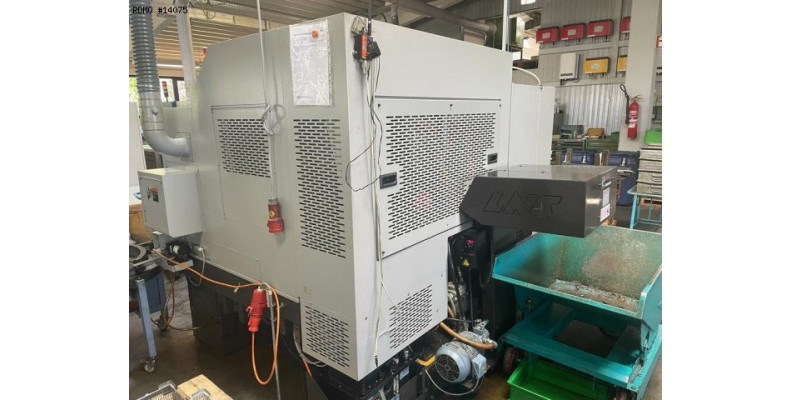

- CNC : Fanuc Oi-TD - 3 colors status lamp - Coolant tank - Chips conveyor : LNS, at the rear - Parts catcher - Parts conveying strip - Predisposition for barfeeder - Number of turning tool holders : 3 - Number of fixed tool holders : 9 - Collet chuck : HAINBUCH - Collet chuck : HAINBUCH
