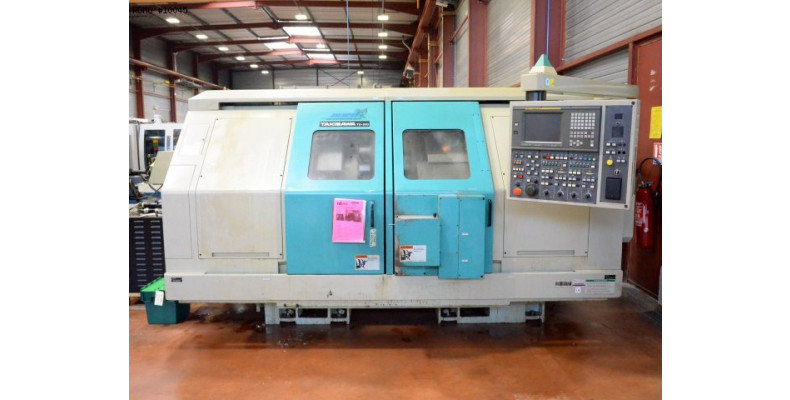

Takisawa TD-200 6 assi

- Number of axes : 6
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 50 - 5.000 [rpm]
- Max. bar diameter : 51 [mm]
- Max. turning diameter : 260 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 50 - 5.000 [rpm]
- Max. turning diameter : 260 [mm]
- C axis indexing precision : 0,001 [°]
- Spindle / counter-spindle distance : 280 - 1.100 [mm]
- Z stroke : 820 [mm]

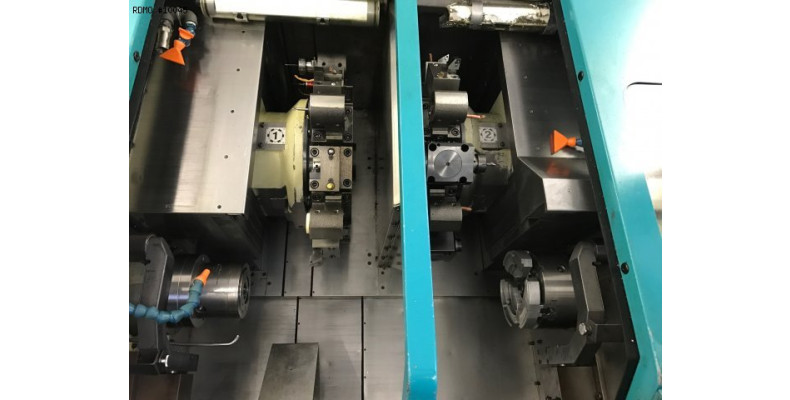

TURRET 1
- Number of positions : 12
- Number of motorized positions : 12
- Live tools speed : 36 - 3.600 [rpm]
- Live tools power : 3,7 [kW]
- X/Z stroke : 195 / 275 [mm]
TURRET 2
- Number of positions : 12
- Number of motorized positions : 12
- Live tools speed : 36 - 3.600 [rpm]
- Live tools power : 3,7 [kW]
- X stroke : 195 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 56 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.700 x 2.023 [mm]
- Machine height : 1.970 [mm]
- Machine weight : 8.000 [kg]
MACHINE HOURS
- Number of hours under power : 6.096 [h]
- Number of working hours : 2.961 [h]

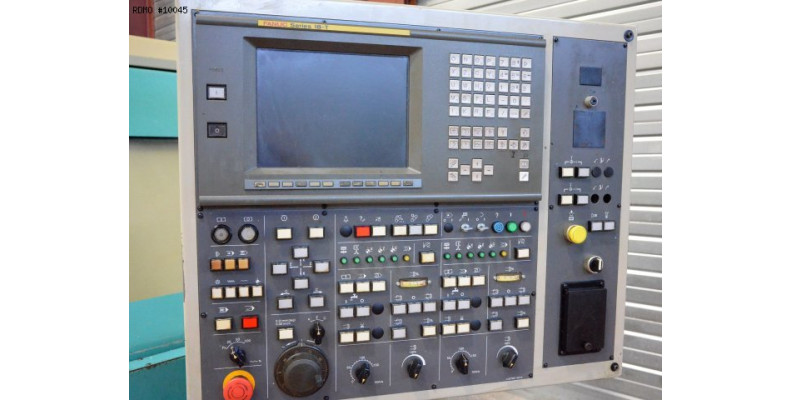

- CNC : Fanuc 18-T
- Linear scales
- Coolant tank : 250 [l]

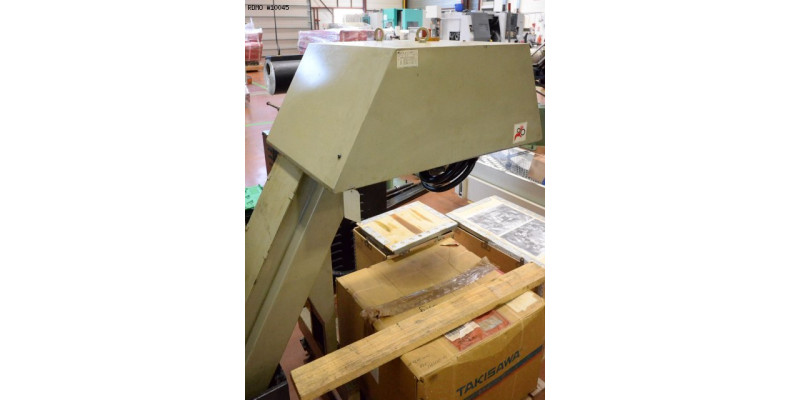

- Chips conveyor
- Tool probe : x2
- Parts catcher

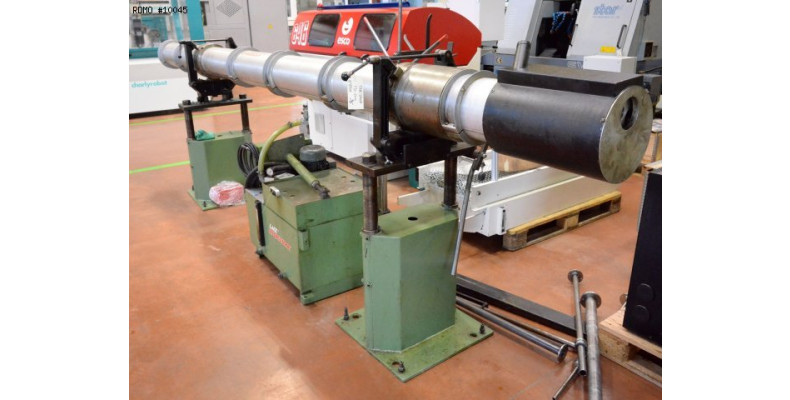

- Hydraulic bar-push brand/type : LNS 6.52 HS 4.4
- Electric transformer : 380 / 200 [V]
- Number of turning tool holders : 3
- Collet chuck : 1
- Chuck 3 jaws : 2
