Marca: SCHAUBLIN
Modello: 110-CNC
Anno: 1997
Nr Serie: 337738
Marca: SCHAUBLIN
Modello: 110-CNC
Anno: 1997
Nr Serie: 337738

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 2
MAIN SPINDLE
- Spindle nose : A2-3
- Spindle power : 5,5 [kW]
- Spindle speeds : 30 - 6.000 [rpm]
- Max. bar diameter : 24 (collets B32) [mm]
- Max. Ø above slide : 115 [mm]
- C axis indexing precision : 0,001 [°]
TURRET
- Number of positions : 8
- X/Z stroke : 220/300 [mm]
- Tool type : VDI20
- Distance between centers : 300 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1500 x 1774 [mm]
- Machine height : 1977 [mm]
- Machine weight : 1600 [kg]
Attrezzatura

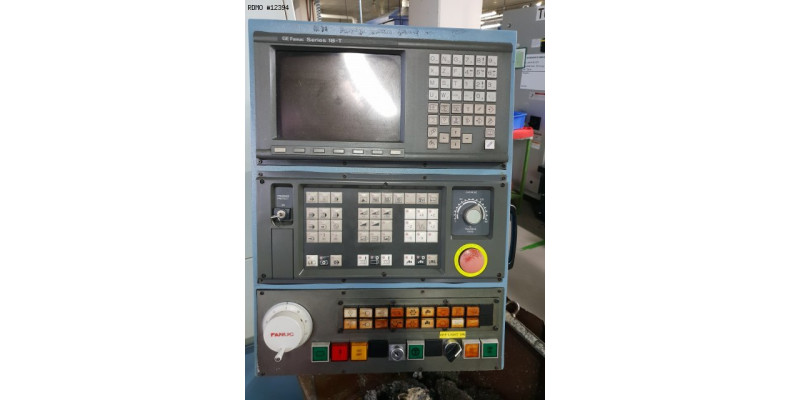

- CNC : Fanuc 18T
- Coolant tank
Specifiche tecniche per il download
