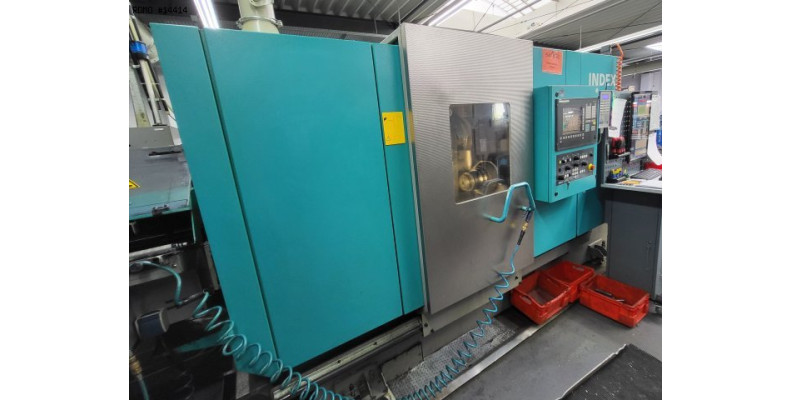

Marca: Index
Modello: C200
Anno: 2010
Nr Serie: 720442
Marca: Index
Modello: C200
Anno: 2010
Nr Serie: 720442

Caratteristiche & Attrezzatura

Caratteristiche

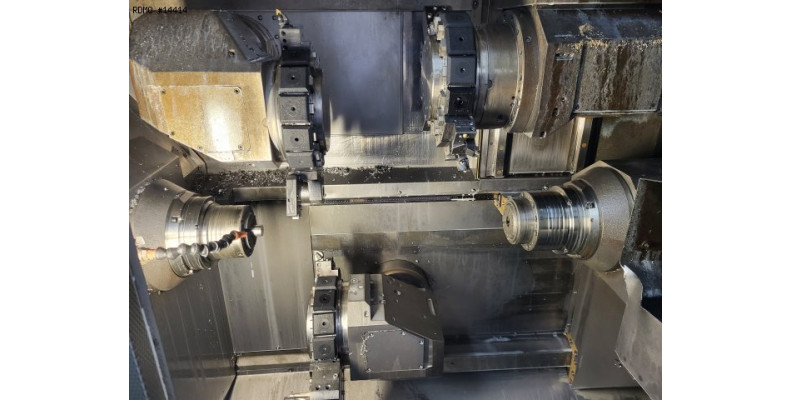

- Number of spindles : 2
- Number of axes : 10
- Number of turrets : 3
MAIN SPINDLE
- Spindle nose : AD140
- Spindle power : 25 / 33 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. chuck diameter : 160 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : AD140
- Spindle power : 25 / 33 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 160 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 700 [mm]
- Rapid traverse rate : 50 [m/min]
- Spindle / counter-spindle distance : 710 [mm]

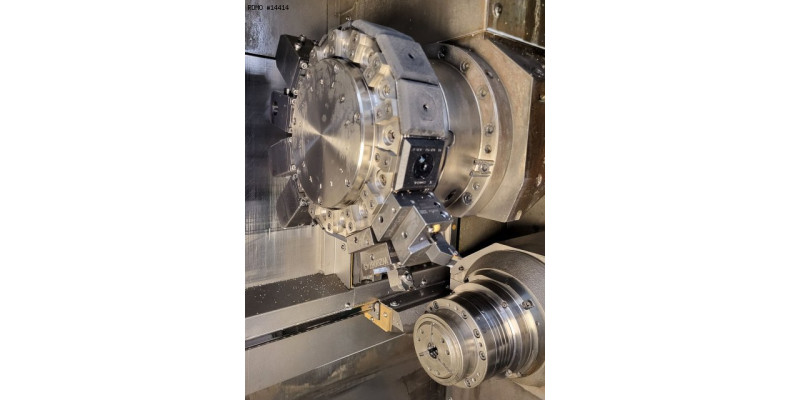

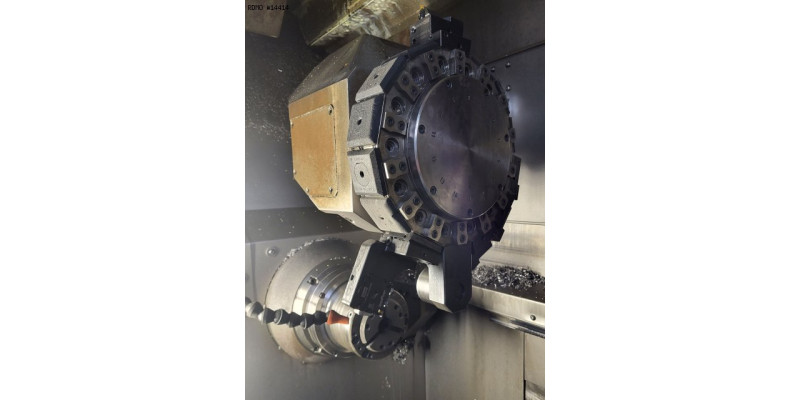

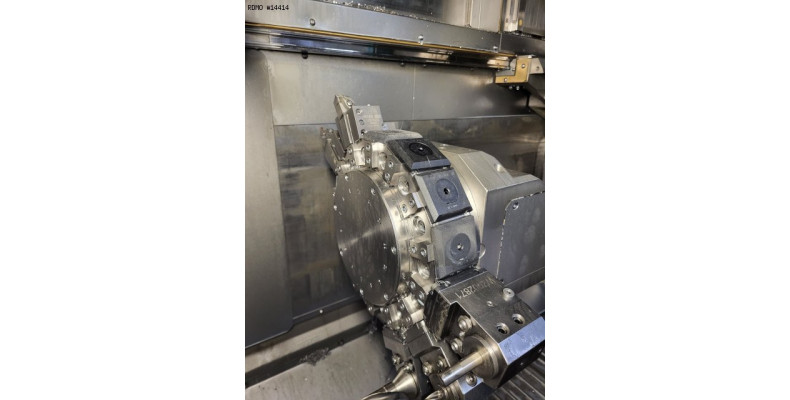

UPPER LEFT TURRET : 1
- Number of positions : 14
- Number of motorized positions : 14
- X/Z stroke : 110 / 320 [mm]
- Y stroke : 100 [mm]
- Tool type : VDI 25
- Live tools speed : 8.000 [rpm]
- Live tools power : 6,5 [kW]
UPPER RIGHT TURRET : 3
- Number of positions : 14
- Number of motorized positions : 14
- X stroke : 180 [mm]
- Tool type : VDI 25
- Live tools speed : 8.000 [rpm]
- Live tools power : 6,5 [kW]
LOWER LEFT TURRET : 2
- Number of positions : 14
- Number of motorized positions : 14
- X/Z stroke : 110 / 550 [mm]
- Y stroke : 100 [mm]
- Tool type : VDI 25
- Live tools speed : 8.000 [rpm]
- Live tools power : 6,5 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 64 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 6.618 x 1.794 [mm]
- Machine height : 2.139 [mm]
- Machine weight : 9.000 [kg]
MACHINE HOURS
- Number of spindle hours : 36.721 [h]
Attrezzatura

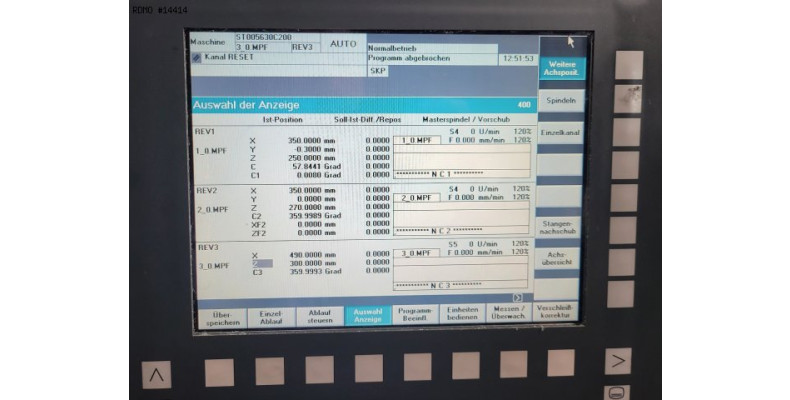

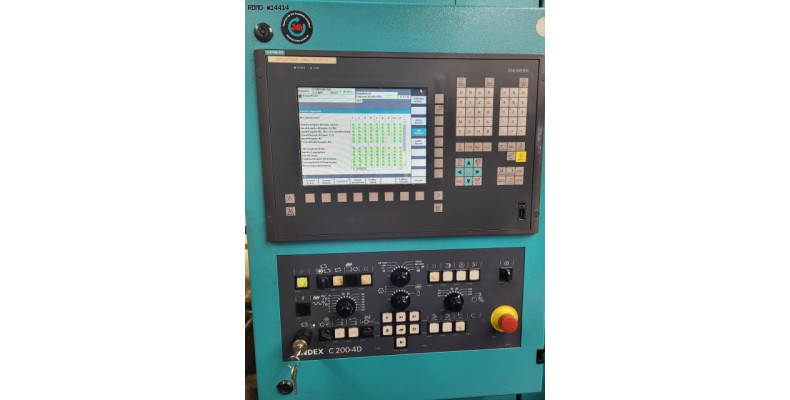

- CNC : C200-4D (SIEMENS 840D)
- Interface : Ethernet / USB
- 3 colors status lamp
- Options : Transmit / Tracyl
- Tool breakage detection
- Coolant tank : 350 [l]
* with high-pressure pump : 80 [bars]

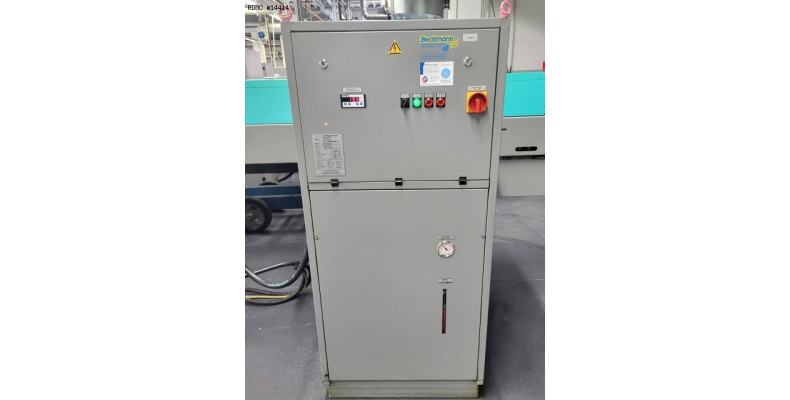

- Spindle cooling unit : KLH SC 13.K2LLT
- Coolant through spindle : and turrets

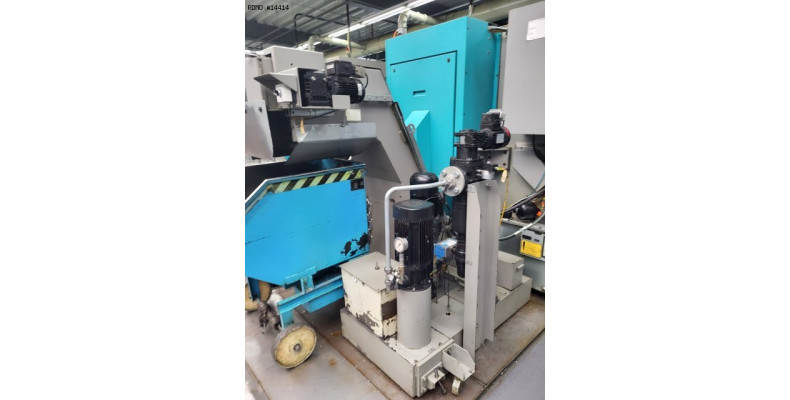

- Chips conveyor

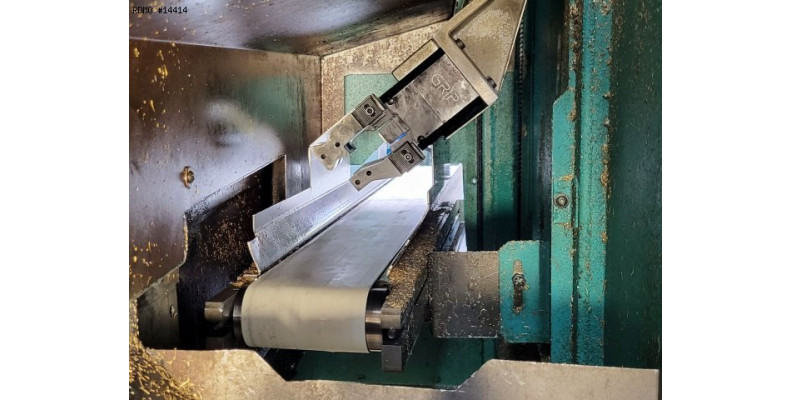

- Parts catcher
- Parts conveying strip

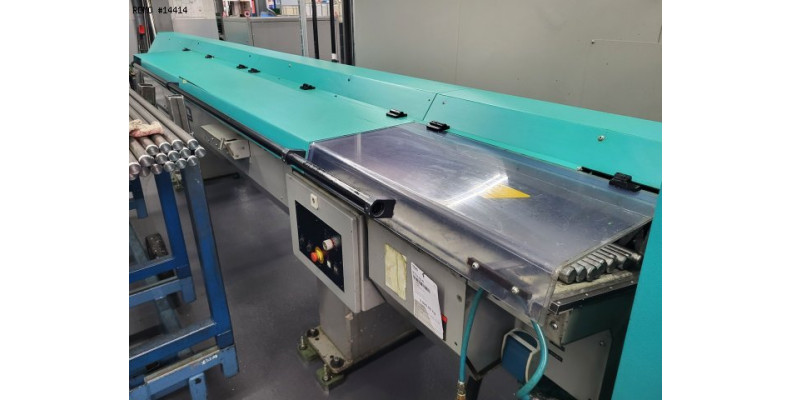

- Bar loader : INDEX MBL capacity 3.000 [mm]
- Collet chuck : 2 HAINBUCH Spanntop Kombi Axfix Ø65
