14547
Marca: CMZ
Modello: TA 15 YS
Anno: 2016
Nr Serie: 474
14547
Marca: CMZ
Modello: TA 15 YS
Anno: 2016
Nr Serie: 474

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 6
MAIN SPINDLE
- Spindle nose : ASA 6
- Spindle power : 8 - 14 [kW]
- Spindle speeds : 4500 [rpm]
- Max. bar diameter : 51 [mm]
- Max. turning diameter : 760 / 600 [mm]
- C axis indexing precision : 0,001 [°]

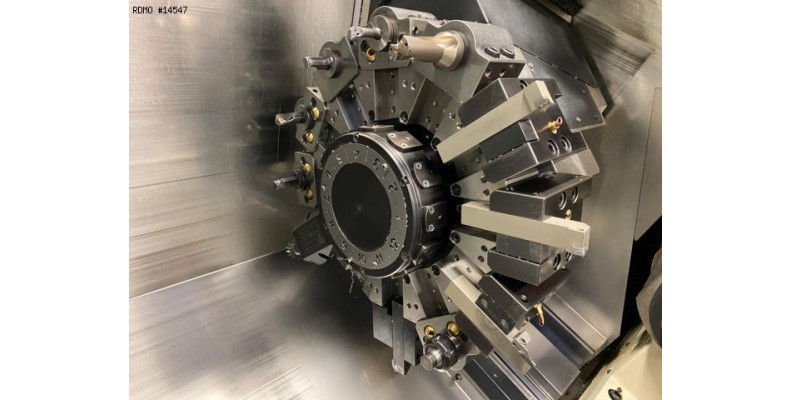

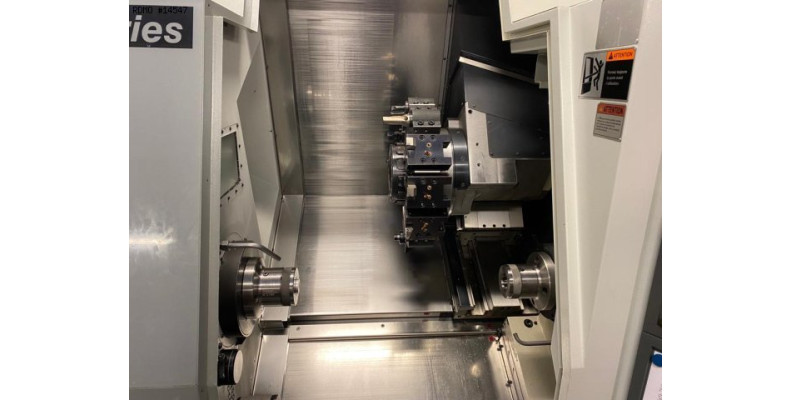

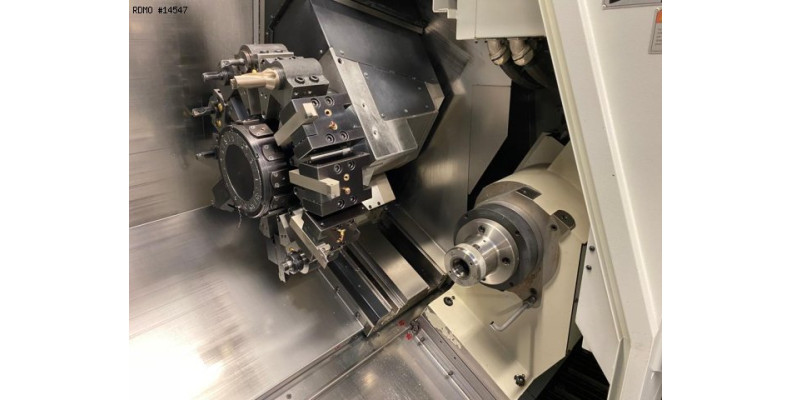

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 310 / 640 [mm]
- Y stroke : +70 / -50 [mm]
- Live tools speed : 12000 [rpm]
- Live tools power : 8.1 - 11.3 [kW]

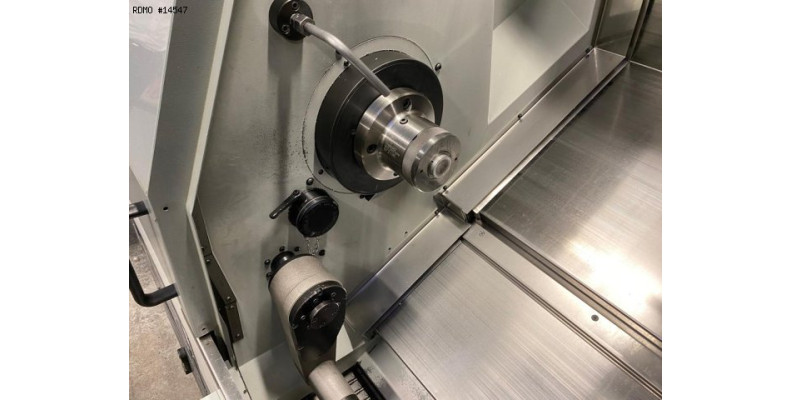

COUNTER-SPINDLE
- Spindle nose : ASA 6
- Spindle power : 8 - 14 [kW]
- Spindle speeds : 4500 [rpm]
- Max. bar diameter : 51 [mm]
- C axis indexing precision : 0,001 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 45 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2542 x 1760 [mm]
- Machine height : 2120 [mm]
- Machine weight : 6100 [kg]

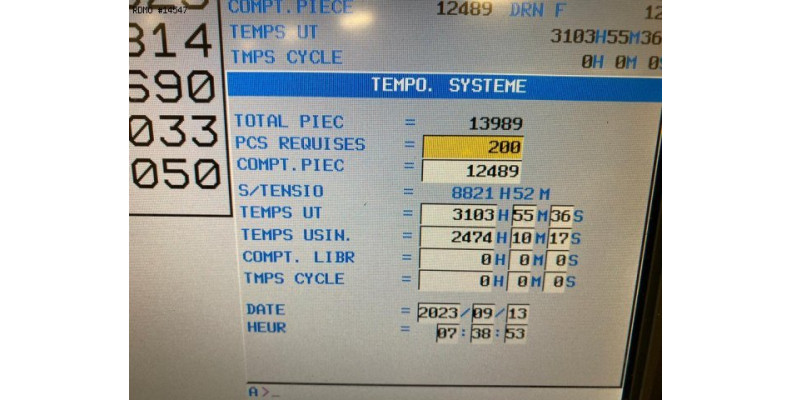

MACHINE HOURS
- Number of hours under power : 8821 [h]
- Number of working hours : 2474 [h]
Attrezzatura
- CNC : Fanuc 32i Model B
- 3 colors status lamp

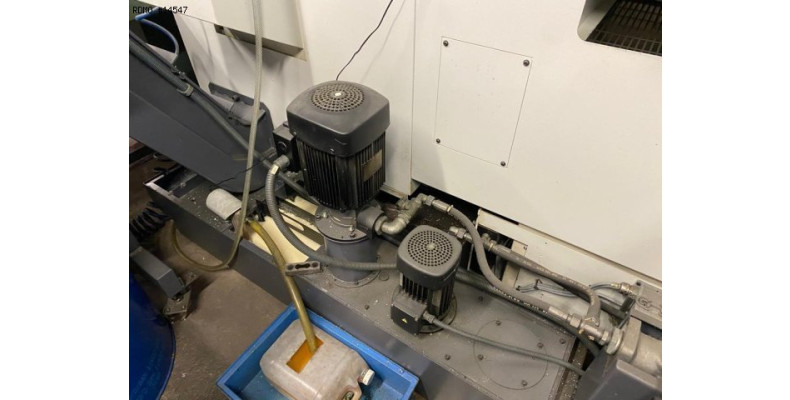

- Coolant tank
* with high-pressure pump

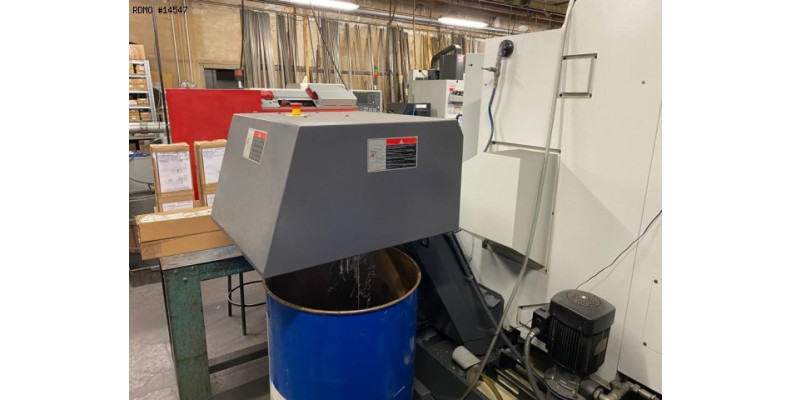

- Chips conveyor
- Spindle cooling unit
- Tool probe : Renishaw
- Parts catcher

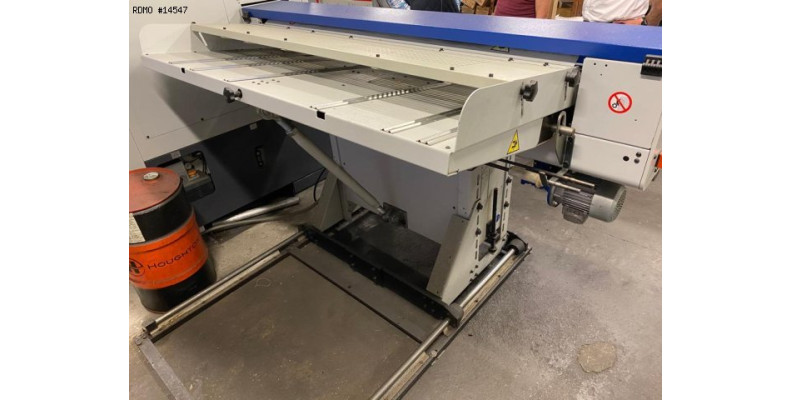

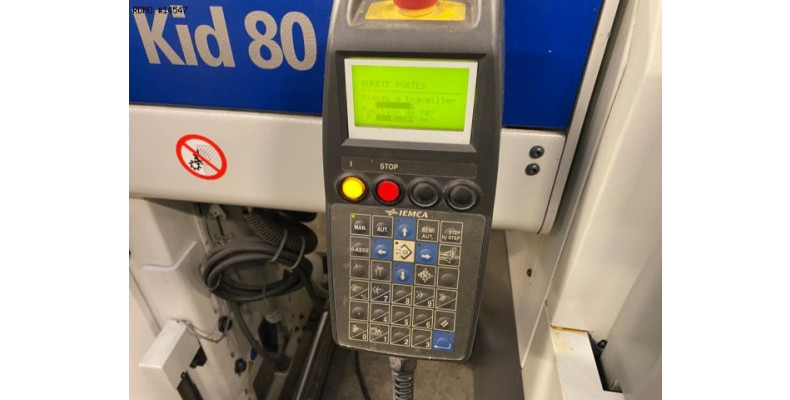

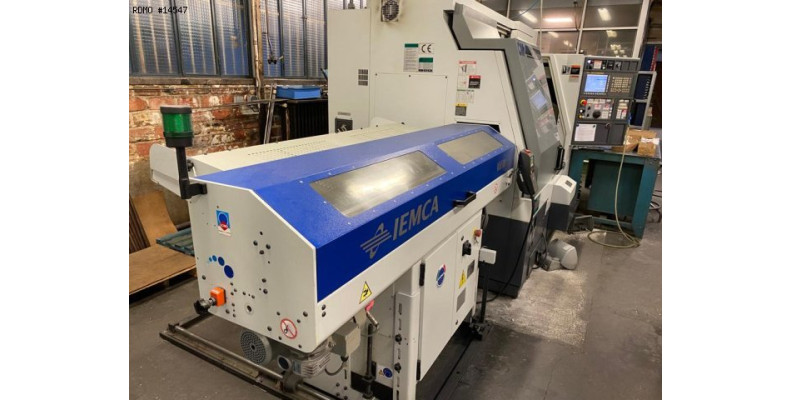

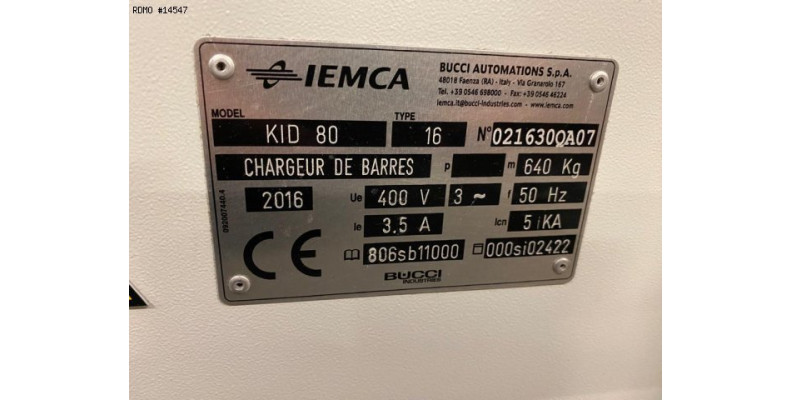

- Bar loader : IEMCA KID 80

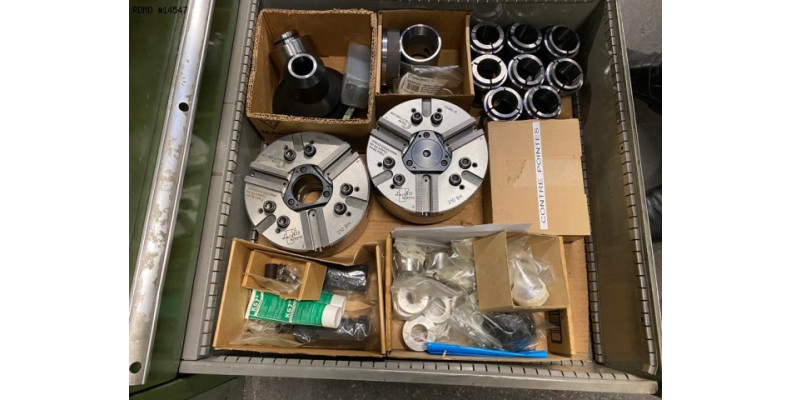

- Chuck 3 jaws : 2
- Collets set

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

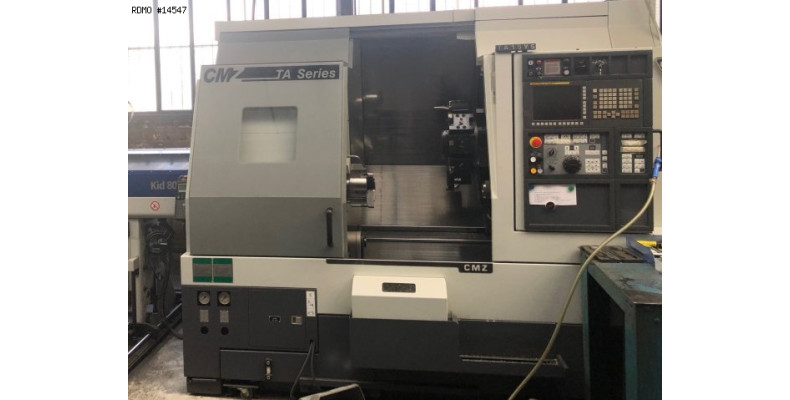

CMZ TA 15 YS 6 assi
