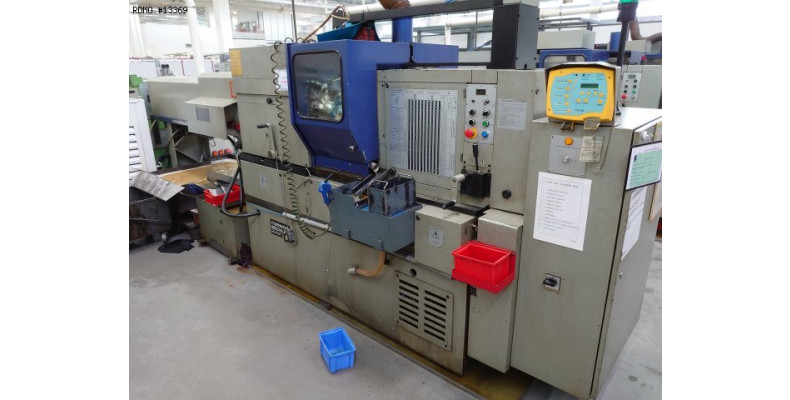

Marca: TORNOS
Modello: BS 20.B
Anno:
Nr Serie: T60579
Marca: TORNOS
Modello: BS 20.B
Anno:
Nr Serie: T60579

Caratteristiche & Attrezzatura

Caratteristiche
- spindle number : 8
- number of turning slides : 8
- number of longitudinal posts : 8
- max. bar clearance : round Ø 22 [mm]
- max. bar clearance : hexagonal 19 [mm]
- max. bar clearance : square 15 [mm]
- max. feed length : 60 [mm]
- number of spindle speeds : 20
- spindle speeds : 620 to 6035 [Rpm]
- number of camshaft speeds : 24
- max. production : 1-50 [part/min]
- transversal slides strokes : 30 [mm]
- independent feeds max. stroke : 50 [mm]
- main motor power : 10 [CV]
- weight : 4 700 [kg]
Attrezzatura
- counter spindle with brake
- counter operation system
- foot + drum

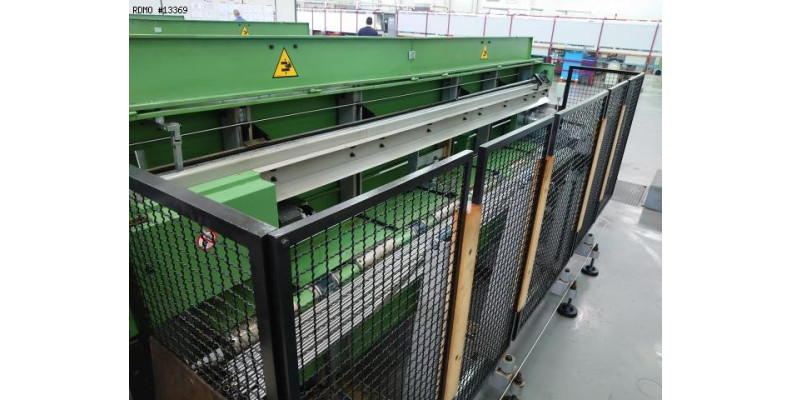

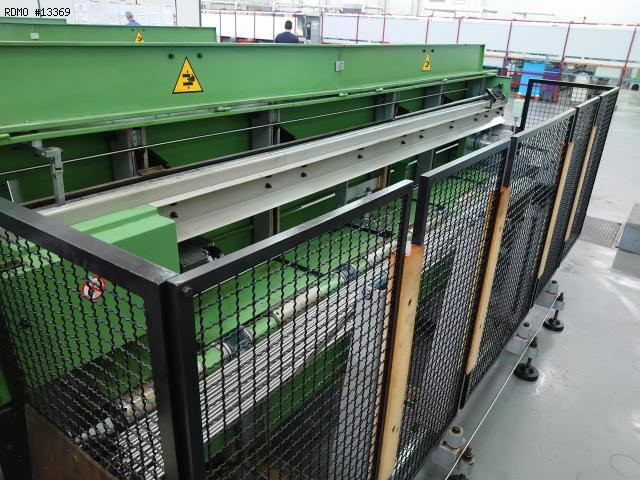

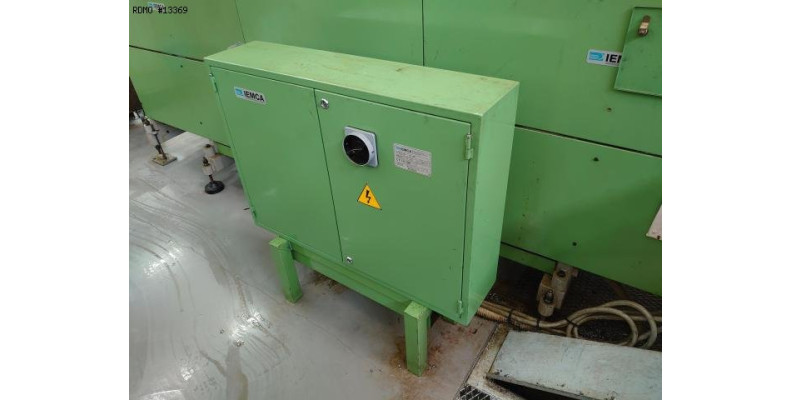

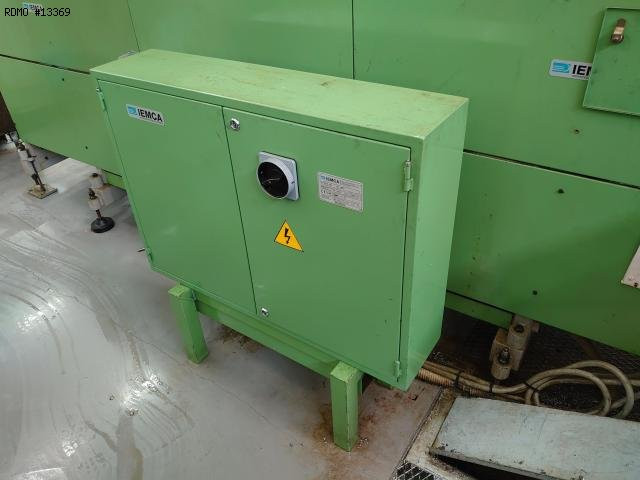

- bar feeder IEMCA PRA 40/33F

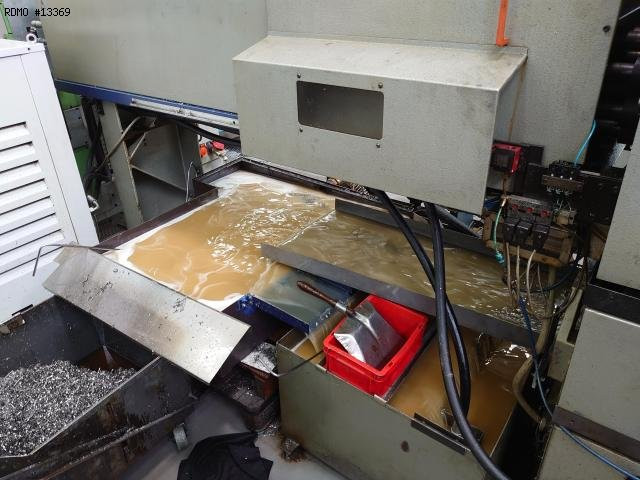

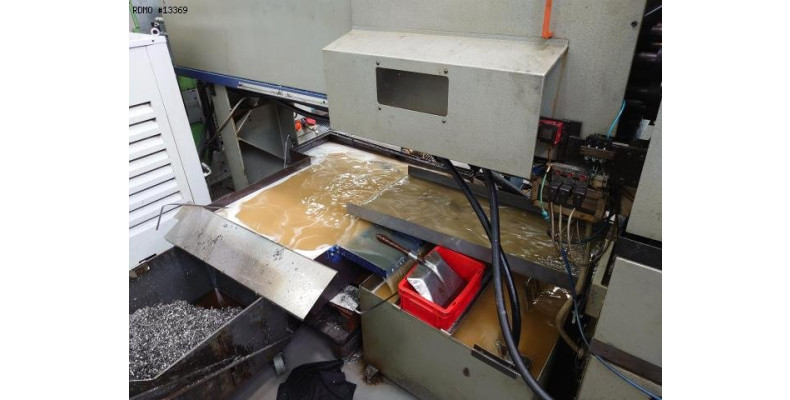

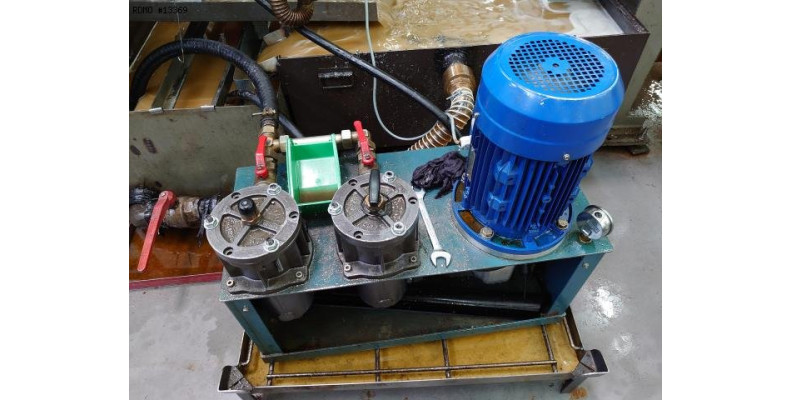

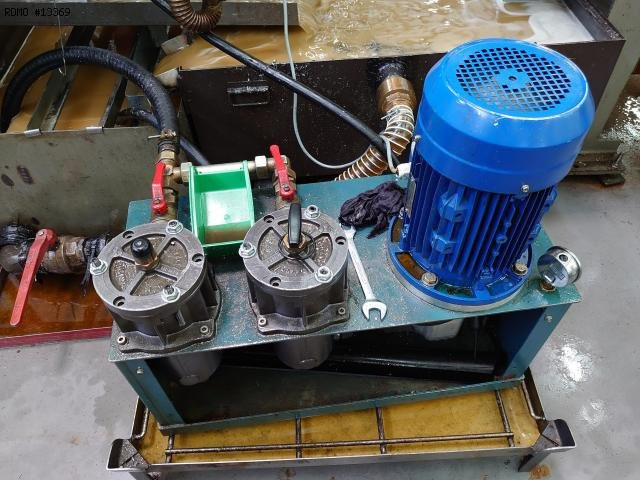

- high pressure pump
- chips conveyor
Specifiche tecniche per il download

Descrizione

Macchine utensili per la vendita

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

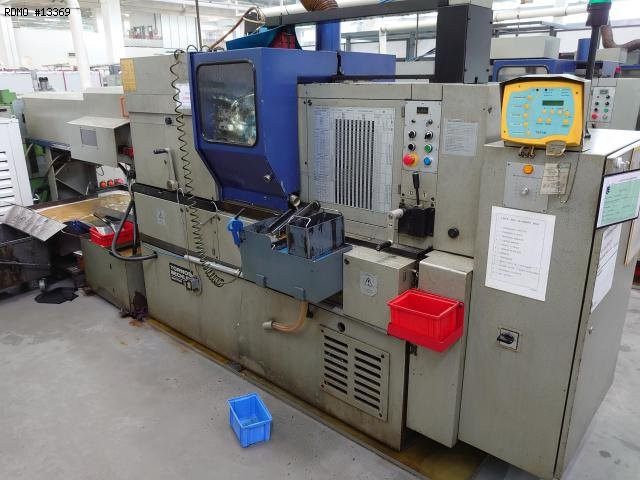

TORNOS BS 20.B
