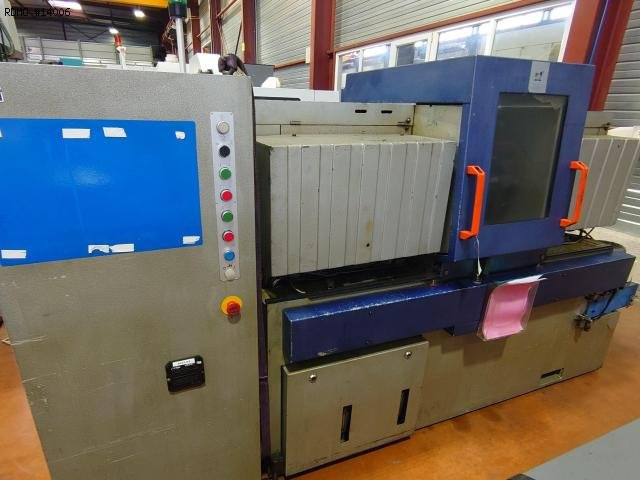

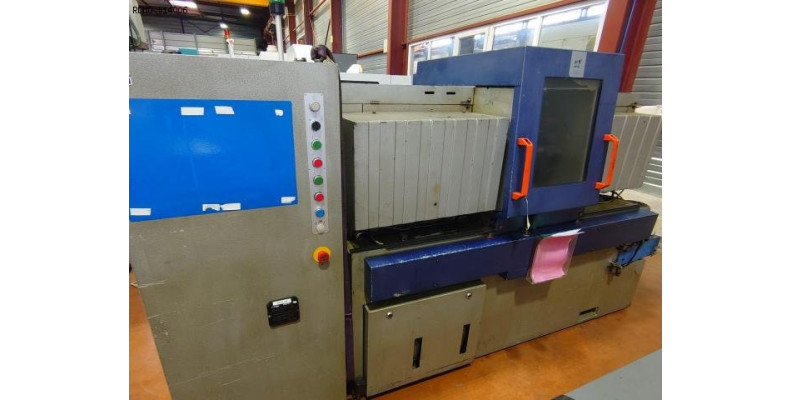

TORNOS SAS16.6

Name: Tornio multimandrino TORNOS SAS16.6
Brand: TORNOS
Availability: InStock

Tornitura Tornio multimandrino

14006

Specifiche tecniche per il download

Marca: TORNOS

Modello: SAS16.6

Anno:

Nr Serie: T60780

14006

TORNOS SAS16.6

Tornitura Tornio multimandrino

Specifiche tecniche per il download

Marca: TORNOS

Modello: SAS16.6

Anno:

Nr Serie: T60780

Richieda un prezzo

Caratteristiche

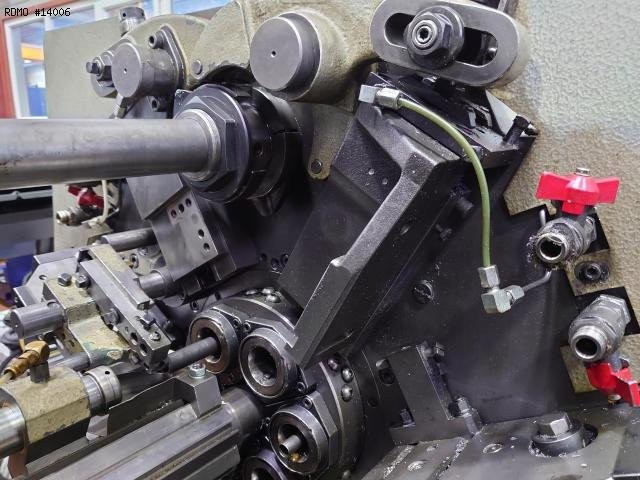

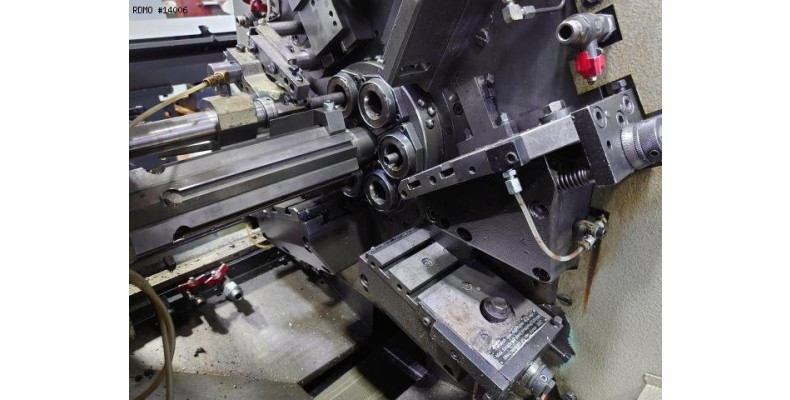

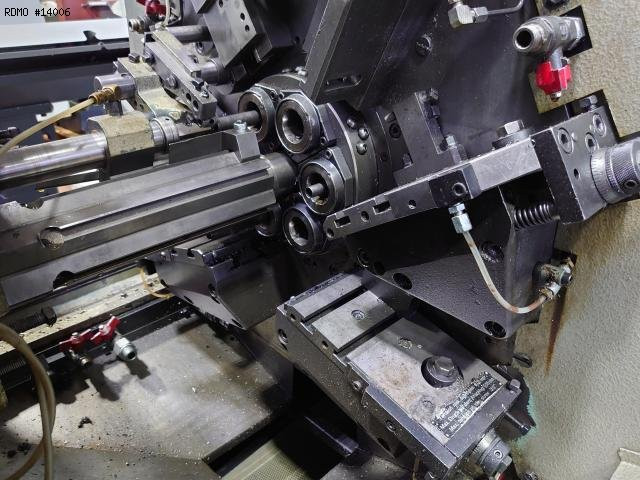

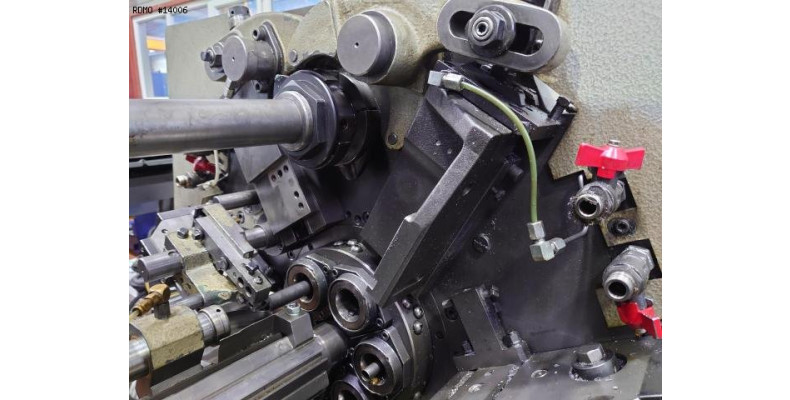

- Number of spindles : 6
- Max. machining length : 60 [mm]
- Number of cross slides : 6
- Max. production : 75 [parts/min]
- Number of independent feeds available : 4
- Normal travel of independent feeds : 45 [mm]
- Hirth teeth

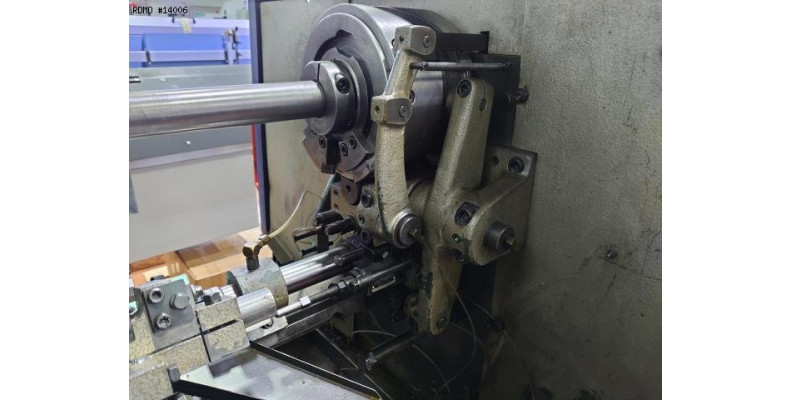

SPINDLES
- Max. bar diameter : 16 [mm]
- Spindle speeds : 800 - 8000 [rpm]
- Spindle power : 7.5 [kW]
- Number of spindle speeds : 16
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 15 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 5049 x 1100 [mm]
- Machine height : 1615 [mm]
- Machine weight : 2700 [kg]

Attrezzatura

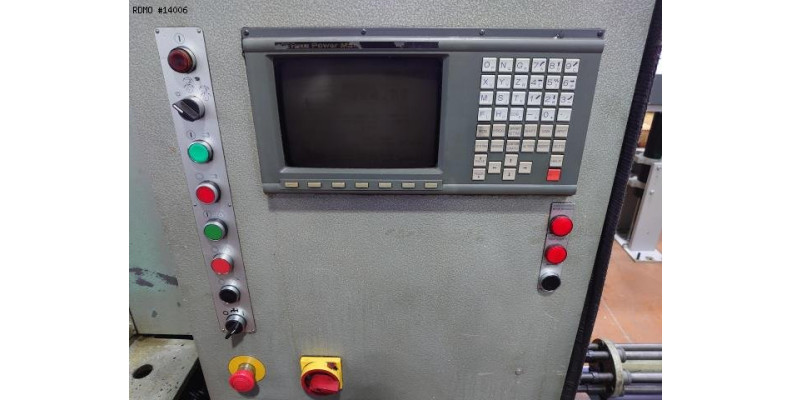

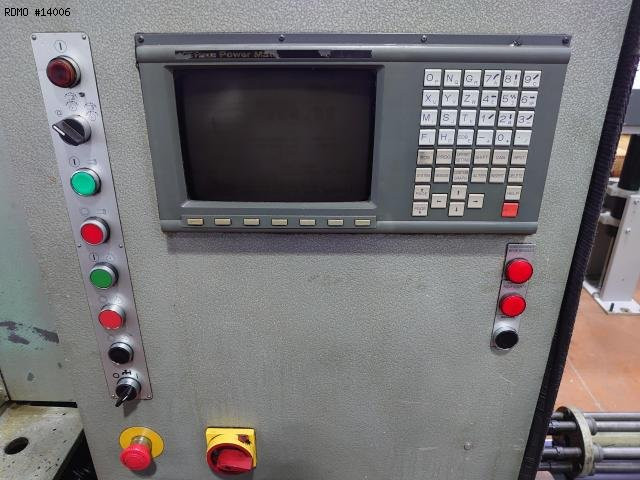

- CNC : Fanuc

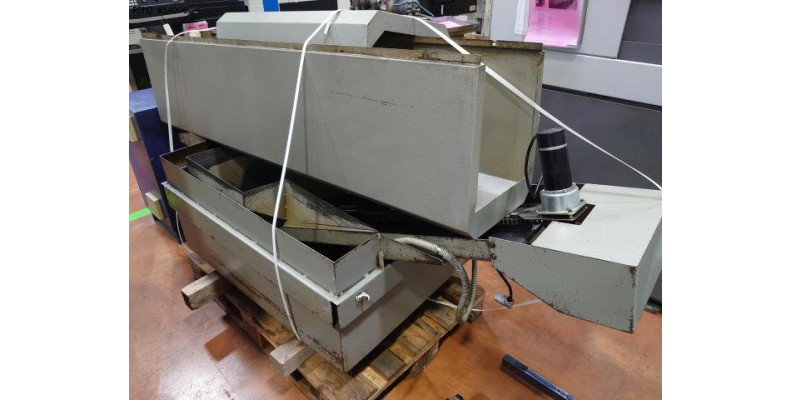

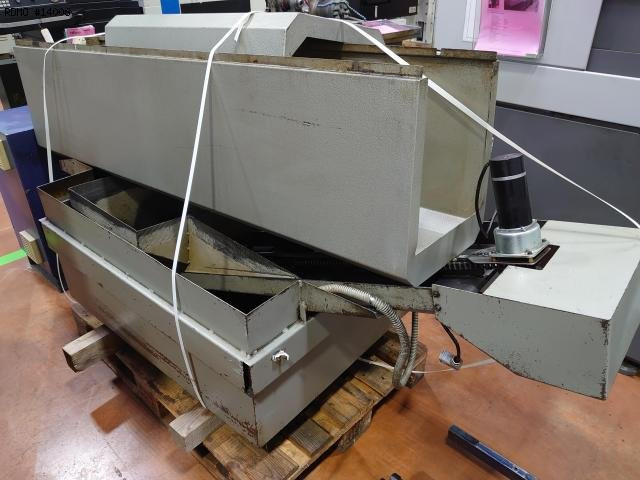

- Parts catcher
- Coolant tank

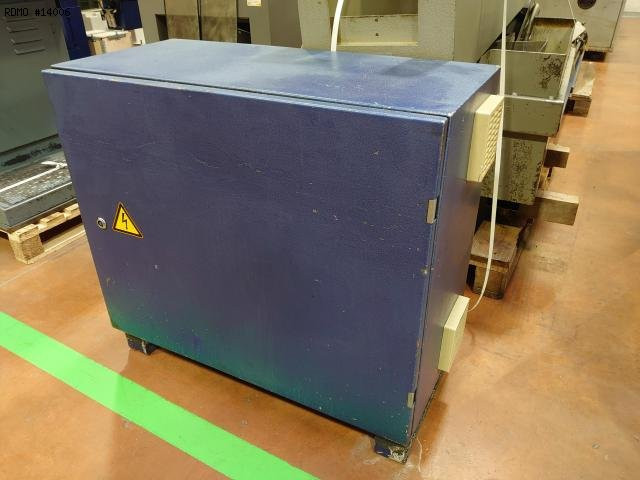

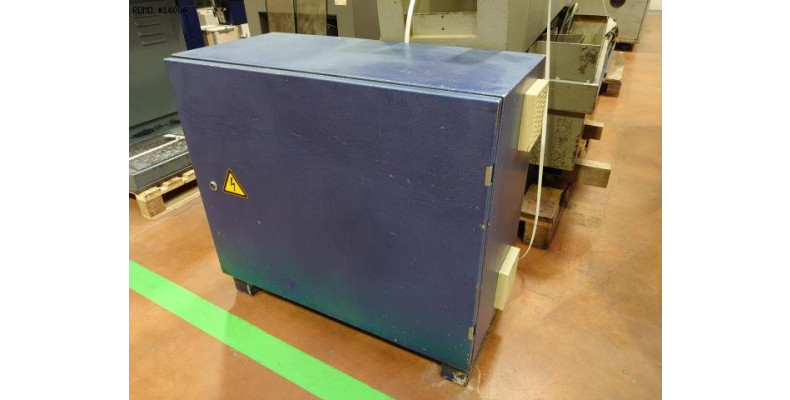

- Electric transformer
Spindle stop
