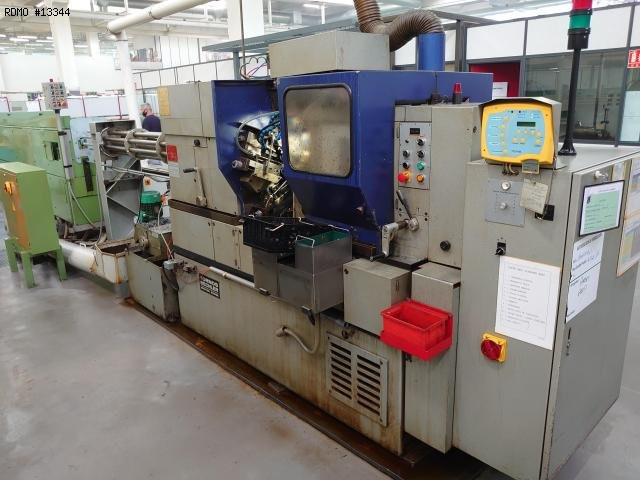

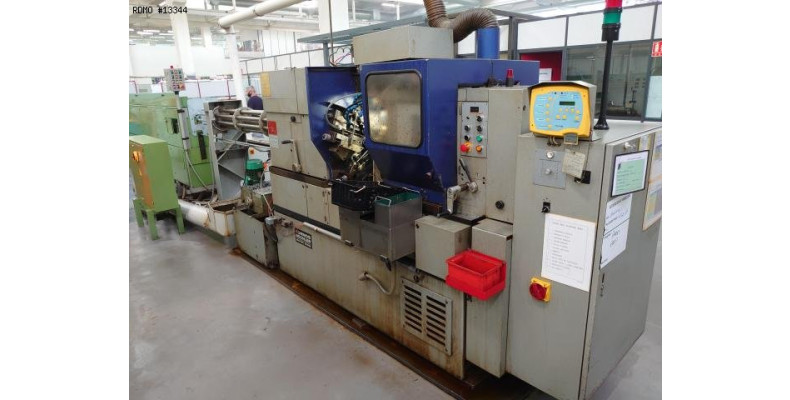

TORNOS BS 20.B

Name: Tornio multimandrino TORNOS BS 20.B
Brand: TORNOS
Availability: InStock

Tornitura Tornio multimandrino

13344

Specifiche tecniche per il download

Marca: TORNOS

Modello: BS 20.B

Anno: 1993

Nr Serie: T58642

13344

TORNOS BS 20.B

Tornitura Tornio multimandrino

Specifiche tecniche per il download

Marca: TORNOS

Modello: BS 20.B

Anno: 1993

Nr Serie: T58642

Richieda un prezzo

Caratteristiche

- number of spindles : 8
- number of turning slides : 8
- number of longitudinal stations : 8
- maximum bar passage : round Ø 22 [mm]
- maximum bar passage : hexagonal 19 [mm]
- maximum bar passage : square 15 [mm]
- max. bar feed length : 60 [mm]
- number of spindle speeds : 20
- spindle speed : 620 to 6035 [rpm]
- number of camshaft speeds : 24
- spindle stop
- max. production : 1-50 [parts/min]
- cross slide travel : 30 [mm]
- max. independent feed stroke : 50 [mm]
- main motor power : 10 [CV]
- weight : 4,700 [kg]

Attrezzatura

- counter-spindle with brake
- counter-operation device
- foot + barrel

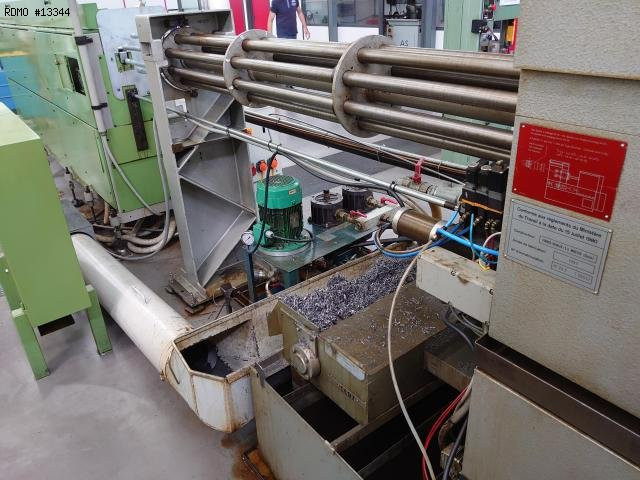

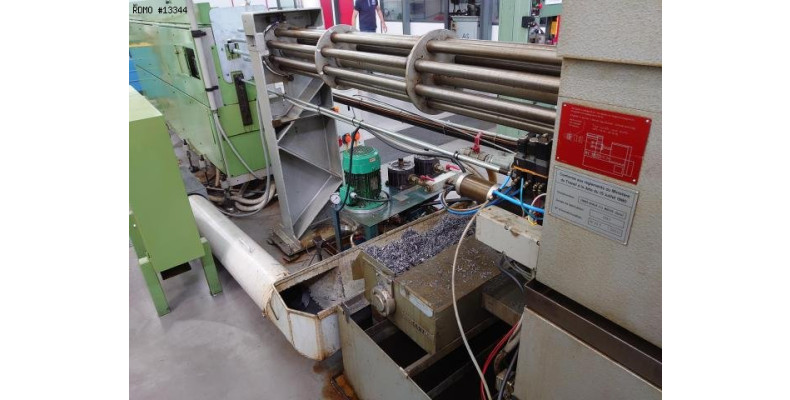

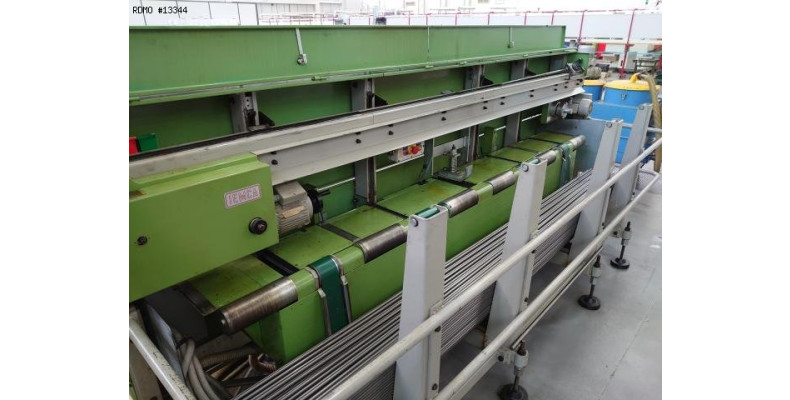

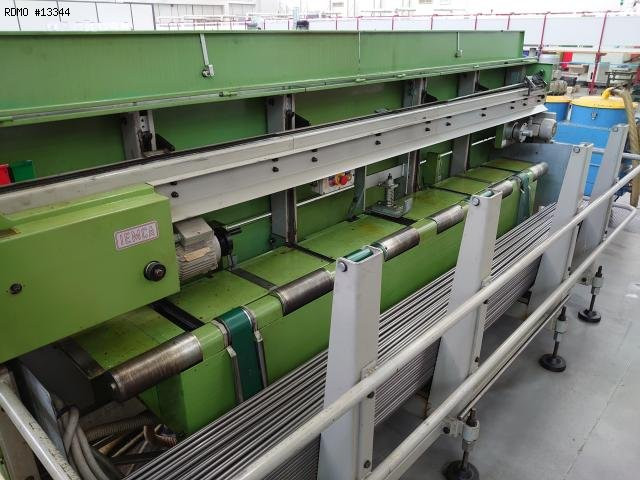

- IEMCA PRA 40/33F bar feeder

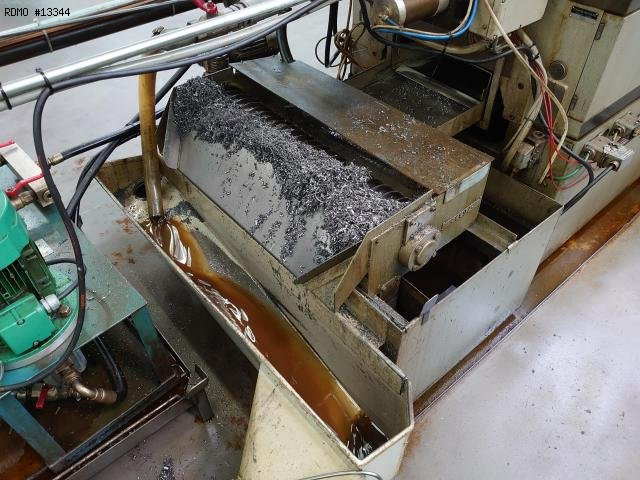

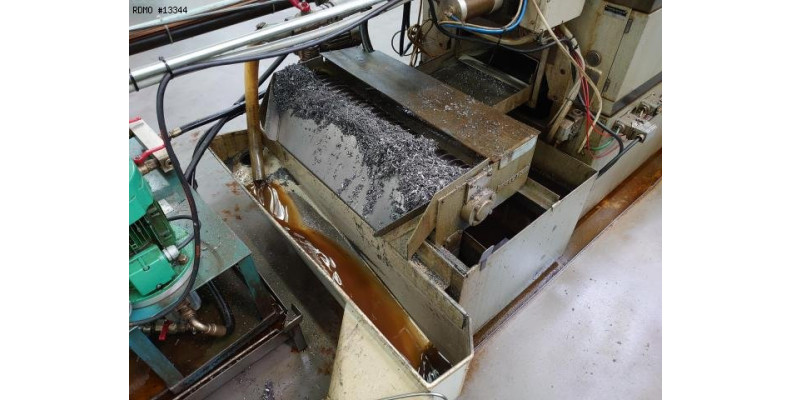

- chip conveyor
