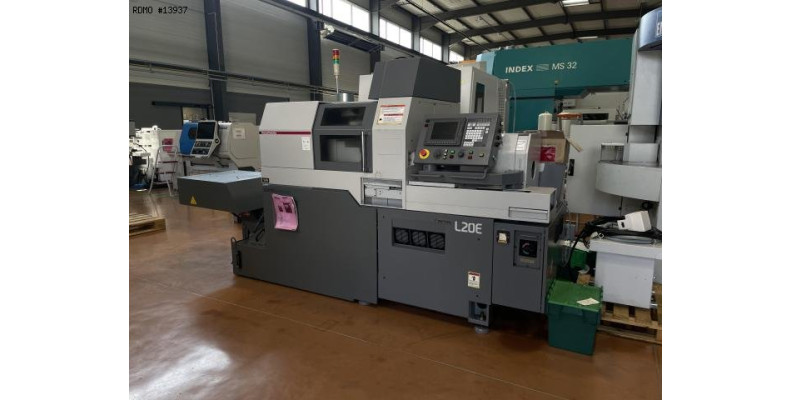

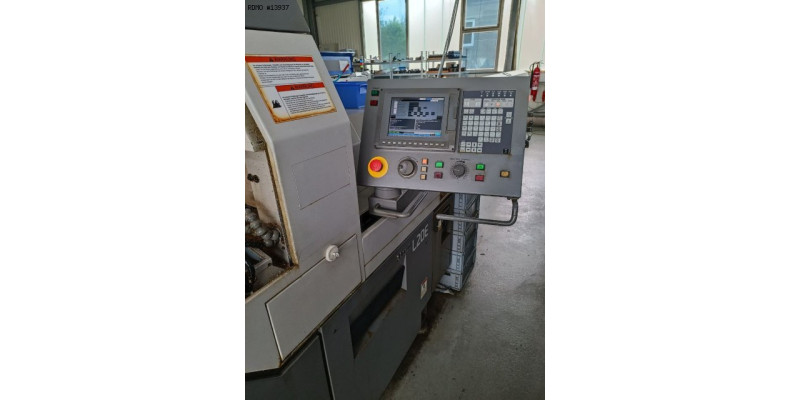

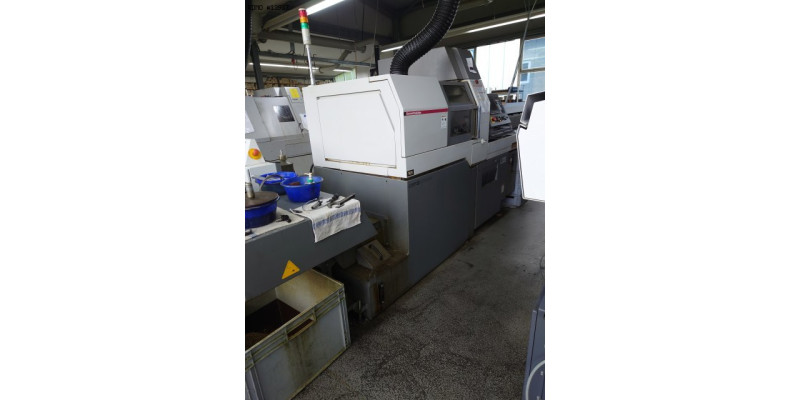

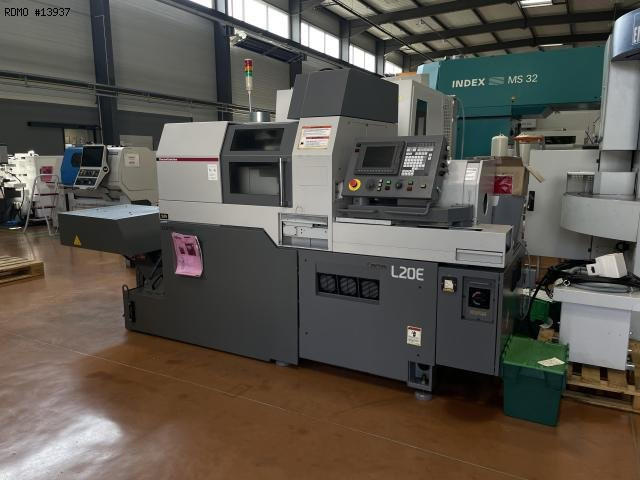

Marca: Citizen
Modello: L20E IX
Anno: 2011
Nr Serie: QE0537
Marca: Citizen
Modello: L20E IX
Anno: 2011
Nr Serie: QE0537

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0.001 [°]

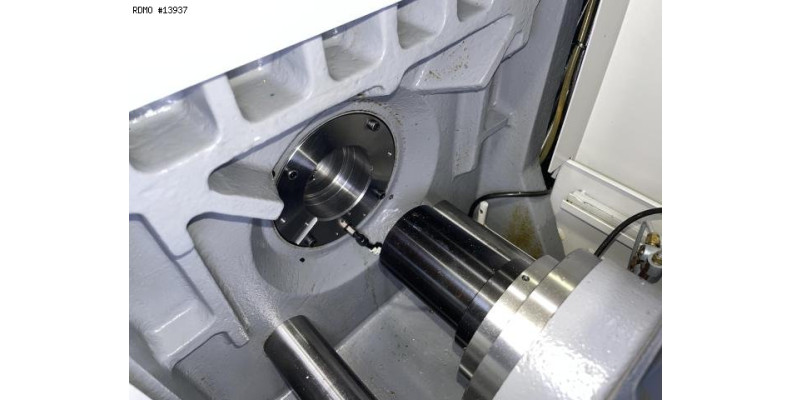

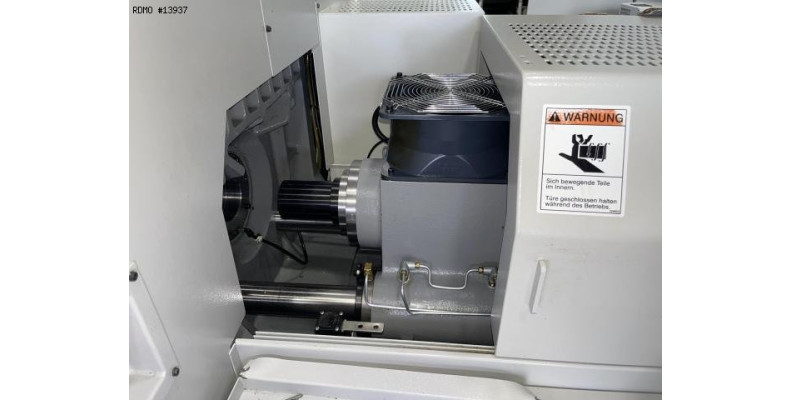

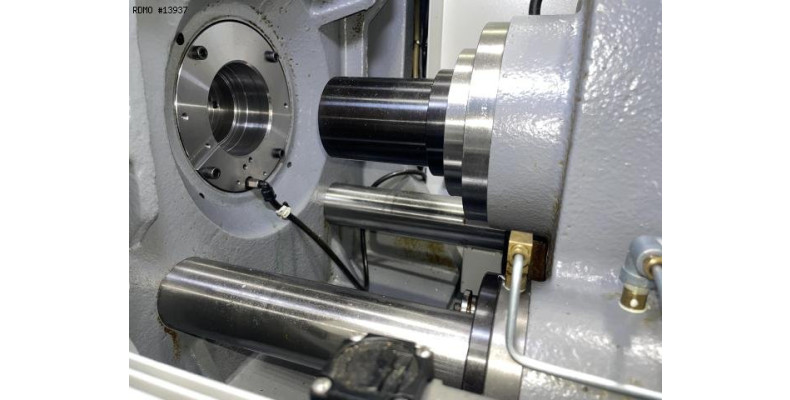

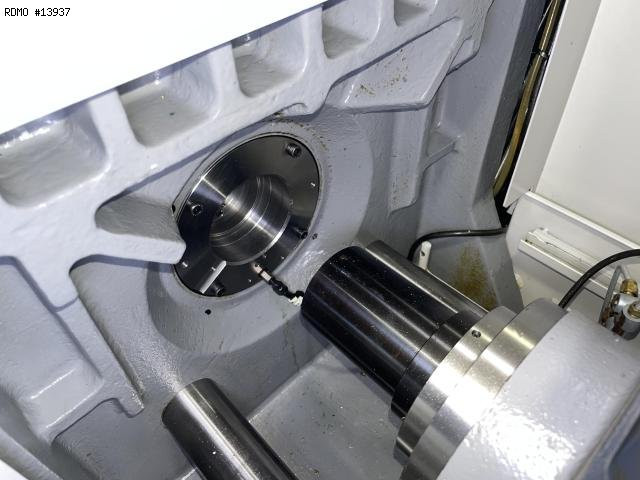

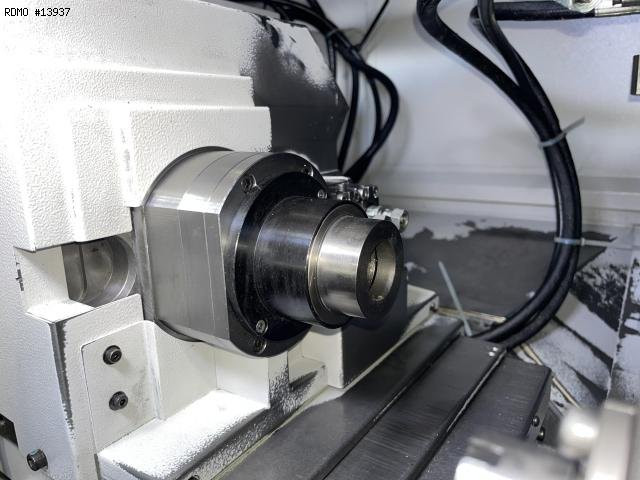

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 1.5 [kW]
- C axis indexing precision : 0.001 [°]

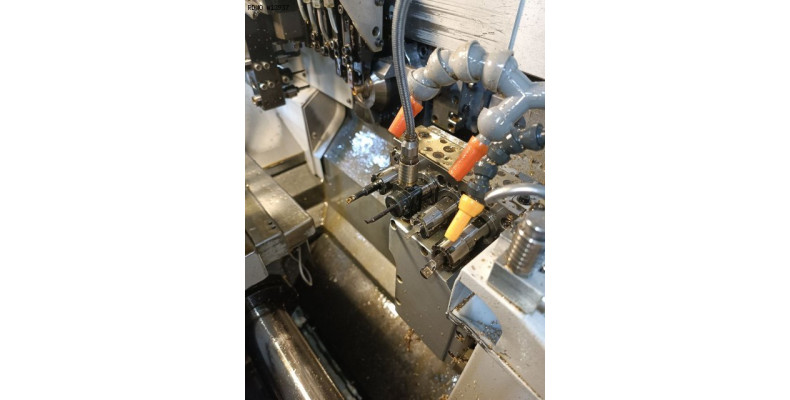

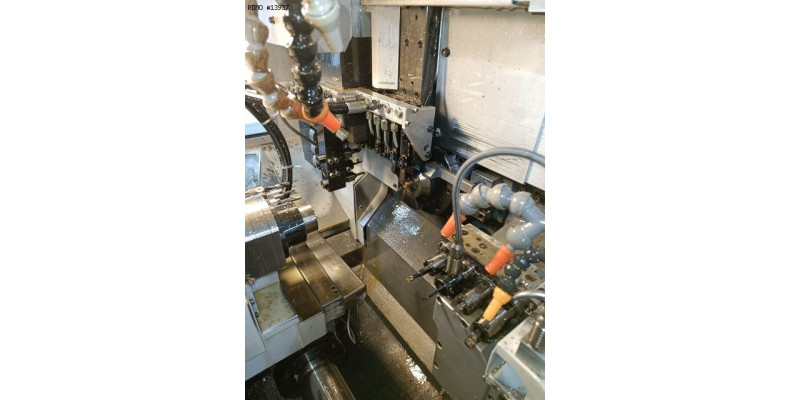

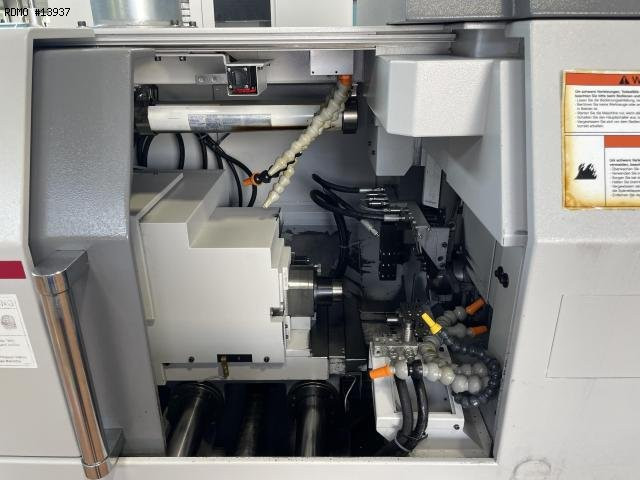

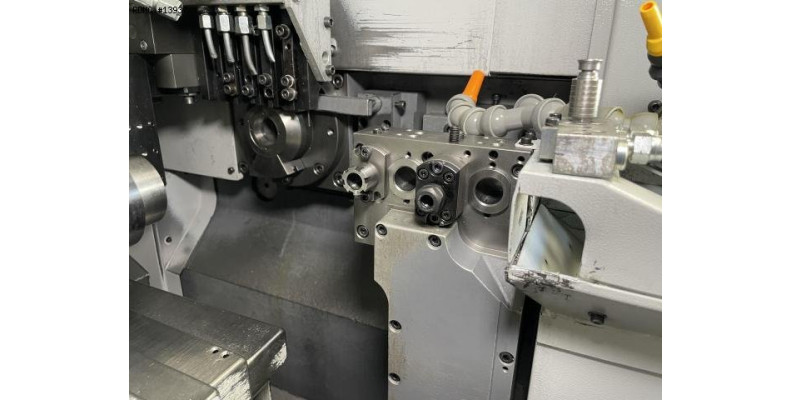

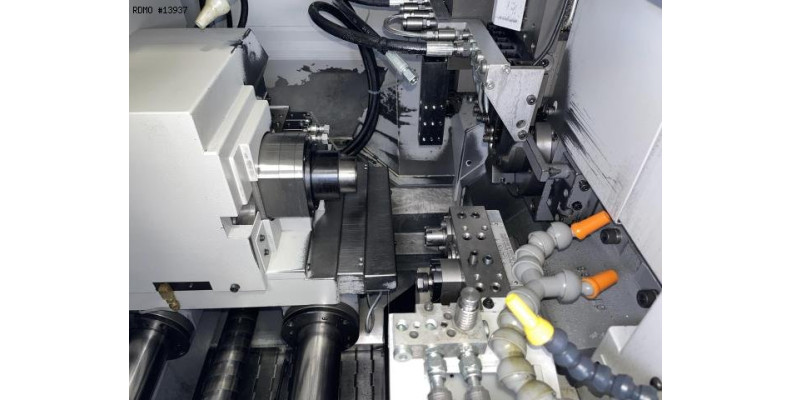

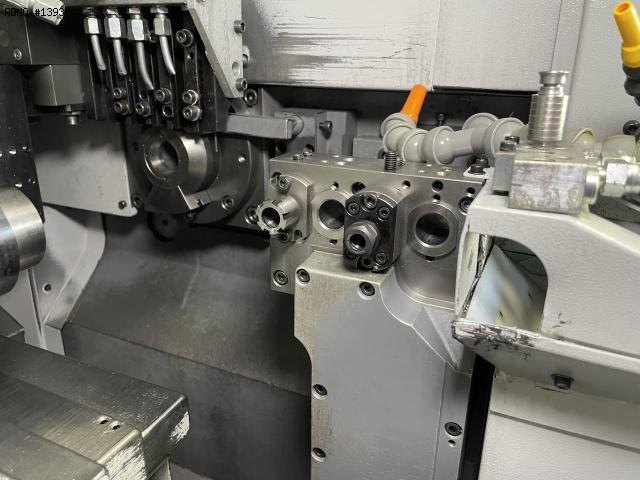

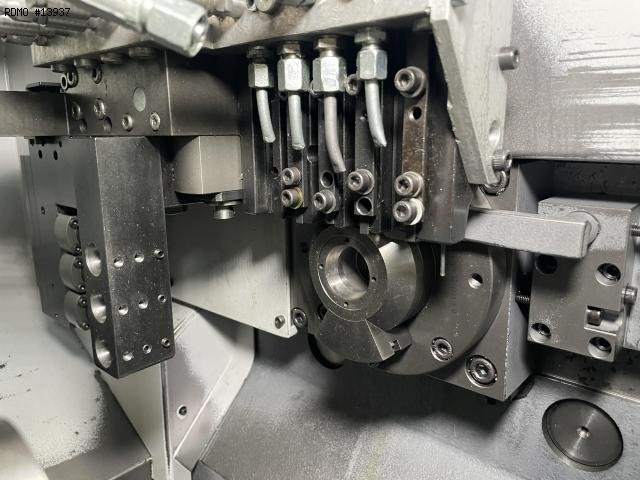

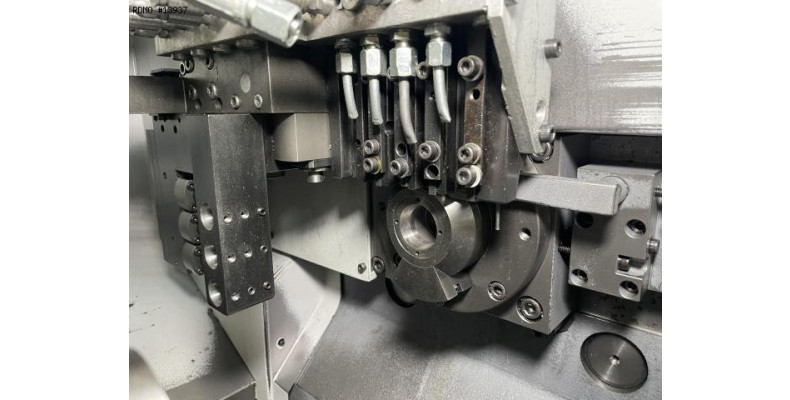

GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 5
- Live tools speed : 5000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 3

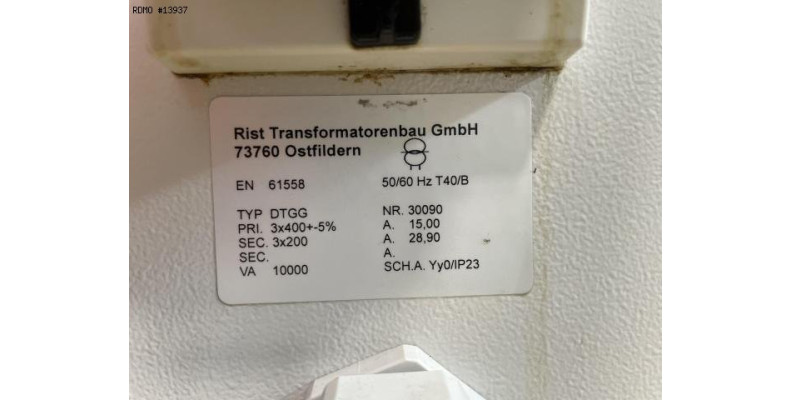

POWER SUPPLY

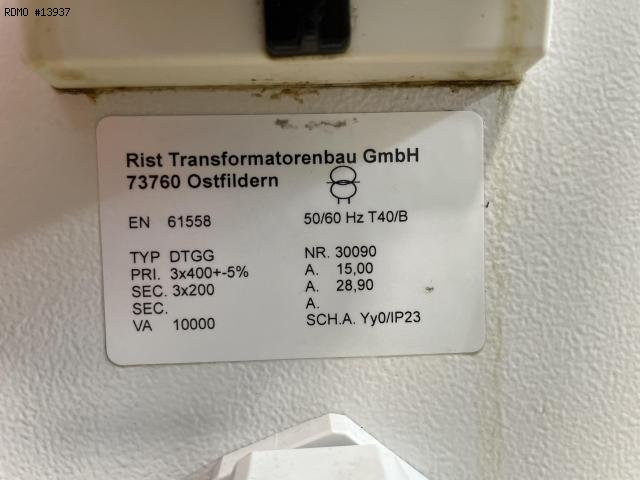

- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2.110 x 1.085 [mm]
- Machine height : 1.832 [mm]
- Machine weight : 2.200 [kg]
MACHINE HOURS
- Number of working hours : 32.264 [h]
Attrezzatura

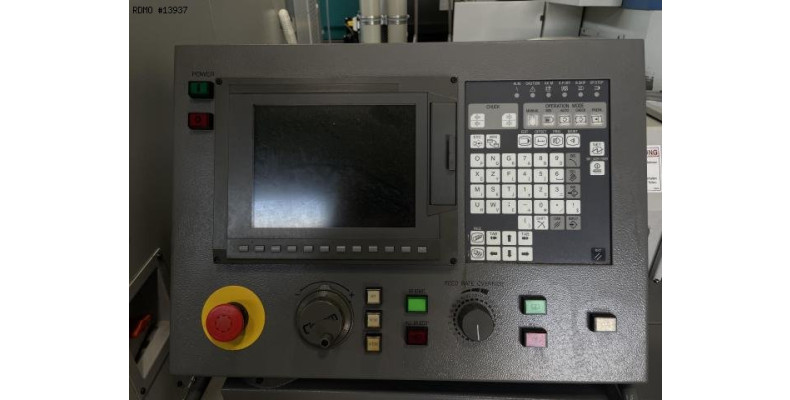

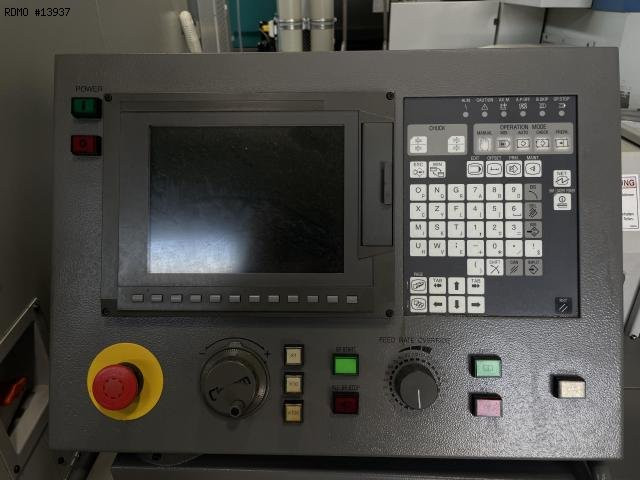

- CNC : Meldas

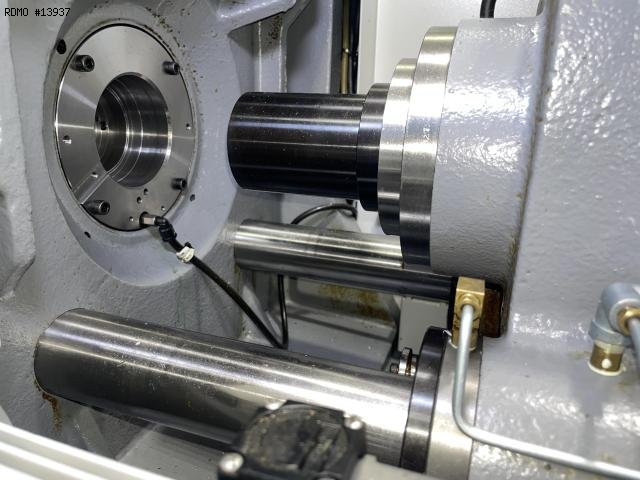

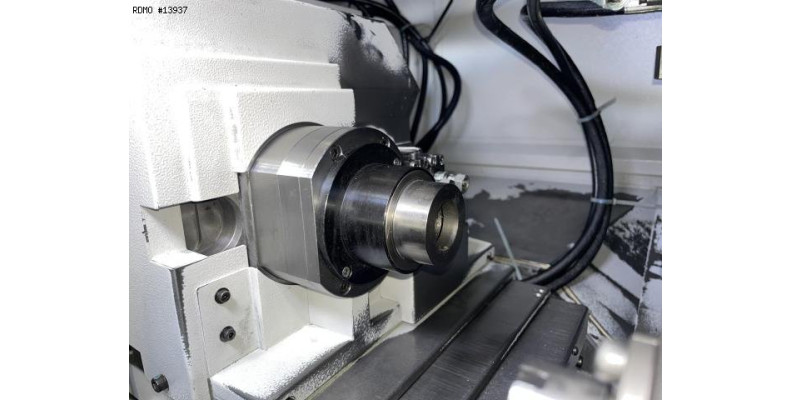

- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor

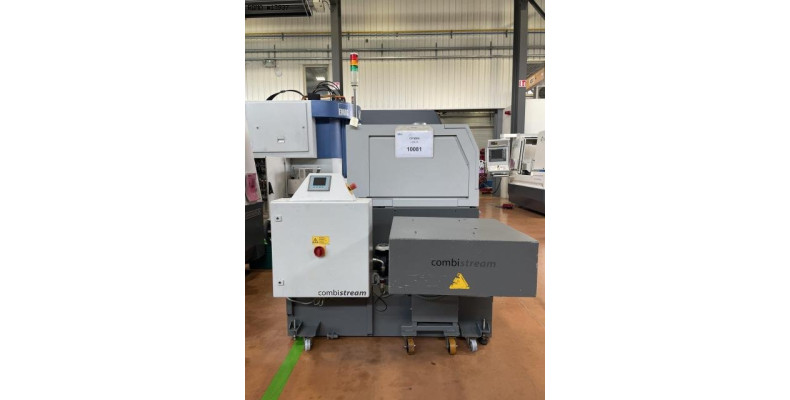

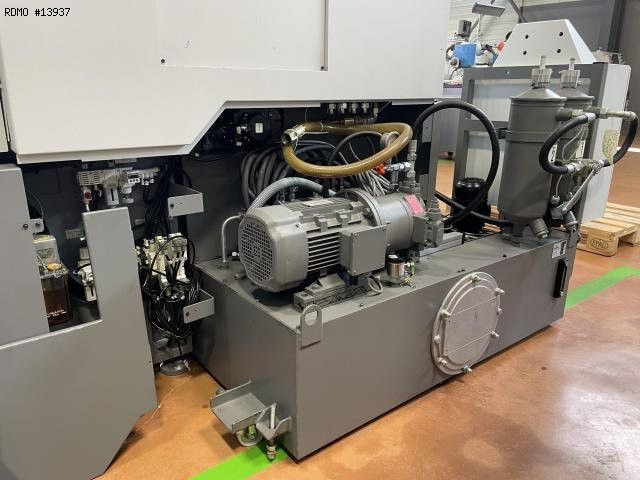

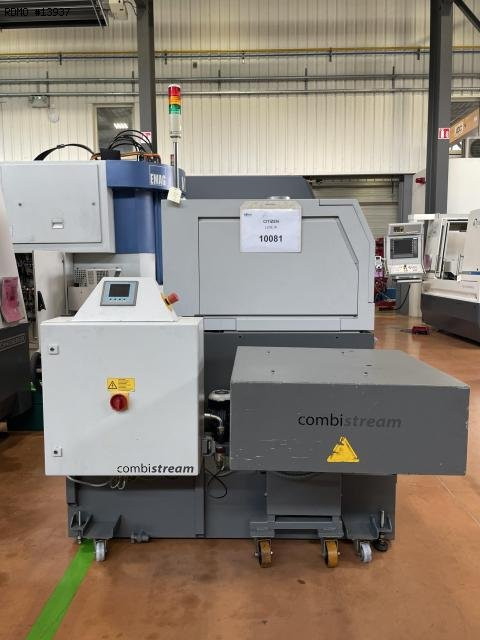

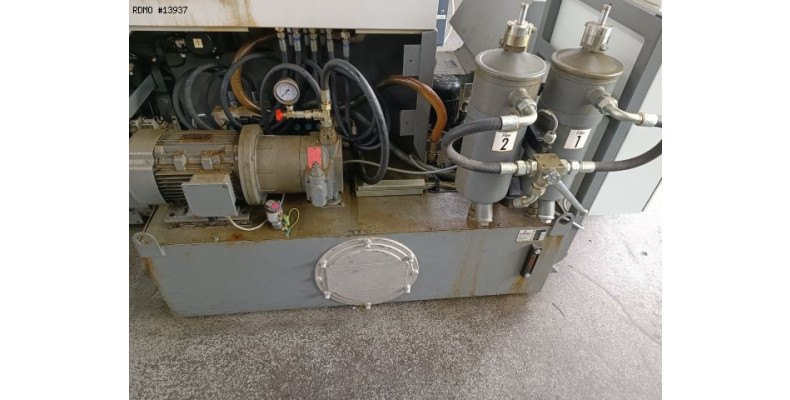

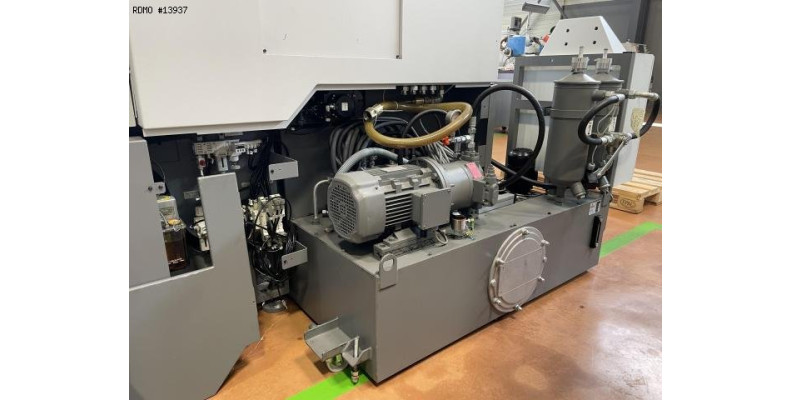

- Coolant tank : COOLBLASTER
* with high-pressure pump : 140 [bars]

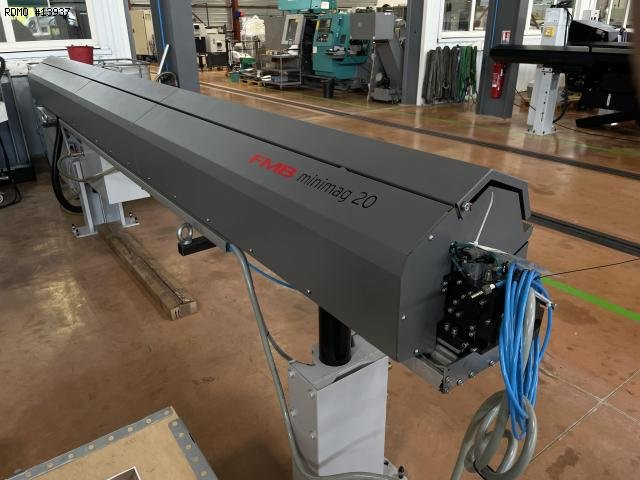

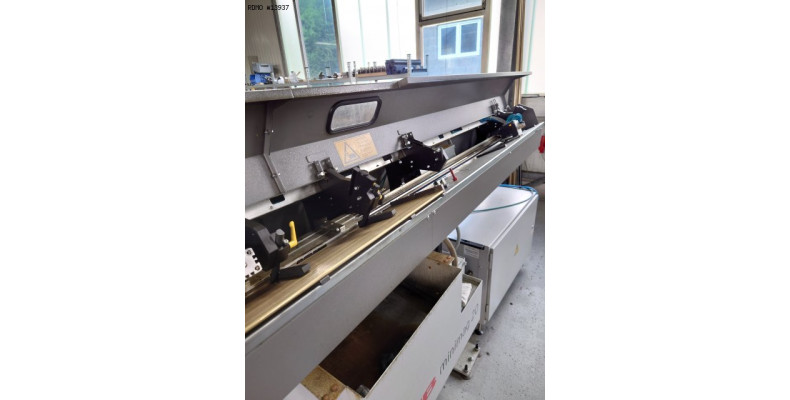

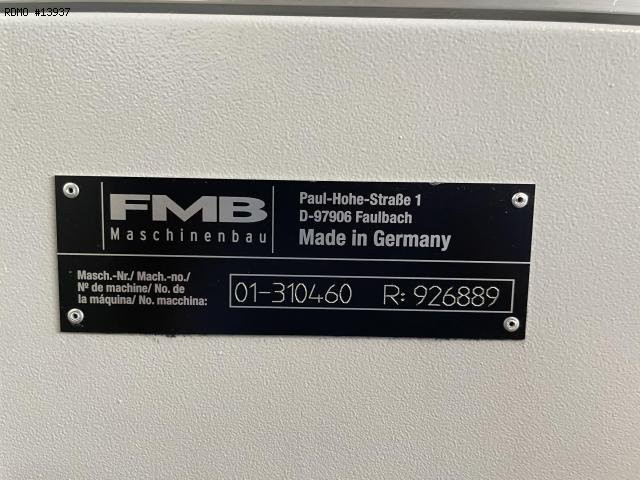

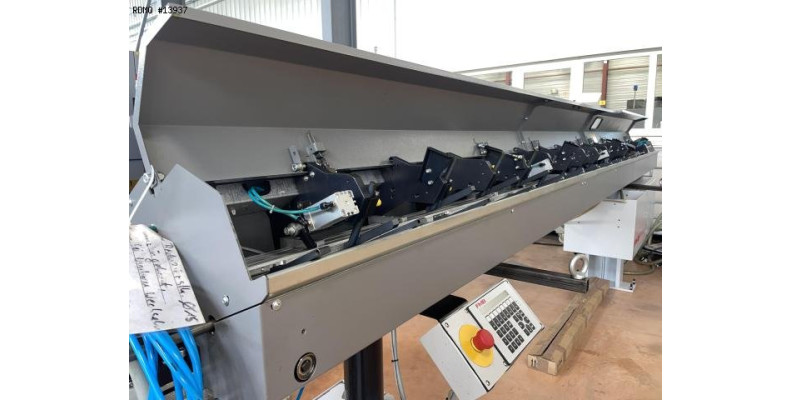

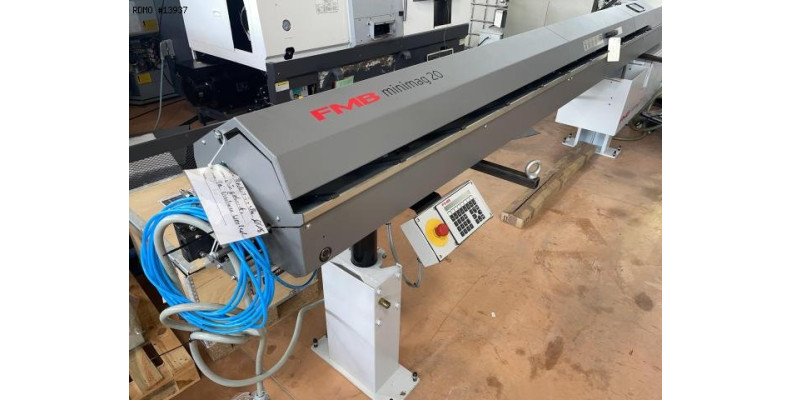

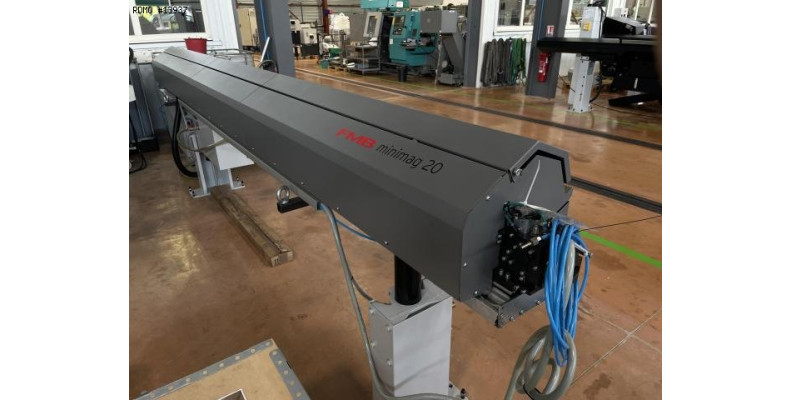

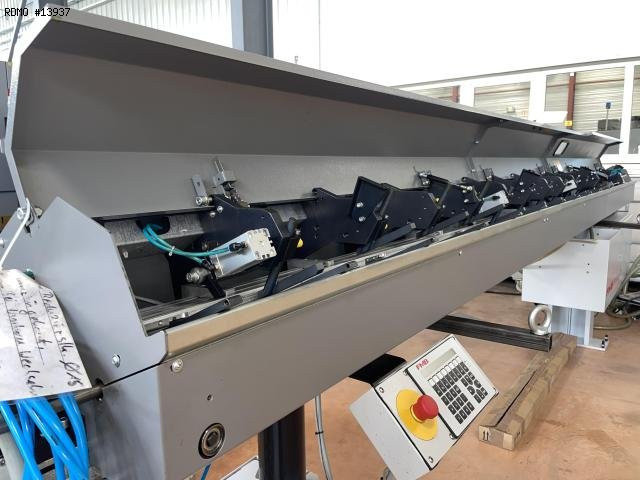

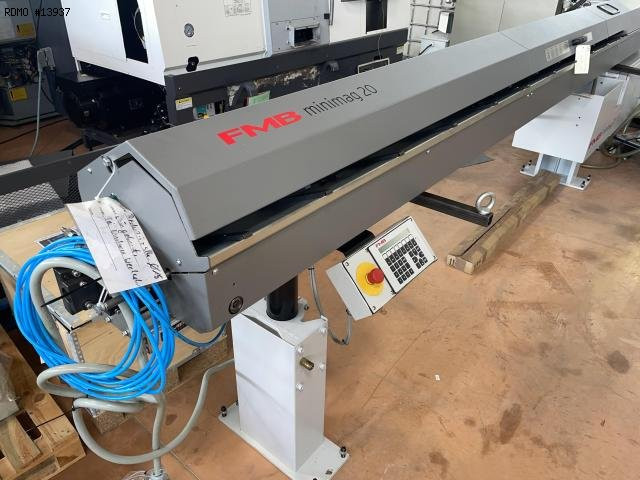

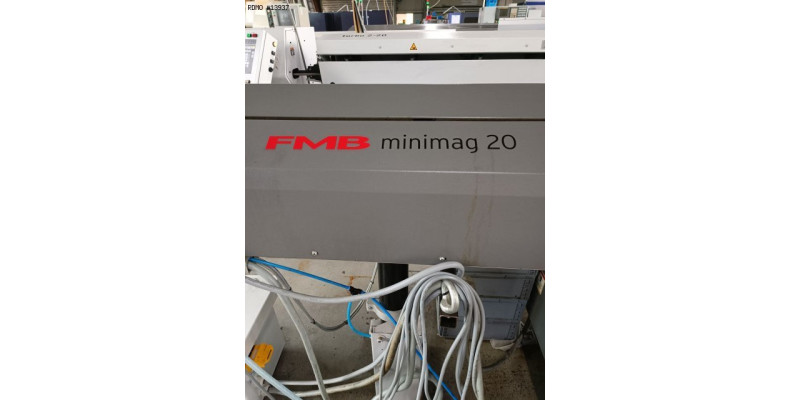

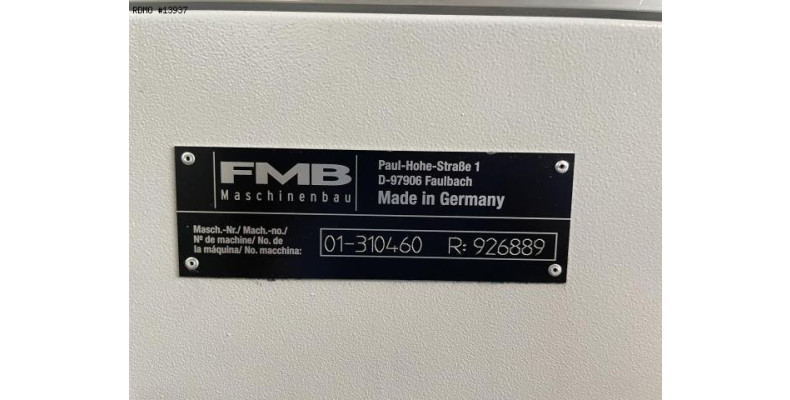

- Bar loader : FMB MINIMAG 20
