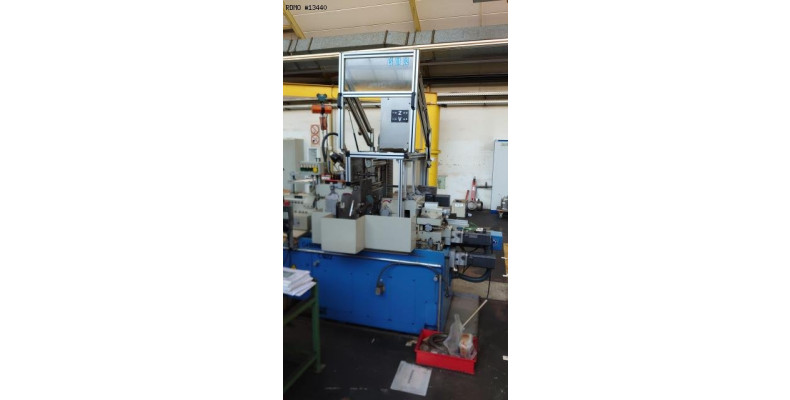

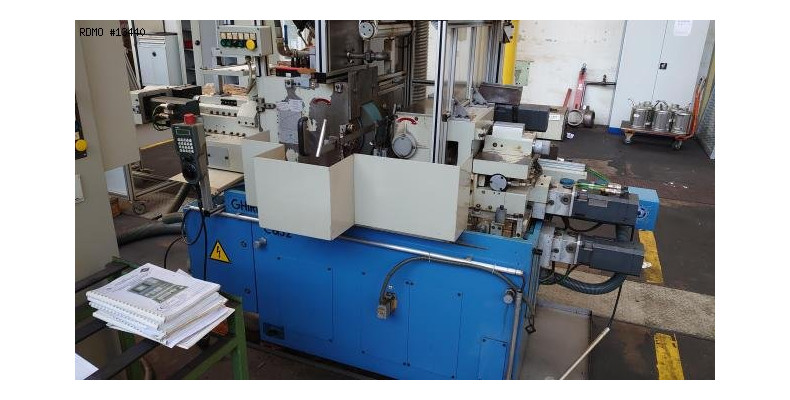

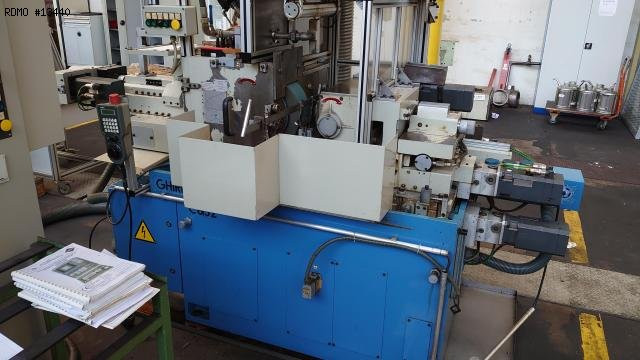

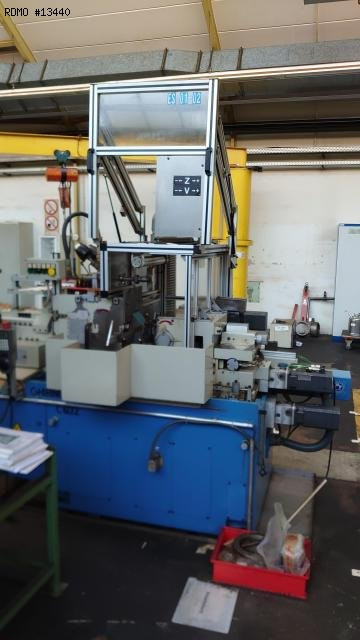

Marca: GHIRINGHELLI
Modello: M100
Anno: 2002
Nr Serie: C632.01
Marca: GHIRINGHELLI
Modello: M100
Anno: 2002
Nr Serie: C632.01

Caratteristiche & Attrezzatura

Caratteristiche
- Workpiece diameter : 0.5 - 40 [mm]
- Max. plunge grinding length : 95 [mm]

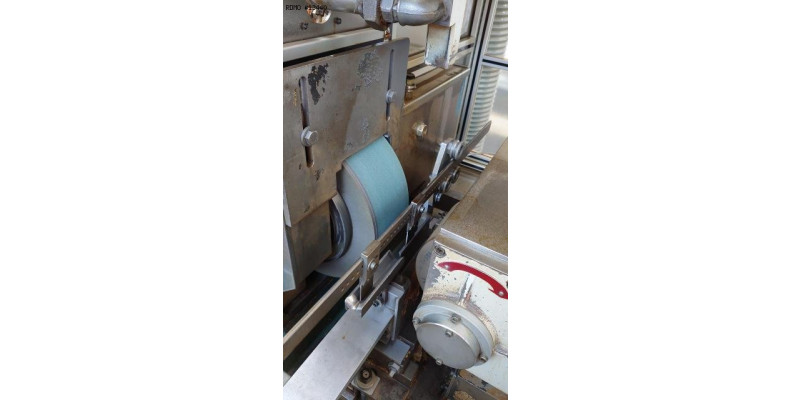

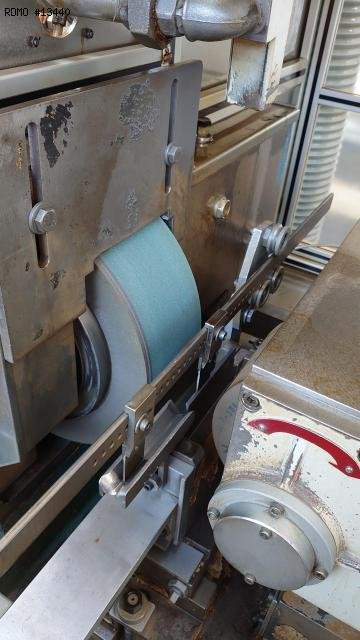

WORKING GRINDING WHEEL
- Grinding wheel diameter : 350 [mm]
- Grinding wheel width : 120 [mm]
- Peripheral speed : 50 [m/s]
- Grinding wheel speed : 2352 [rpm]
- Minimum wheel diameter : 260 [mm]
- Maximum wheel diameter : 406 [mm]
REGULATING WHEEL
- Grinding wheel width : 120 [mm]
- Wheel tilt : +/- 6 [°]
- Min. diameter of drive wheel : 150 [mm]
- Maximum diameter of drive wheel : 205 [mm]
SUPPLY
- Installed power : 21 [kW]
- Supply : 400V, 50 [Hz]
DIMENSIONS
- Floor dimensions : 3965 x 3103 [mm]
- Machine height : 2.100 [mm]
- Machine weight : 2.800 [kg]
Attrezzatura

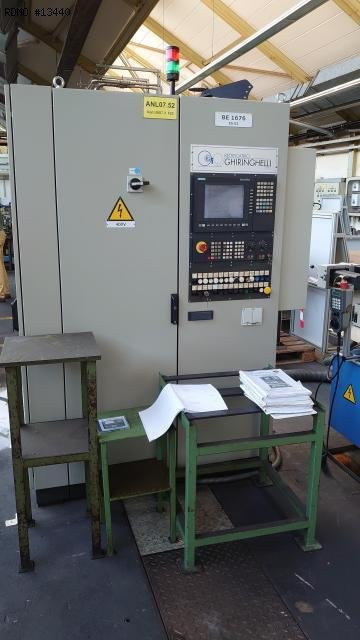

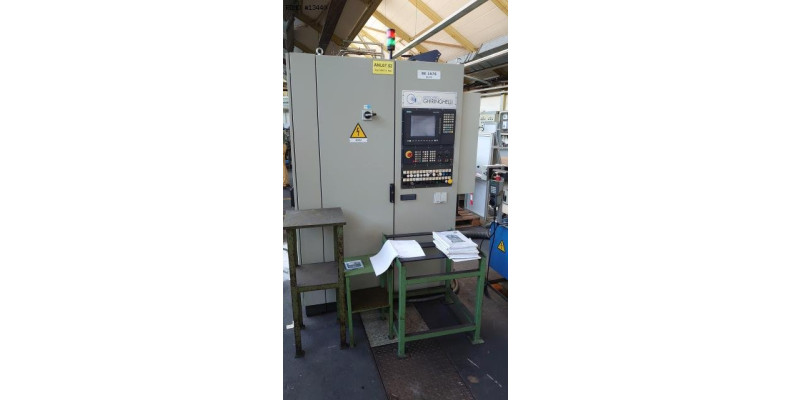

- CNC : SIEMENS SINUMERIK 840 D
