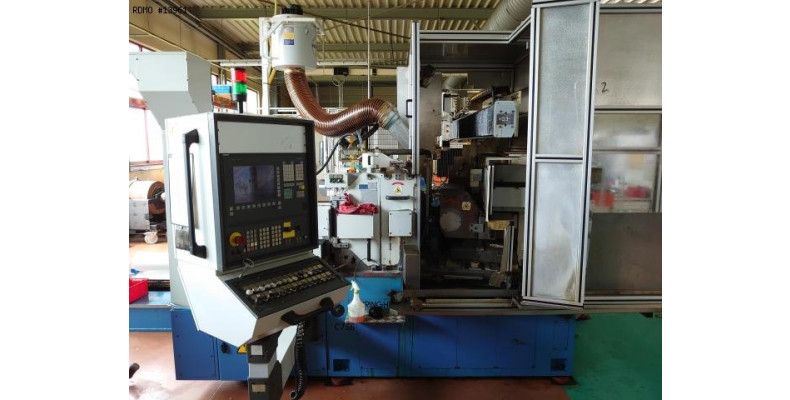

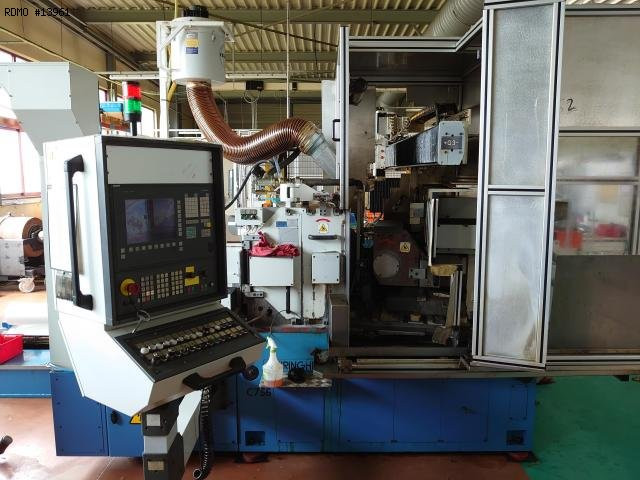

GHIRINGHELLI M150 SP610 5 assi

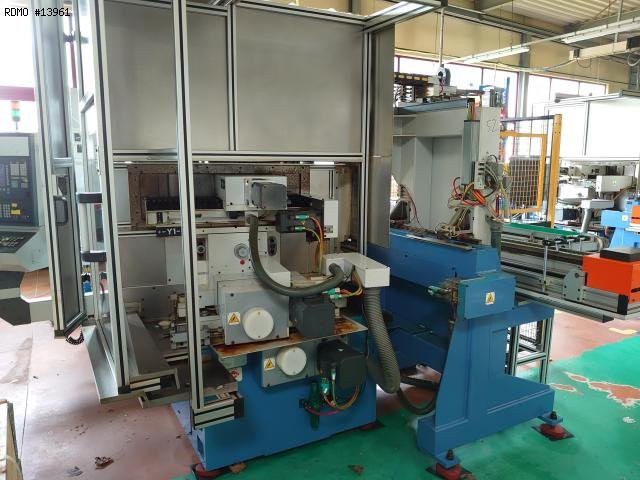

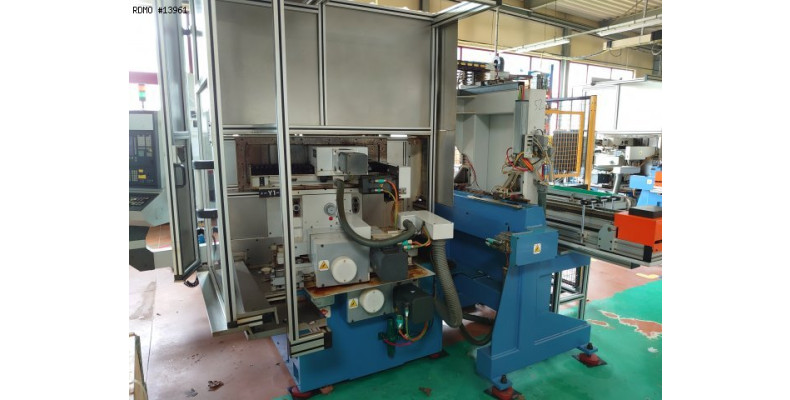

Name: Rettificatrice centerless a cnc GHIRINGHELLI M150 SP610 5 assi
Brand: GHIRINGHELLI
Availability: InStock

Rettifica / affilatura / lappatura / sbavatura / levigatura Rettificatrice centerless a cnc

13961

Specifiche tecniche per il download

Marca: GHIRINGHELLI

Modello: M150 SP610

Anno: 2007

Nr Serie: C756.07

13961

GHIRINGHELLI M150 SP610 5 assi

Rettifica / affilatura / lappatura / sbavatura / levigatura Rettificatrice centerless a cnc

Specifiche tecniche per il download

Marca: GHIRINGHELLI

Modello: M150 SP610

Anno: 2007

Nr Serie: C756.07

Richieda un prezzo

Caratteristiche

- Min/max. grindable diameter: 1 - 100 [mm]
- Max. length of the workpiece when plunging : 140 [mm]
- Min/max work wheel diameter: 440/610 [mm]
- Max. working wheel width: 80 [mm]
- Peripheral grinding wheel speed: 50 [m/s]
- Speed with new work wheel: 1565 [rpm]
- Min./max. drive wheel diameter: 220/305 [mm]
- Max. width of drive wheel: 67 [mm]
- Max. drive wheel inclination: +/- 7 [°]
- Drive wheel speed during machining: 0/140 [rpm]
- Drive wheel speed in dressing: 200 [rpm]
- Total installed power: 41 [kW]
- Dimensions : 5920 x 5071 x 2500 [mm]
- Net weight: 7000 [kg]

Attrezzatura

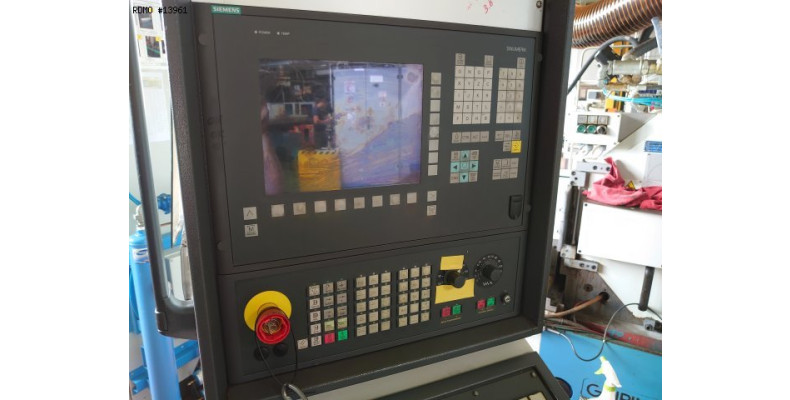

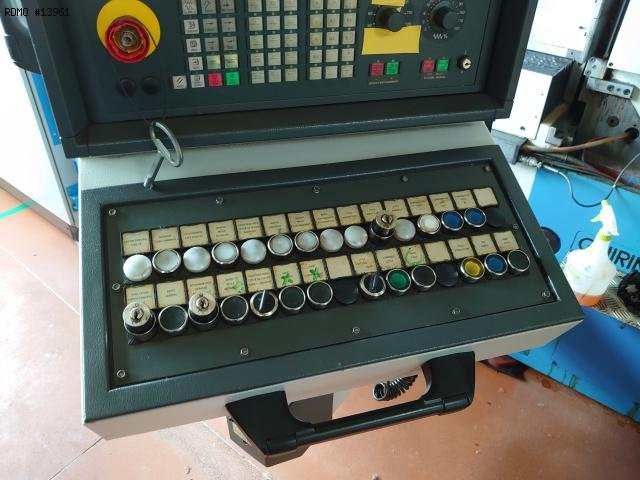

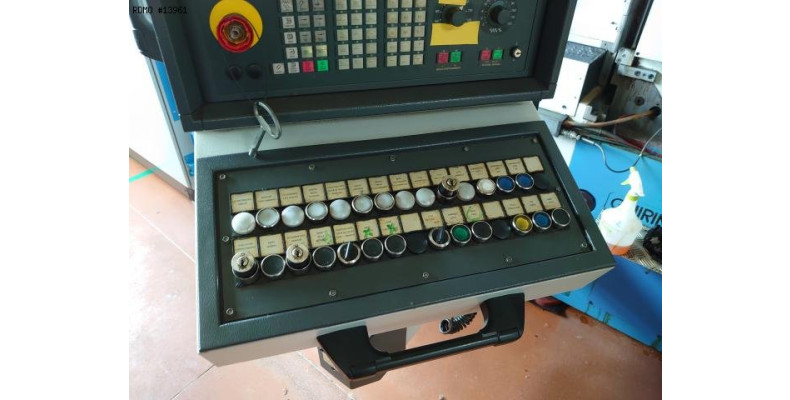

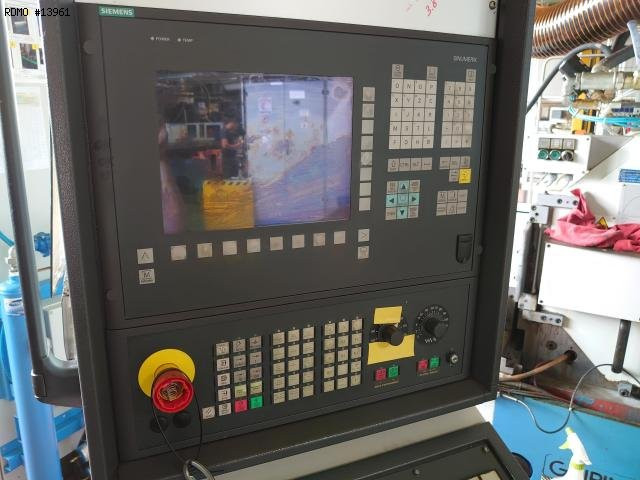

- CNC SIEMENS 840D control

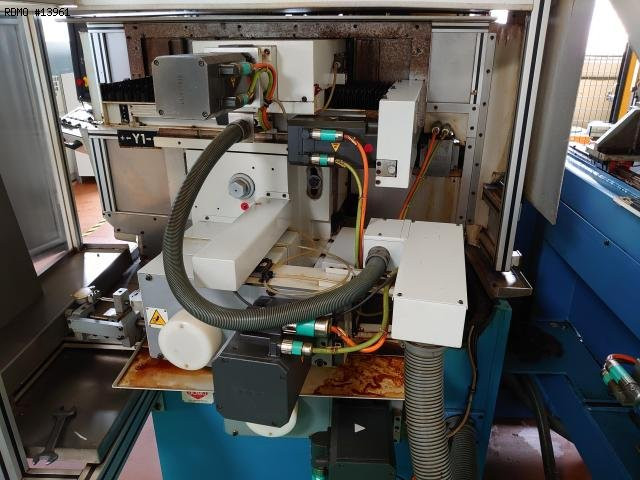

- 5 numerical axis (1 for working grinding wheels facing device, 2 for driving grinding wheels facing device, 1 for upper slide, 1 for lower slide)
- working grinding wheels facing device by diamond knurling wheel
- driving grinding wheels facing device by diamond center
- automatic parts feed bowl

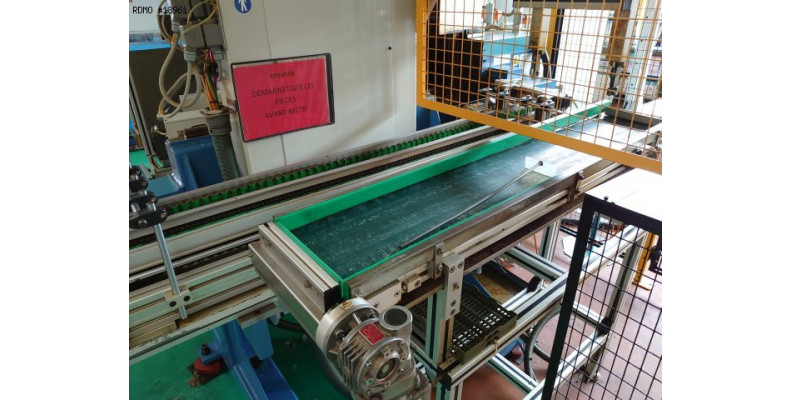

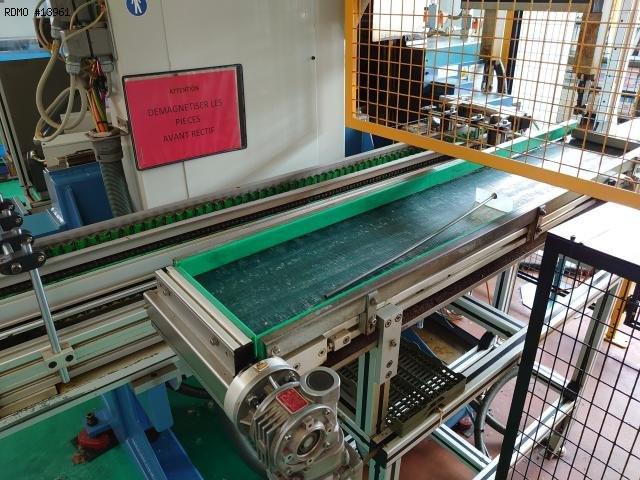

- parts conveying strip
