Caratteristiche & Attrezzatura

Caratteristiche

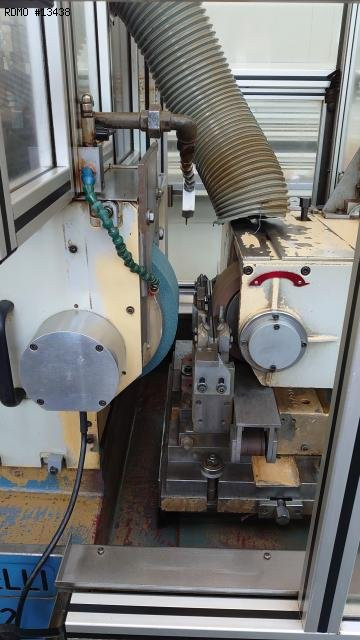

- Workpiece diameter: 0.5 - 40 [mm] - Max. plunge grinding length: 95 [mm] WORKING GRINDING WHEEL - Grinding wheel width: 100 [mm] - Peripheral speed: 35 [m/s] - Grinding wheel speed: 2228 [rpm] - Minimum wheel diameter: 260 [mm] - Maximum wheel diameter: 406 [mm] REGULATING WHEEL - Grinding wheel width: 100 [mm] - Wheel tilt: +/- 6 [°] - Min. diameter of drive wheel: 150 [mm] - Maximum diameter of drive wheel: 205 [mm] SUPPLY - Installed power: 20 [kW] - Supply: 400V, 50 [Hz] DIMENSIONS - Floor dimensions: 4090 x 1640 [mm] - Machine height : 2.100 [mm] - Machine weight: 2.700 [kg]
Attrezzatura

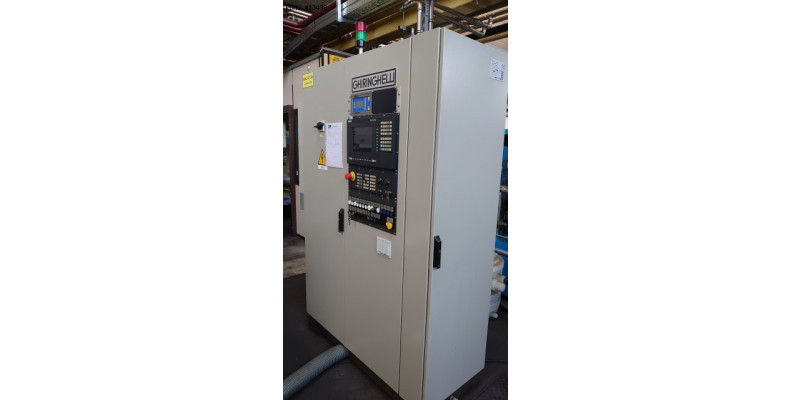

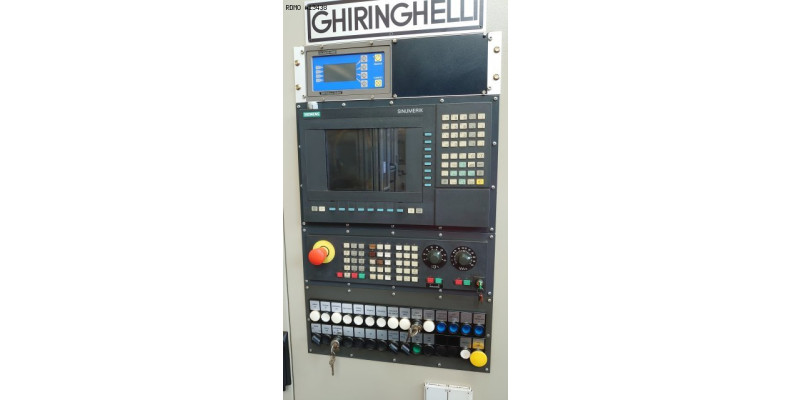

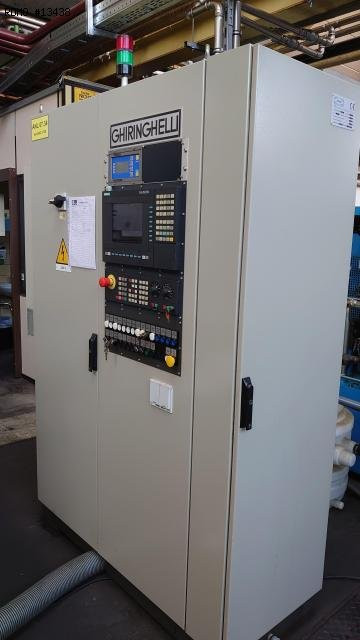

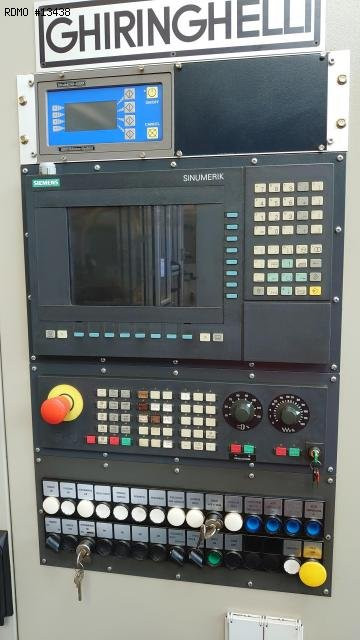

- CNC : SIEMENS SINUMERIK 840 D
