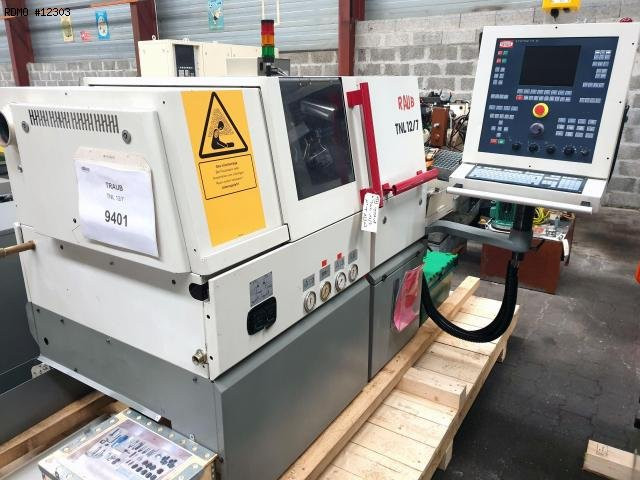

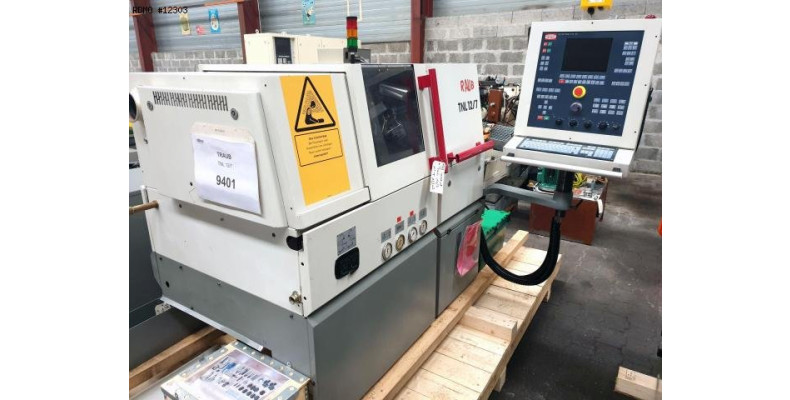

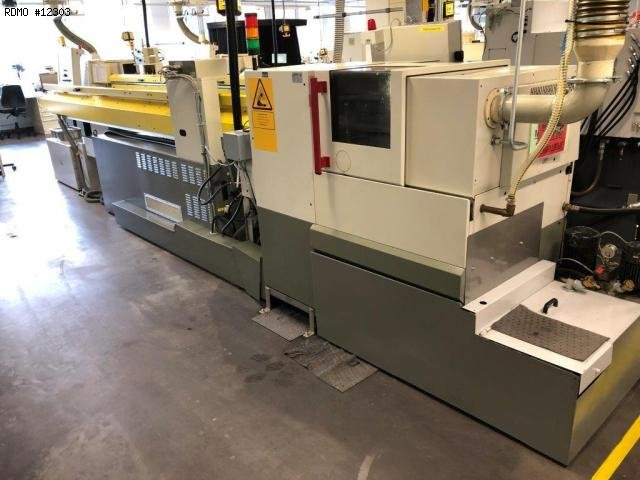

Marca: TRAUB
Modello: TNL 12/7
Anno: 2000
Nr Serie: 302
Marca: TRAUB
Modello: TNL 12/7
Anno: 2000
Nr Serie: 302

Caratteristiche & Attrezzatura

Caratteristiche

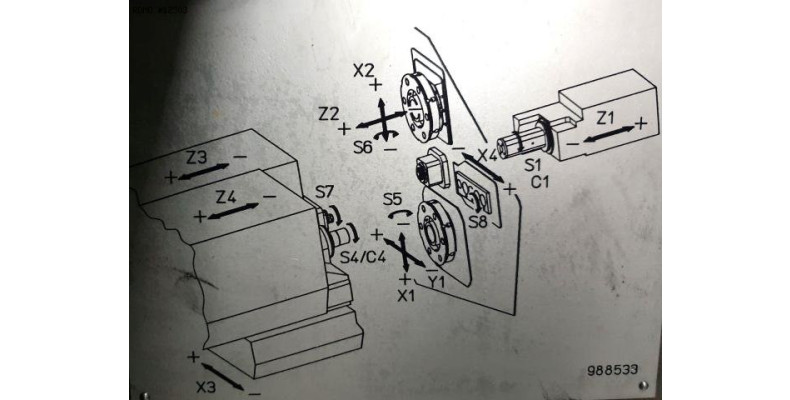

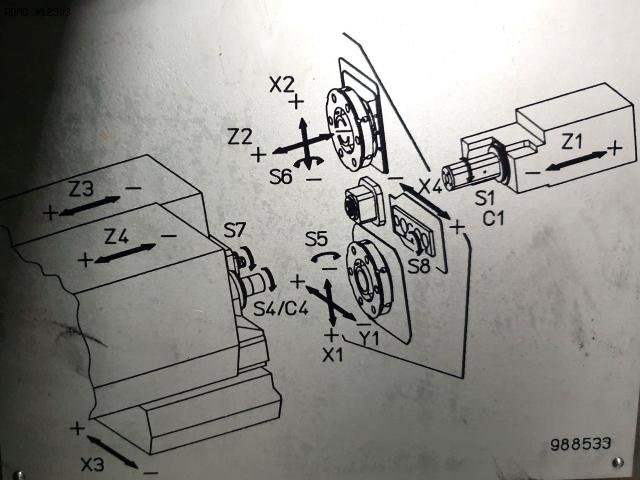

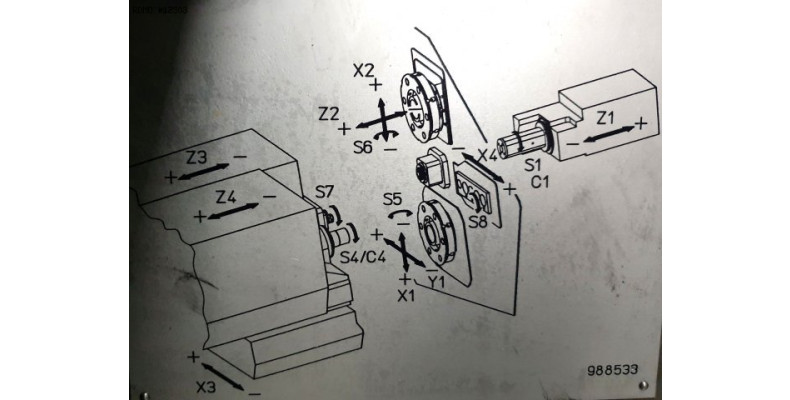

- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12.7 [mm]
- Max. machining length : 130 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.5 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 12.7 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.5 [kW]
- C axis indexing precision : 0.001 [°]
- Number of turrets : 2

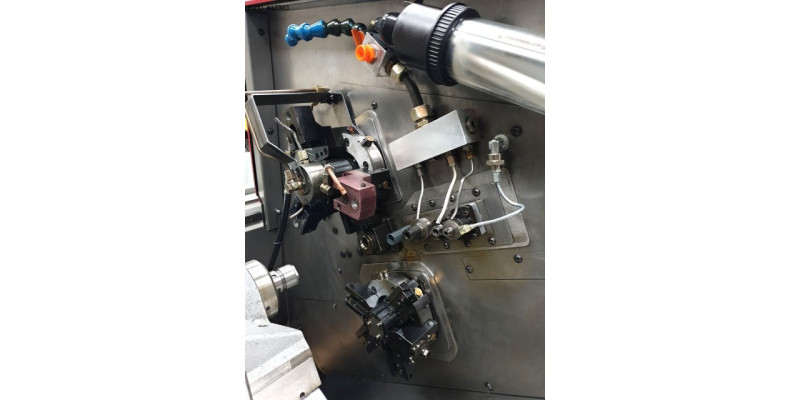

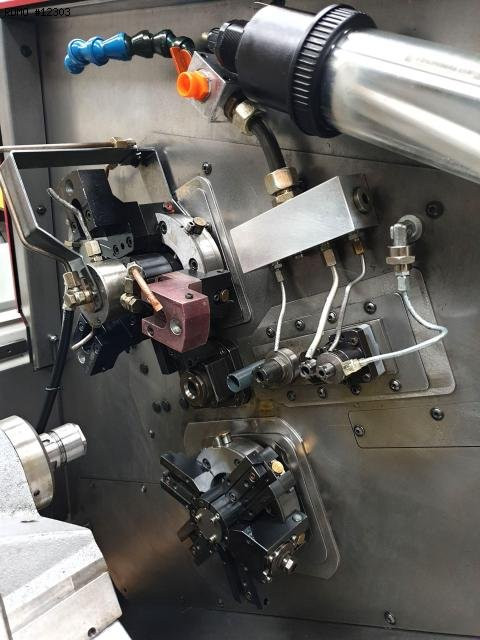

UPPER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X stroke : 35 [mm]
- Y stroke : -9.5/+28 [mm]
- Z stroke : 48 [mm]
LOWER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X/Z stroke : 35/79.5 [mm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 10000 [rpm]
- X/Z stroke : 415/138.5 [mm]
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 10000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
Attrezzatura

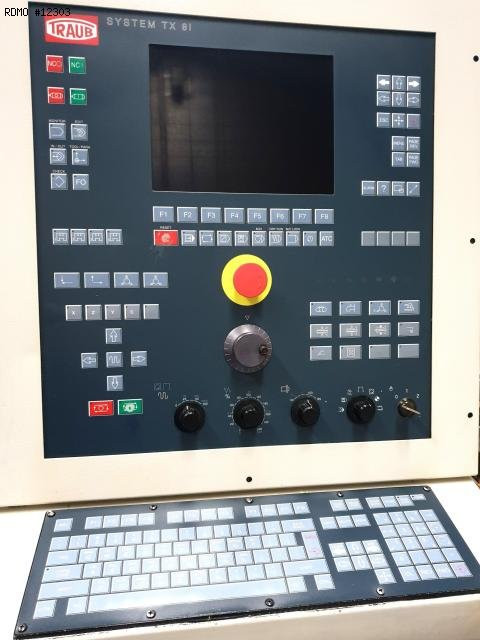

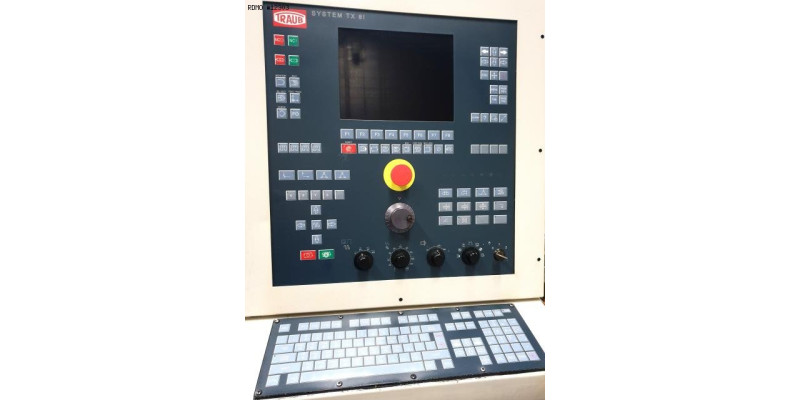

- CNC : Traub TX8i

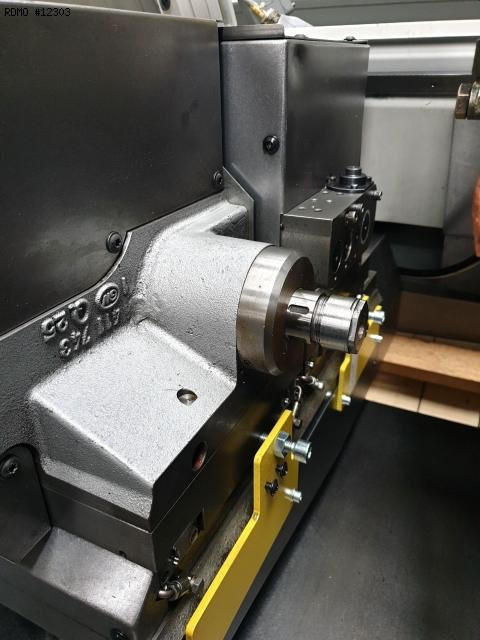

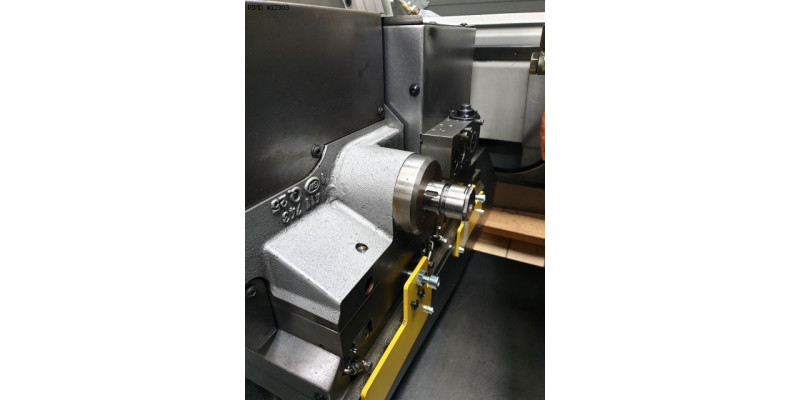

- Rotating guide bush
- Coolant tank

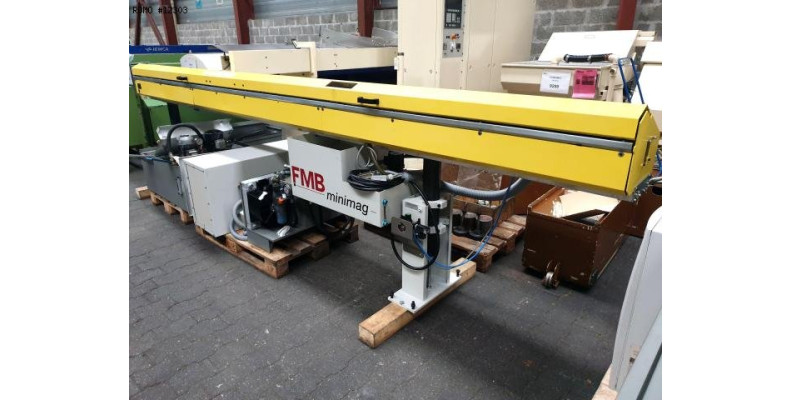

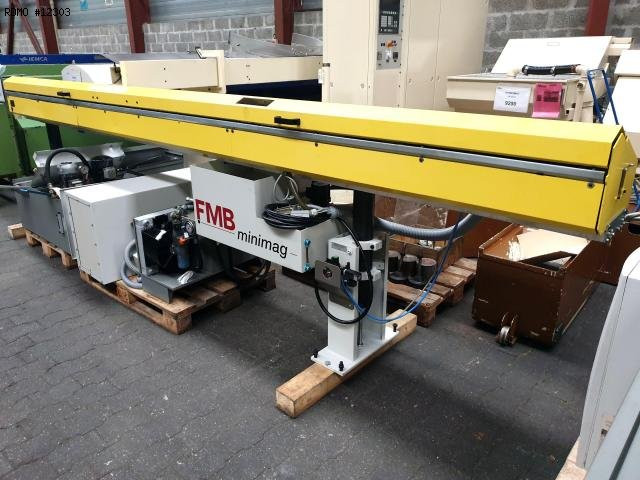

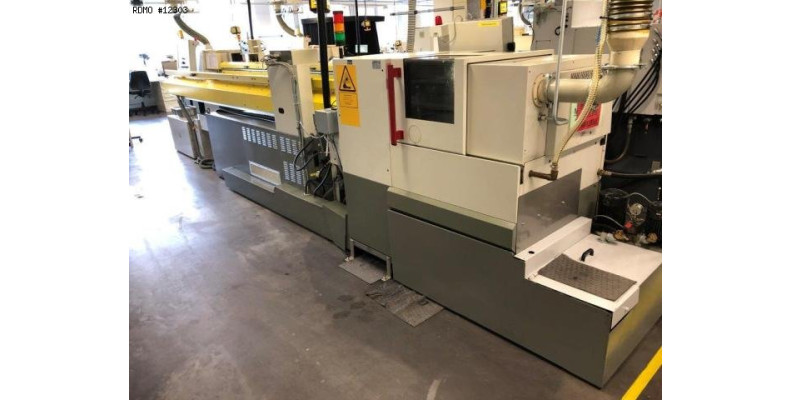

- Bar loader : FMB Minimag
