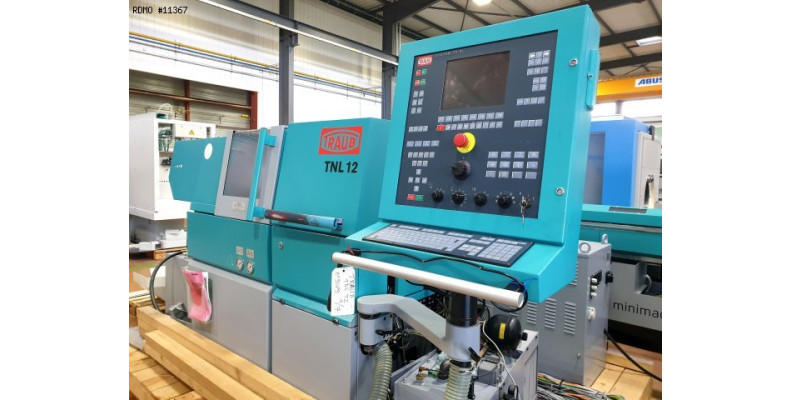

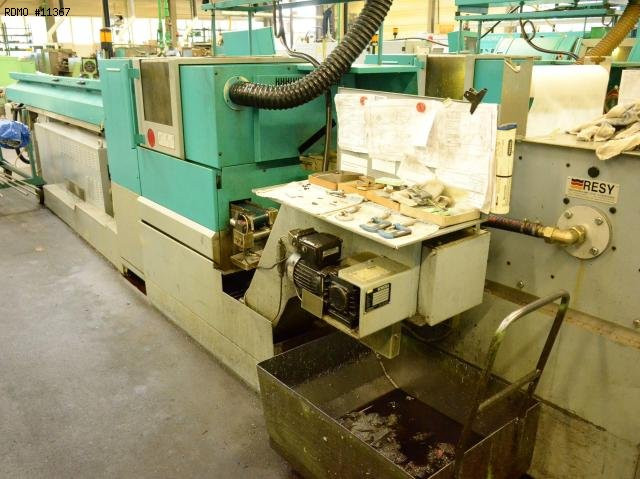

Marca: TRAUB
Modello: TNL 12
Anno: 2006
Nr Serie: 6000690
Marca: TRAUB
Modello: TNL 12
Anno: 2006
Nr Serie: 6000690

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 13 [mm]
- Max. machining length : 130 [mm]
- Spindle speeds : 12.000 [rpm]
- Spindle power : 2,5 [kW]
- C axis indexing precision : 0,001 [°]
- Number of spindle hours : 26.709 [h]
COUNTER-SPINDLE
- Max. bar diameter : 13 [mm]
- Spindle speeds : 12.000 [rpm]
- Spindle power : 2,5 [kW]
- C axis indexing precision : 0,001 [°]
- Number of spindle hours : 16.854 [h]
- Number of turrets : 2

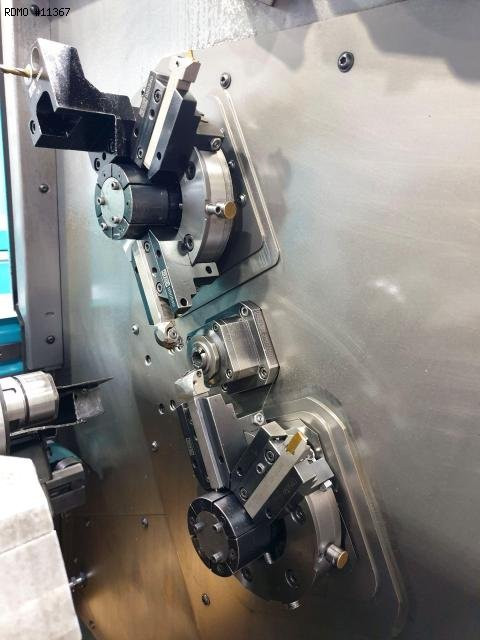

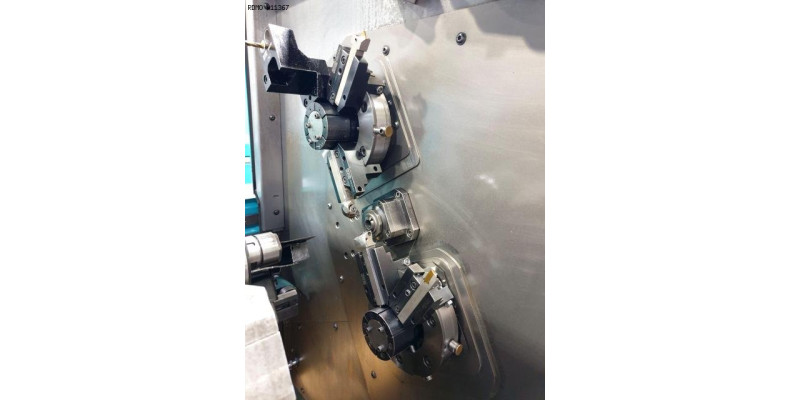

UPPER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X stroke : 35 [mm]
- Z stroke : 50 [mm]
- Live tools speed : 8.000 [rpm]
LOWER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X stroke : 35 [mm]
* Y stroke : -9,5 / +28 [mm]
- Live tools speed : 8.000 [rpm]

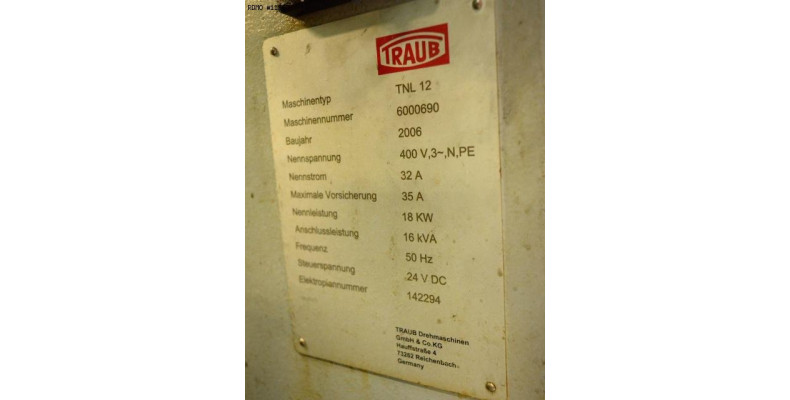

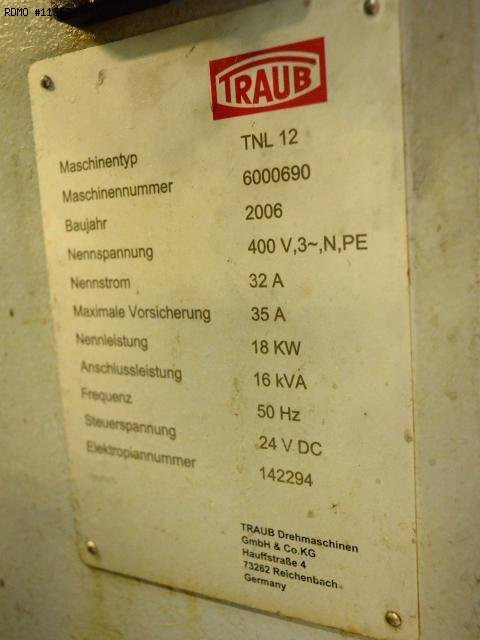

POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 16 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.850 x 1.100 [mm]
- Machine height : 1.480 [mm]
- Machine weight : 2.000 [kg]
Attrezzatura

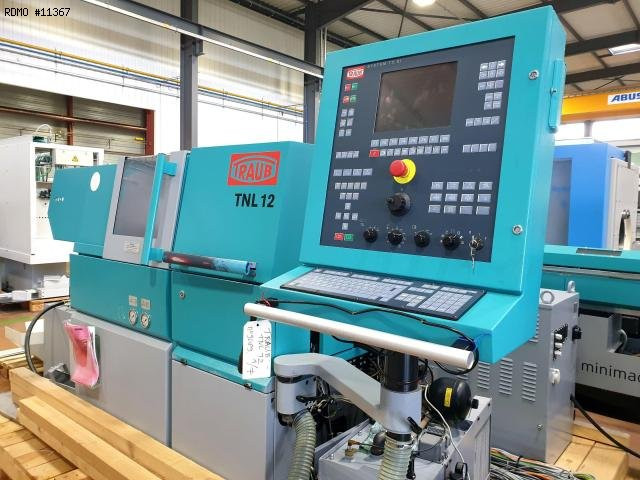

- CNC : Traub TX 8i

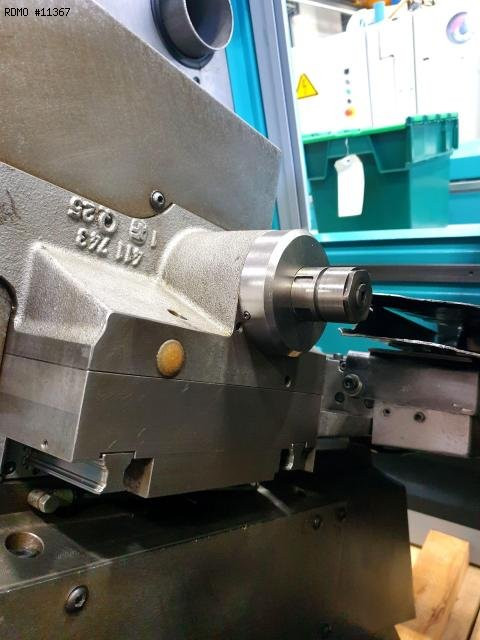

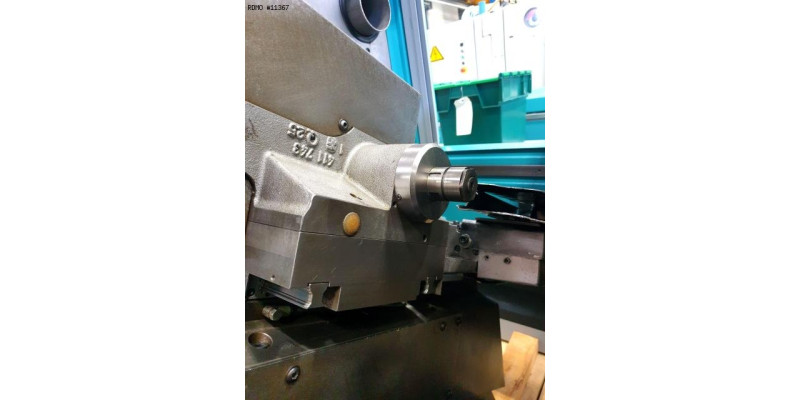

- Rotating guide bush
- Parts catcher
- Parts conveying strip

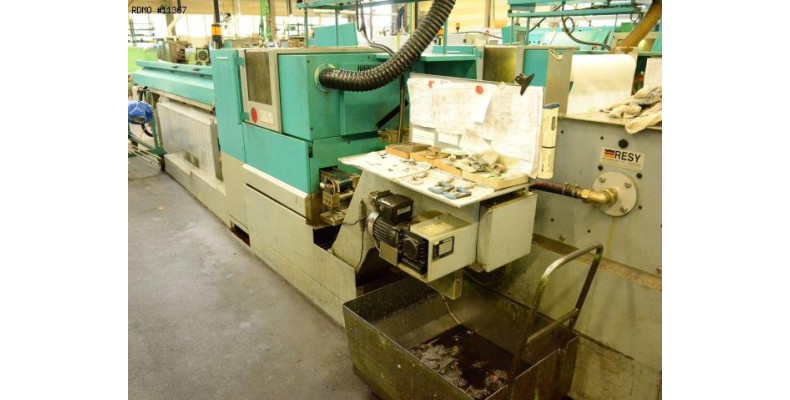

- Chips conveyor : KNOLL 160 S-1
- Coolant tank : 500 [l]

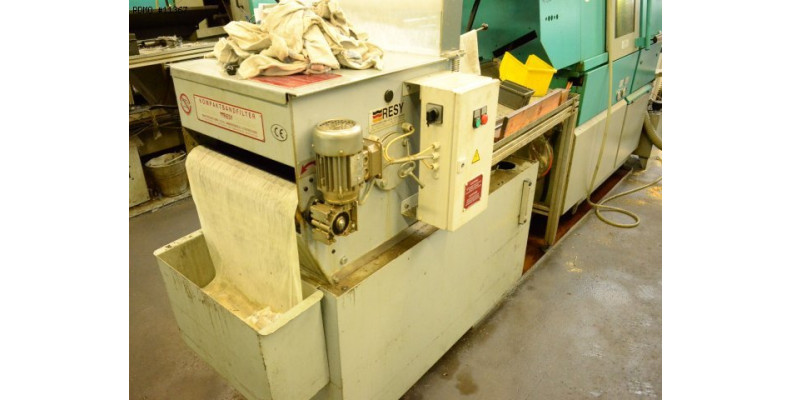

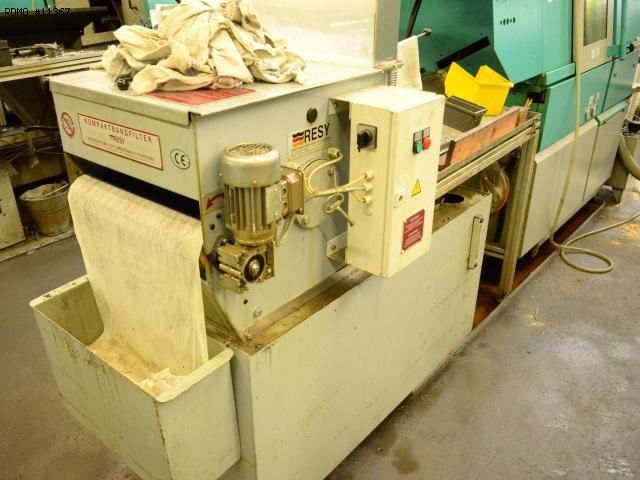

* with paper filtering unit
- Bar loader : FMB Minimag 18 / 3200 C

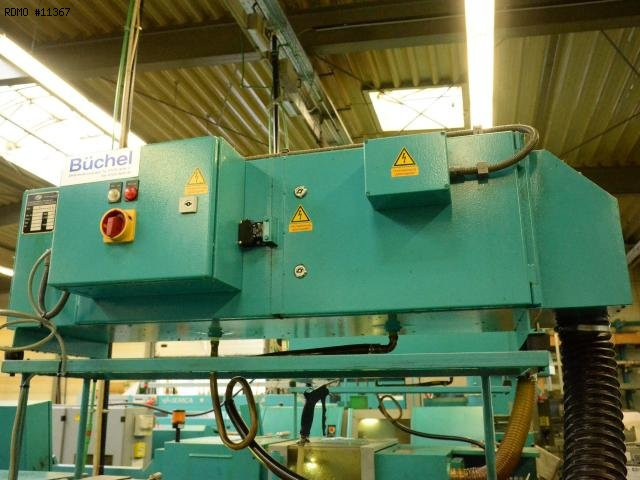

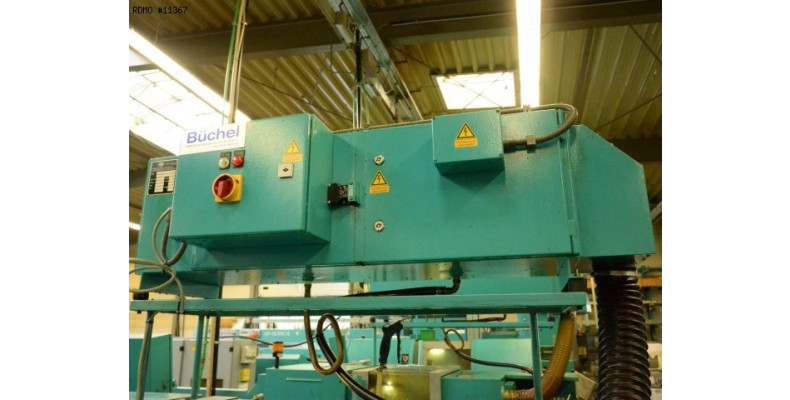

- Oil mist extractor : UAS SMOG HOG SH-05
- Number of fixed tool holders : 5
