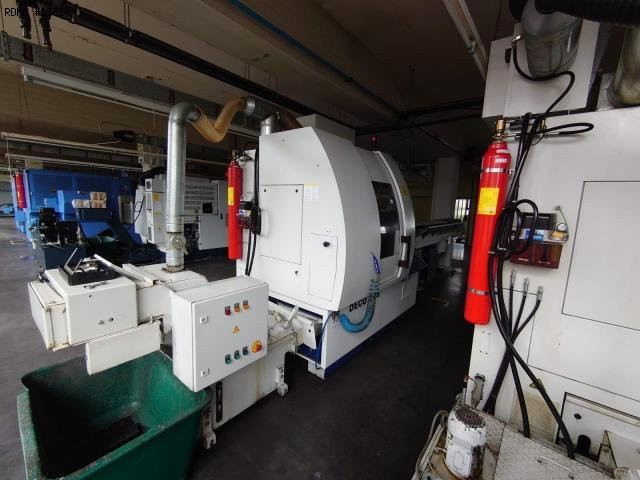

Marca: TORNOS
Modello: DECO 20A
Anno: 2001
Nr Serie: 3415
Marca: TORNOS
Modello: DECO 20A
Anno: 2001
Nr Serie: 3415

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 25.4 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 10000 [rpm]
- C axis indexing precision : 0.1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.1 [°]
- Number of guide bush holders : 2
GUIDE BUSH HOLDER 1
- Number of positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
SECONDARY OPERATION
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 14 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2270 x 1650 [mm]
- Machine height : 2200 [mm]
- Machine weight : 3500 [kg]
MACHINE HOURS
- Number of hours under power : 46571 [h]
Attrezzatura

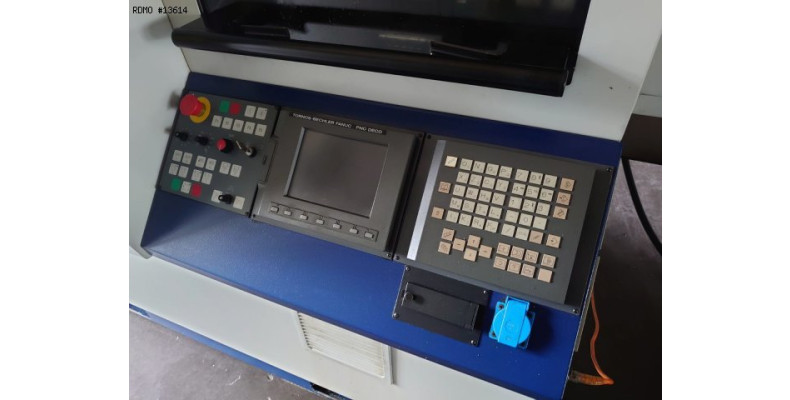

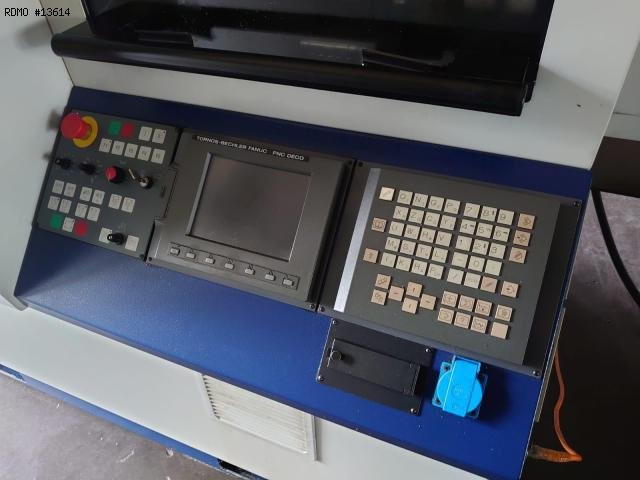

- CNC : Fanuc
- Rotating tool motor on : S2
- Rotating guide bush

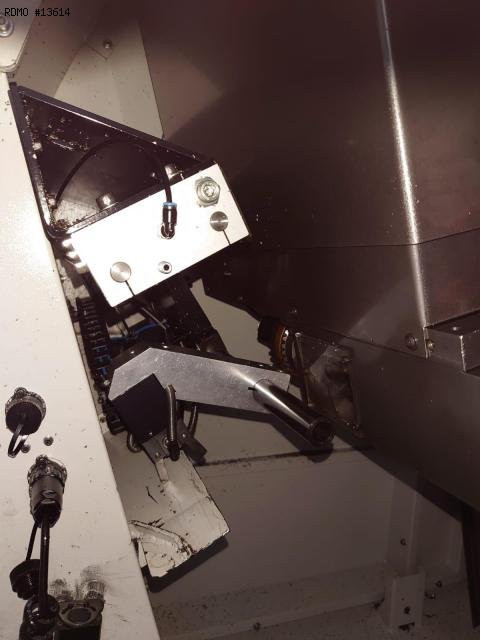

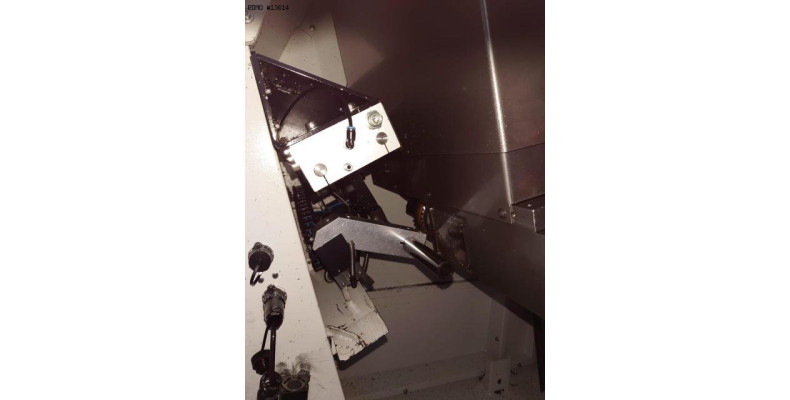

- Parts catcher
- Ejection of workpiece

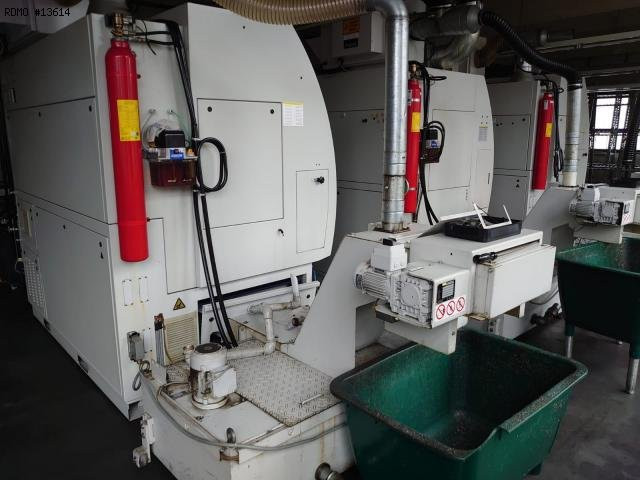

- Chips conveyor : KNOLL
- Coolant tank

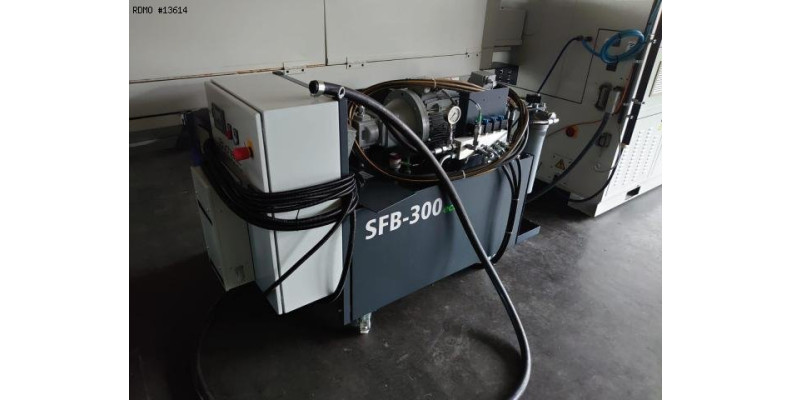

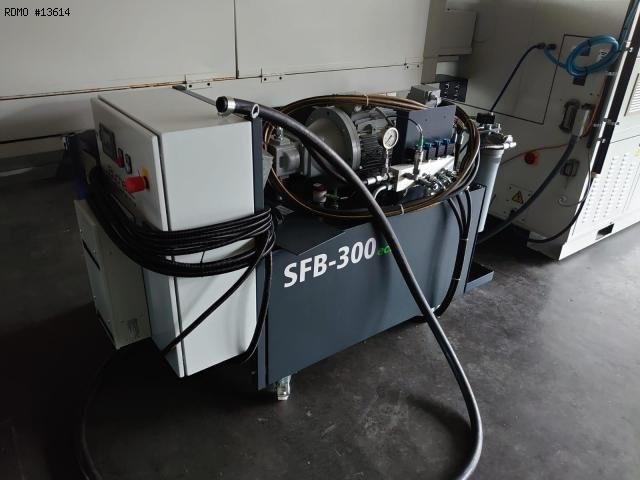

* with high-pressure pump : 100 [bars]

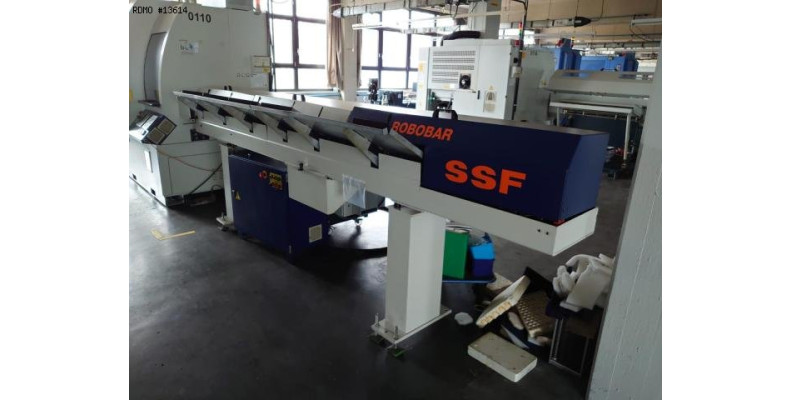

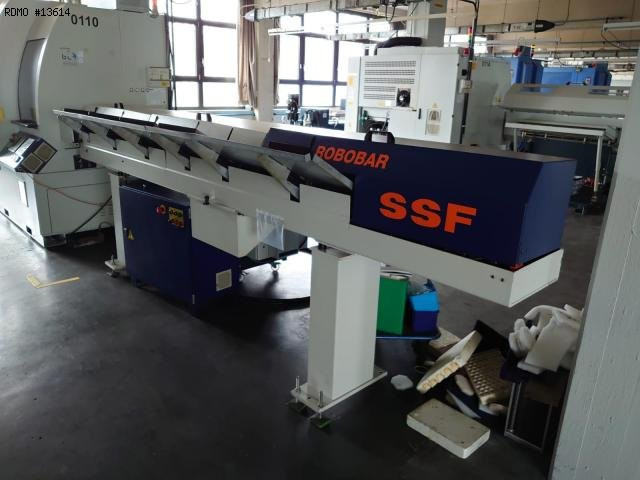

- Bar loader : TORNOS ROBOBAR SSF
- Oil mist extractor : Elbaron

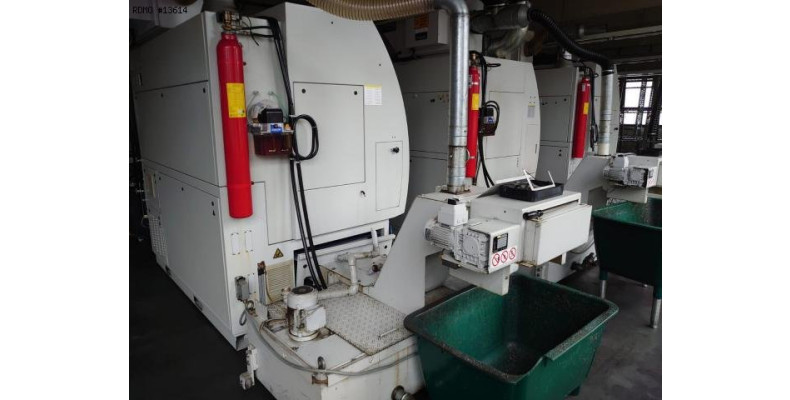

- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
