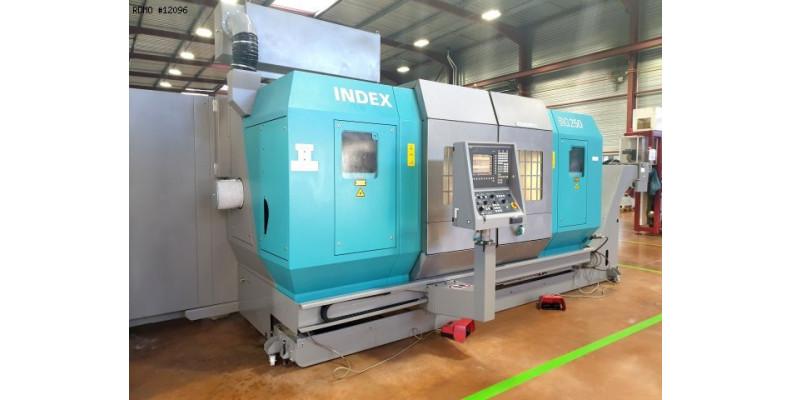

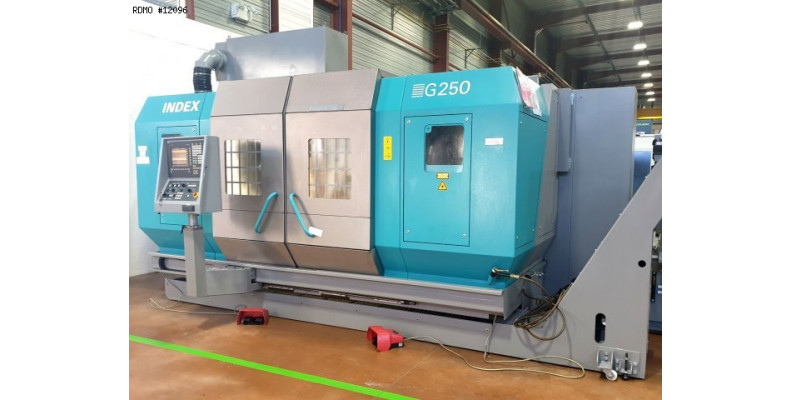

Index G250 7 assi

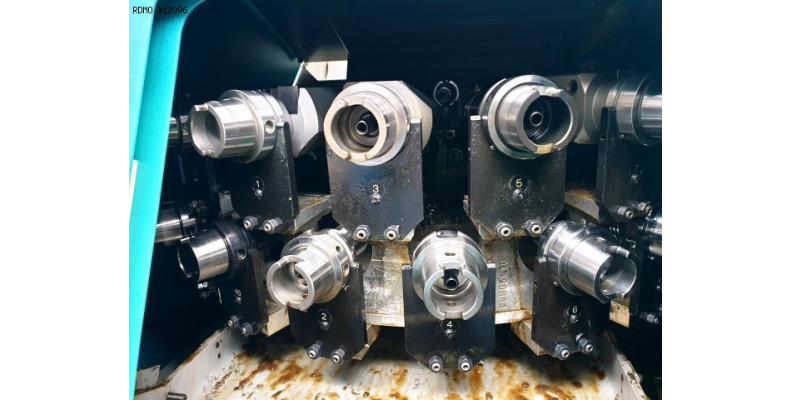

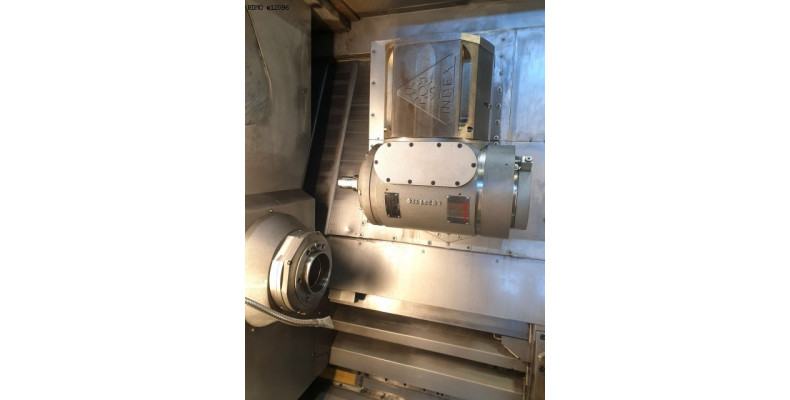

- Number of axes : 8 - Number of spindles : 1 MAIN SPINDLE - Spindle nose : ISO 702/1-8 - Spindle power : 60 [kW] - Spindle speeds : 3.500 [rpm] - Max. bar diameter : 102 [mm] - Max. diameter on bench : 560 [mm] - Max. chuck diameter : 315 [mm] - C axis indexing precision : 0,001 [°] TAILSTOCK - Tailstock type : Numeric - Type of cone : ISO 30 - Distance between centers : 1.400 [mm] - Adjustable pressure : through effort control TURNING-MILLING SPINDLE - X/Z stroke : 300 x 1.840 [mm] - Y stroke : 286 [mm] - B Axis stroke : 360 [°] - B axis indexing precision : 0,001 [°] - Tool type : HSK63 - Spindle speeds : 12.000 [rpm] - Spindle power : 27,5 [kW] TOOL CHANGER - Auto. Tool Changer type : Umbrella - Tool magazine capacity : 2 x 40 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 100 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 5.460 x 2.560 [mm] - Machine height : 3.000 [mm] - Machine weight : 13.500 [kg] MACHINE HOURS - Number of hours under power : 37.800 [h] - Number of turning-milling spindle hours : 7.891 [h] - Spindle hours : 9.137 [h]

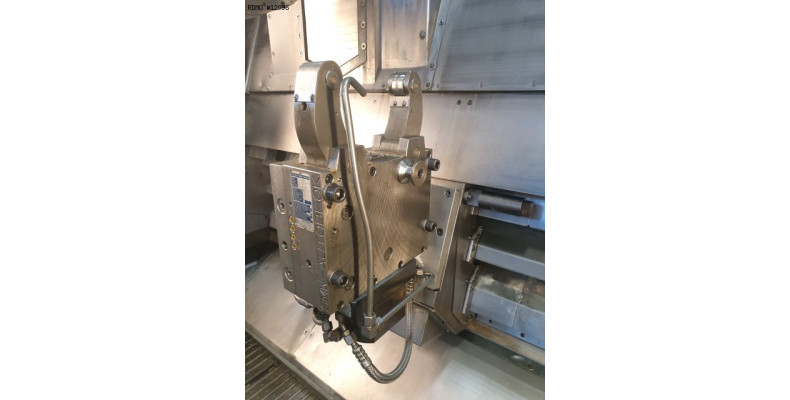

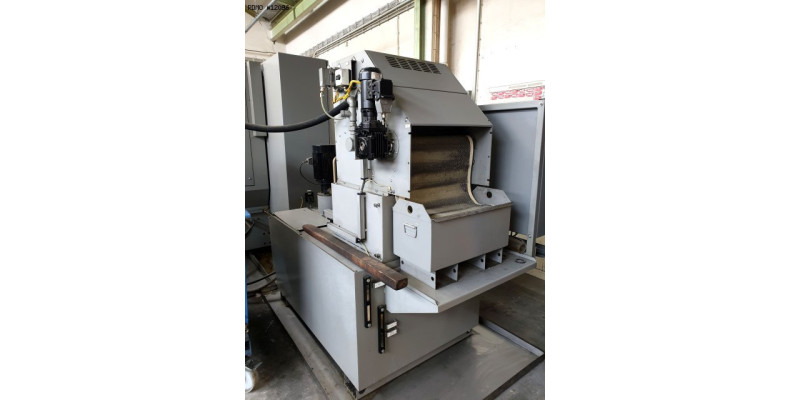

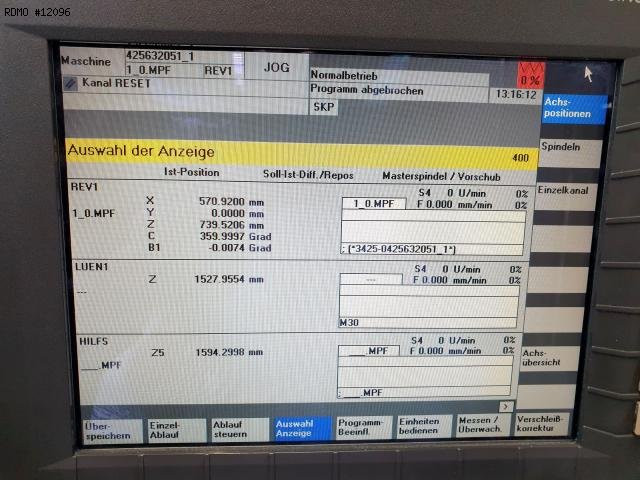

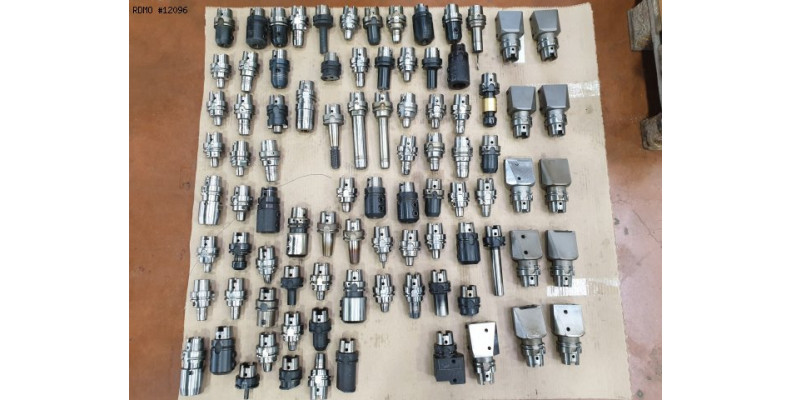

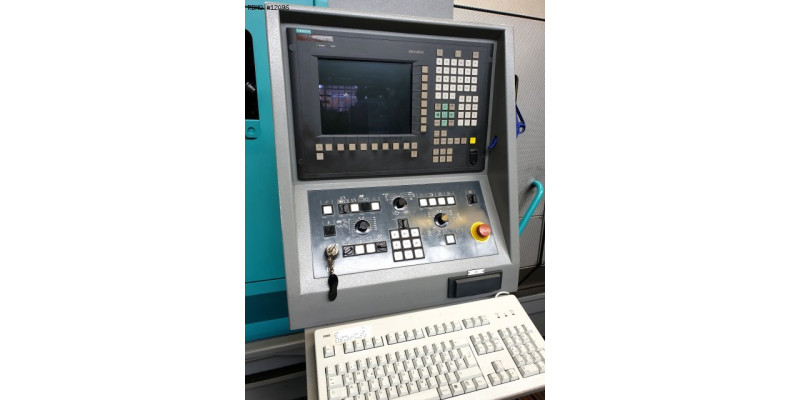

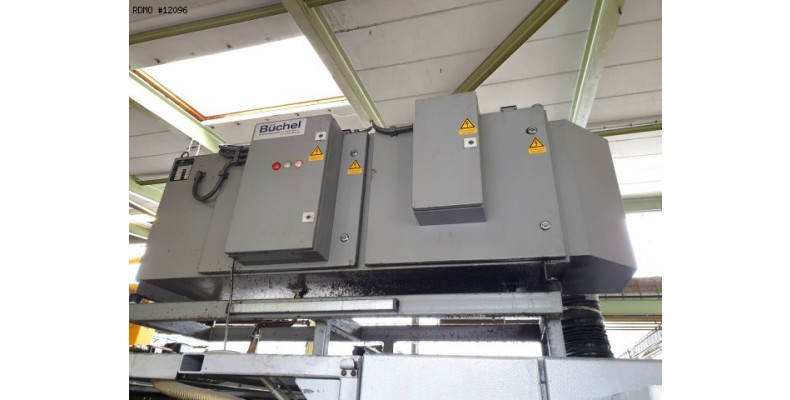

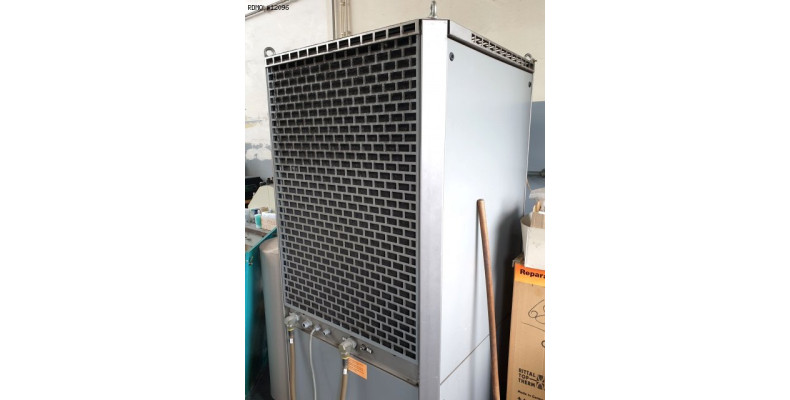

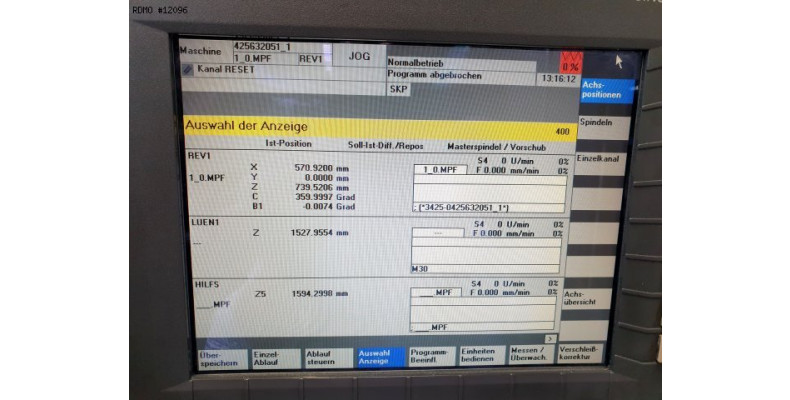

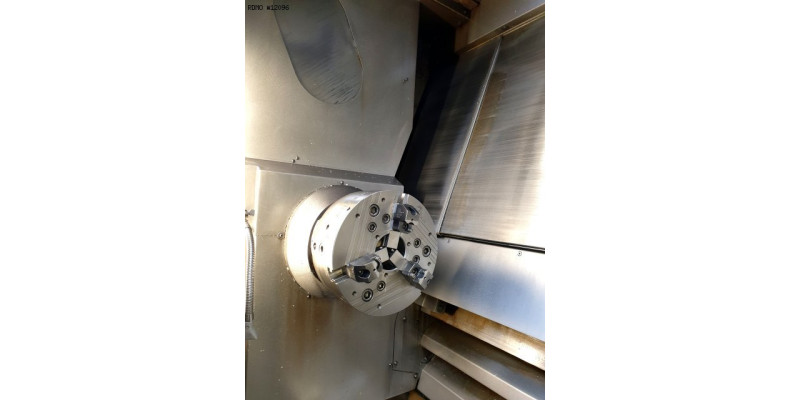

- CNC : C200-4D (SIEMENS 840D Powerline) - Interface : RS232 / RJ45 - Coolant tank : 900 [l] * with high-pressure pump : 25 [bars] * with paper filtering unit : KNOLL AE1058 - Coolant through spindle - Chips conveyor : KNOLL - Oil mist extractor : BÜCHEL SH2000 PEV - Spindle cooling unit : HYFRA PEDIA SVK 140-1-S - Rest : SMW SLU3, Ø12-152, CNC driven - Chuck 3 jaws : SMW KNCS-N-315-91 - Number of milling tool holders : 72 - Number of turning tool holders : 12
