BUMOTEC S192FT 7 assi

Name: Centro di tornitura/fresatura BUMOTEC S192FT 7 assi
Brand: BUMOTEC
Availability: InStock

Tornitura Centro di tornitura/fresatura

13615

Specifiche tecniche per il download

Marca: BUMOTEC

Modello: S192FT

Anno: 2005

Nr Serie: 2786/11

13615

BUMOTEC S192FT 7 assi

Tornitura Centro di tornitura/fresatura

Specifiche tecniche per il download

Marca: BUMOTEC

Modello: S192FT

Anno: 2005

Nr Serie: 2786/11

Richieda un prezzo

Caratteristiche

- Number of axes : 7
- Number of spindles : 2

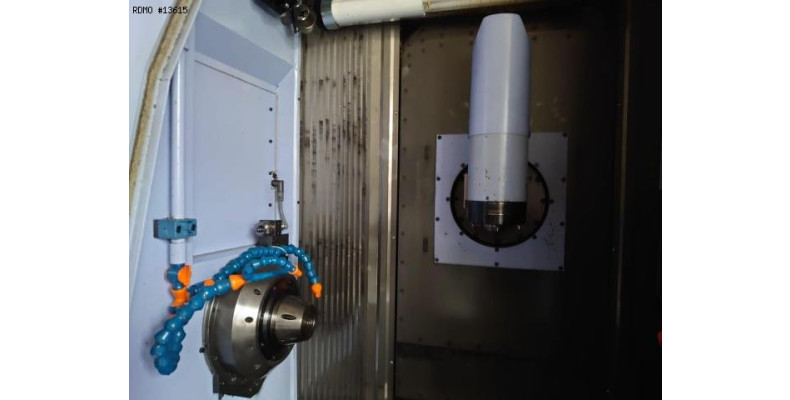

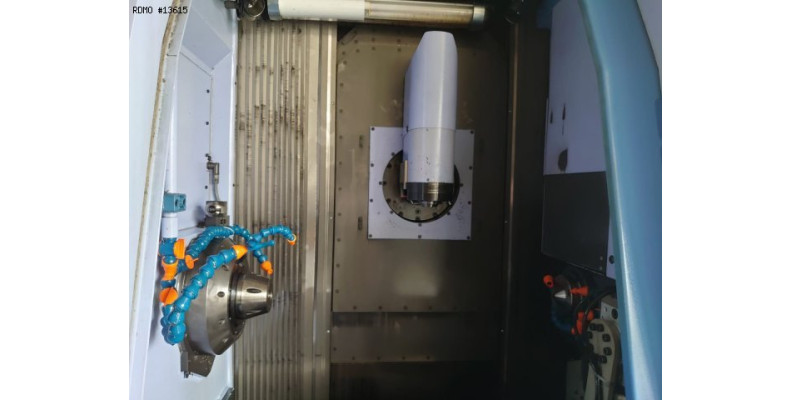

MAIN SPINDLE
- Spindle power : 14 [kW]
- Spindle speeds : 6.000 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0,001 [°]

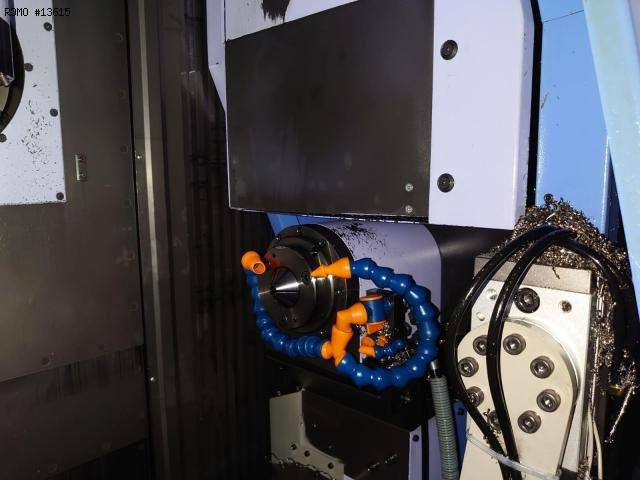

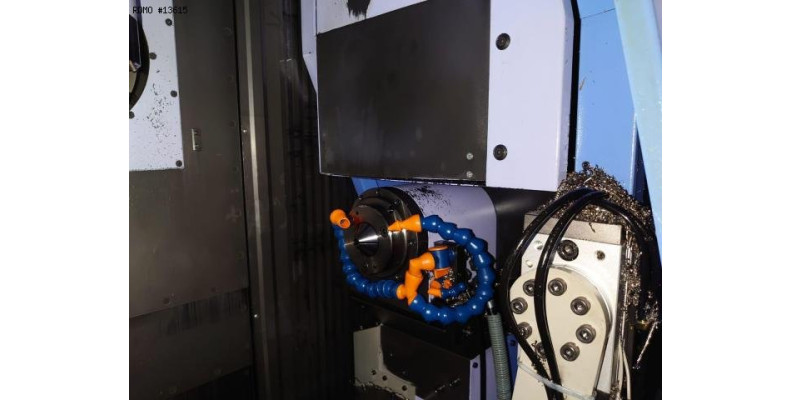

COUNTER-SPINDLE
- Spindle power : 9,7 [kW]
- Spindle speeds : 5.000 [rpm]
- C axis indexing precision : 0,001 [°]
- Travel : 330 [mm]

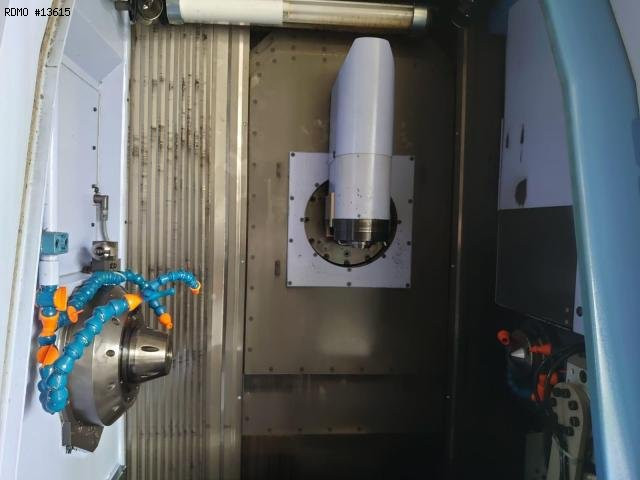

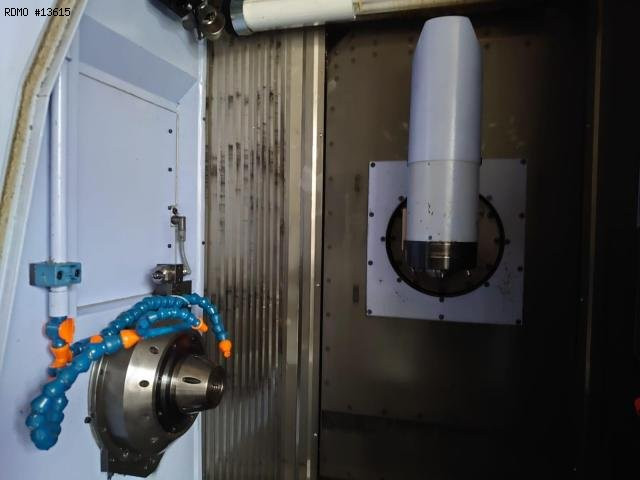

TURNING-MILLING SPINDLE
- X/Z stroke : 425 / 550 [mm]
- Y stroke : 200 [mm]
- B Axis stroke : -105 / +105 [°]
- B axis indexing precision : 0,001 [°]
- Tool type : HSK40
- Spindle speeds : 25.000 [rpm]
- Spindle power : 10 [kW]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 30
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 17 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2.548 x 1.922 [mm]
- Machine height : 2.686 [mm]
- Machine weight : 6.500 [kg]

Attrezzatura

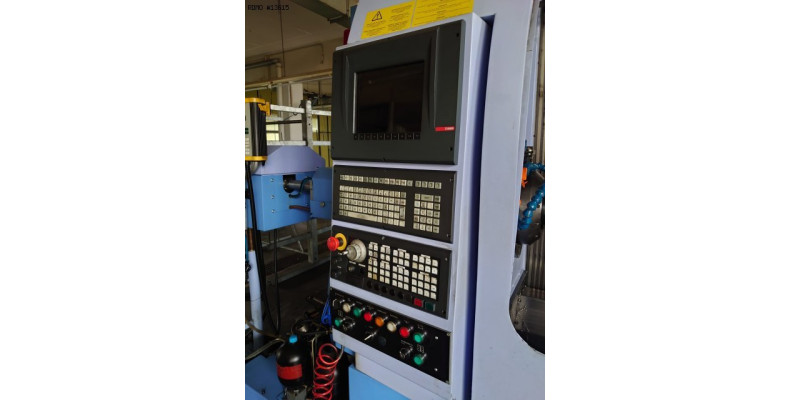

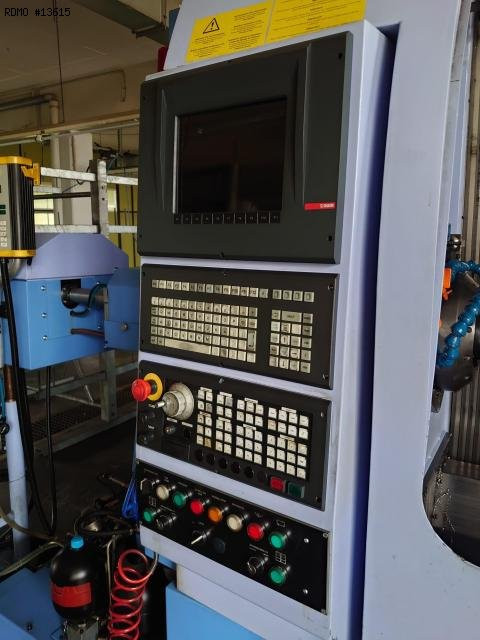

- CNC : Num Power 1050
- Interactive programming
- 3 colors status lamp

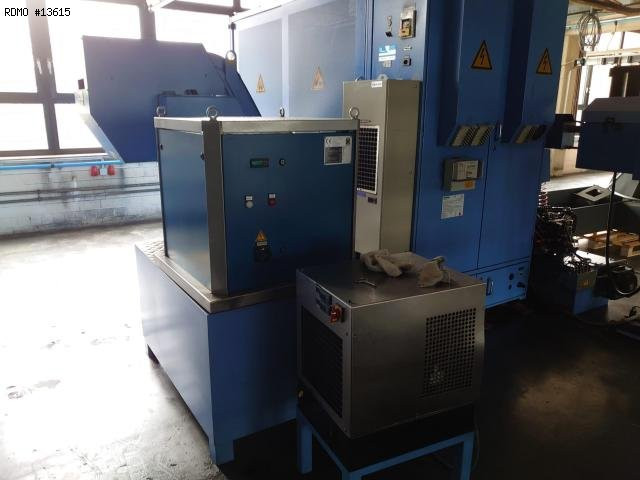

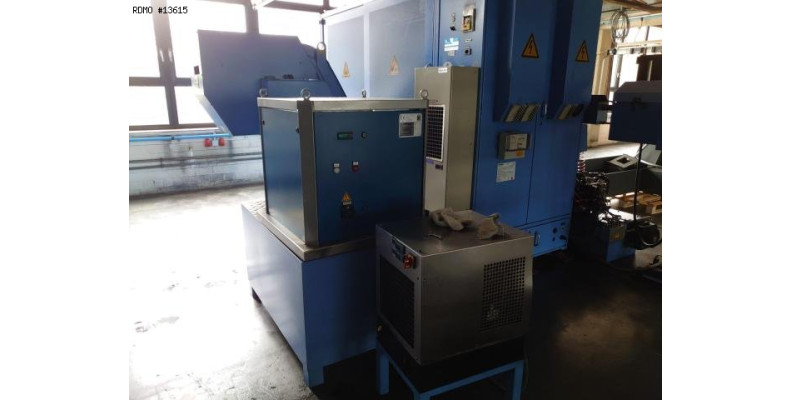

- Coolant tank
* with high-pressure pump

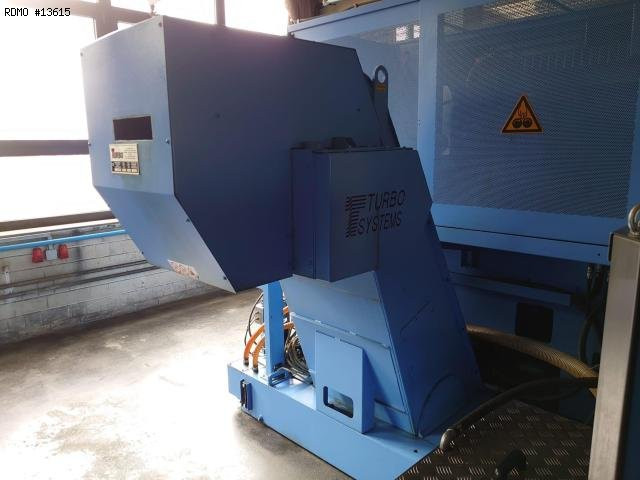

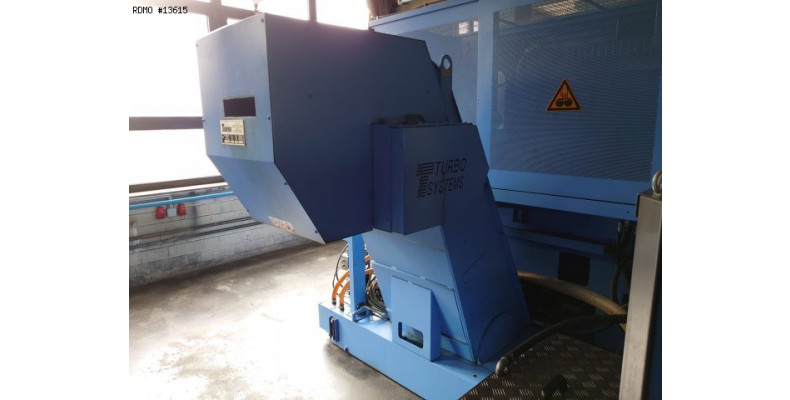

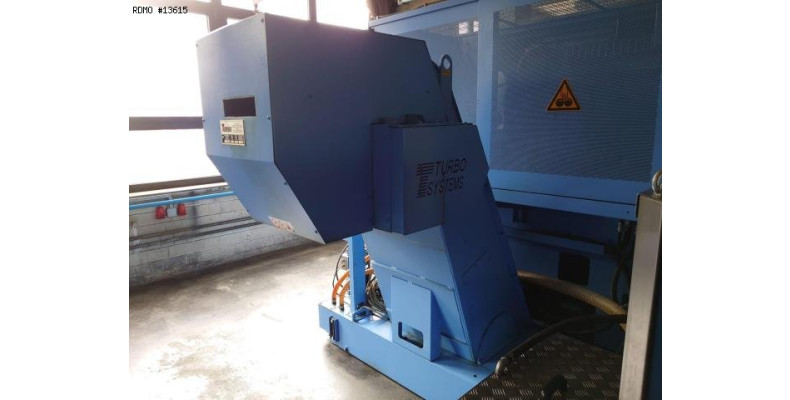

- Chips conveyor
- Oil mist extractor : ELBARON
- Spindle cooling unit

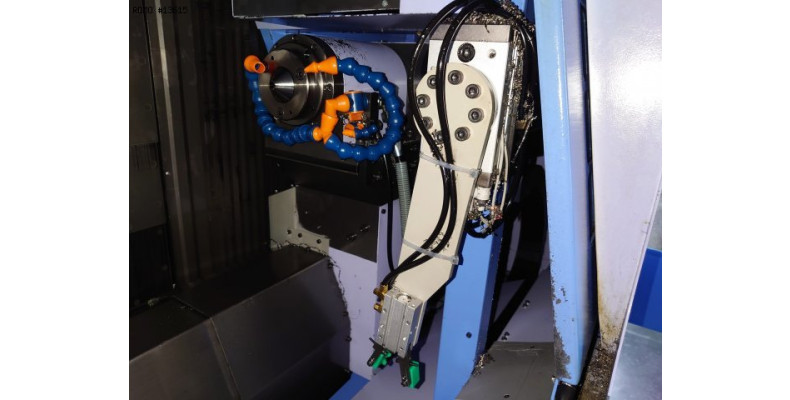

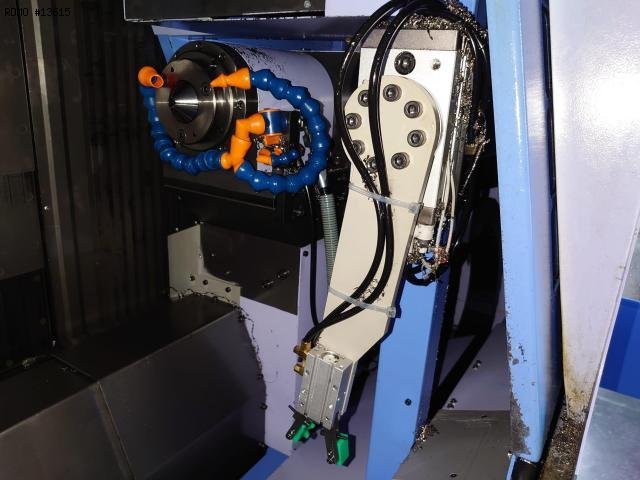

- Parts catcher

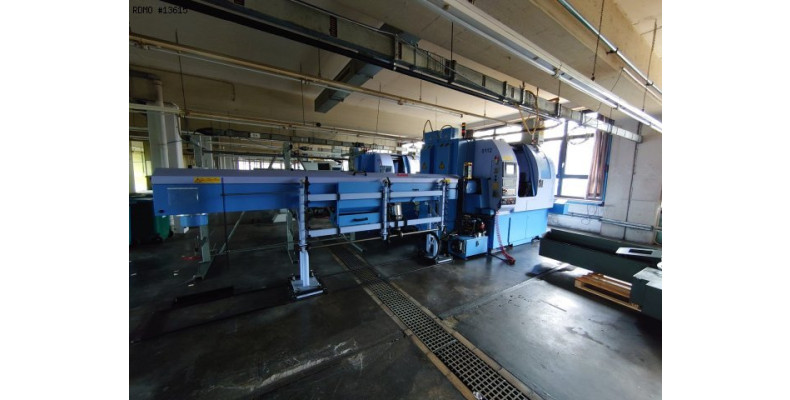

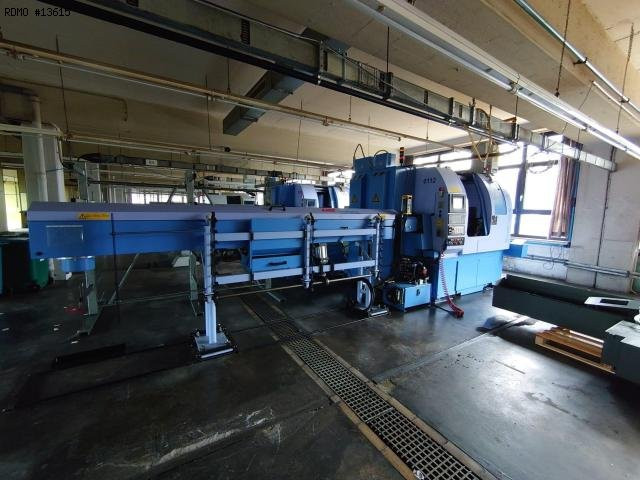

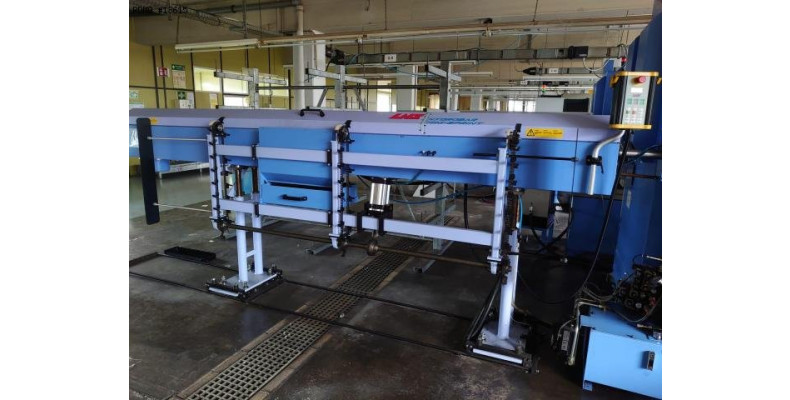

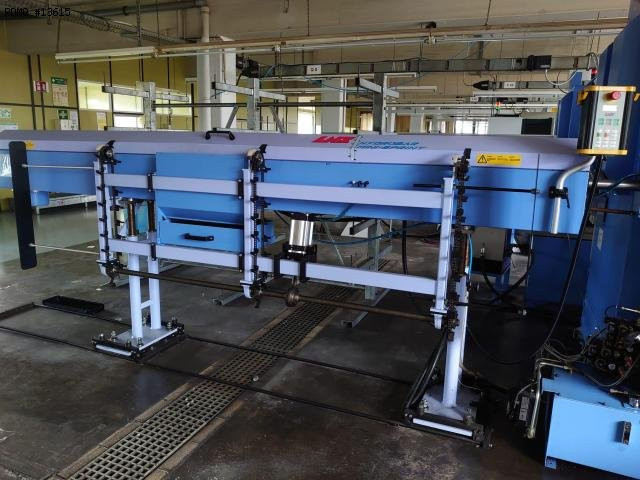

- Bar loader : LNS HYDROBAR MINI-SPRINT
