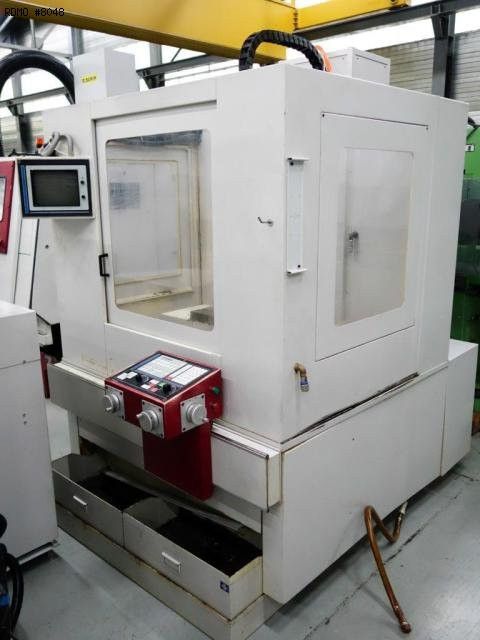

Marca: REALMECA
Modello: F 300
Anno: 1997
Nr Serie: 1034
Marca: REALMECA
Modello: F 300
Anno: 1997
Nr Serie: 1034

Caratteristiche & Attrezzatura

Caratteristiche

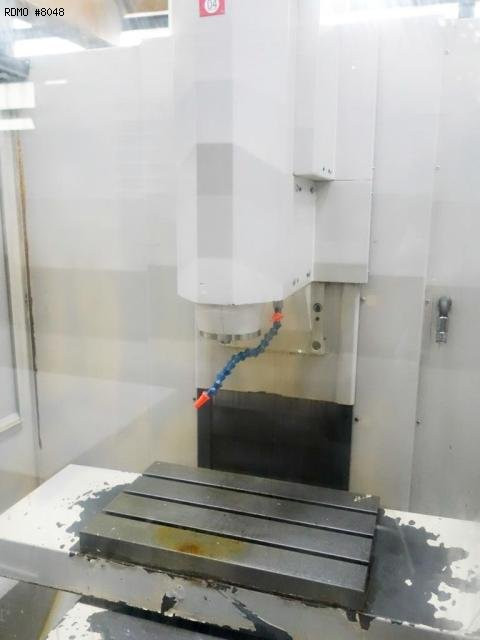

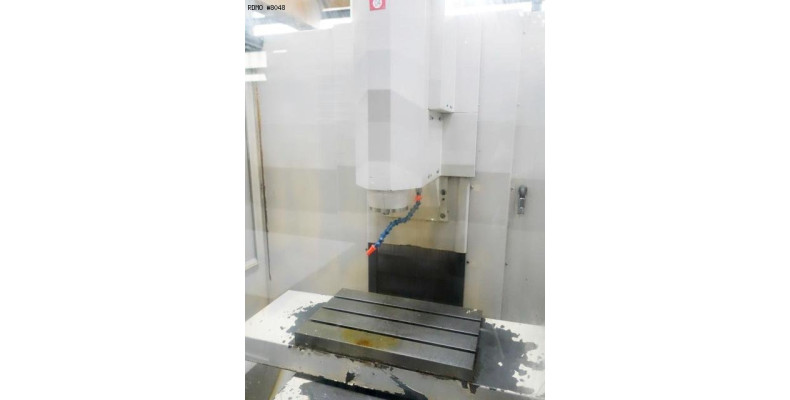

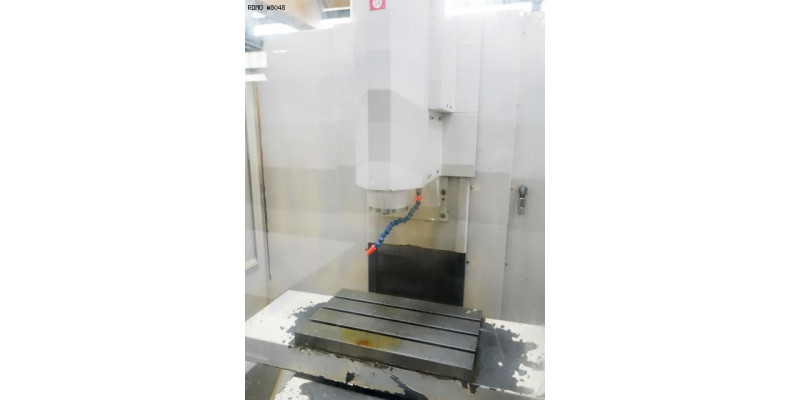

- Table dimensions : 500x300 [mm]
- Longitudinal stroke X : 320 [mm]
- Transversal stroke Y : 260 [mm]
- Vertical stroke Z : 340 [mm]
- Work feed : 0-5 [m/min]
- Quick feed : 5 [m/min]
- Spindle speed : 100-6000 [Rpm]
- Spindle cone : ISO 30
- Max. tool diameter : 70 [mm]
- Max. tool length : 120 [mm]
- Installed power : 14 [kVA]
- Supply : 3x400V / 50 Hz
- Dimensions (WxLxH) : 2270 x 1440 x 2380 [mm]
- Weight : 2380 [kg]
Attrezzatura

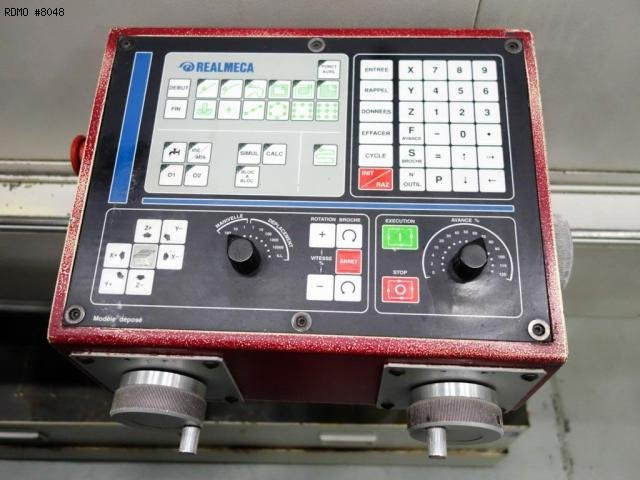

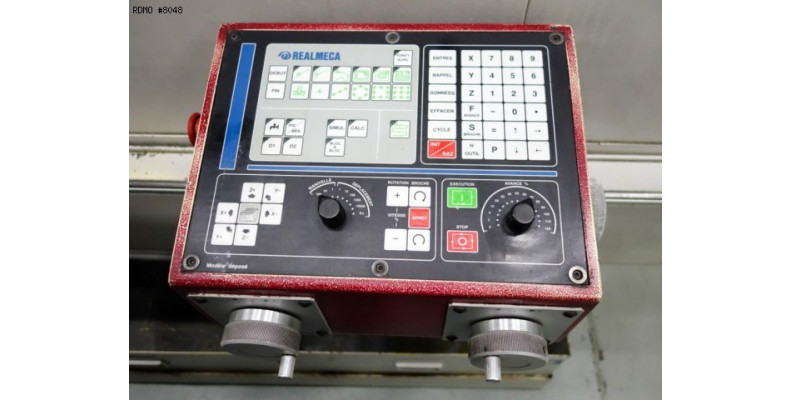

- CNC FAGOR 8055 MC
- Oil extractor ELBARON

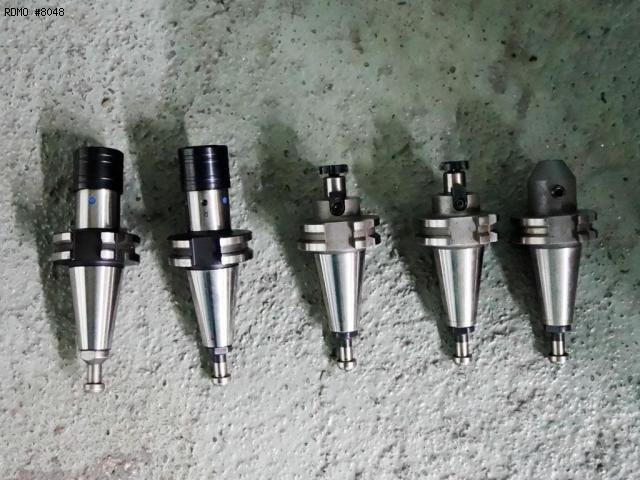

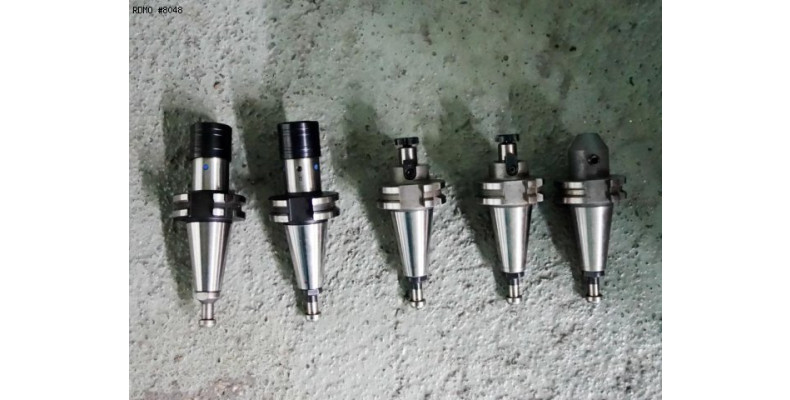

- Tool set ISO 30
Specifiche tecniche per il download

Descrizione

Macchine utensili per la vendita

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

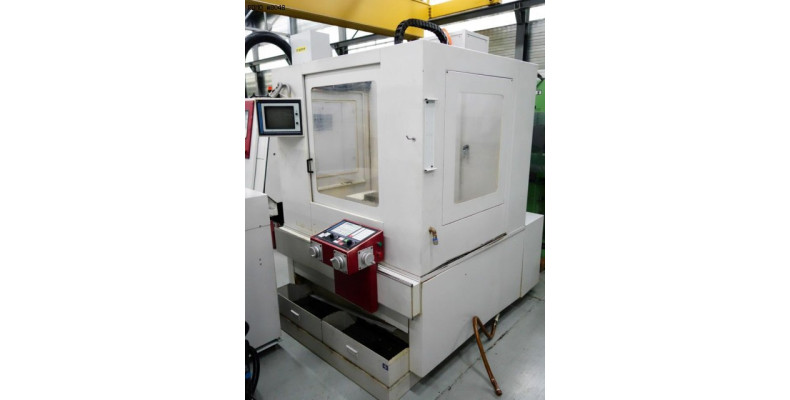

REALMECA F 300
