Marca: FEHLMANN
Modello: PICOMAX 100
Anno: 1986
Nr Serie: 160 86 127
Marca: FEHLMANN
Modello: PICOMAX 100
Anno: 1986
Nr Serie: 160 86 127

Caratteristiche & Attrezzatura

Caratteristiche
- spindle speed:50 - 7 100 [rpm]
- 6 spindle feeds:0.03 - 0.4 [mm/r]
- spindle stroke:210 [mm]
- X axis machining range:850 / 1 000 [mm]
- Y axis machining range:465 [mm]
- Z axis machining range:750 [mm]
- tightening dimension on table:1 570 x 500 [mm]
- T slots:7
- distance between the slots:50 [mm]
- width slots:12H8
- positioning accuracy:0.01 [mm]
- repetition accuracy:0.005 [mm]
- parts maxi weight:250 [kg]
- driving power:5 [kW]
- drilling capacity in steel:30 [mm]
- tapping capacity in steel:M 20
- tapping capacity in cast-iron:M 24
Attrezzatura
- CNC HEIDENHAIN TNC 151 control
Specifiche tecniche per il download

Descrizione

Macchine utensili per la vendita

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

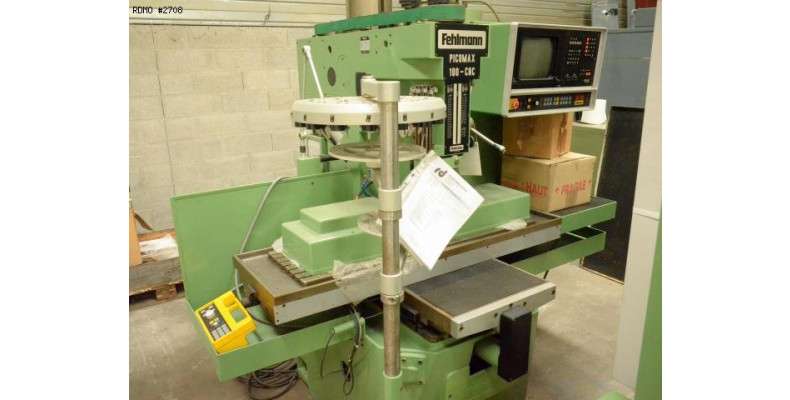

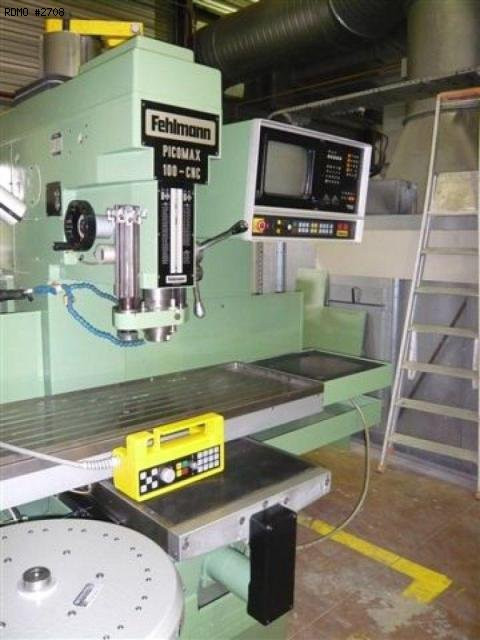

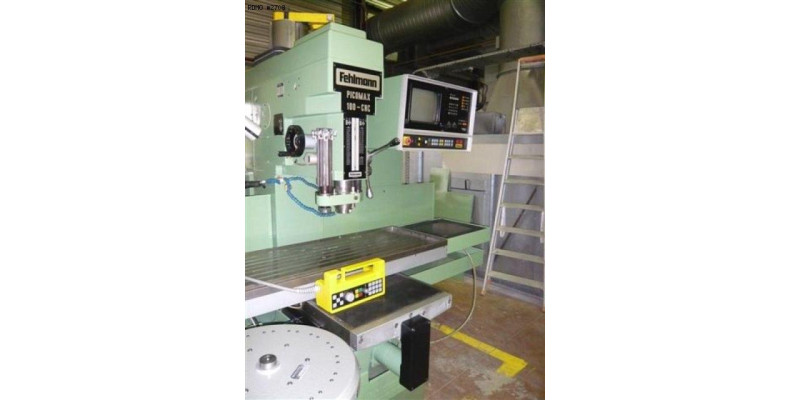

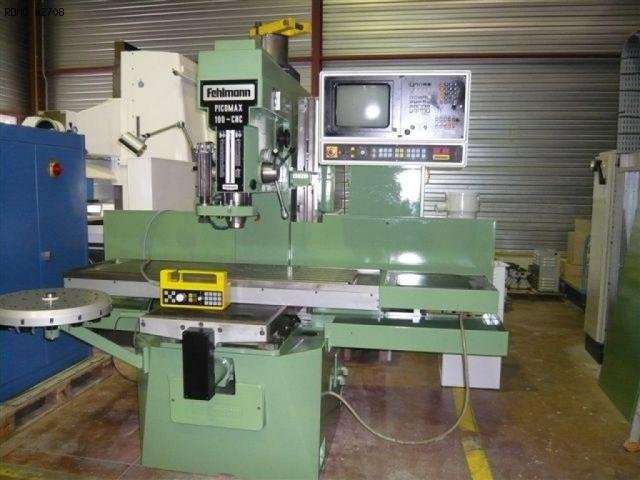

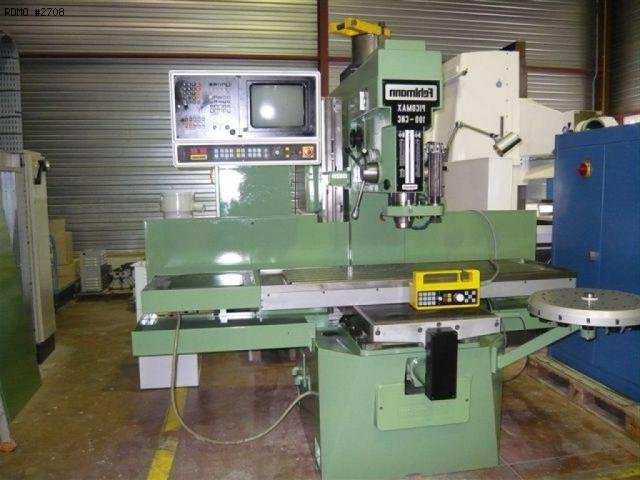

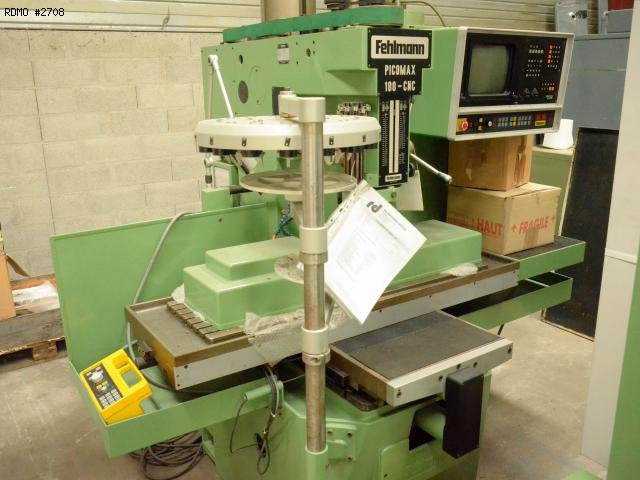

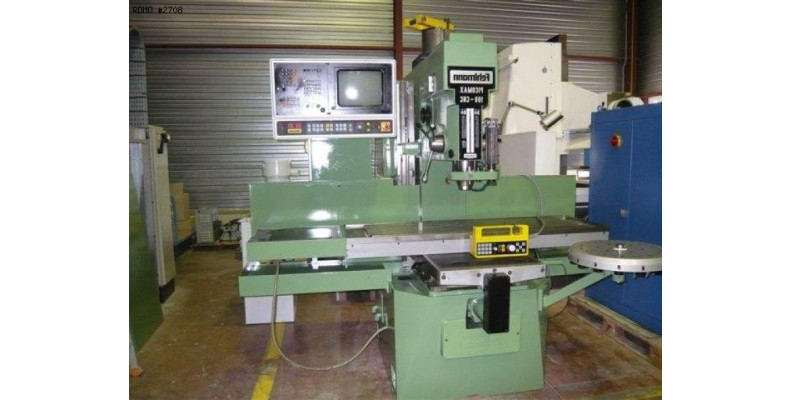

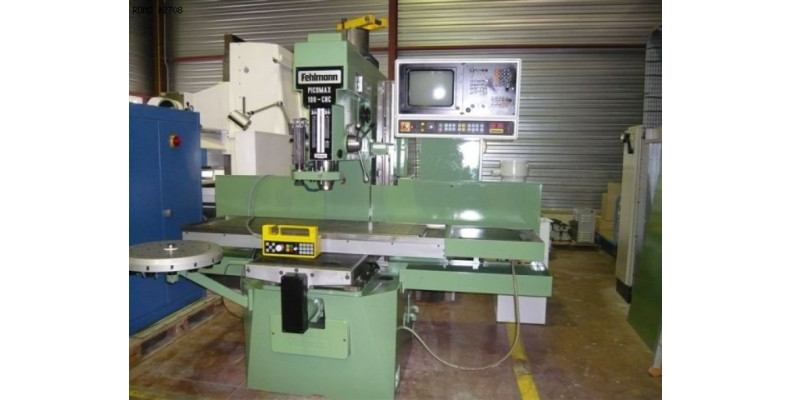

FEHLMANN PICOMAX 100 3 assi
