- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12 [mm]
- Max. machining length : 170 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.2 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 12 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.2 [kW]
- C axis indexing precision : 1 [°]
- Number of guide bush holders : 1
GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 8
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 11 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1640 x 1200 [mm]
- Machine height : 1725 [mm]
- Machine weight : 1950 [kg]

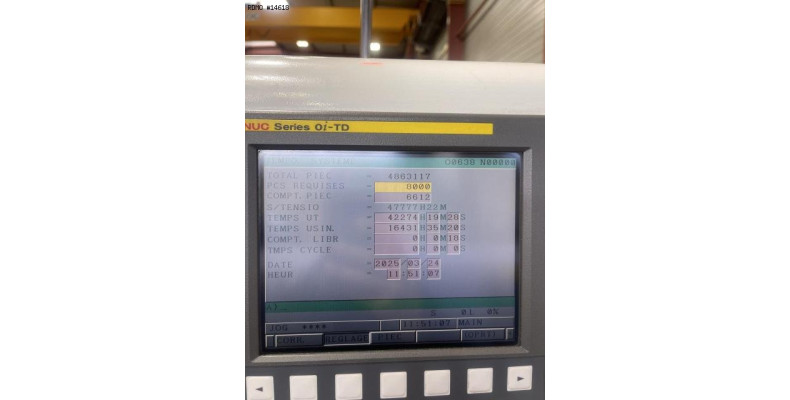

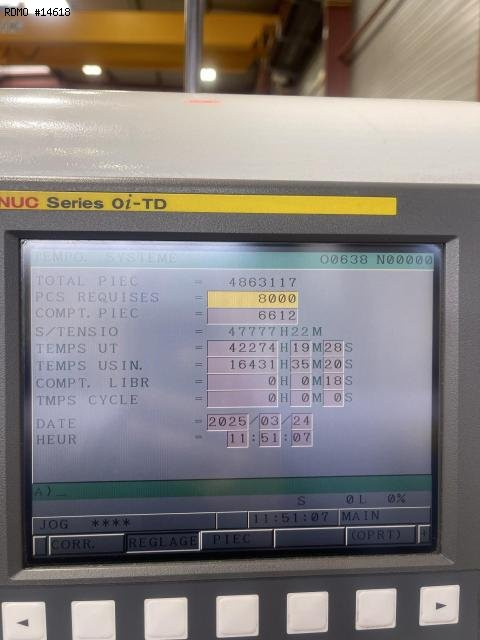

MACHINE HOURS
- Number of hours under power : 47777 [h]
- Number of working hours : 42274 [h]
- Number of spindle hours : 16431 [h]
Attrezzatura

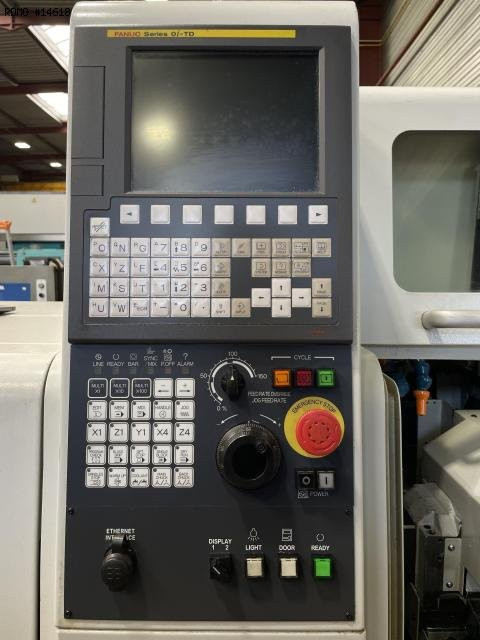

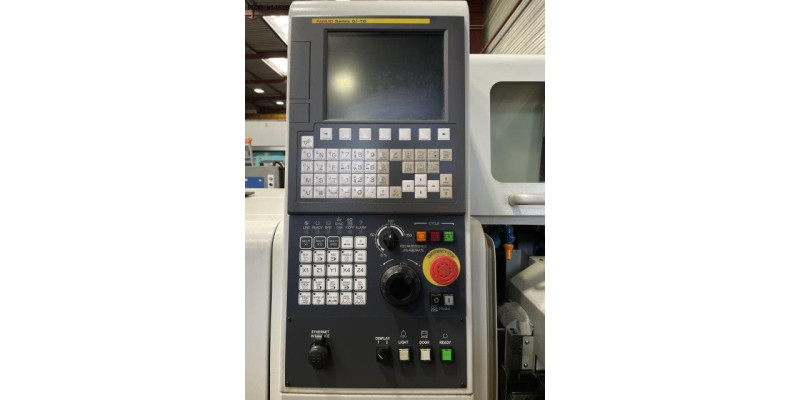

- CNC : Fanuc Oi TD
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor : Mayfran
- Coolant tank
* with high-pressure pump
- Bar loader : FMB
