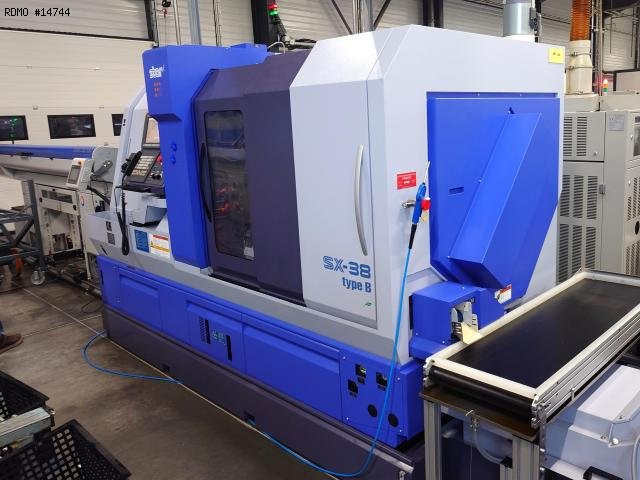

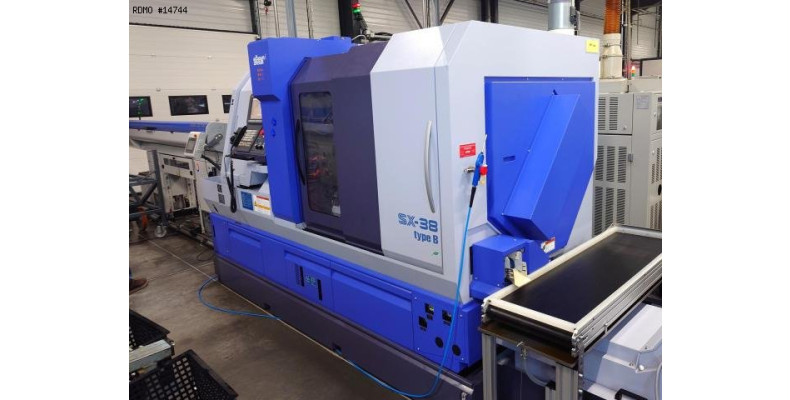

Marca: STAR
Modello: SX-38
Anno: 2021
Nr Serie: 0096
Marca: STAR
Modello: SX-38
Anno: 2021
Nr Serie: 0096

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 12
- Number of spindles : 2

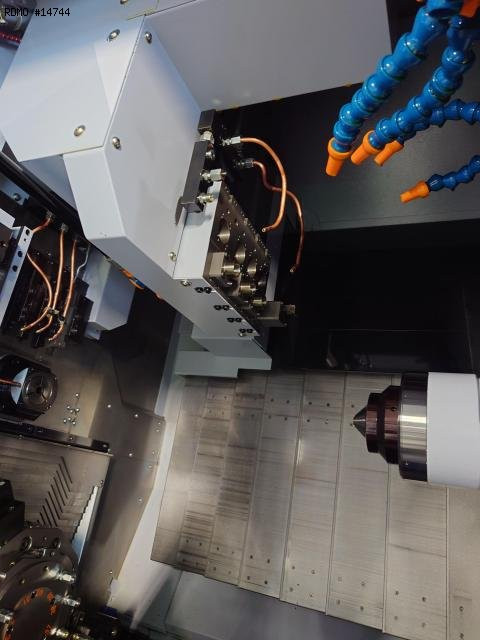

MAIN SPINDLE
- Max. bar diameter : 38 [mm]
- Max. machining length : 320 [mm]
- Spindle speeds : 7000 [rpm]
- Spindle power : 7.5 / 11 [kW]
- C axis indexing precision : 0.001 [°]

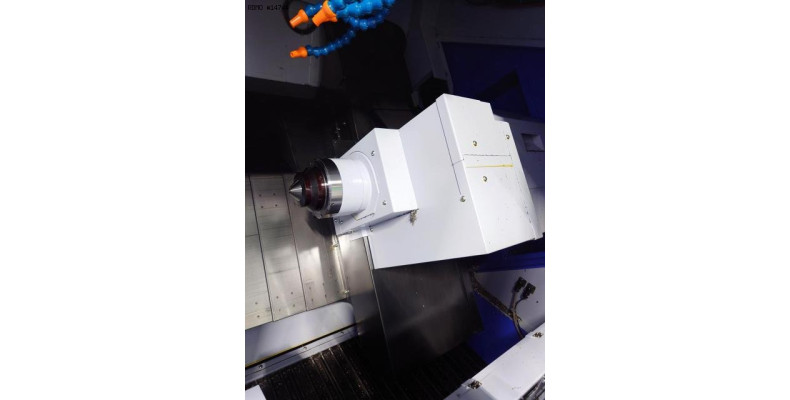

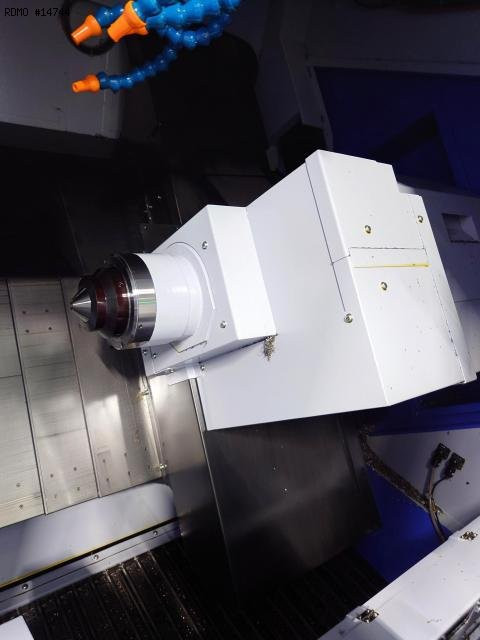

COUNTER-SPINDLE
- Max. bar diameter : 38 [mm]
- Spindle speeds : 7000 [rpm]
- Spindle power : 7.5 / 11 [kW]
- C axis indexing precision : 0.001 [°]

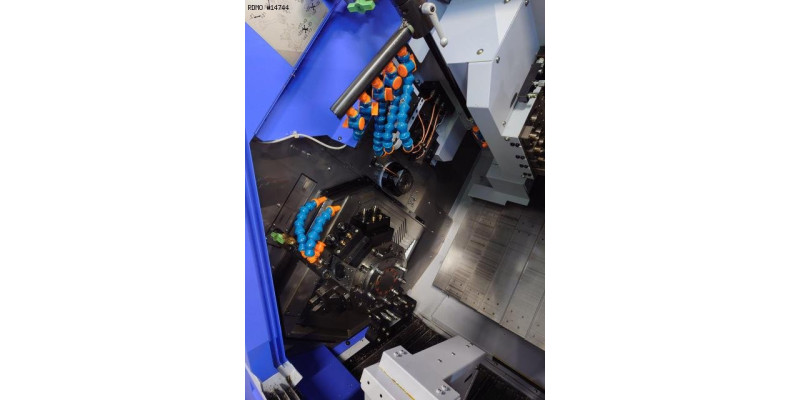

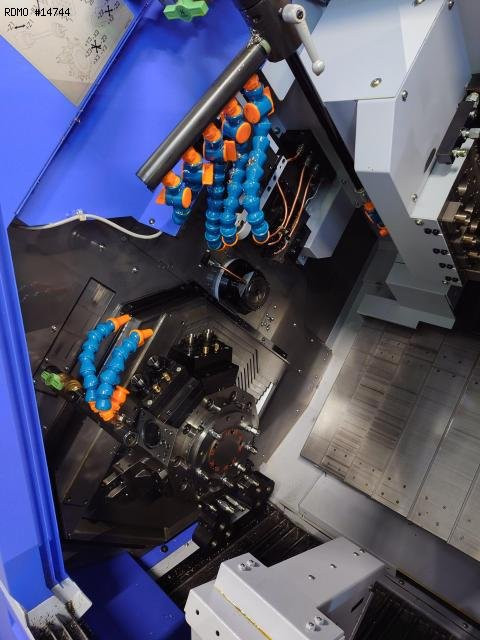

LOWER TURRET
- Number of positions : 10
- Number of motorized positions : 10
- Live tools speed : 5700 [rpm]
- Live tools power : 2.7 / 4 [kW]
- Max. 3 fixed tools per position
- Max. 2 motorised tools per position

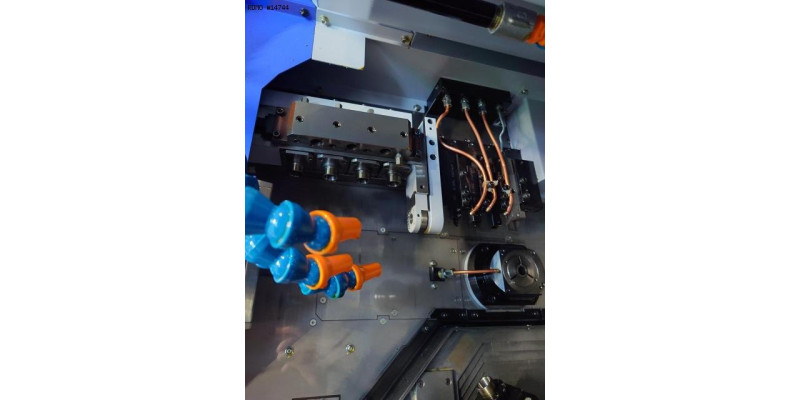

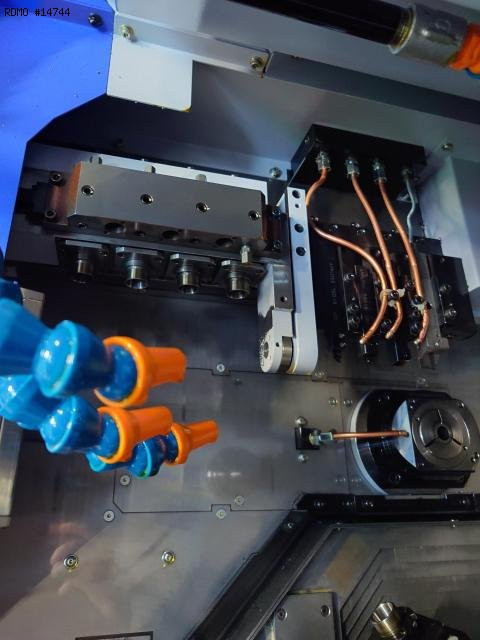

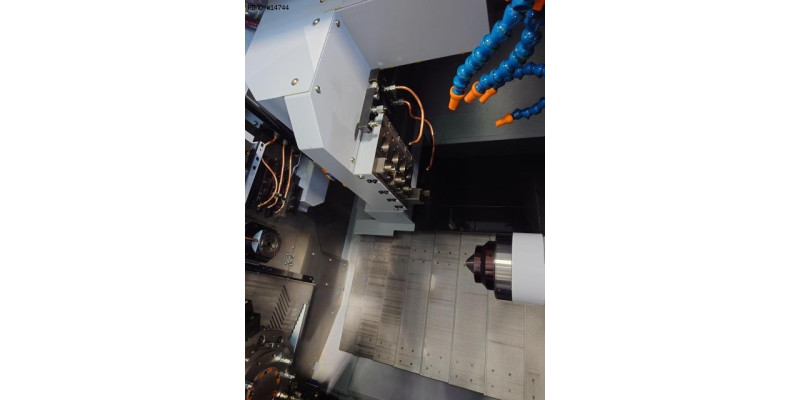

GUIDE BUSH HOLDER 1
- Number of positions : 12
- Number of motorized positions : 4 + 4
- Live tools speed : 6000 [rpm]
- Live tools power : 2.2 / 3 [kW]
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 5000 [rpm]
- Live tools power : 1.2 / 1.8 [kW]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 13.3 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2955 x 1430 [mm]
- Machine height : 2005 [mm]
- Machine weight : 5800 [kg]
MACHINE HOURS
- Number of working hours : 3994 [h]
Attrezzatura

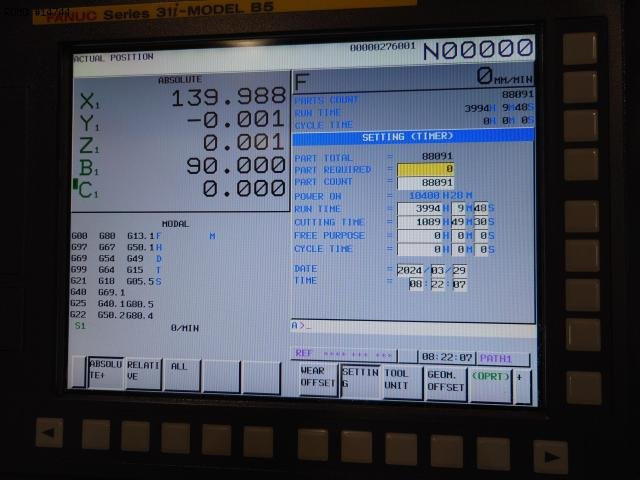

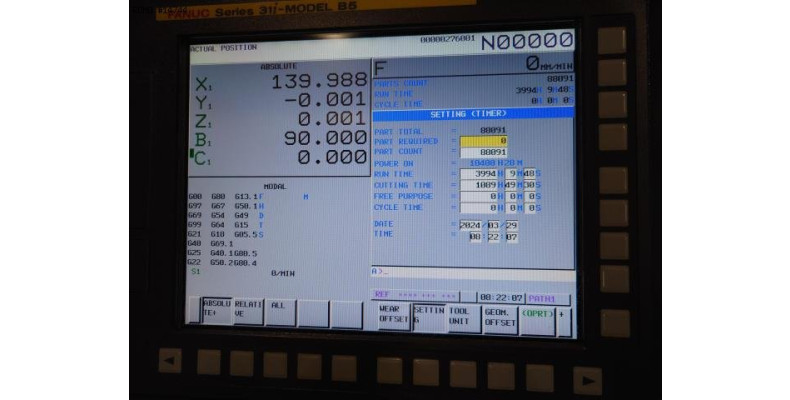

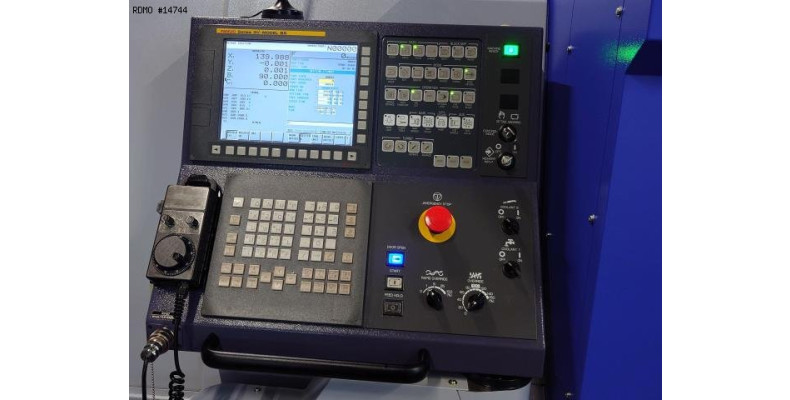

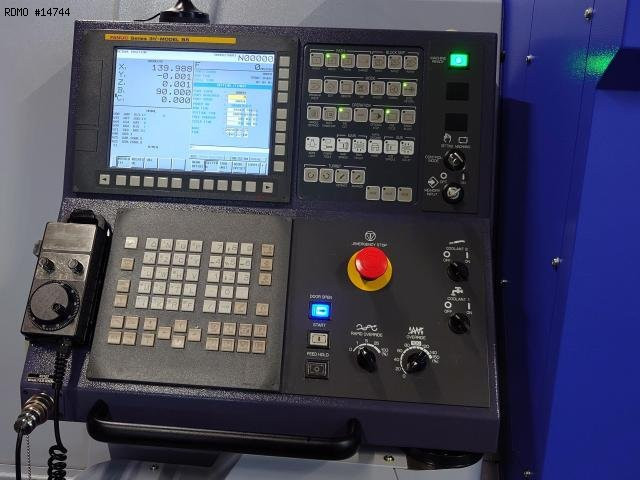

- CNC : Fanuc 31i Model B5
- 3 colors status lamp
- Axis B
- Rotating guide bush
- Parts catcher
- Parts conveying strip

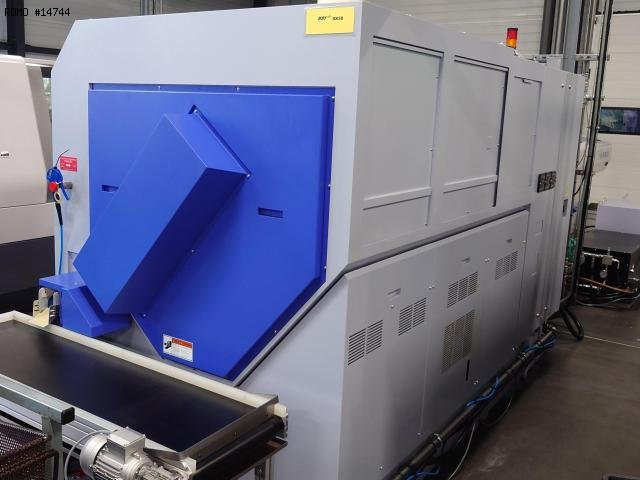

- Chips conveyor
- Coolant tank

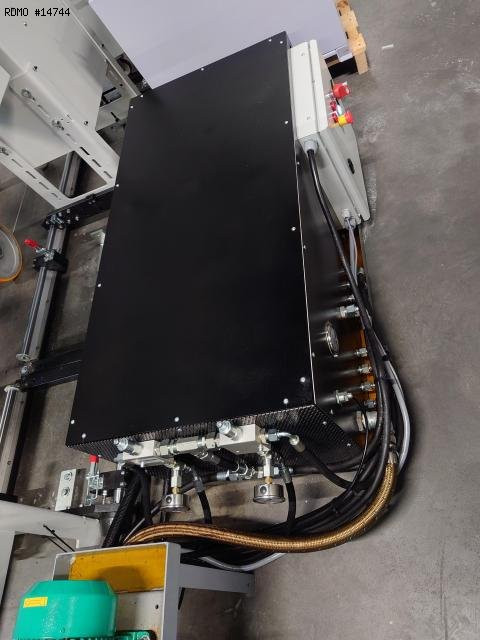

* with high-pressure pump

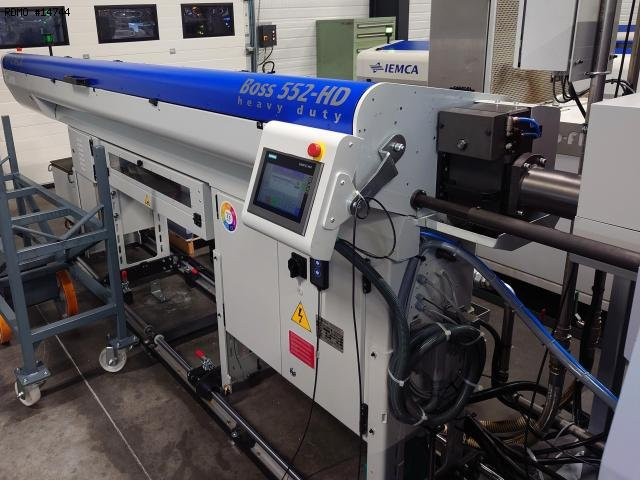

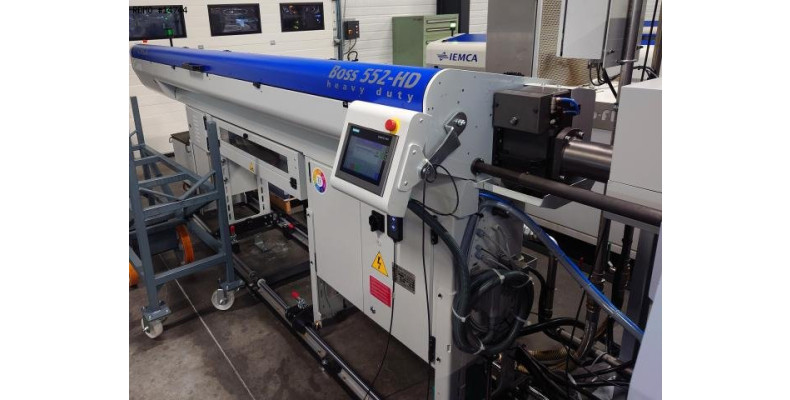

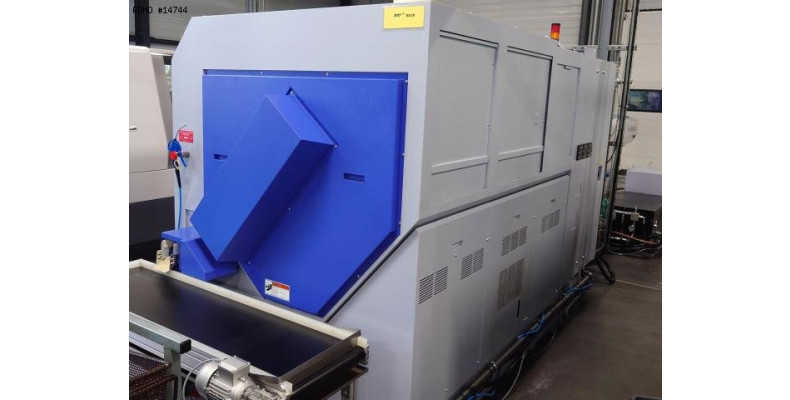

- Bar loader : IEMCA BOSS 552/32-HD
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

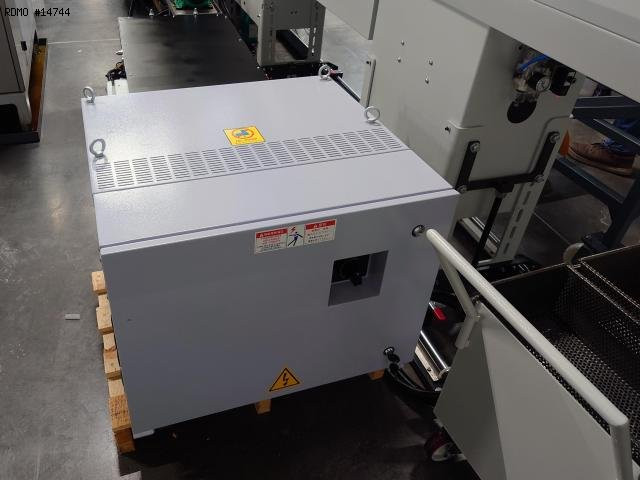

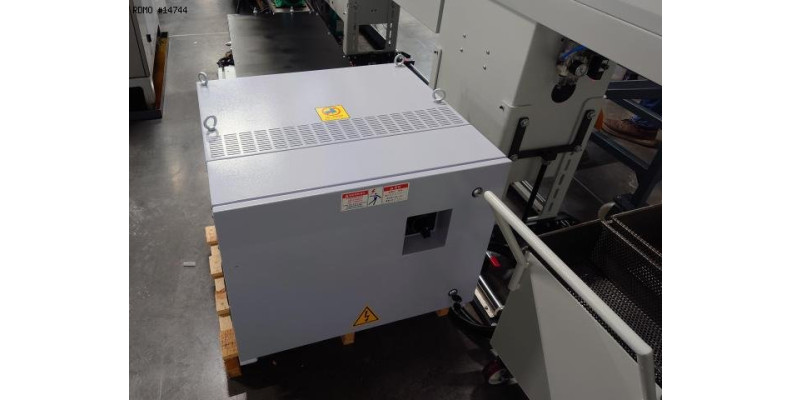

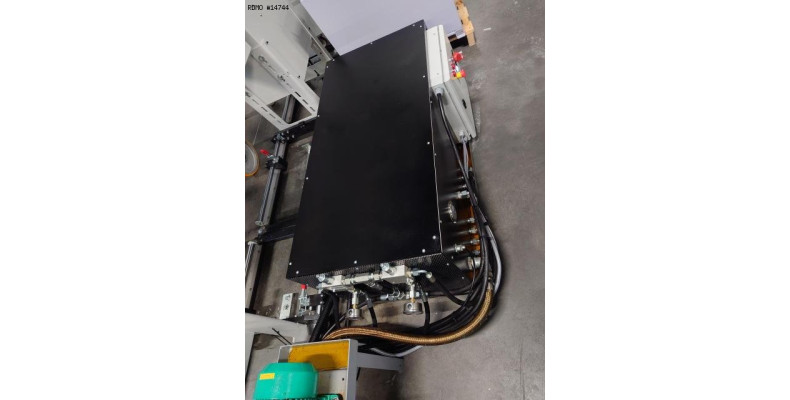

- Electric transformer
