Marca: STAR
Modello: SR-32J TYPE N
Anno: 2014
Nr Serie: 0670 (2705)
Marca: STAR
Modello: SR-32J TYPE N
Anno: 2014
Nr Serie: 0670 (2705)

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 310 [mm]
- Spindle speeds : 7.000 [rpm]
- Spindle power : 7,5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 7.000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0,001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 11
- Number of motorized positions : 5
- Live tools speed : 5.000 [rpm]
- Live tools power : 1,2 [kW]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 6,2 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.711 x 1.275 [mm]
- Machine height : 1.705 [mm]
- Machine weight : 3.100 [kg]
MACHINE HOURS
- Number of working hours : 10.488 [h]
Attrezzatura

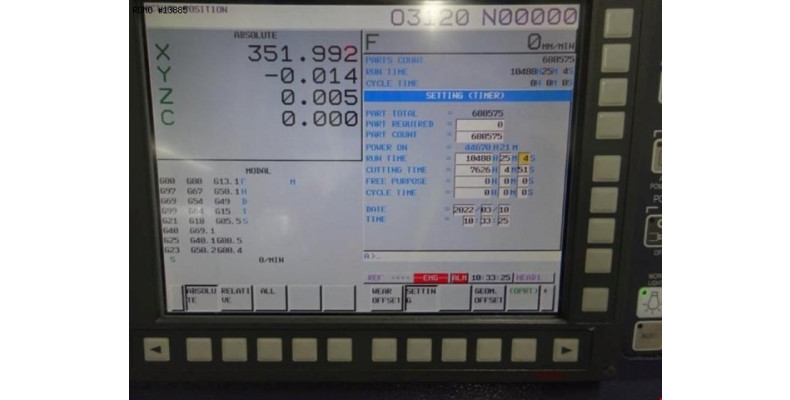

- CNC : Fanuc 32i-B
- 3 colors status lamp

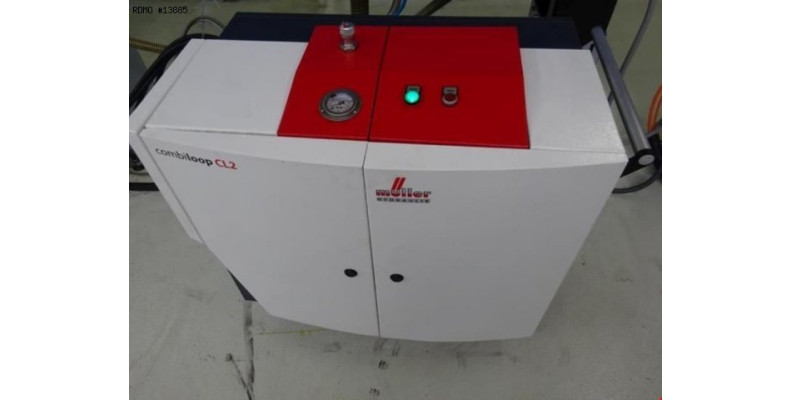

- Coolant tank : Müller Combiloop CL2 (2014)
* with high-pressure pump : 70 [bars]

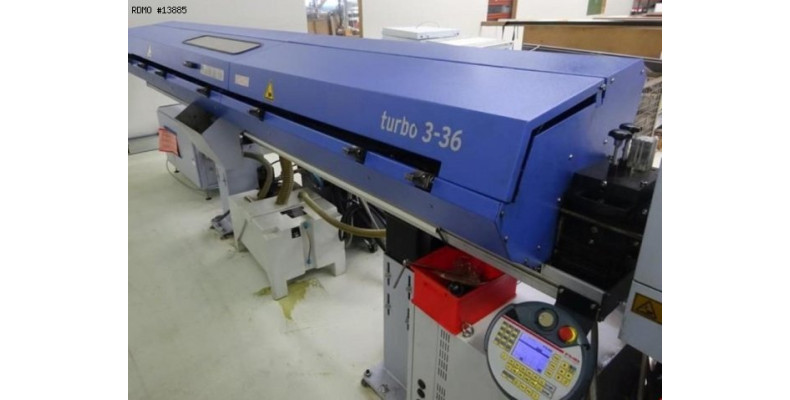

- Bar loader : FMB Turbo 3-36/3200/A (2014)
- Ejection of workpiece
- Parts chute
- Parts conveying strip
- Chips conveyor : MAYFRAN MT10
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
