Nomura NN-20J 8 assi

Tornitura Tornio a controllo numerico a fantina mobile

14028

Specifiche tecniche per il download

Marca: Nomura

Modello: NN-20J

Anno: 2010

Nr Serie: 155120906

14028

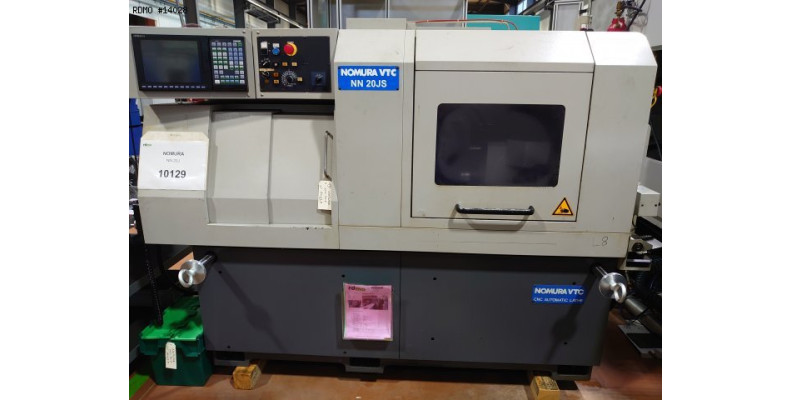

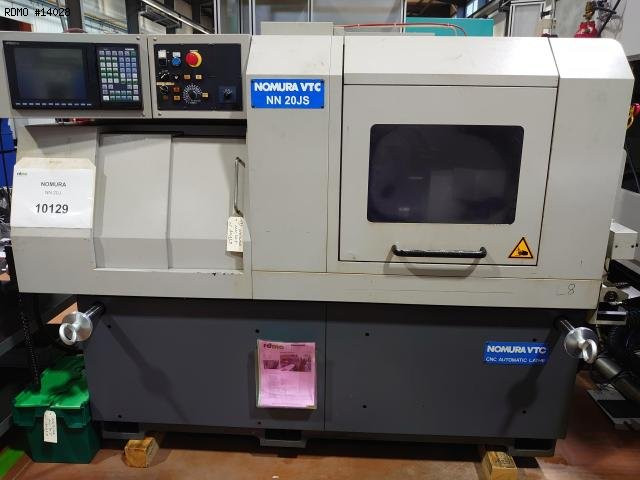

Nomura NN-20J 8 assi

Tornitura Tornio a controllo numerico a fantina mobile

Specifiche tecniche per il download

Marca: Nomura

Modello: NN-20J

Anno: 2010

Nr Serie: 155120906

Richieda un prezzo

Caratteristiche

- Number of axes : 8
- Number of spindles : 2

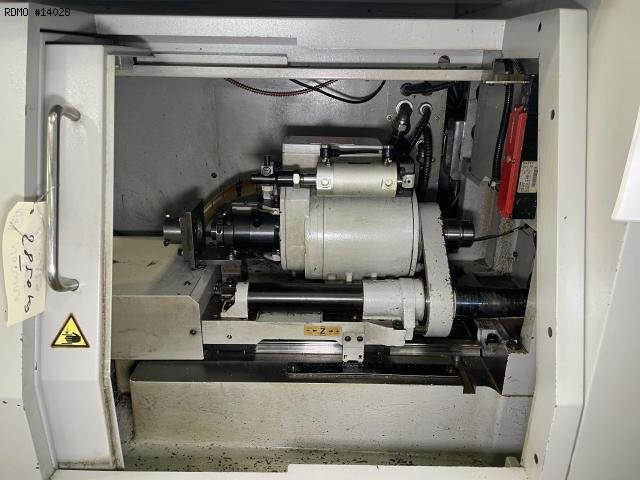

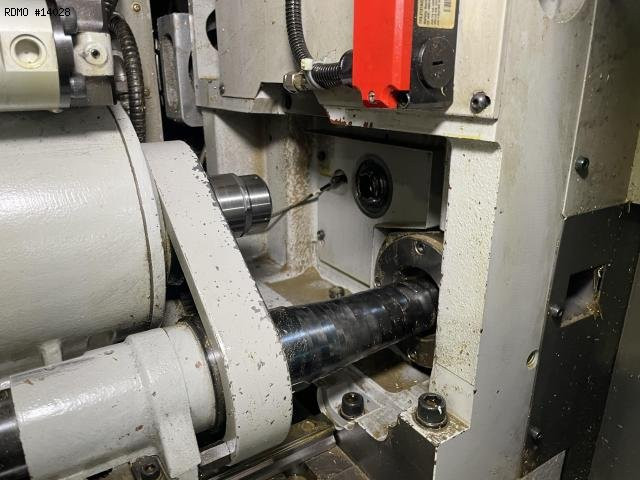

MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 2.2 [kW]

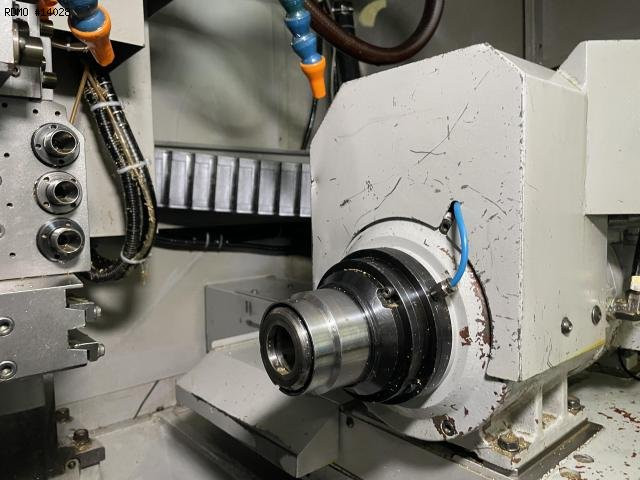

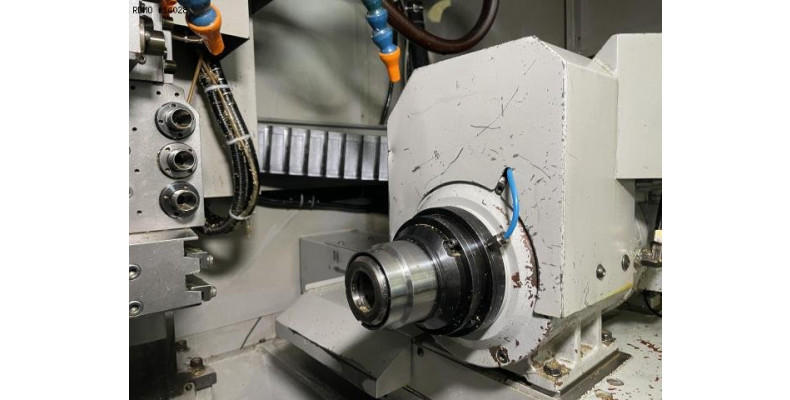

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 2.2 [kW]
- Number of guide bush holders : 2

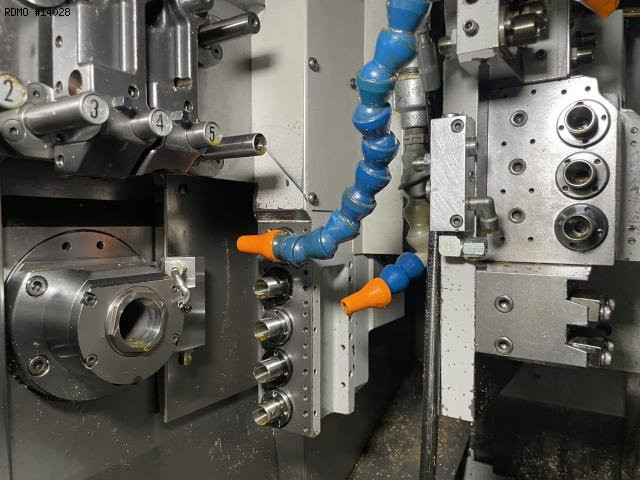

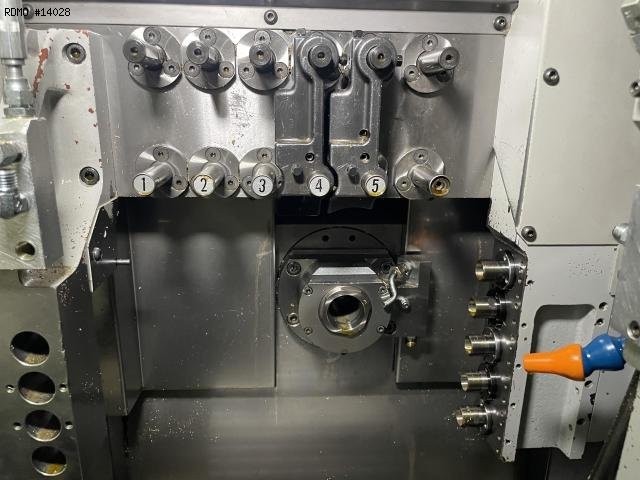

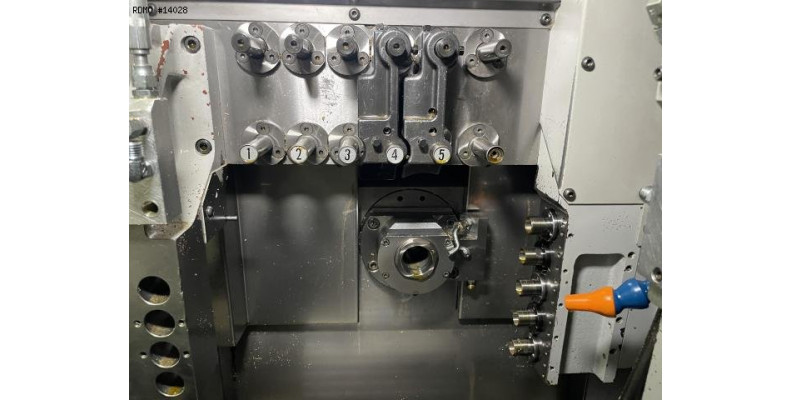

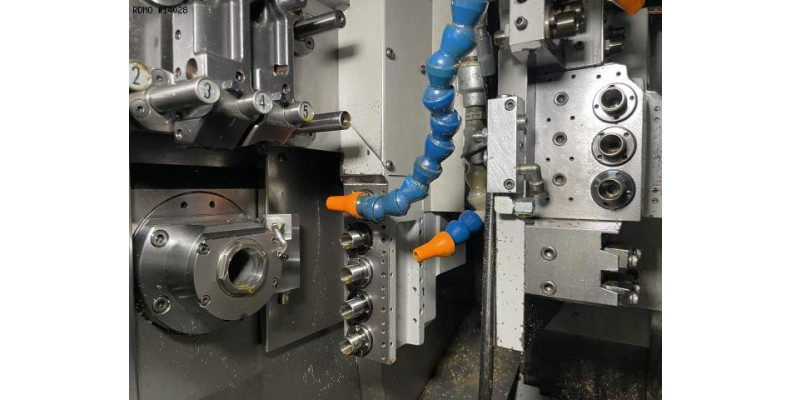

GUIDE BUSH HOLDER 1
- Number of positions : 11
- Number of motorized positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 6
POWER SUPPLY
- Total installed power : 14 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.270 x 1.135 [mm]
- Machine height : 1.730 [mm]
- Machine weight : 2.700 [kg]
MACHINE HOURS
- Number of hours under power : 56127 [h]
- Number of working hours : 18447 [h]

Attrezzatura

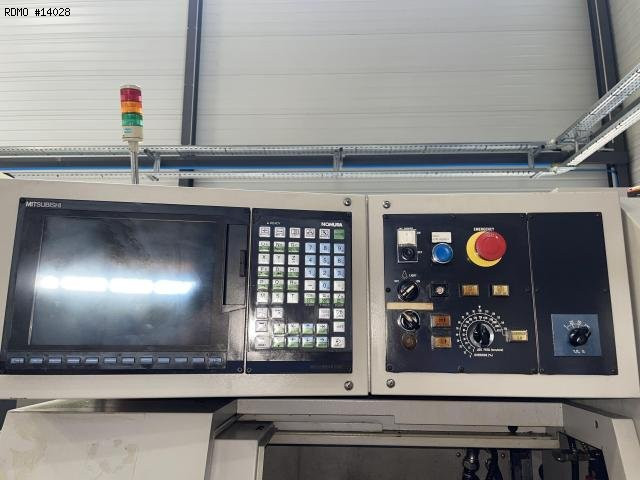

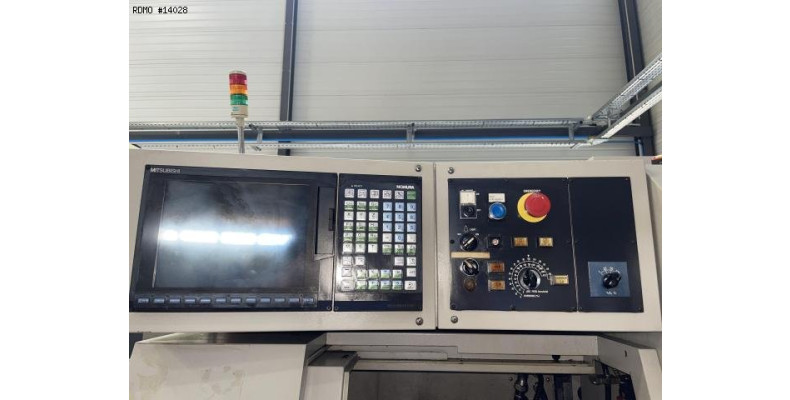

- CNC : Mitsubishi M70
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

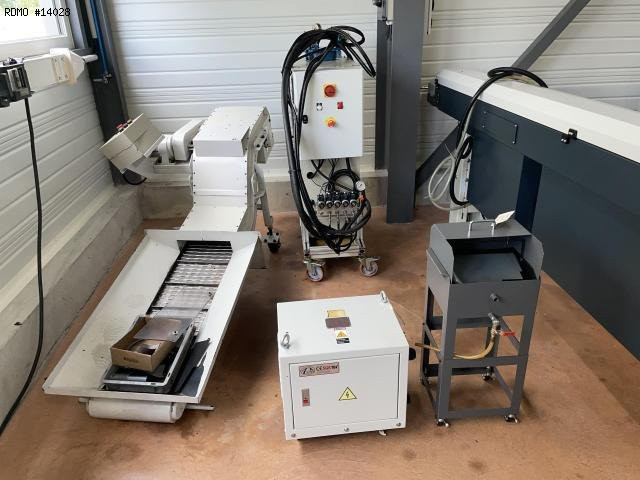

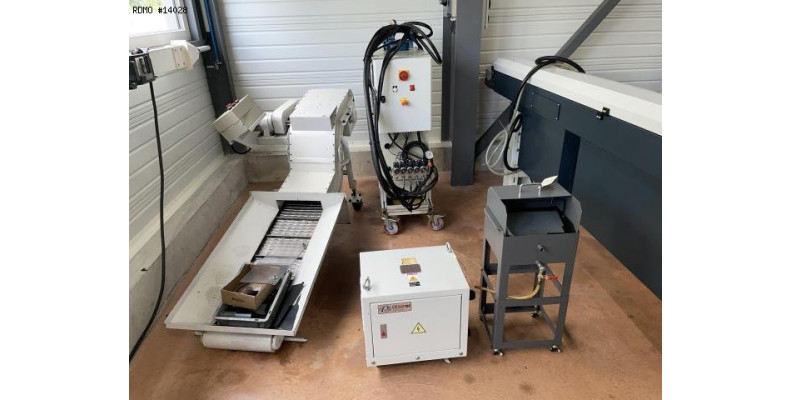

- Chips conveyor

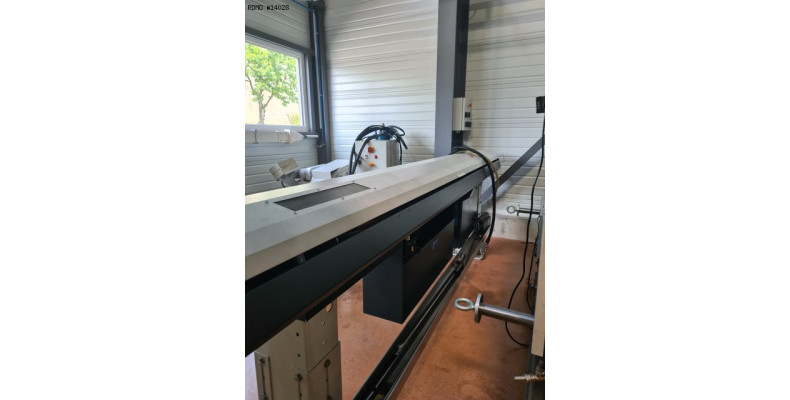

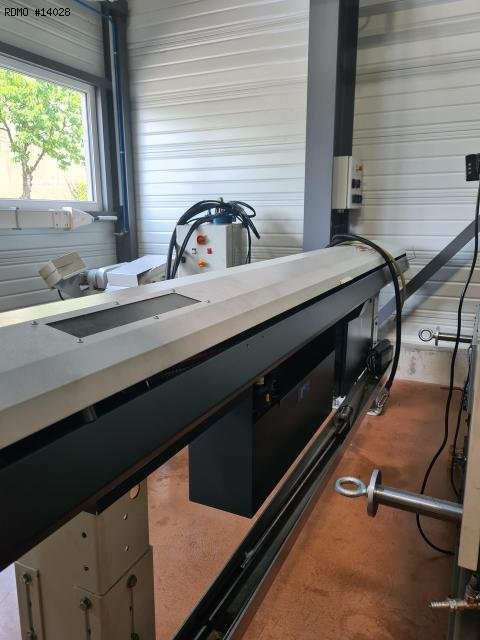

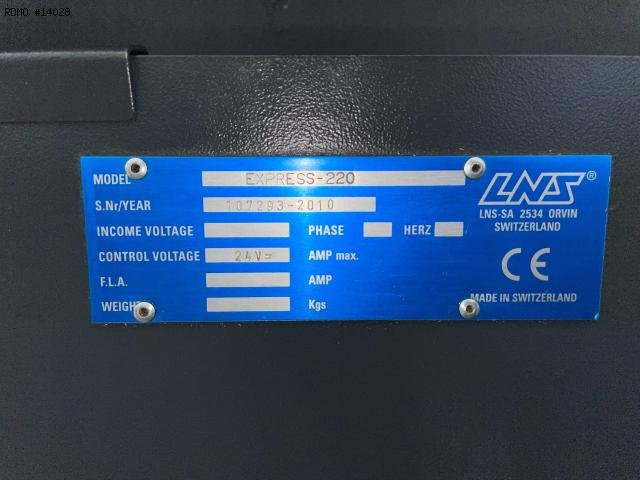

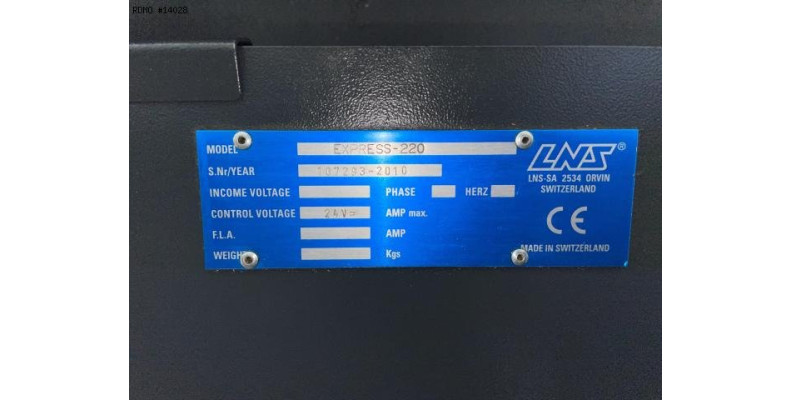

- Bar loader : LNS EXPRESS 220

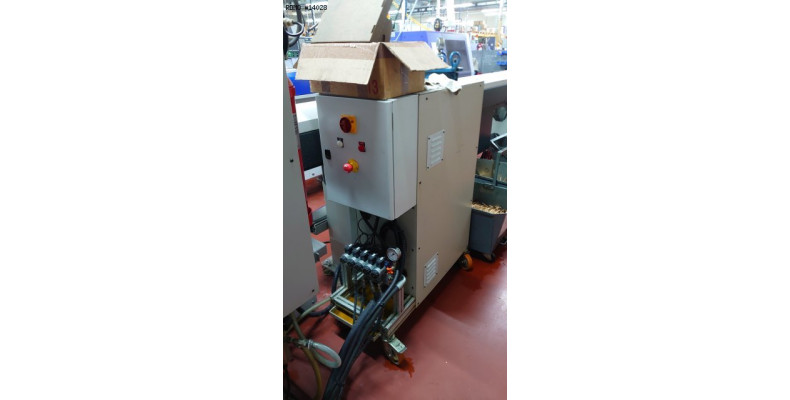

- Coolant tank

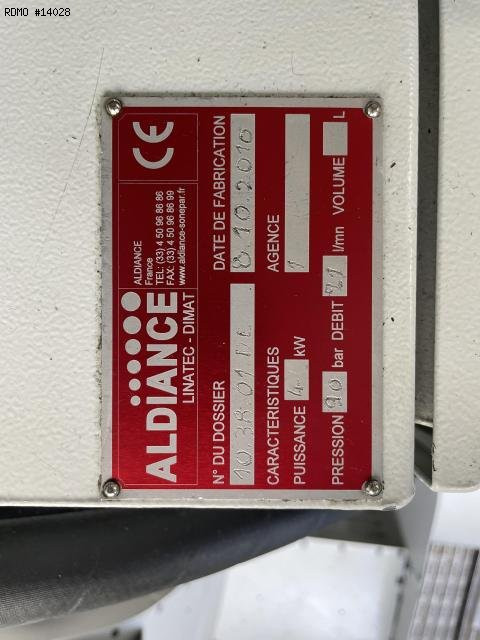

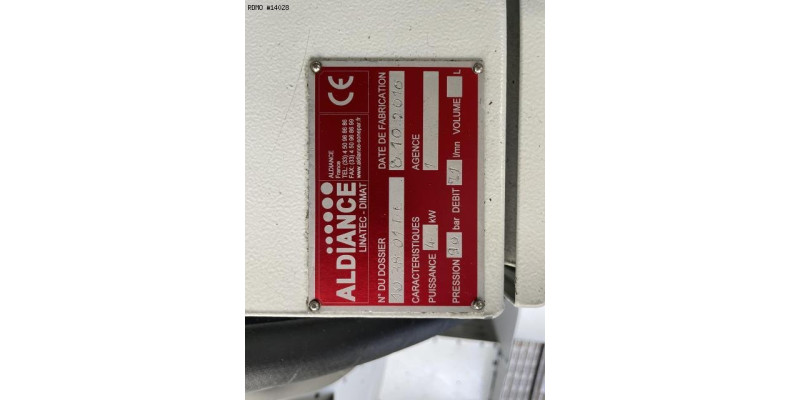

* with high-pressure pump : 90 [bars]

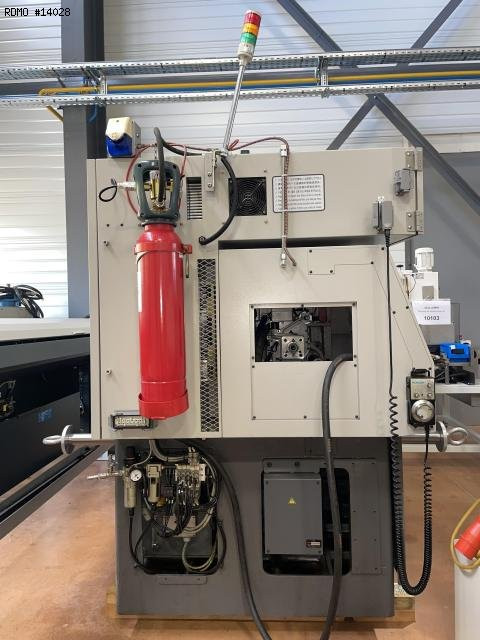

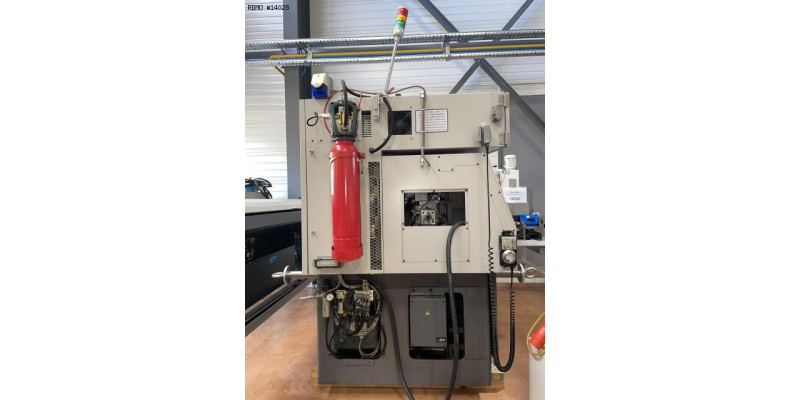

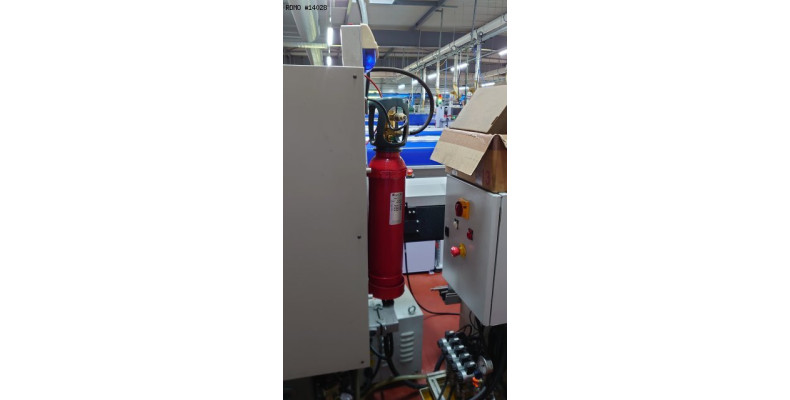

- Fire extinguisher
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
