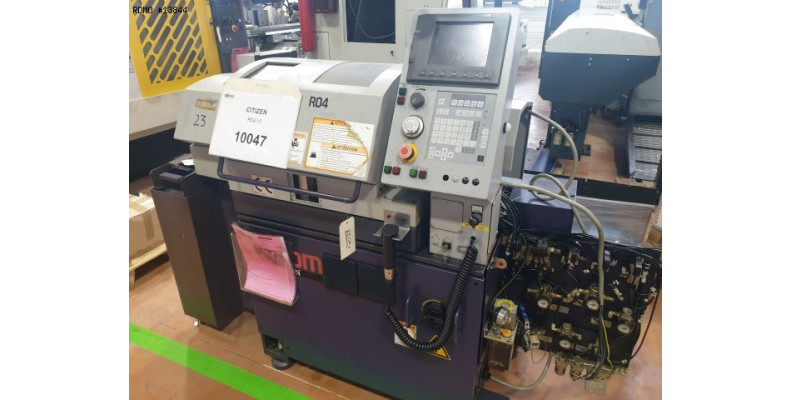

CITIZEN R04 VI 6 assi

- Number of axes : 6
- Number of spindles : 2

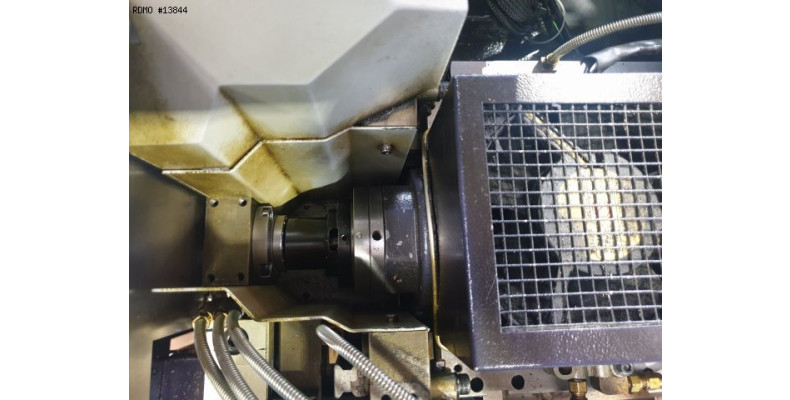

MAIN SPINDLE
- Max. bar diameter : 4 [mm]
- Max. machining length : 40 [mm]
- Travel : 40 [mm]
- Spindle speeds : 20000 [rpm]
- Spindle power : 1.1 [kW]
- C axis indexing precision : .0001 [°]

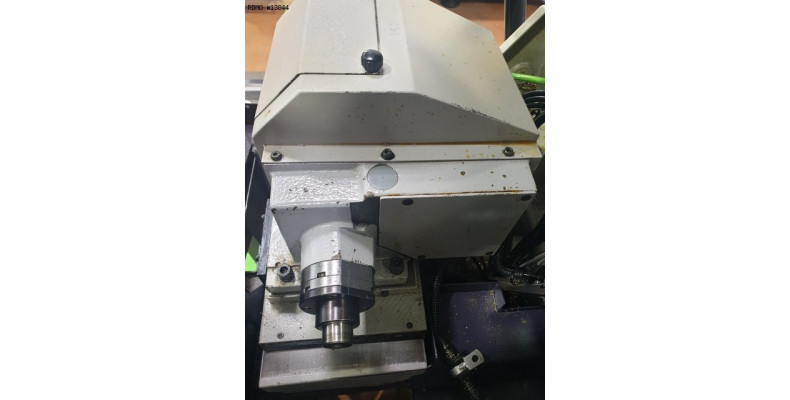

COUNTER-SPINDLE
- Max. bar diameter : 4 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 0.5 [kW]
- C axis indexing precision : 1 [°]

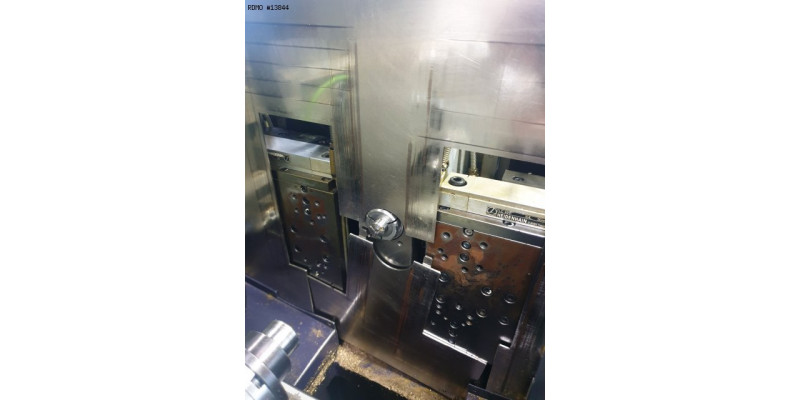

GUIDE BUSH HOLDER 1
- Number of positions : 5

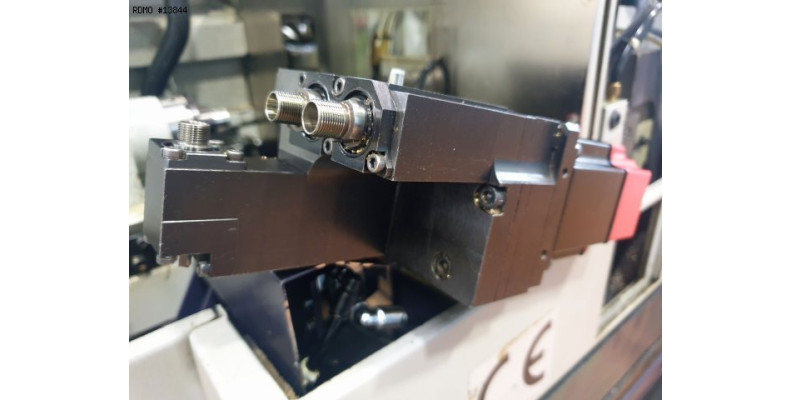

GUIDE BUSH HOLDER 2
- Number of positions : 4
- Number of motorized positions : 2
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 3
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 4 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1265/560 [mm]
- Machine height : 1450 [mm]
- Machine weight : 950 [kg]
MACHINE HOURS
- Number of working hours : 31256 [h]

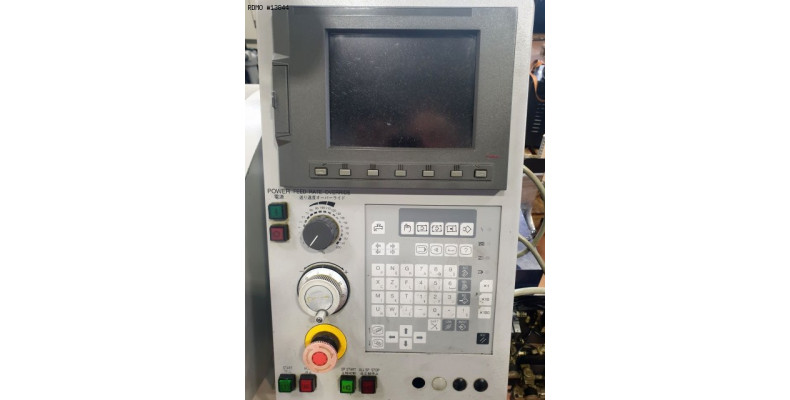

- CNC : Fanuc 18iTB
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank
