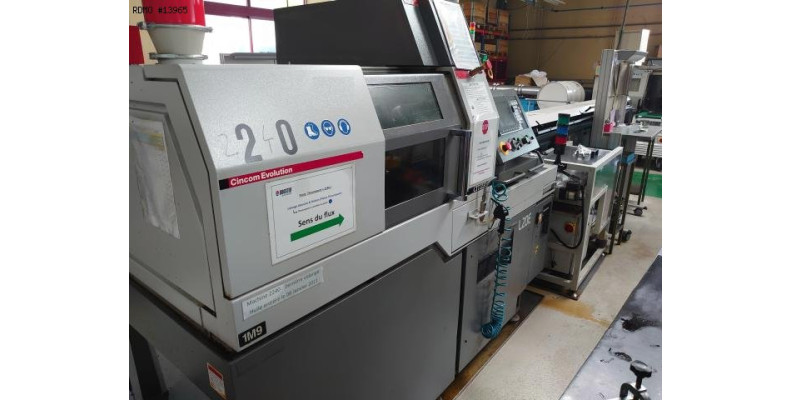

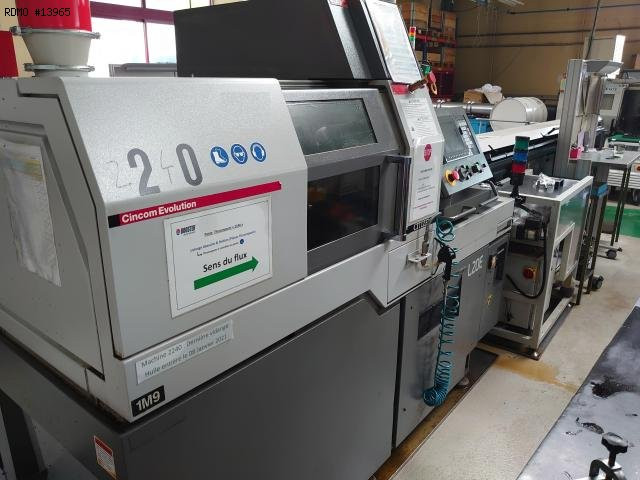

Marca: CITIZEN
Modello: L20E IX
Anno: 2012
Nr Serie: QE5271
Marca: CITIZEN
Modello: L20E IX
Anno: 2012
Nr Serie: QE5271

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 7
- Number of spindles : 2

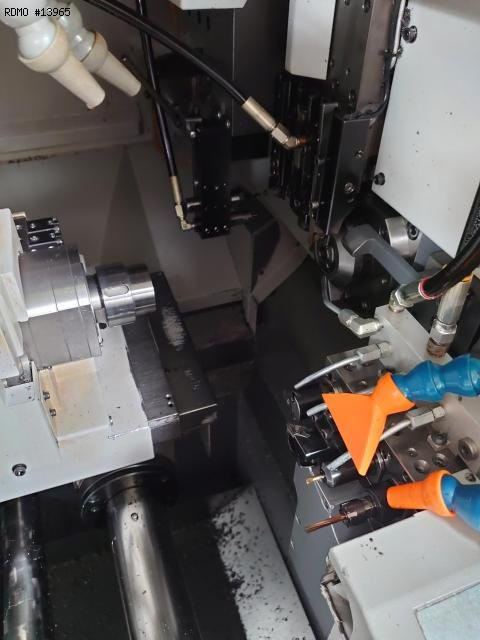

MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 1.5 [kW]
- C axis indexing precision : 0.001 [°]

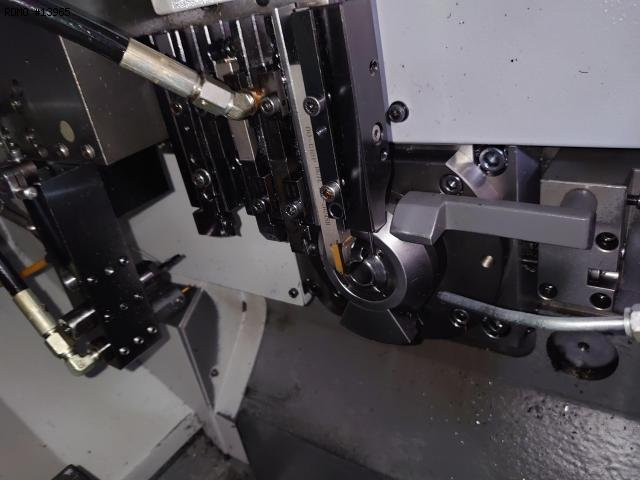

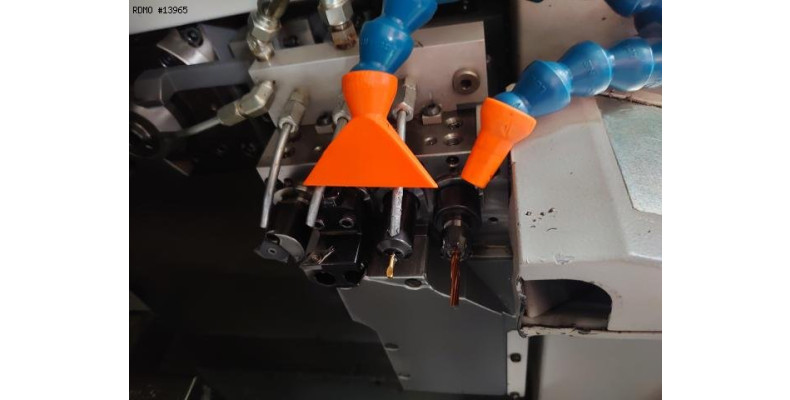

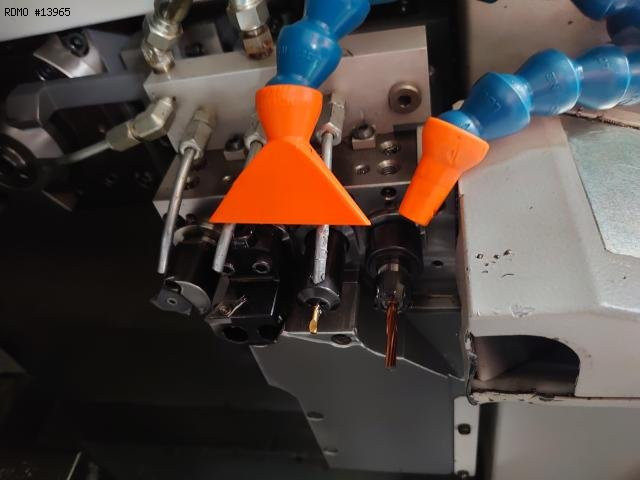

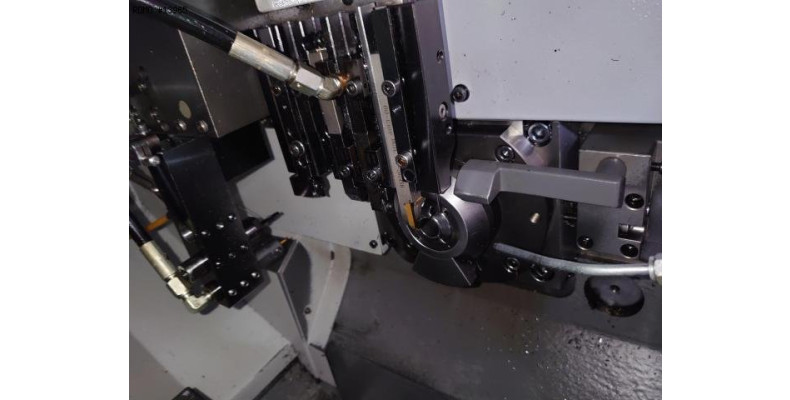

GUIDE BUSH HOLDER 1
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 5000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2.110 x 1.085 [mm]
- Machine height : 1.832 [mm]
- Machine weight : 2.200 [kg]
MACHINE HOURS
- Number of working hours : 44.325 [h]
Attrezzatura

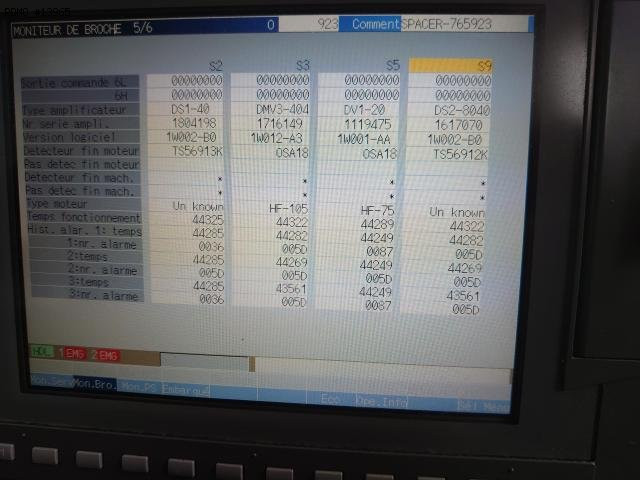

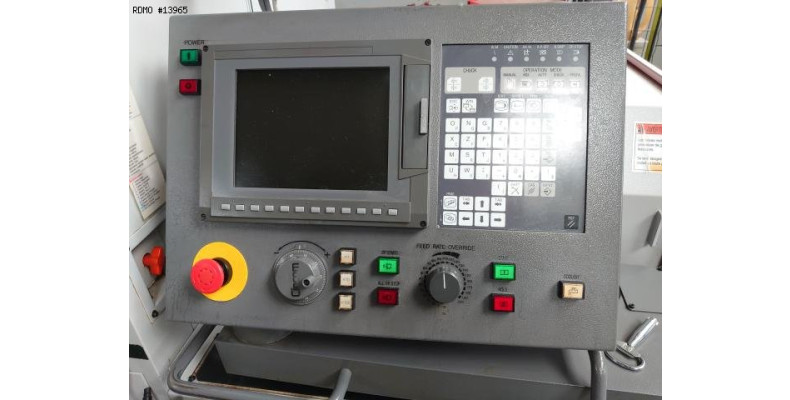

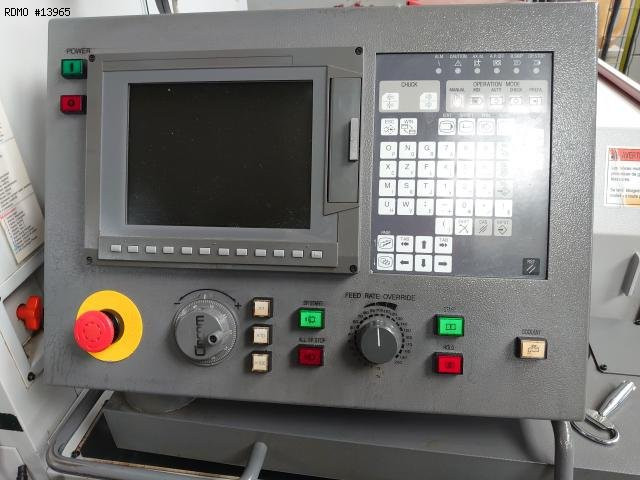

- CNC : Meldas
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

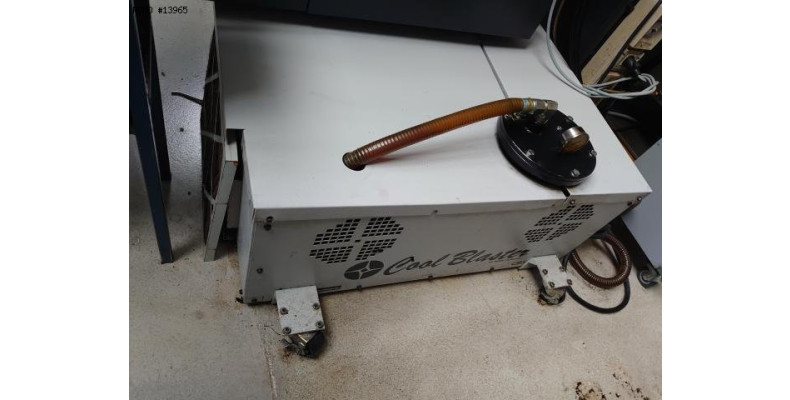

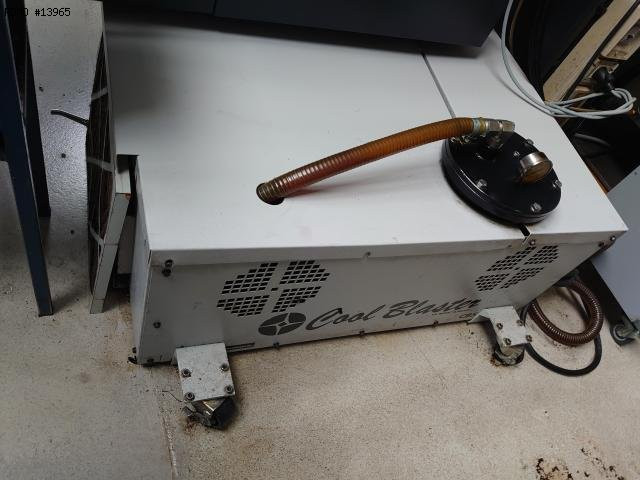

- Coolant tank : CoolBlaster
* with high-pressure pump : 138 [bars]

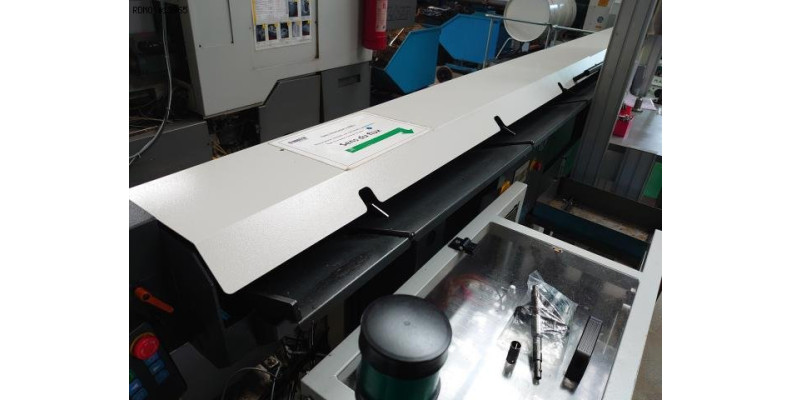

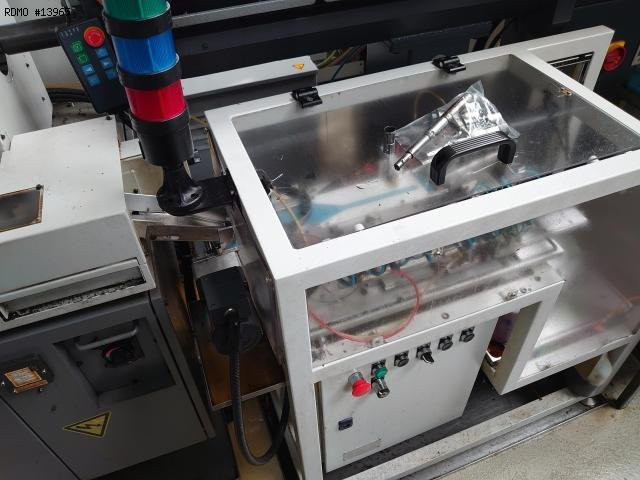

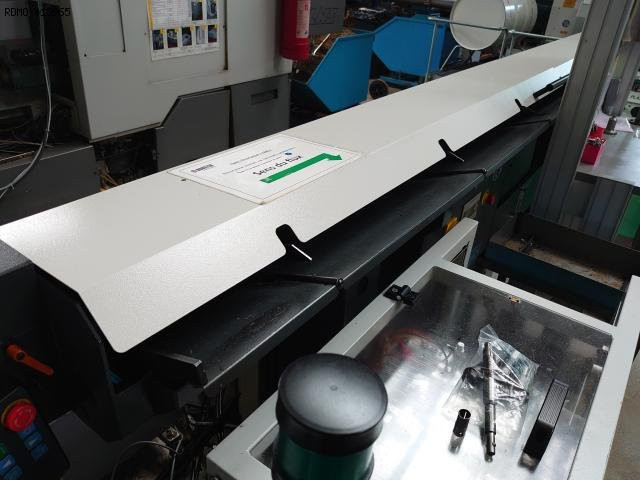

- Bar loader : LNS Alpha ST320

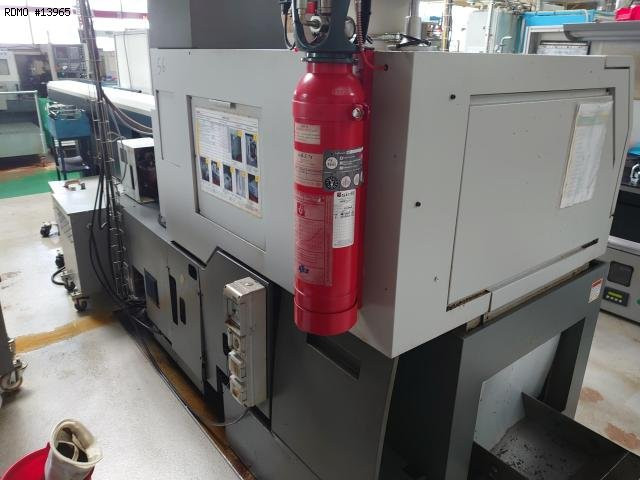

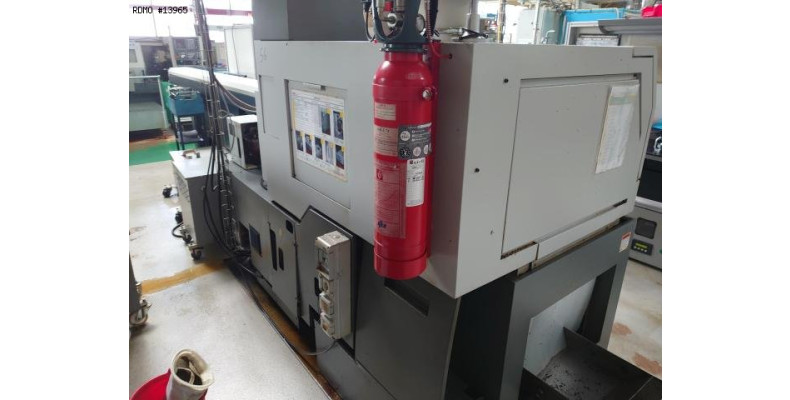

- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

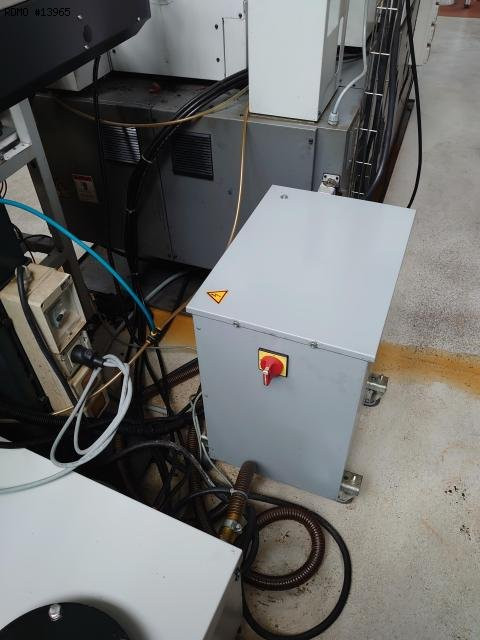

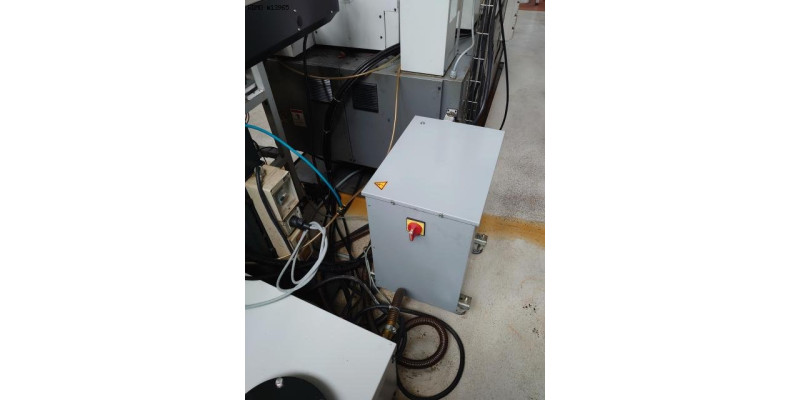

- Electric transformer
