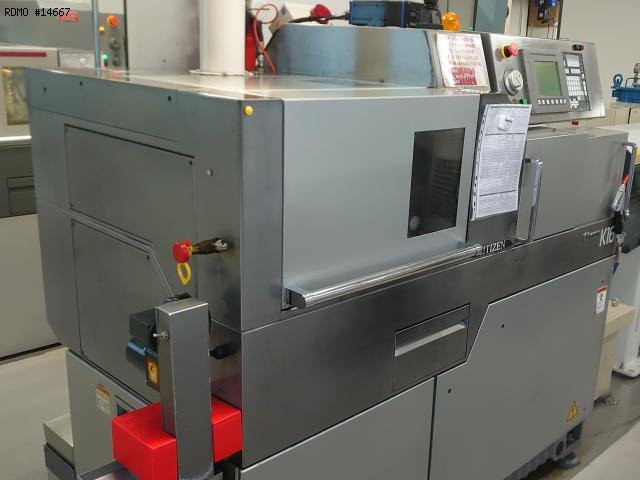

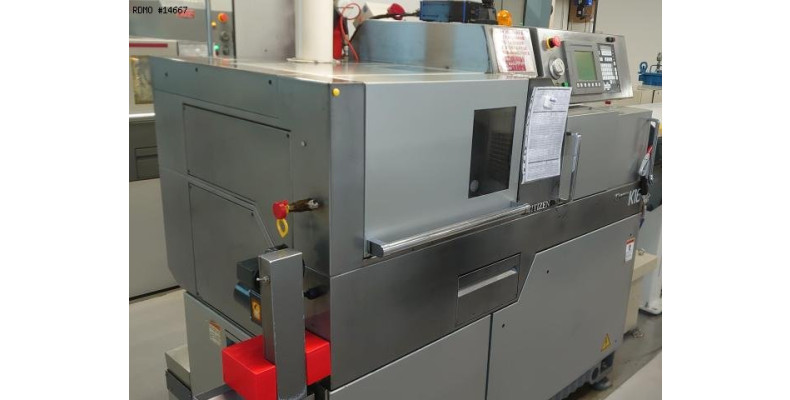

Marca: CITIZEN
Modello: K16 VIIP
Anno: 2007
Nr Serie: K00464
Marca: CITIZEN
Modello: K16 VIIP
Anno: 2007
Nr Serie: K00464

Caratteristiche & Attrezzatura

Caratteristiche
- Number of axes : 7
- Number of spindles : 2

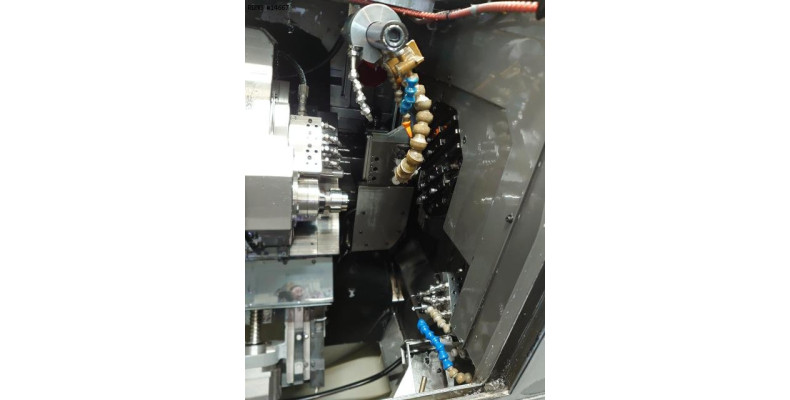

MAIN SPINDLE
- Max. bar diameter : 16 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 15000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 16 [mm]
- Z stroke : 80 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 1.1 [kW]
- C axis indexing precision : 0.001 [°]

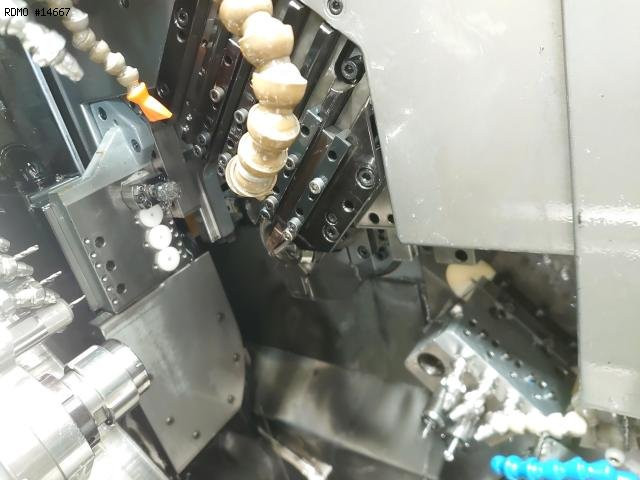

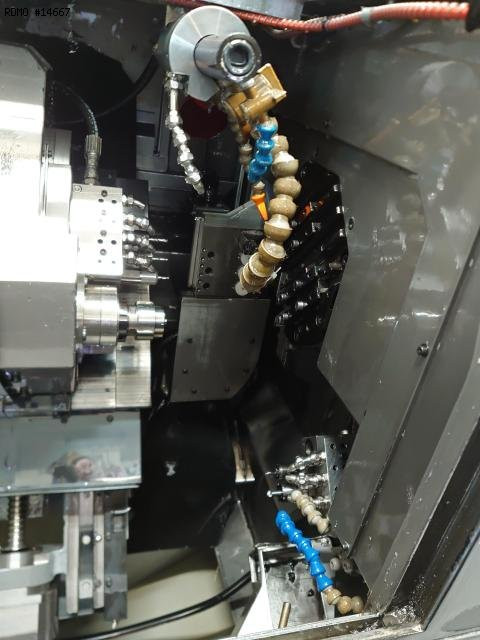

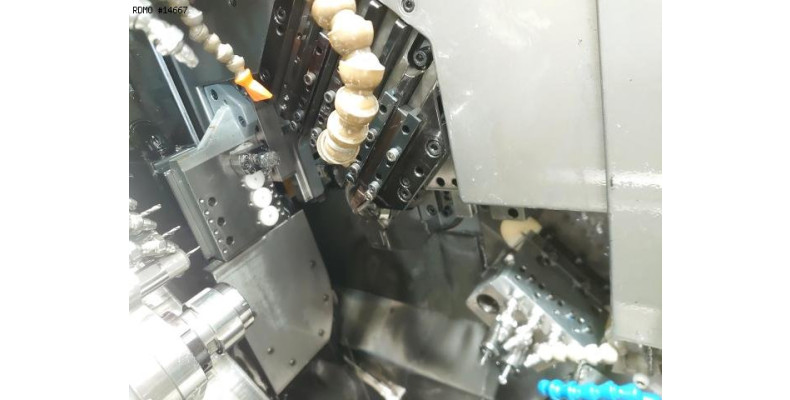

GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 8 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1850 X 1610 [mm]
- Machine height : 1050 [mm]
- Machine weight : 2050 [kg]
MACHINE HOURS
- Number of working hours : 26001 [h]
Attrezzatura

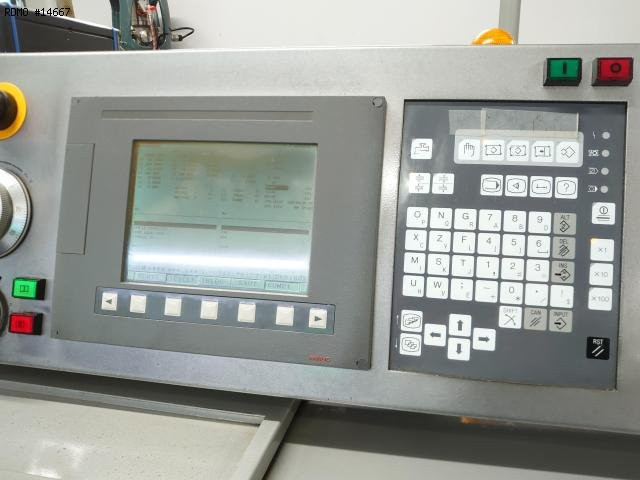

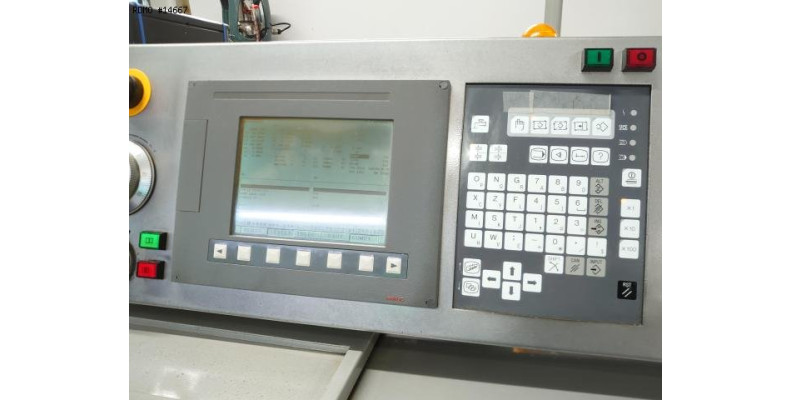

- CNC : Fanuc 31i
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Coolant tank

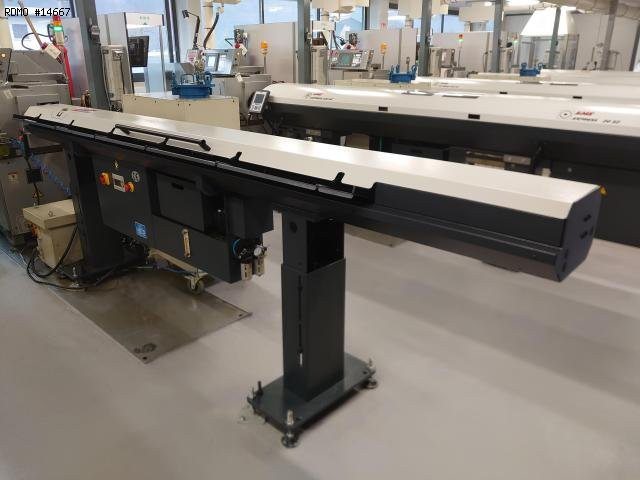

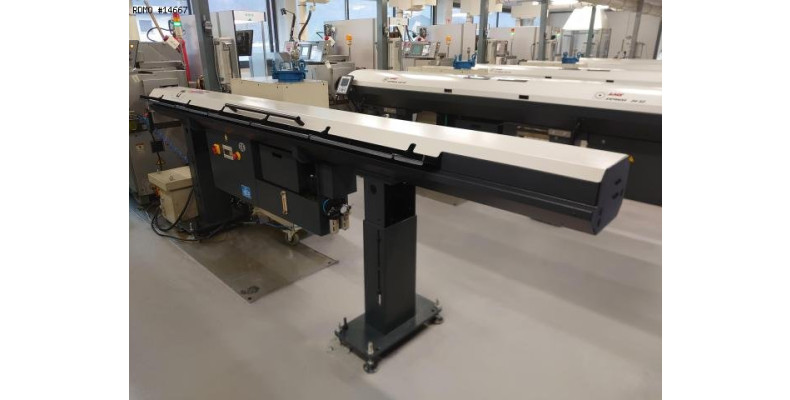

- Bar loader : LNS ALPHA ST320
- Electric transformer
