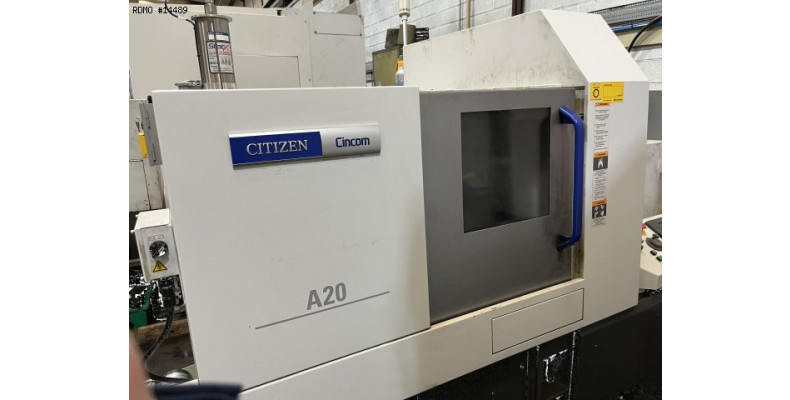

Citizen A20-3F7 7 assi

- Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 2.2/3.7 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8.000 [rpm] - Spindle power : 1.1/1.5 [kW] - C axis indexing precision : 0,001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 9 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7.1 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2120 X 1185 [mm] - Machine height : 1820 [mm] - Machine weight : 2200 [kg]

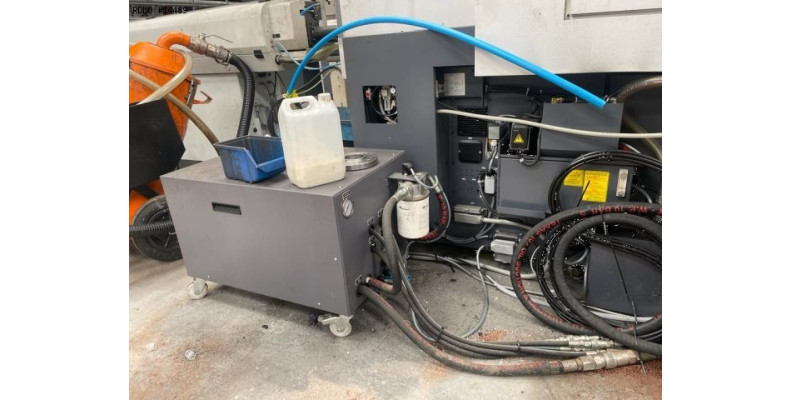

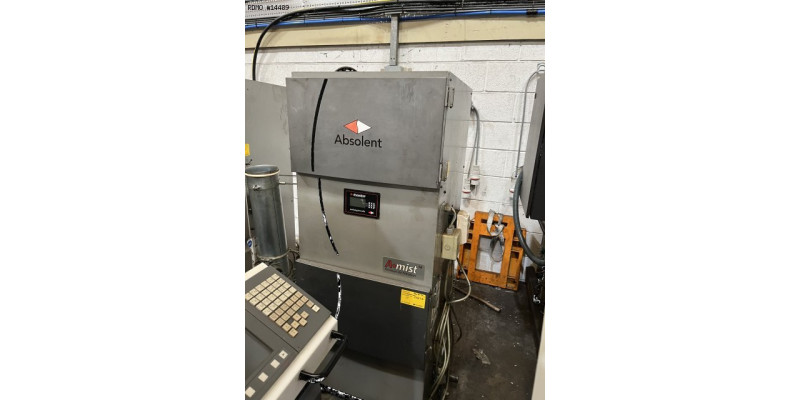

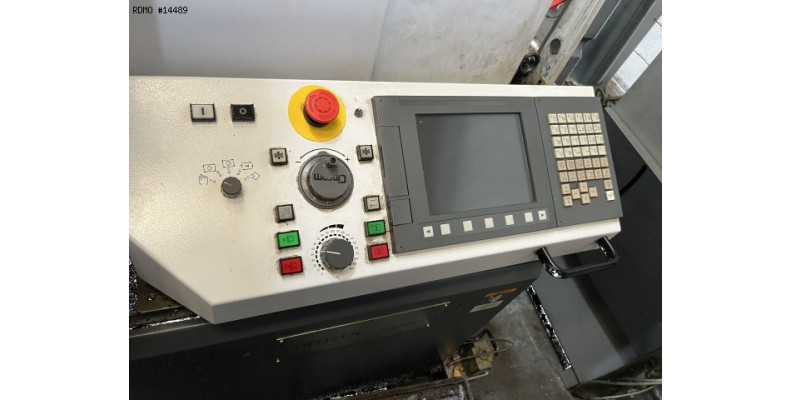

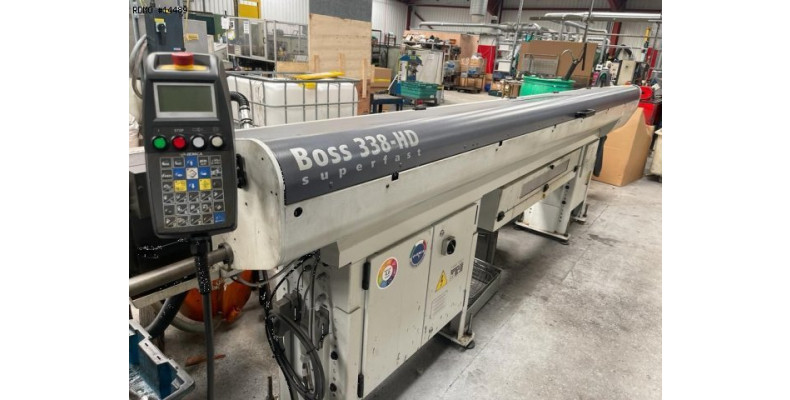

- CNC : Fanuc FS32i-Model B - 3 colors status lamp - Rotating guide bush - Parts catcher - Parts conveying strip - Chips conveyor : LNS - Coolant tank * with high-pressure pump : 20 [bars] - Bar loader : Iemca Boss 338 HD - Oil mist extractor : Absolent - Electric transformer : 15 [kVA] - Ejection of workpiece
