Caratteristiche & Attrezzatura

Caratteristiche

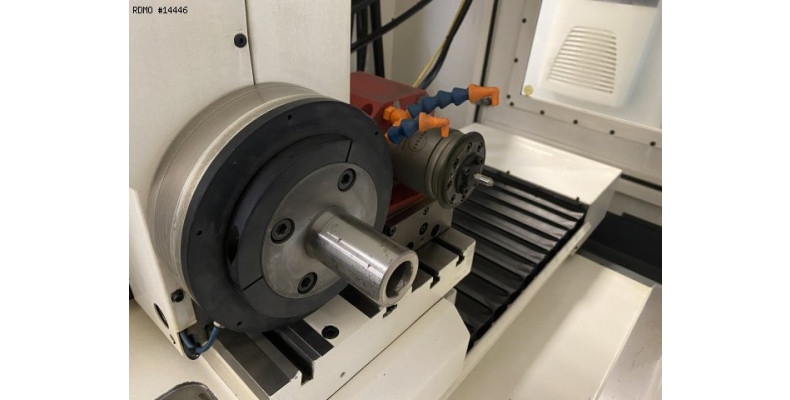

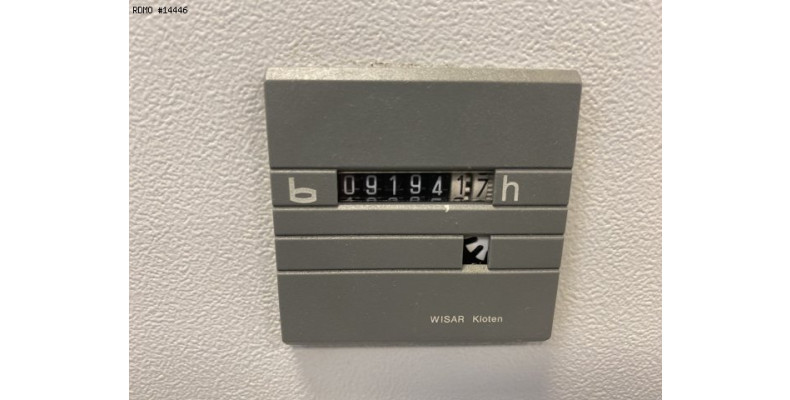

- Grinding length : 120 [mm] - Center height : 102 [mm] - Strokes (X/Z) : 450 x 200 [mm] - Max speeds (X/Z) : 12 [m/min] SPINDLE SUPPORT - Spindle number : 2 WORKPIECE HEADSTOCK - Max. workhead speeds : 1500 [rpm] - Spindle clearance : 28.6 [mm] - Power : 1.4 [kW] - Mounting tape r: A2.4/CM5 - Torque : 150 [Nm] - Manual B axis angle : +/- 2 [°] - C axis : 0.0001 [°] POWER SUPPLY - Installed power: 34 [kVA] DIMENSIONS - Floor dimensions : 3600 x 2800 [mm] - Machine weight : 2600 [kg] MACHINE HOURS - Hours powered : 9194 [h]
Attrezzatura

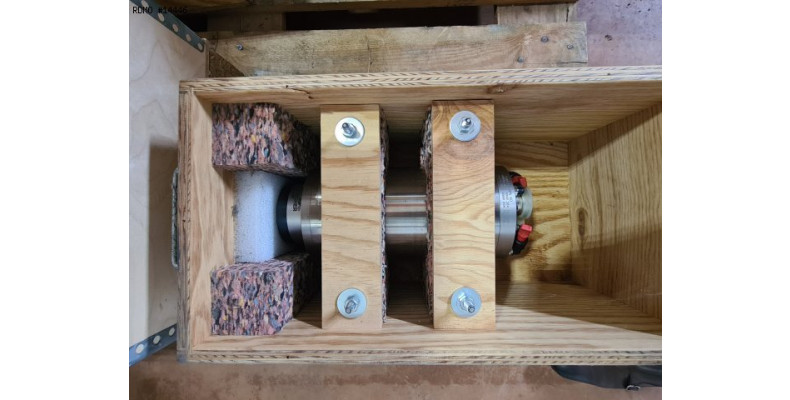

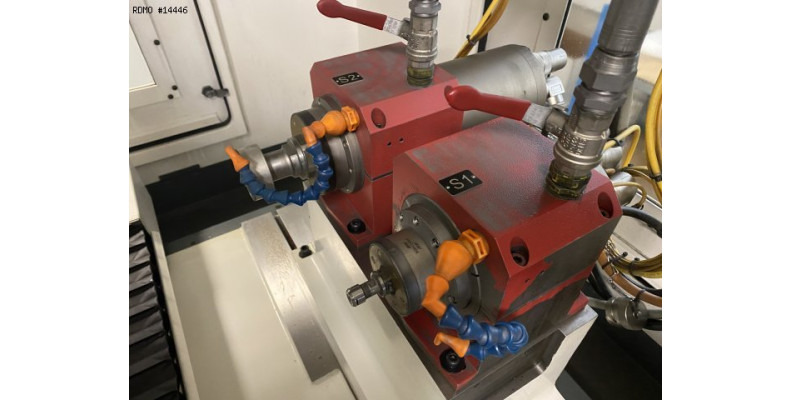

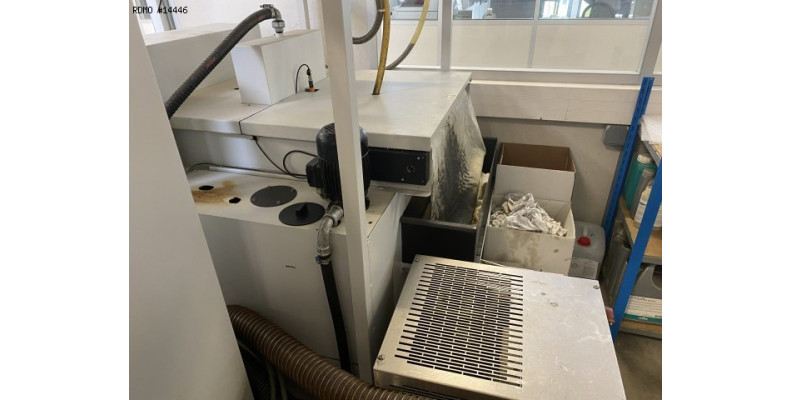

- Fanuc Oi-TD control *DITTEL - Coolant tank * with paper filtration - 3 spindles available : 90,000 - 60,000 - 15,000 [rpm] - Spindle centre coolant - Cooling unit for spindle cooling - Dressing turbine
Specifiche tecniche per il download

Descrizione
