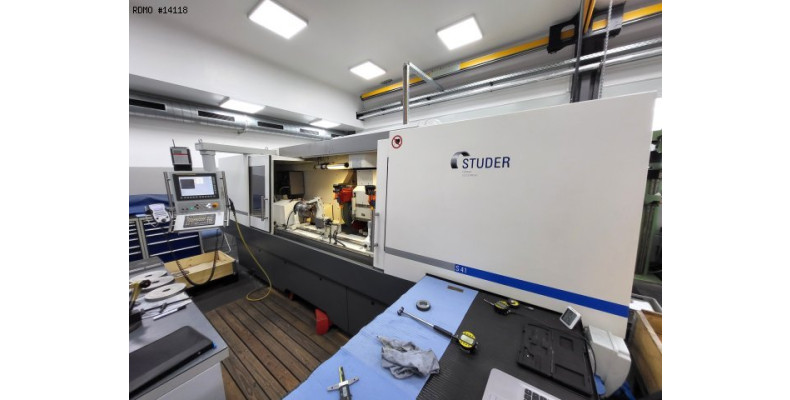

Marca: Studer
Modello: S41 CNC
Anno: 2012
Nr Serie: 1009-0048
Marca: Studer
Modello: S41 CNC
Anno: 2012
Nr Serie: 1009-0048

Caratteristiche & Attrezzatura

Caratteristiche
CAPACITY
- distance between centers : 1600 [mm]
- center height : 225 [mm]
- weight between centers : 250 [kg]
- strokes (Z/X) : 1.750 x 350 [mm]
- feeds max. (Z/X) : 20.000 [mm/min]

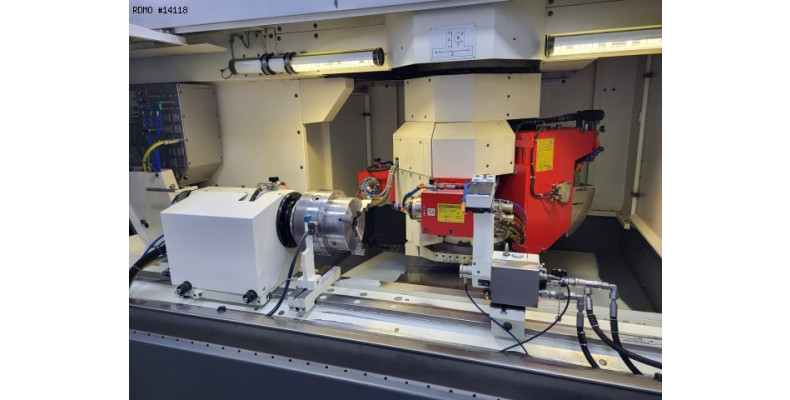

WHEELHEAD
- type : 2 OD wheels (left/right), 2 ID spindles
- stroke B-axis : -45 / +225 [°]
- Indexing precision B-axis : 0,001 [°]
- wheel dimensions (Ø x width x bore) T1 : 500 x 80 x 203 [mm]
- wheel dimensions (Ø x width x bore) T2 : 500 x 80 x 203 [mm]
- motor power : 15 [kW]
- wheel Speeds : 750 - 4.500 [rpm]
WORKHEAD
- type : direct drive
- type of cone: ISO 50
- speeds : 1 - 1.500 [rpm]
- power : 10 [kW]
TAILSTOCK
- type of cone: MT4
- quill stroke : 80 [mm]
DIMENSIONS
- floor space : 5.200 x 3.800 [mm]
- height : 2.107 [mm]
- weight : 10.200 [kg]
ELECTRICS
- voltage : 400 [V]
- frequence : 50 [Hz]
- installed power : 30 [kVA]

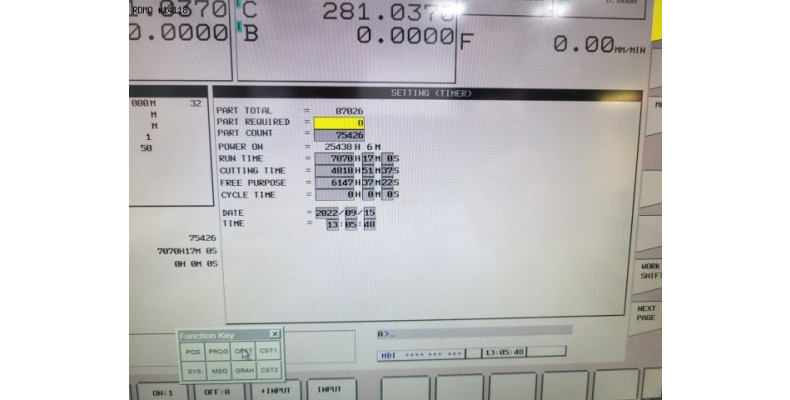

HOURS
- under power : 25.438 [h]
- running : 4.818 [h]
Attrezzatura
- CNC FANUC 31i-A with 15' flat touchscreen
- interfaces : RJ45, USB
- software options : Release F, Program Check, Quick Set, Touch Dressing, Studer Technology, Studer Dress

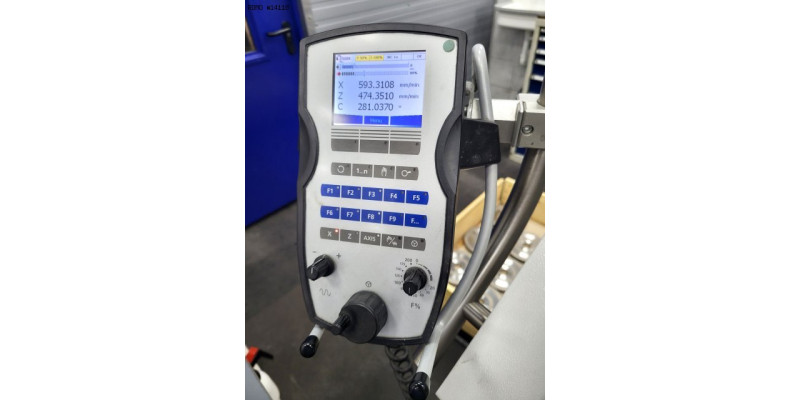

- electronic handwheel STUDER PCU-Terminal II
- linear motors upon X/Z
- linear scales on axis X/Z, precision : 0,00001 [mm]
- autocalibration device with lenght probe near T1 : MOVOMATIC C25
- standard C-axis with brake and encoder : 0,0001 [°]
- 2 electrospindles FISCHER MFM 1224/42 : 24.000 - 42.000 [rpm]

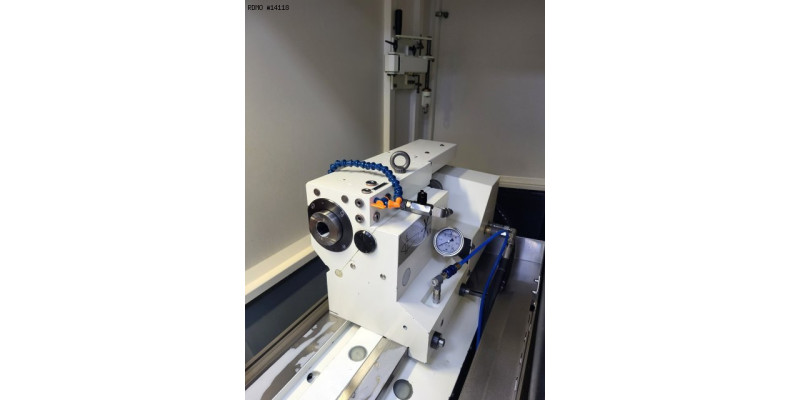

- tailstock :
* with adjustable hydraulic clamping and pedal
* with fine adjustment of concentricity
* with air cushion lift-off
* with parking position, out of the table
- Electronic contact detection device DITTEL AE6000 upon: T1, T2, wheelhead, table dresser
- 1 retractable dressing device upon table
- 1 fix dressing device upon table
- 1 dressing device upon workhead

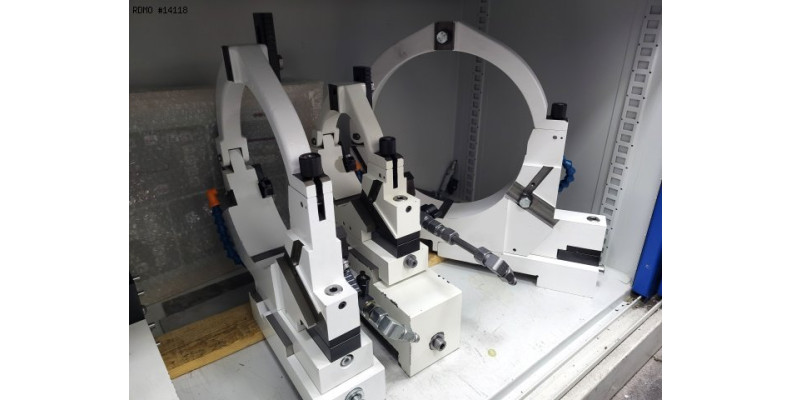

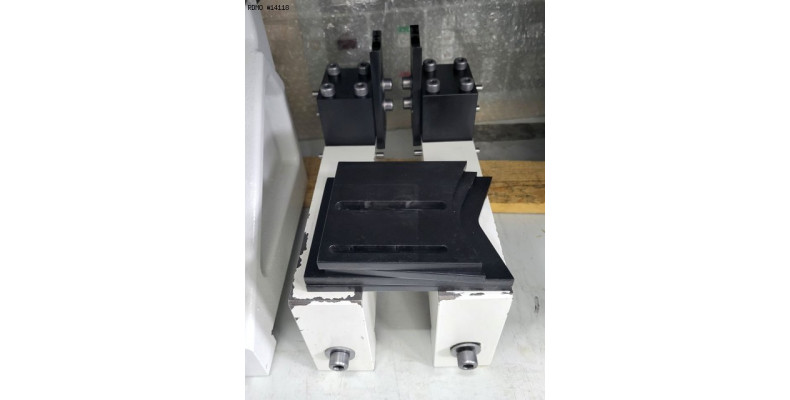

- 2 parts V-supports
- dynamic balancing device for external wheel : DITTEL P6002

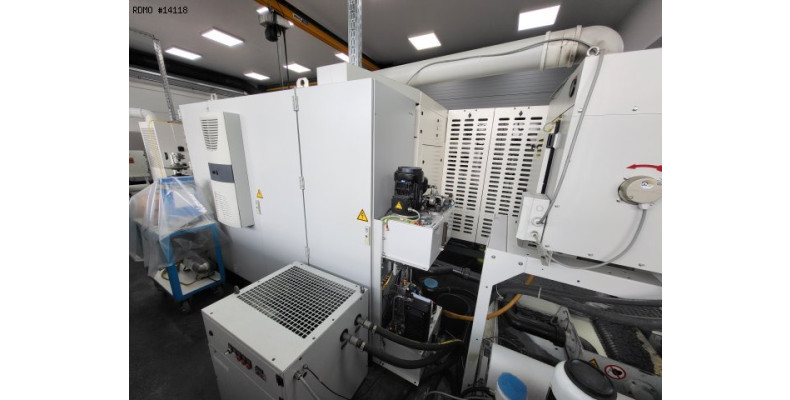

- coolant tank with pump : STREULI SPB6
* with paper filtering unit, width : 1000 [mm]
* with magnetic filter
* with cooling unit : TECHNOTHERM TTK 5000
- cooling unit for wheel-motor : HYDAC FLKS-5L

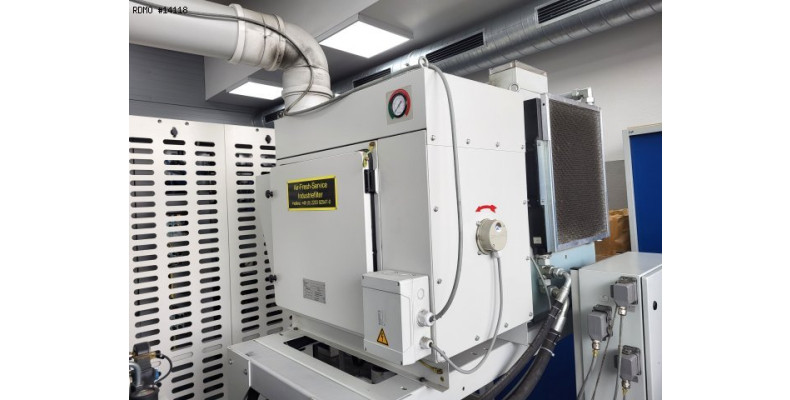

- mist extractor : Air-Fresh-Service FMN-V12

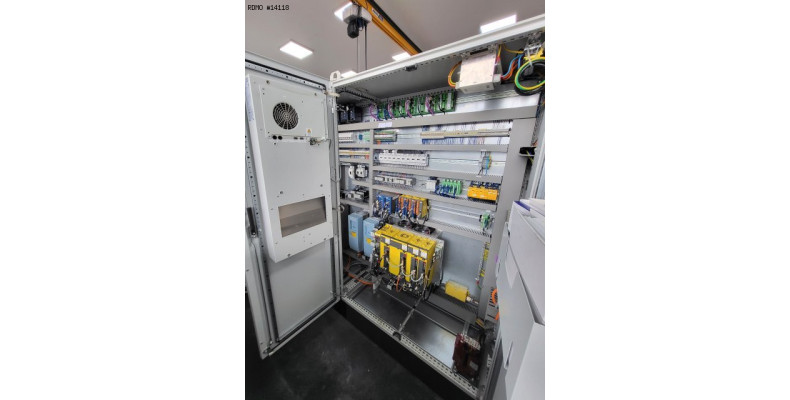

- air conditionning for cabinet : RITTAL SK 3304 140
- 6 outer wheel-holders
- 2 outer wheels

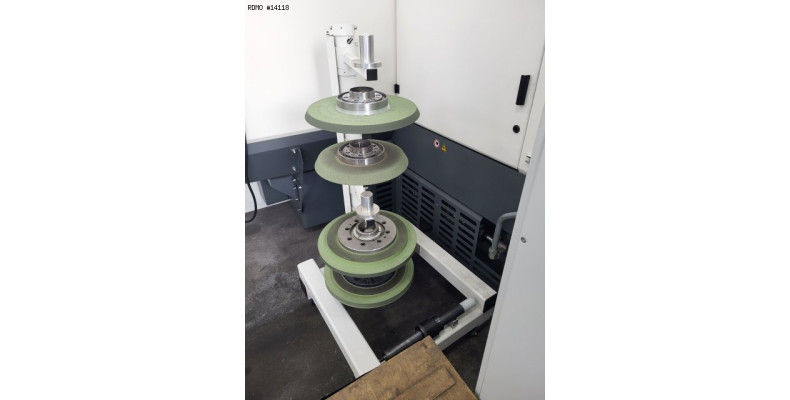

- support for 6 outer wheels
- 1 fix center
- 1 magnetic chuck
- 1 reduction : ISO 50 - CM4
- 3 three-jaw steadies with fine adjustment
