Caratteristiche

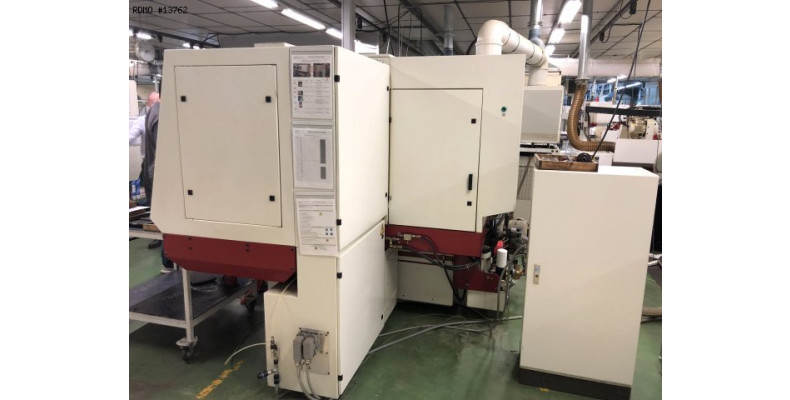

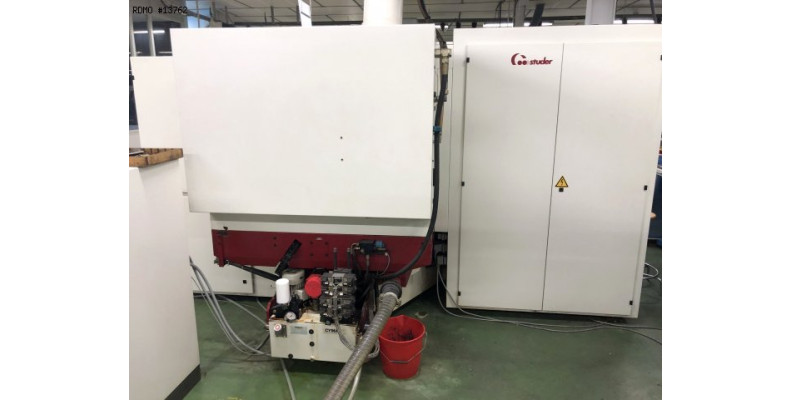

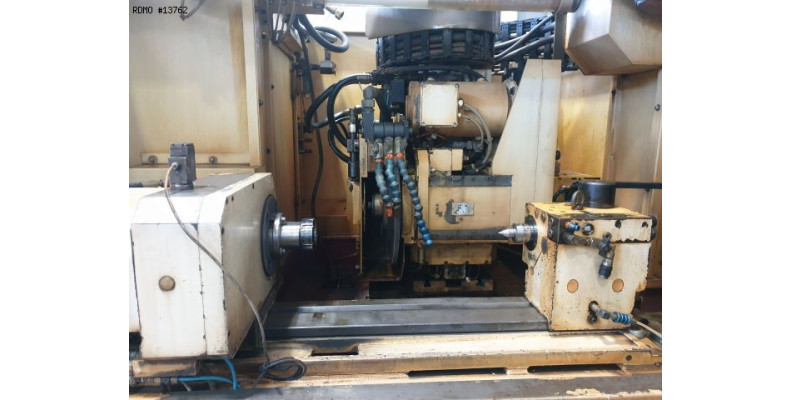

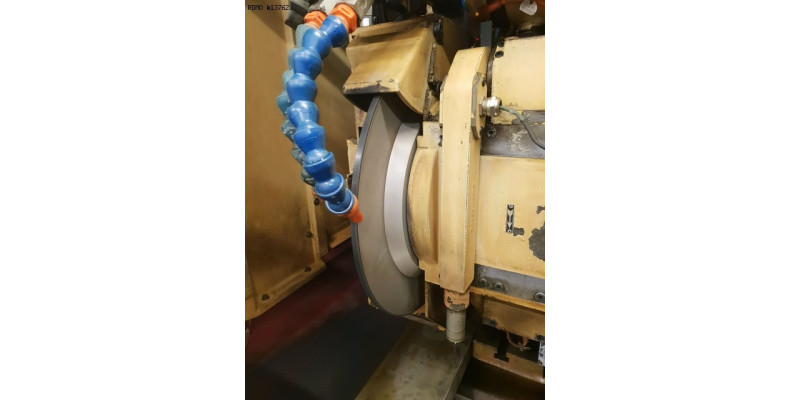

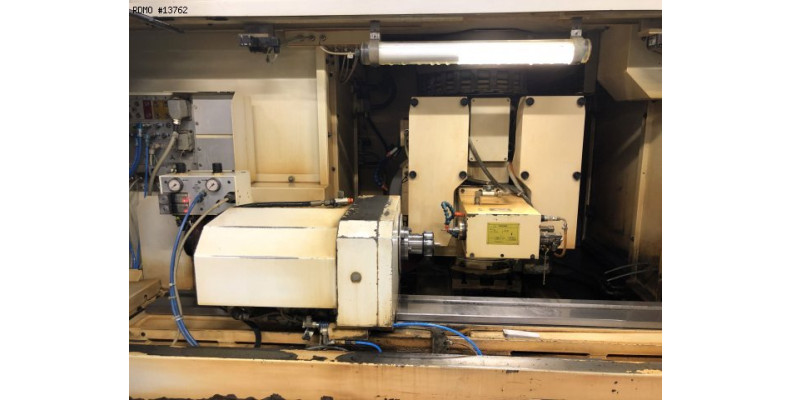

- number of axes : 4 - distance between centers : 1000 [mm] - center height : 175 [mm] - travels (Z/X) : 1.050 x 275 [mm] - feeds max (Z/X) : 10 / 5 [m/min] WHEELHEAD - universal type : 2 external wheels (left & right), 1 internal - external wheel dimensions : 400 x 80 x 127 [mm] - motor power : 7,5 [kW] - speeds : 1.670 - 2.110 [rpm] - swivelling range : -15 to +225 [°] - B-axis indexing precision : 0,001 [°] WORKPIECEHEAD - cone : SA50 - speeds : 1 - 1.027 [rpm] - power : 0,8 [kW] TAILSTOCK - cone : CM3 - quill stroke : 35 [mm] DIMENSIONS - floor space : 3.700 x 2.300 [mm] - height : 2.200 [mm] - weight : 7.000 [kg] HOURS - under power : 48.941 [h]
Attrezzatura

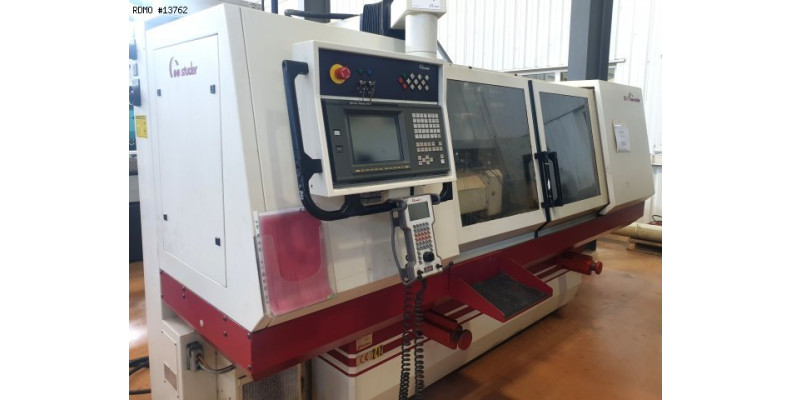

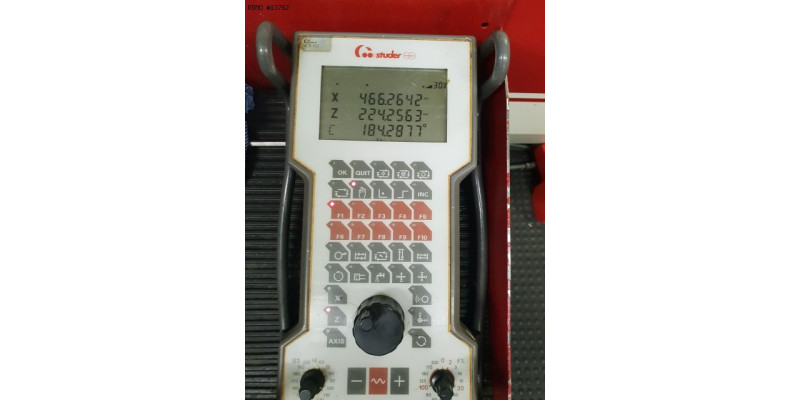

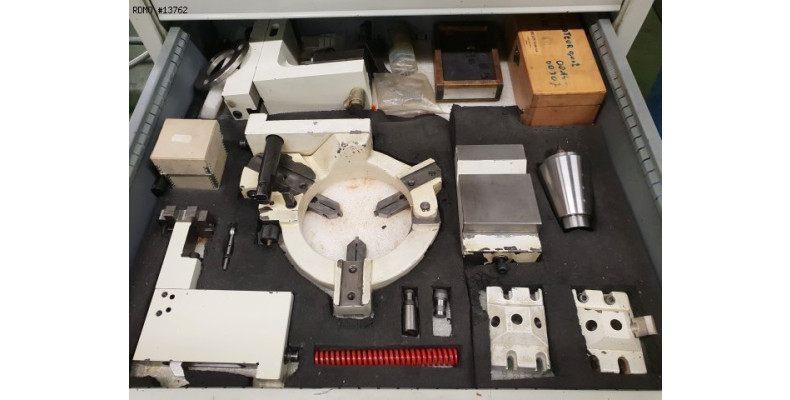

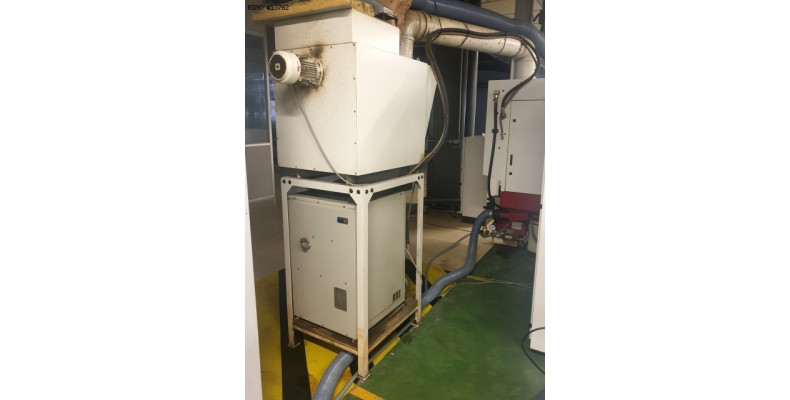

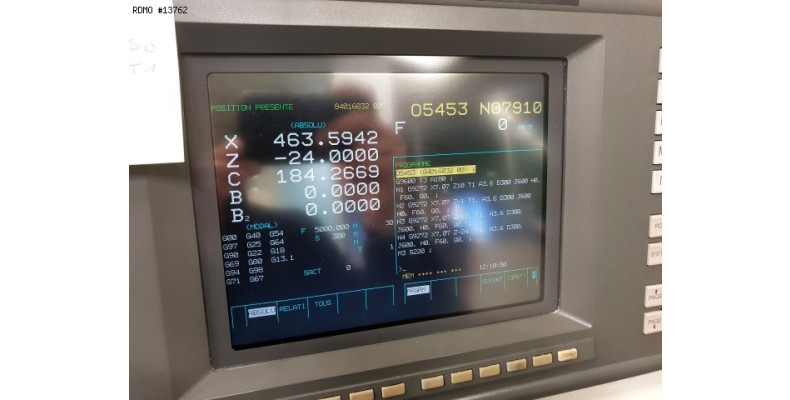

- CNC FANUC 16 TB - options Release B, Quick-Set, STForm & Pictogramming - electronic deported handwheel - 3 colors staus lamp - 1 FISCHER MFV1275 electrospindle for ID : 75.000 [rpm] - fine B-axis for wheelhead indexing - C-axis for workpiece indexing - tailstock with fine adjustment of concentricity - electronic contact detection device : Sensitron - micrometric table swivelling adjustment : 8,5 [°] - MOVOMATIC C65 autocalibration device with length probe - HEIDENHAIN linear scales upon X/Z - dressing device upon table - dressing device upon workpiecehead - dressing device upon tailstock - air cushion lift-off for workpiecehead and tailstock - cooling unit for wheel's motor - pneumatic clamping pot with collet chuck - mist extractor : ERNI SC610/D - 1 OD wheel-holder - 3 OD wheels - collection of ID wheel-holders - collection of fix centers - three-points steady rest Ø : 5 - 140 [mm] - balancing shaft - 7 drawers bench
