Caratteristiche
- distance between centers : 650 [mm]
- centers height : 175 [mm]
- strokes (X/Z) : 285 / 800 [mm]
- table orientation : 0 - 8,5 [°]
- Max. workpiece weight between centers : 80 [kg]
WHEELHEAD
- grinding wheels dimensions : 500 x 63 x 203,2 [mm]
- peripheral speed : 50 [m/sec]
- power : 9 [kW]
- swivelling range (manual) : -15 / +195 [°]
- indexing precision : 2,5 [°]

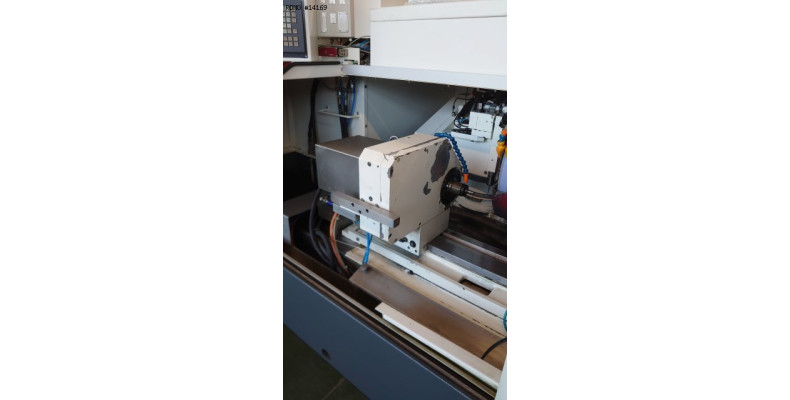

WORKPIECEHEAD
- type of cone: MT5
- speeds : 1 - 1500 [rpm]
- power : 1,8 [kW]
- bore : 30 [mm]
- C axis indexing precision : +/- 0,5 [°]

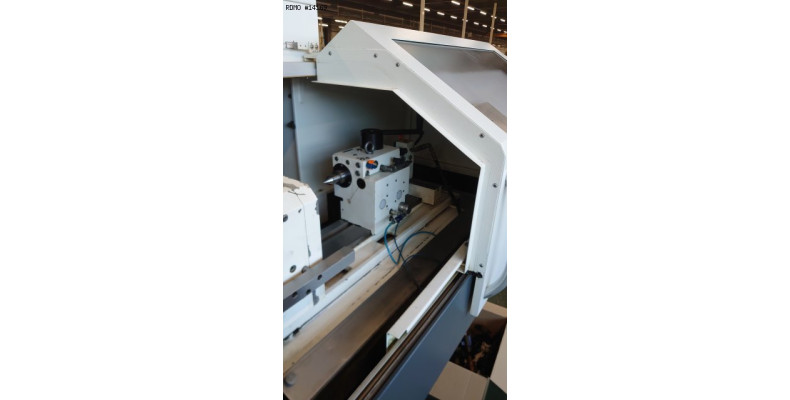

TAILSTOCK
- type of cone: MT4
- quill diameter : 50 [mm]
- quill stroke : 35[mm]
ELECTRICAL SUPPLY
- voltage : 400 [V]
- frequency : 50 [Hz]
- installed power : 20 [kVA]
DIMENSIONS
- floor space : 2.670 x 2.050 [mm]
- height : 1.900 [mm]
- weight : 4.000 [kg]
HOURS
- under power : 3.016 [h]
Attrezzatura

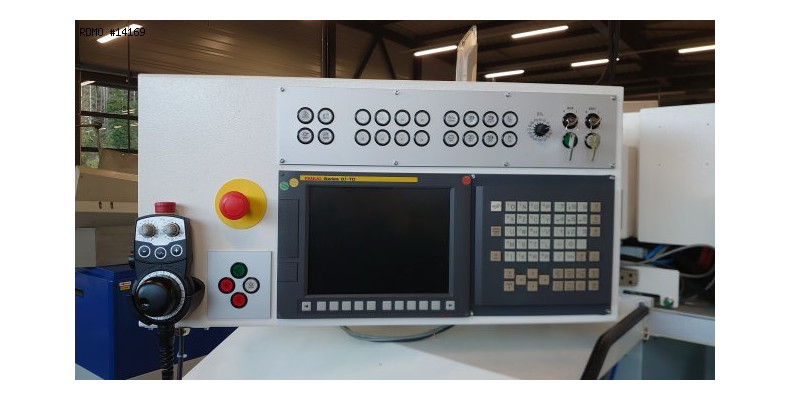

- CNC FANUC FANUC 0i-TD
- 3 colors status lamp
- electronic handwheel
- constant programmable cutting speed
- linear scales on axes X/Z
- air cushion lift-off for all heads
- tailstock
* with fine concentricity adjustment
- electronic contact detection : SENSITRON

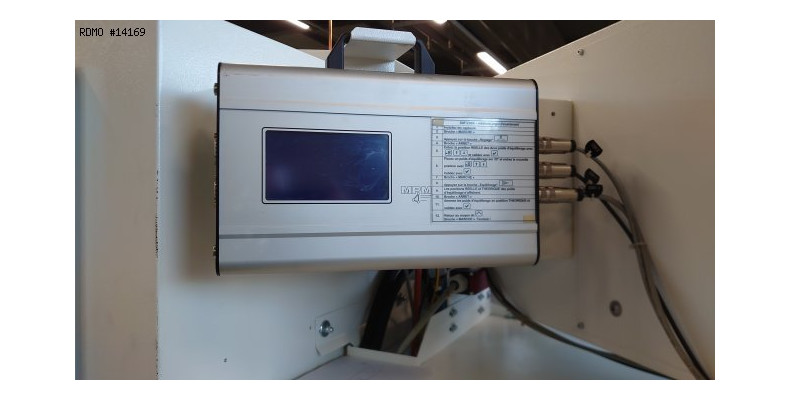

- dynamic balancing device for external wheel : MPM
- dressing device upon tailstock
- air conditionner for electric cabinet

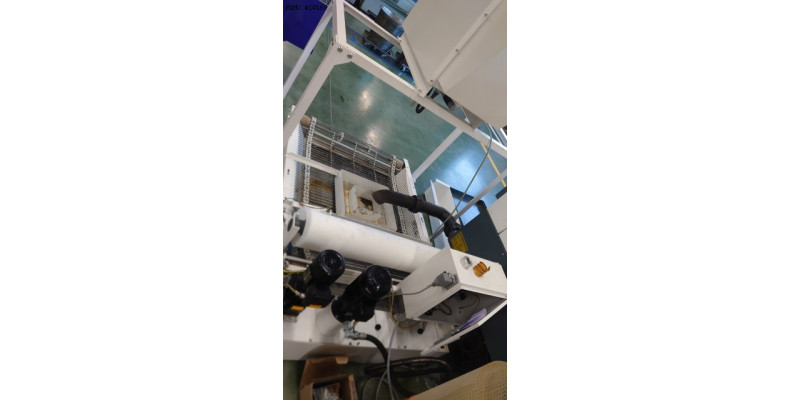

- Coolant tank : Streuli
